Although the AXI interface is frequently used, many may not be aware that Vivado also integrates AXI Verification IP, which can serve as an AXI master, pass-through, and slave. In this content, we will explore how to use the AXI VIP as a master.

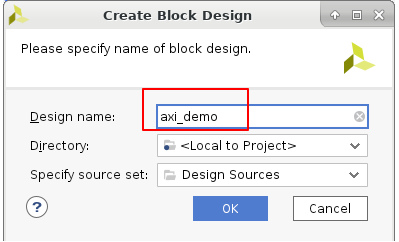

Create a new Vivado project and a new block design named: axi_demo

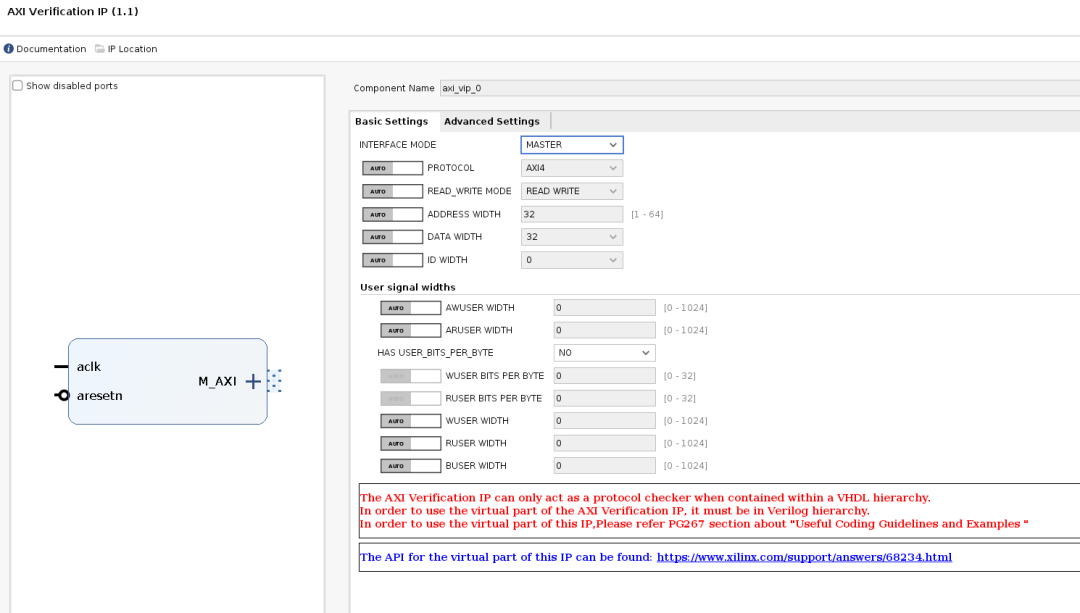

Create a new AXI VIP, with the parameter settings as follows. Set the first parameter to Master, and keep the others as default. Of course, you can modify them according to your actual needs, such as ID width, data width, etc.

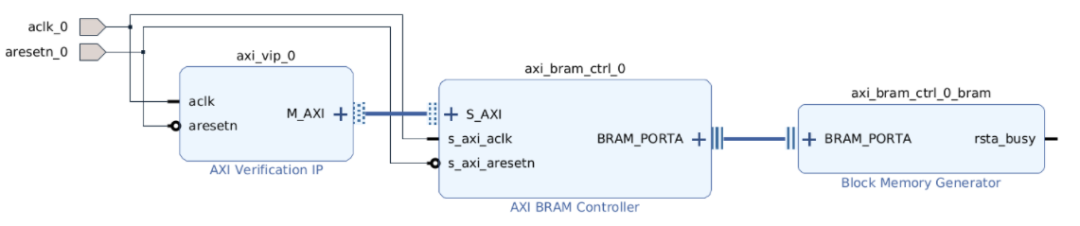

Next, add the AXI BRAM Controller and Block Memory Generator:

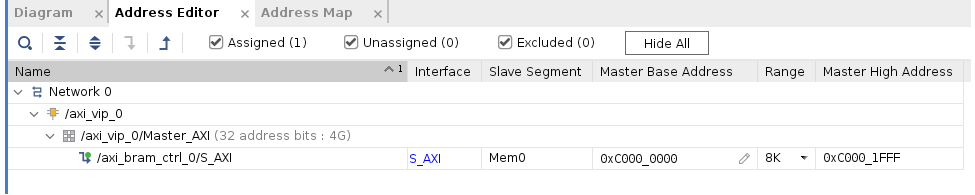

The address allocation is as follows: 0xc000_0000

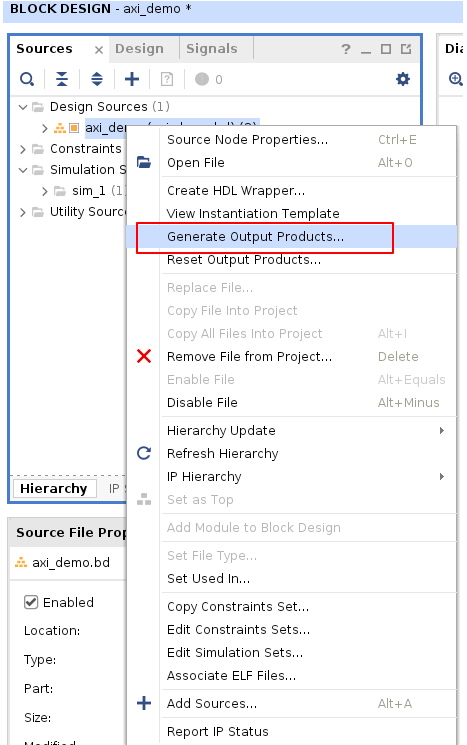

Generate various files for the IP:

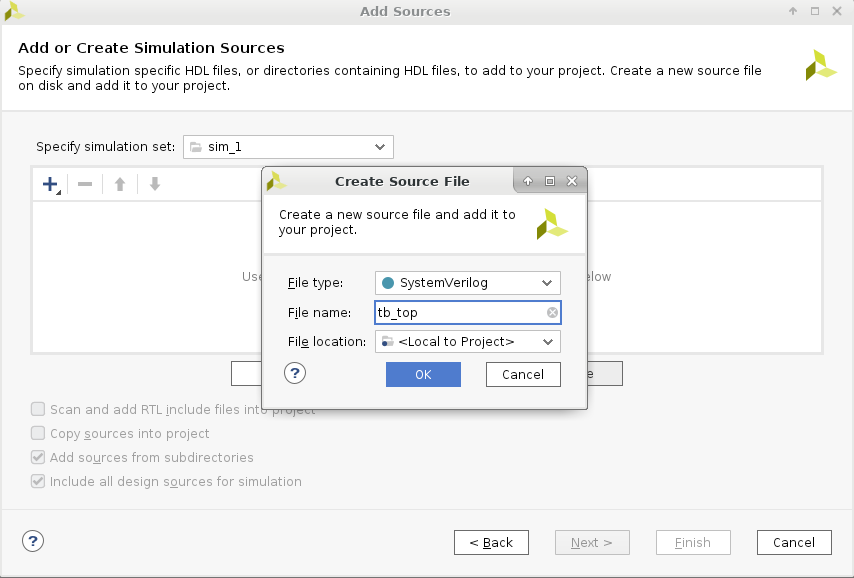

Create a new simulation tb_top file. Note that the file type is System Verilog.

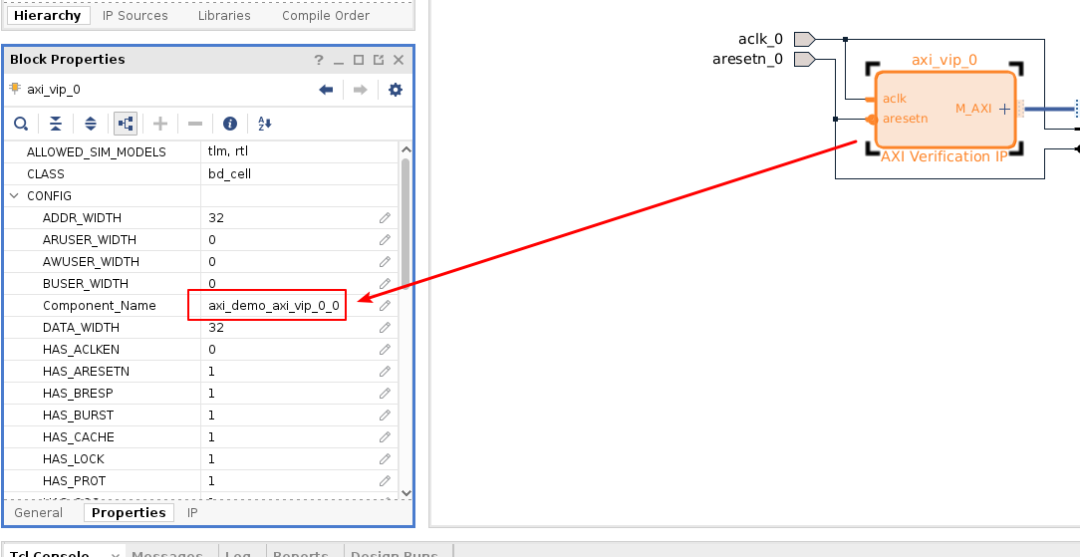

The simulation code is placed at the end of the article. The imported axi_demo_axi_vip_0_0_pkg in the code is the component name of the AXI VIP plus the suffix _pkg. The subsequent mst_agent is also the component name plus the suffix _mst_t.
import axi_demo_axi_vip_0_0_pkg::*;
axi_demo_axi_vip_0_0_mst_t mst_agent;
Run the simulation:

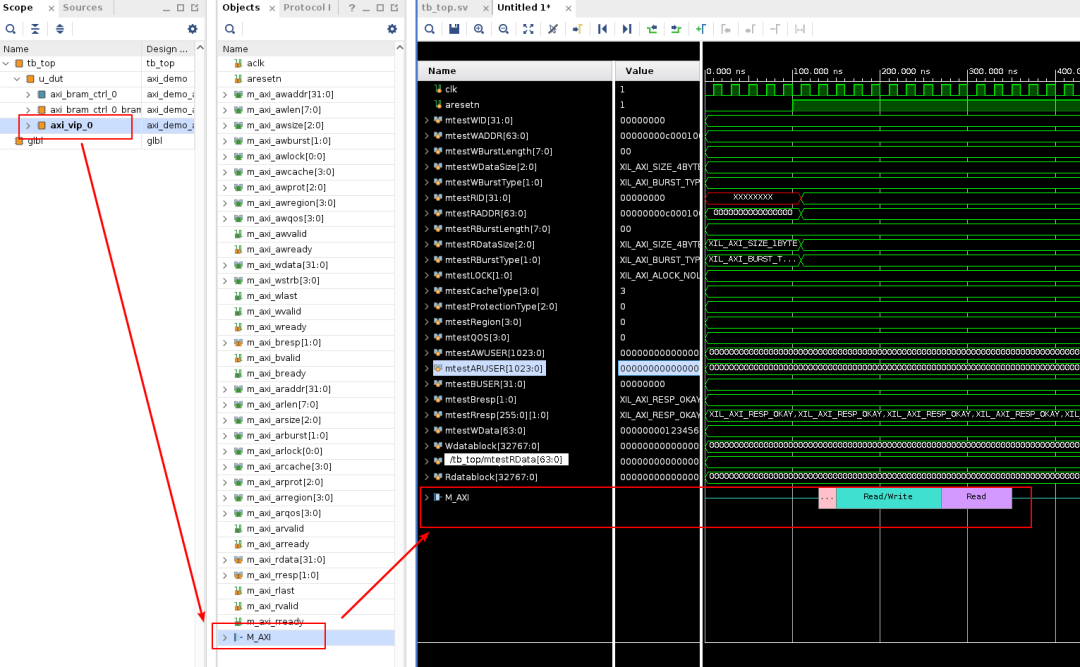

Add the M-AXI of the AXI VIP to the waveform window:

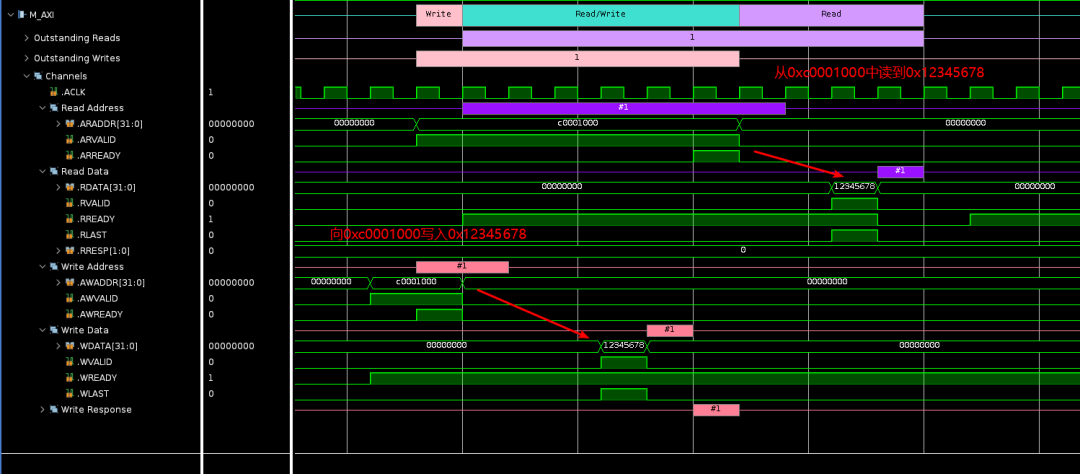

You can see that we initially wrote 0x12345678 to address 0xc0001000 and then initiated a read operation to retrieve that data.
Some students may be accustomed to using VCS for simulation. In the next article, we will use VCS + Verdi to simulate Vivado’s AXI VIP.
`timescale 1ns / 1ps
import axi_vip_pkg::*;
import axi_demo_axi_vip_0_0_pkg::*;
module tb_top();
bit clk;
bit aresetn;
//used in API and parital randomization for transaction generation and data read back from driver
axi_transaction wr_transaction; // Write transaction
axi_transaction rd_transaction; // Read transaction
xil_axi_uint mtestWID; // Write ID
xil_axi_ulong mtestWADDR; // Write ADDR
xil_axi_len_t mtestWBurstLength; // Write Burst Length
xil_axi_size_t mtestWDataSize; // Write SIZE
xil_axi_burst_t mtestWBurstType; // Write Burst Type
xil_axi_uint mtestRID; // Read ID
xil_axi_ulong mtestRADDR; // Read ADDR
xil_axi_len_t mtestRBurstLength; // Read Burst Length
xil_axi_size_t mtestRDataSize; // Read SIZE
xil_axi_burst_t mtestRBurstType; // Read Burst Type
xil_axi_lock_t mtestLOCK; // LOCK value for WRITE/READ_BURST transaction
xil_axi_cache_t mtestCacheType = 3; // Cache Type value for WRITE/READ_BURST transaction
xil_axi_prot_t mtestProtectionType = 3'b000; // Protection Type value for WRITE/READ_BURST transaction
xil_axi_region_t mtestRegion = 4'b000; // Region value for WRITE/READ_BURST transaction
xil_axi_qos_t mtestQOS = 4'b000; // QOS value for WRITE/READ_BURST transaction
xil_axi_data_beat dbeat; // Data beat value for WRITE/READ_BURST transaction
xil_axi_user_beat usrbeat; // User beat value for WRITE/READ_BURST transaction
xil_axi_data_beat [255:0] mtestWUSER; // Wuser value for WRITE/READ_BURST transaction
xil_axi_data_beat mtestAWUSER = 'h0; // Awuser value for WRITE/READ_BURST transaction
xil_axi_data_beat mtestARUSER = 0; // Aruser value for WRITE/READ_BURST transaction
xil_axi_data_beat [255:0] mtestRUSER; // Ruser value for WRITE/READ_BURST transaction
xil_axi_uint mtestBUSER = 0; // Buser value for WRITE/READ_BURST transaction
xil_axi_resp_t mtestBresp; // Bresp value for WRITE/READ_BURST transaction
xil_axi_resp_t[255:0] mtestRresp; // Rresp value for WRITE/READ_BURST transaction
bit [63:0] mtestWData; // Write Data
bit[8*4096-1:0] Wdatablock; // Write data block
xil_axi_data_beat Wdatabeat[]; // Write data beats
bit [63:0] mtestRData; // Read Data
bit[8*4096-1:0] Rdatablock; // Read data block
xil_axi_data_beat Rdatabeat[]; // Read data beats
initial begin
aresetn = 1'b0;
clk = 1'b0;
#100ns;
aresetn = 1'b1;
end
always #10 clk <= ~clk;
axi_demo u_dut(
.aclk_0 (clk ),
.aresetn_0 (aresetn )
);
axi_demo_axi_vip_0_0_mst_t mst_agent;
initial begin
mst_agent = new("master vip agent",u_dut.axi_vip_0.inst.IF);
mst_agent.start_master(); // mst_agent start to run
mtestWID = $urandom_range(0,(1<<(0)-1));
mtestWADDR = 'hc000_1000;//$urandom_range(0,(1<<(32)-1));
mtestWBurstLength = 0;
mtestWDataSize = xil_axi_size_t'(xil_clog2((32)/8));
mtestWBurstType = XIL_AXI_BURST_TYPE_INCR;
mtestWData = 'h12345678;//$urandom();
$display("mtestWDataSize = %d", mtestWDataSize);
//single write transaction filled in user inputs through API
single_write_transaction_api("single write with api",
.id(mtestWID),
.addr(mtestWADDR),
.len(mtestWBurstLength),
.size(mtestWDataSize),
.burst(mtestWBurstType),
.wuser(mtestWUSER),
.awuser(mtestAWUSER),
.data(mtestWData)
);
mtestRID = $urandom_range(0,(1<<(0)-1));
mtestRADDR = mtestWADDR;
mtestRBurstLength = 0;
mtestRDataSize = xil_axi_size_t'(xil_clog2((32)/8));
mtestRBurstType = XIL_AXI_BURST_TYPE_INCR;
$display("mtestRDataSize = %d", mtestRDataSize);
//single read transaction filled in user inputs through API
single_read_transaction_api("single read with api",
.id(mtestRID),
.addr(mtestRADDR),
.len(mtestRBurstLength),
.size(mtestRDataSize),
.burst(mtestRBurstType)
);
end
task automatic single_write_transaction_api (
input string name ="single_write",
input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR,
input xil_axi_lock_t lock = XIL_AXI_ALOCK_NOLOCK,
input xil_axi_cache_t cache =3,
input xil_axi_prot_t prot =0,
input xil_axi_region_t region =0,
input xil_axi_qos_t qos =0,
input xil_axi_data_beat [255:0] wuser =0,
input xil_axi_data_beat awuser =0,
input bit [63:0] data =0
);
axi_transaction wr_trans;
$display("single_write_transaction_api size = %d", size);
wr_trans = mst_agent.wr_driver.create_transaction(name);
wr_trans.set_write_cmd(addr,burst,id,len,size);
wr_trans.set_prot(prot);
wr_trans.set_lock(lock);
wr_trans.set_cache(cache);
wr_trans.set_region(region);
wr_trans.set_qos(qos);
wr_trans.set_data_block(data);
mst_agent.wr_driver.send(wr_trans);
endtask : single_write_transaction_api
task automatic single_read_transaction_api (
input string name ="single_read",
input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR,
input xil_axi_lock_t lock =XIL_AXI_ALOCK_NOLOCK ,
input xil_axi_cache_t cache =3,
input xil_axi_prot_t prot =0,
input xil_axi_region_t region =0,
input xil_axi_qos_t qos =0,
input xil_axi_data_beat aruser =0
);
axi_transaction rd_trans;
$display("single_read_transaction_api size = %d", size);
rd_trans = mst_agent.rd_driver.create_transaction(name);
rd_trans.set_read_cmd(addr,burst,id,len,size);
rd_trans.set_prot(prot);
rd_trans.set_lock(lock);
rd_trans.set_cache(cache);
rd_trans.set_region(region);
rd_trans.set_qos(qos);
mst_agent.rd_driver.send(rd_trans);
endtask : single_read_transaction_api
endmodule
