The development plan for the pump control mainboard PCBA includes a waterproof design for the pump driver circuit board and customizable circuit boards.
The pump control mainboard PCBA solution is a high-current motor drive solution with extremely stringent requirements for motor drive power, waterproof reliability, overload protection, and control logic in the fields of industrial control, agricultural irrigation, and water treatment. Its core is an industrial-grade MCU with high reliability, ADC, and advanced timers, which collects sensor signals such as water pressure, flow, and liquid level, and uses PWM or relays to precisely control the start, stop, and speed of single-phase/three-phase pump motors. It also integrates overcurrent, overvoltage, phase loss, and dry running protection functions to achieve intelligent features such as constant pressure water supply, liquid level control, and timed irrigation, ensuring long-term stable operation of the system.
As a PCBA solution provider with rich safety design and strict quality control experience in the field of industrial motor drives and harsh environment applications, we fully understand your extreme pursuit of driving capability, waterproof rating, protective measures, and long-term reliability. We can provide you with a complete solution for the pump control board PCBA that is powerful in driving, comprehensive in protection, waterproof and durable, and stable and reliable.
**Core Solution: One-stop Solution for Pump Control Mainboard PCBA (Powerful Driving, Comprehensive Protection, Waterproof and Durable)

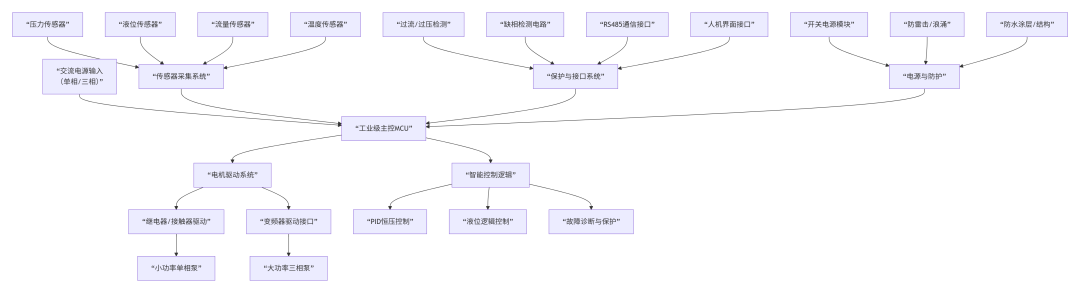

To help you quickly understand its technical implementation as the “smart water control core,” the following diagram clearly shows its system architecture:
1. Technical Solution Details (Driving, Sensing, Protection)
1. Powerful Motor Drive System (Core)
-
Driving Solution:
-
Small Power Pumps (<2.2kW): Use high-power relays or AC contactors to directly control motor start and stop.
-
Large Power Pumps (≥2.2kW): Provide inverter control interface, control the inverter via RS485 communication, achieving soft start, speed regulation, and energy-saving operation.
-
Control Mode: Supports manual control and automatic control (pressure, liquid level, time).
2. Comprehensive Sensing and Protection System (Foundation of Reliability)
-
Sensor Interfaces: Integrates pressure, liquid level, flow, temperature and other sensor interfaces, for real-time monitoring of system status.
-
Electrical Protection: Built-in overcurrent protection, overvoltage protection, undervoltage protection, phase loss protection circuits.
-
Fault Protection: Achieves dry running protection, overload protection, motor overheating protection, preventing equipment damage.
3. Industrial-grade Reliability and Protection (Environmental Adaptability)
-
Waterproof Design: The PCBA board is coated with three-proof paint, key interfaces use waterproof connectors, and the overall protection level can reach IP65 or higher.
-
Power Supply Design: Uses industrial-grade switching power supply modules, with a wide input voltage range, and strong anti-interference capability.
-
Communication Interfaces: Integrates RS485 interface, supports Modbus RTU protocol, and can connect to PLC or upper computer systems.
2. Key Performance Indicators (Industrial Grade)
|
Performance Parameters |
High Specification Version |
Design and Testing Standards |
|---|---|---|
|
Motor Power |
Supports single-phase 220VAC (<3kW) and three-phase 380VAC (controlled via inverter) |
Strong driving capability, suitable for most scenarios |
|
Protection Level |
PCBA board: IP65 (three-proof paint); Controller housing: IP65/IP66 |
Moisture-proof, dust-proof, suitable for harsh environments |
|
Control Accuracy |
Pressure control accuracy ±0.2 Bar |
Stable constant pressure water supply |
|
Communication Interface |
RS485, Modbus RTU protocol |
Facilitates system integration |
3. Advantages of the Solution
-
Powerful Driving: Can drive pumps of different powers, with a wide range of applications.
-
Comprehensive Protection: Multiple electrical and fault protections, ensuring safe and reliable system operation.
-
Waterproof and Durable: Industrial-grade protective design, long service life.
-
Intelligent Control: Supports multiple control modes, high degree of automation.
4. Application Scenarios
-
Constant Pressure Water Supply: Water supply for buildings and villas.
-
Agricultural Irrigation: Automatic irrigation for farmland and greenhouses.
-
Industrial Water Circulation: Cooling towers, circulating water systems.
5. Recommended Chip Solutions (High Reliability)
|
Functional Module |
Recommended Chip (High Reliability) |
Features |
|---|---|---|
|
Main Control MCU |
ST/ Domestic Industrial-grade MCU |
High reliability, strong anti-interference |
|
Power Management |
Dedicated Industrial Switching Power Supply Chip |
High efficiency, stable and reliable |
6. Information Required from You
To provide you with the most accurate solution and quotation, please clarify the following key decision parameters:
|
Details for Your Confirmation |
Purpose |
|---|---|
|
1. Pump Parameters and Control Mode |
What is the power and voltage (single-phase/three-phase) of the pump? Do you need constant pressure water supply, liquid level control, or timed control?** |
|
2. Protection Level and Installation Environment |
What is the target protection level of the product (e.g., IP65)? What is the installation environment (e.g., indoor, outdoor)?** |
|
3. Project Stage and Quantity |
Is it sample development testing or bulk procurement? What is the approximate quantity and timeline?** |
We look forward to your detailed requirements! The pump controller is an industrial product with extremely high reliability requirements. With our experience in industrial control and harsh environment applications, we will work closely with you to provide high-reliability PCBA solutions from power supply design, drive selection, protection circuits to protective processes.
