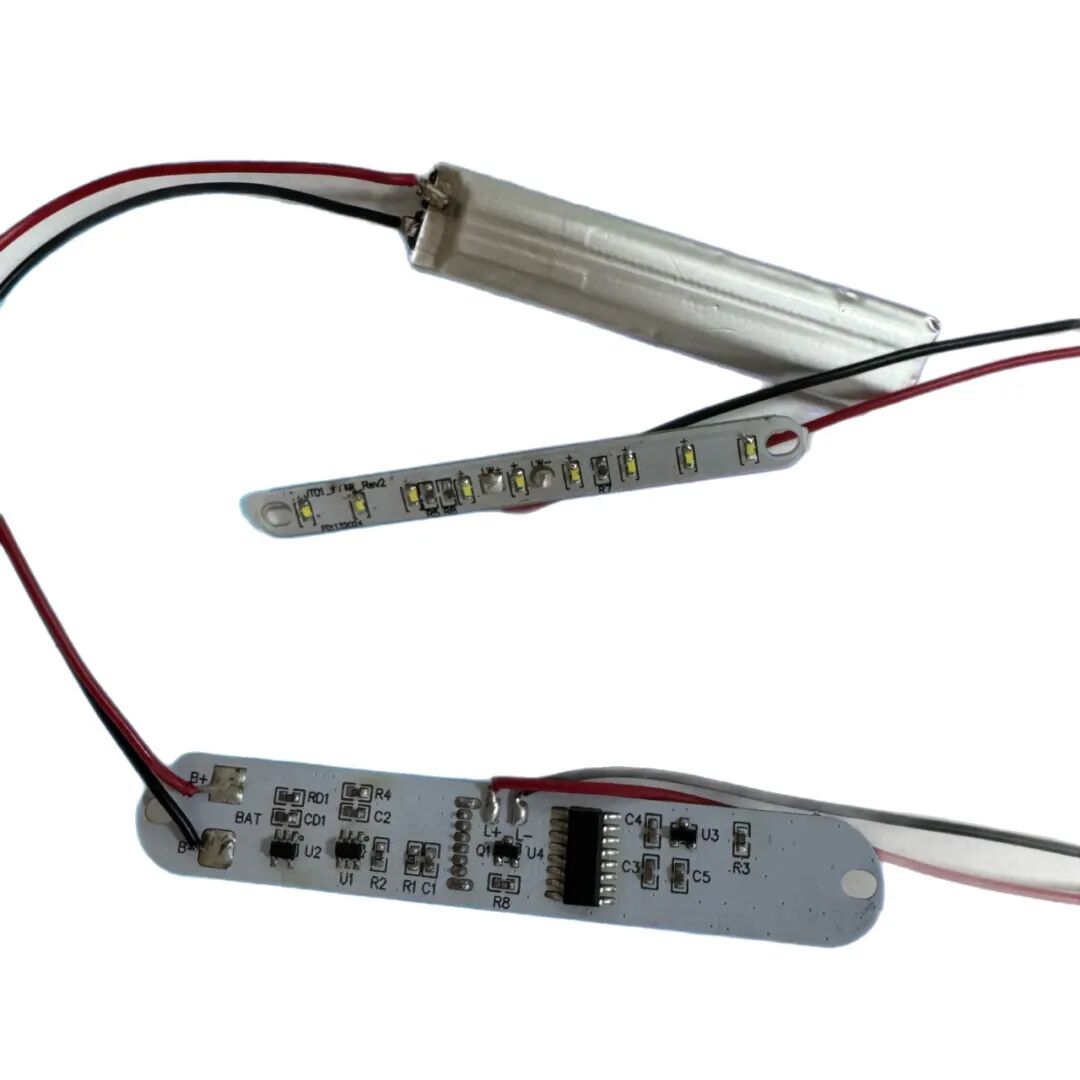

Custom Helmet Flashlight Bicycle Tail Light Mainboard PCBA Circuit Board Development and Production

Custom Helmet Flashlight Bicycle Tail Light Mainboard PCBA Circuit Board Development and Production

The Helmet Flashlight/Bicycle Tail Light PCBA Mainboard is a smart lighting product with core requirements for light efficiency patterns, power consumption control, structural adaptability, environmental reliability, and cost in outdoor sports safety products.

Its core isdriven by a low-power, highly integrated MCU, which drives multiple high-brightness LEDs to achieve various flashing modes (such as steady, slow flash, fast flash, breathing, running light, etc.), and integrates vibration sensors or light-sensitive sensors to realize automatic start-stop and intelligent light control, providing stable, eye-catching, and long-lasting safety warning functions in complex environments.

As aPCBA solution provider with rich experience in waterproof structures and low-power designs in the field of smart lighting and outdoor electronic products, we fully understand your extreme pursuit oflight efficiency visibility, endurance, waterproof rating, installation convenience, and structural strength. We provide you with a complete solution forhigh brightness, energy-saving, waterproof, and reliable helmet flashlights/bicycle tail lights PCBA, and supportsolution development, prototyping, and mass production.

**Core Solution: One-Stop Solution for Helmet Flashlight/Bicycle Tail Light PCBA (High Brightness, Energy Saving, Waterproof, Reliable)

The core of this solution is based on ahigh-efficiency LED driver + intelligent sensing control + robust waterproof structure architecture.

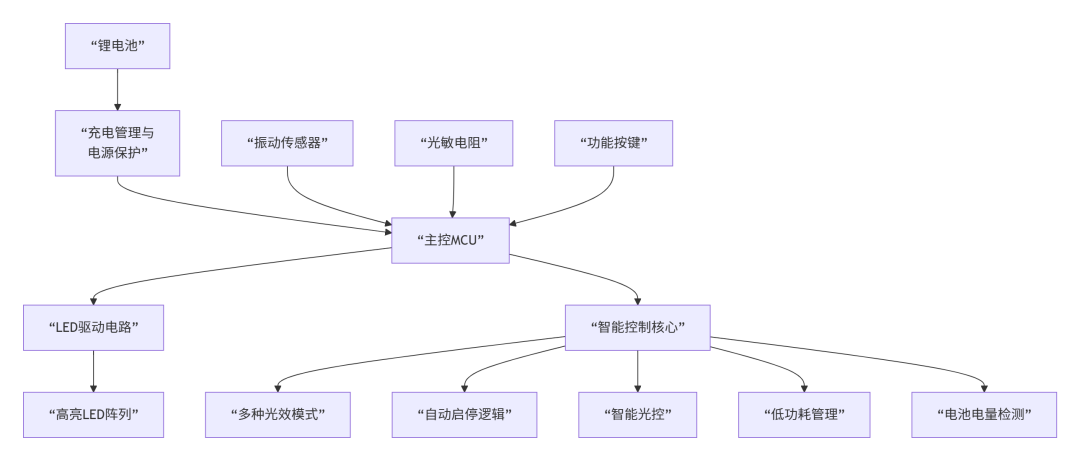

System Architecture Block Diagram

1. Technical Solution Details (Optics, Control, Power Supply)

1. High Brightness Optical System (Core Technology)

• LED Selection: Usehigh brightness, wide-angle LEDs,with uniform light emission.

• Optical Design: PC material or PMMA lens,with soft light.

2. Intelligent Control System

• Light Efficiency Modes: Supportssteady, slow flash, fast flash, breathing, and other modes.

• Intelligent Sensing: Vibration sensing start-stop,light control automatic adjustment.

3. Efficient Power Supply System

• Charging Management: Supports lithium battery charging,with charging protection.

• Low Power Design: Low standby power consumption,long endurance time.

2. Key Performance Indicators (Safety and Reliability)

Performance Parameters	Typical Specifications	Testing Conditions
LED Brightness	> 20 lumens	Standard Testing
Light Efficiency Modes	≥5 modes	User switchable
Endurance Time	> 10 hours	Steady mode
Waterproof Rating	IPX6/IPX7	Heavy rain/submersion
Charging Time	< 2 hours	5V/1A input

3. Advantages of the Solution

• High Brightness Warning: Multiple light effects, good warning effect.

• Intelligent Control: Automatic sensing, easy to use.

• Waterproof and Durable: High waterproof rating, suitable for harsh environments.

• Long Endurance: Low power design, long endurance time.

4. Design Points

• Waterproof Design: Structural waterproofing and sealing design are key.

• Heat Dissipation Design: LEDs require consideration of heat dissipation during long-term operation.

5. Recommended Chip Solutions (Low Power)

Chip Platform	Features	Applicable Products
Microchip SC8P Series	High cost-performance ratio,low power consumption	Economical tail lights
Holtek HT66F Series	Strong anti-interference,good stability	Mainstream tail lights

6. Specific Requirements for Your Confirmation

To provide you with the most accurate solution and quotation, please clarify the following details:

Customization Items	Details You Need to Confirm
1. Performance Parameters	What are the requirements for LED brightness, endurance time, and waterproof rating?
2. Functional Requirements	What functions are needed (such as intelligent sensing, multiple light effects)?
3. Target Cost	Do you have a rough expectation for thetarget cost per PCBA board?

We look forward to your detailed requirements! We will create a safe helmet flashlight/bicycle tail light for you.
