Technical Training01Control Requirements
Weilun Touch Screen Communication with Mitsubishi FX3U BD Board
02Hardware Devices
-
Weilun Touch Screen
-
Mitsubishi FX3U PLC
-
FX3U-BD Board
03Software
-
GX Works2
-
Utility Manager
04Wiring
1. Pin Arrangement Diagram
|
Weilun COM2 Pin |
485 BD Board |
|
7RX- |
SDB |
|
6RX+ |
SDA |
|
9TX- |
RDB |
|
8TX+ |
RDA |
|
5GND |
GND |
2. Weilun Communication Terminal Definitions

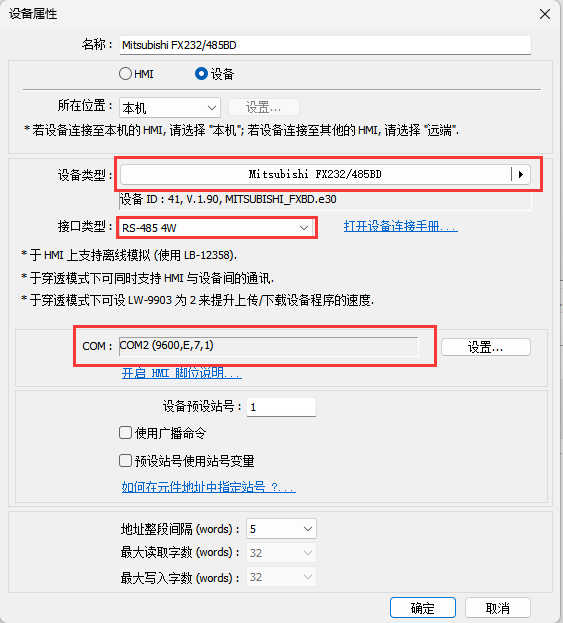

05Weilun Touch Screen Settings
>>>>
The settings for the Weilun Touch Screen are as follows:
Device Type Selection: Mitsubishi FX232/485BD
Interface Type: RS-485 4W
Serial Port Selection: COM2 (Should be set according to the serial port where the touch screen provides RS-485)
Baud Rate (9600), No Parity (N), Data Length (7), Stop Bit (1)

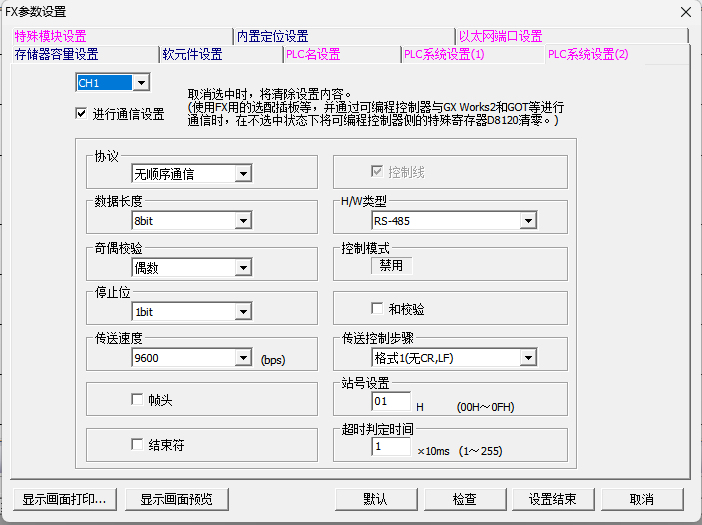

06PLC Settings
>>>>
The settings for the Mitsubishi PLC are as follows:
In the PLC System Settings (1), check Channel 1;
Protocol uses non-sequential communication, Data Length 8bit, Even Parity, Stop Bit 1, Transmission Speed set to 9600, Type set to 485, Station Number set to 1.
