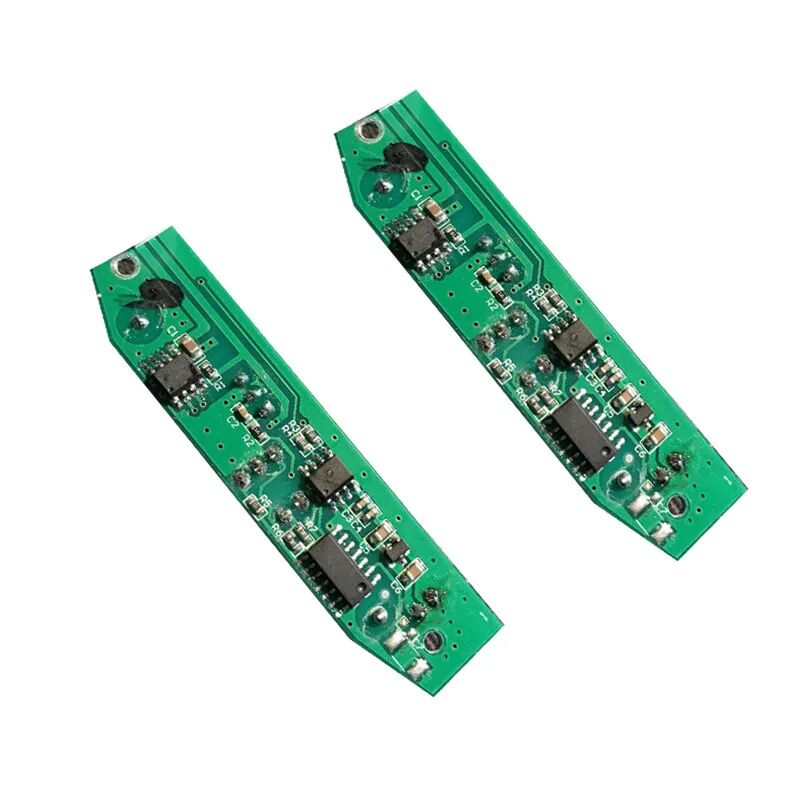

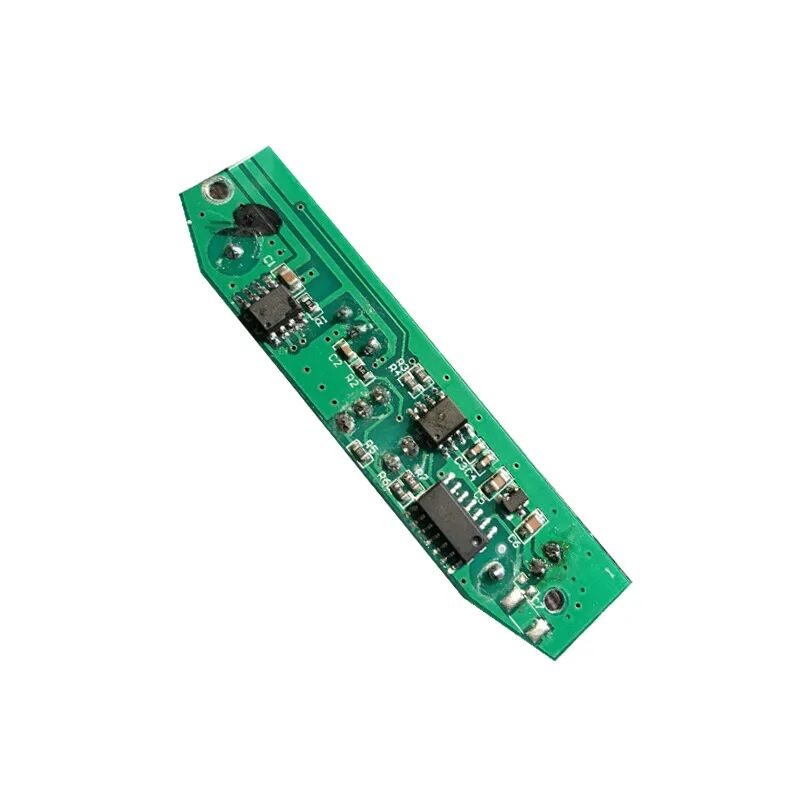

Smart Sensor Trash Can Circuit Board PCBA Solution for Small Appliances and Multi-functional Sensor Circuit Board
The Smart Sensor Trash Can PCBA solution is an electromechanical integration solution with high requirements for sensitivity, motor control reliability, power consumption, and hygiene safety in the fields of smart home and small appliances. Its core is to detect the proximity of hands or objects using a high-sensitivity, low-power sensing chip (such as infrared or radar), and drive the motor to precisely control the automatic opening and closing of the lid, achieving a contactless experience of “wave to open, automatic close,” effectively avoiding cross-contamination of bacteria and improving hygiene levels in kitchens and bathrooms.
As a PCBA solution provider with extensive mass production experience and strict quality control in the field of smart small appliances and motor control, we are very familiar with these requirements. We can provide you with a complete solution for the smart sensor trash can PCBA based on high-performance sensing chips and motor drive solutions that are sensitive, stable in operation, low in power consumption, and hygienically safe.
**Core Solution: One-stop Smart Sensor Trash Can PCBA Solution (Sensitive, Stable Operation, Low Power Consumption)

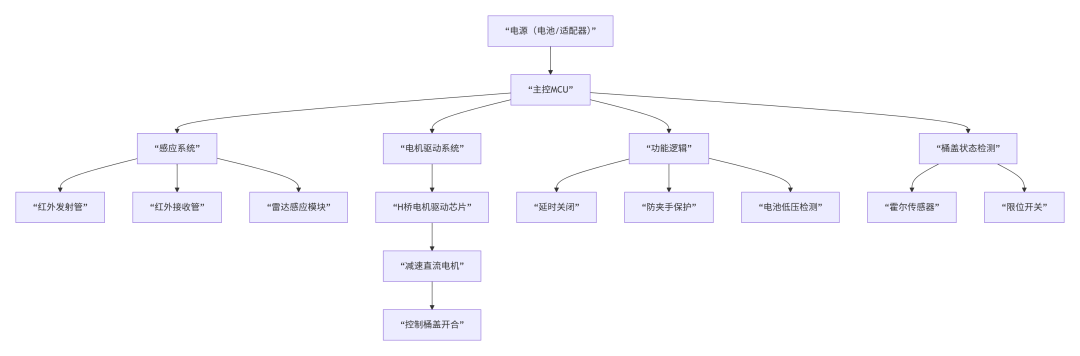

To help you quickly understand our technical implementation, the following diagram clearly shows the complete system architecture of the smart sensor trash can:
1. Technical Solution Details (Sensing, Driving, Control)
1. High Sensitivity Sensing System (Smart Core)
-
Sensing Technology:
-
Infrared Sensing:Detects infrared signals reflected by hands,low cost,mature technology.
-
Radar Sensing:Detects micro-movements of the human body,high sensitivity,can detect from a distance.
-
Sensing Logic:Supportswave hand to open lid,kick to open lid (requires specific structure),automatic lid closing (adjustable delay).
2. Stable Motor Drive System (Execution Foundation)
-
Driving Method:Uses H-bridge motor driver chip,precisely controls motor forward and reverse rotation,achieves smooth opening and closing of the lid.
-
Motor Selection:Uses low-noise DC gear motor,sufficient torque,stable operation.
3. Intelligent Safety Control System (Experience Assurance)
-
Safety Protection:Supportsanti-pinch function (rebound when obstructed),low battery protection,motor overcurrent protection.
-
Lid Detection:Detects the opening and closing status of the lid using Hall sensors or limit switches,prevents motor stalling.
2. Key Performance Indicators (Excellent Experience)
|
Performance Parameters |
High-end Version Specifications |
Testing Conditions |
|---|---|---|
|
Sensing Distance |
0-35 cm adjustable |
Moderate sensing range,avoids false triggering |
|
Sensing Angle |
120 degrees |
Wide sensing range |
|
Opening Time |
< 0.5 seconds |
Fast response |
|
Standby Power Consumption |
< 100 microamps |
Long battery life (6-8 months) |
3. Solution Advantages
-
Sensitive Sensing:High sensitivity sensor,fast and accurate response.
-
Stable Operation:High-quality motor and drive solution,smooth opening and closing of the lid.
-
Safe and Reliable:Multiple safety protections,peace of mind during use.
-
Energy-saving and Environmentally Friendly:Low power consumption design,long battery life.
4. Application Scenarios
-
Kitchen:Avoid contaminating the kitchen environment when handling garbage.
-
Bathroom:Avoid contact with the trash can,more hygienic.
-
Living Room/Office:Enhance the quality and convenience of the space.
5. Recommended Chip Solutions (High Cost Performance)
|
Function Module |
Recommended Chip (High Reliability) |
Features |
|---|---|---|
|
Main Control MCU |
Domestic MCU |
High cost performance,low power consumption |
|
Motor Drive |
Dedicated Motor Driver IC |
Strong driving capability,built-in protection |
6. Information Required from You
To provide you with the most accurate solution and quotation, please clarify the following information:
|
Details to Confirm |
Purpose |
|---|---|
|
1. Functional Requirements |
What sensing methods are needed? What are the requirements for the lid opening and closing? |
|
2. Power Supply Method |
Will you use batteries or an adapter? |
|
3. Procurement Scale |
Is it for sample needs or bulk plans? What is the approximate quantity needed? |
We look forward to your detailed requirements! We can provide you with a complete PCBA solution, from sensing design, motor control to structural adaptation, helping you create a user-friendly smart sensor trash can.
