Authors: Nebu Philips, Senior Director of Strategy and Business Development at Synaptics
David Steele, Director of Innovation at Arcturus Networks
Engineers face numerous challenges when developing AI-based embedded vision systems, including model selection, hardware compatibility, and dataset organization.

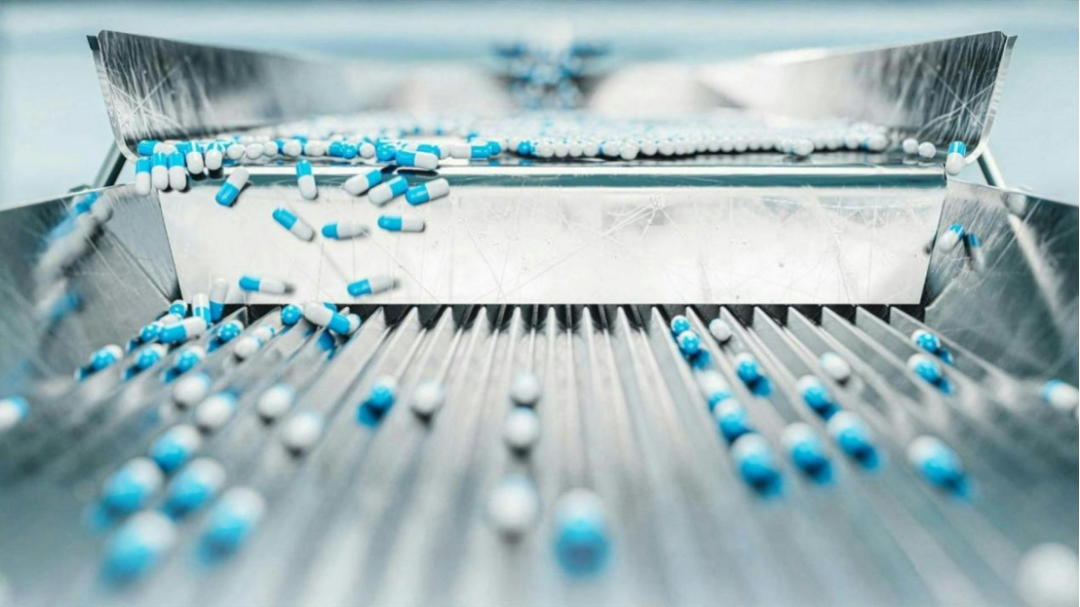

Figure 1: A specific use case of AI-powered industrial machine vision is “production line cleaning inspection.” This is a critical process in pharmaceutical manufacturing to ensure that all materials, labels, and records from the previous batch are thoroughly cleared before starting a new batch. Compared to traditional manual inspections, optimized embedded edge AI solutions can significantly enhance speed, accuracy, and compliance.
Industrial manufacturers are increasingly leveraging machine learning and AI-driven vision systems to enhance safety and quality. In industries such as pharmaceuticals, electronics, and automotive, AI-based inspection technologies can identify anomalies, ensure product consistency, and verify safety compliance.
However, to meet the stringent requirements for low latency, high bandwidth, and privacy in these scenarios, the inference process must be completed at the edge, complicating the development process. Edge AI is still in its developmental stage, and despite high interest, most companies face many challenges in implementing edge AI. While manufacturers know they need to modernize, many are unsure where to start.
This article explores the six common challenges faced by industrial enterprises when integrating edge AI into vision systems and explains how next-generation embedded processing solutions can achieve higher levels of intelligence at the edge.
1. Development Complexity: Steep Learning Curve
For teams new to edge AI, the entry barrier is high. Building an effective AI vision pipeline requires:
– Organizing high-quality datasets for model training
– Selecting the appropriate neural network architecture, such as:
-
ResNet (Residual Network): A deep convolutional neural network (CNN) architecture that addresses the vanishing gradient problem through residual connections (skip connections). These connections allow the model to learn identity mapping functions, significantly simplifying the training process of ultra-deep networks. Suitable for feature extraction in image classification or vision tasks.
-
MobileNet: A series of lightweight CNN architectures optimized for mobile and embedded vision applications. It uses depthwise separable convolutions to significantly reduce the number of parameters and computational load. Suitable for on-device image recognition or object detection on smartphones or edge devices.
-
YOLO (You Only Look Once): A real-time object detection system that transforms the detection task into a single regression problem, predicting bounding boxes and class probabilities directly from the full image in one evaluation. Suitable for fast object detection in real-time video, robotics, and surveillance scenarios.
-
Ensuring compatibility between model layers and the selected hardware and inference engine (typically a software component optimized for specific hardware that executes pre-trained AI models on edge devices to generate predictions, known as “inference”) without relying on cloud servers.
Each step requires expertise. Even using off-the-shelf models, adjusting and adapting them for real-time industrial environments is highly challenging.
To accelerate this process, developers are turning to low-code/no-code development stacks built on open-source edge AI frameworks, along with well-documented APIs. These tools collectively hide much of the complexity of machine learning, allowing teams to build, test, and deploy models faster without deep expertise in deep learning.
2. Dependency Risks: Managing Interconnected Software Components
The software environment for running edge AI is highly complex. Each network processing unit (NPU) vendor typically provides its own tools, compilers, and runtime libraries, many of which are tightly coupled with specific versions of the main operating system, runtime environment, and model frameworks. Updating just one component can break compatibility with others.
This challenge can be simplified through containerization architecture—a model deployment method that encapsulates AI components (such as inference engines, models, APIs, and preprocessing code) into containers, ensuring consistent operation across different environments. AI applications often have complex dependencies, such as specific Python versions, libraries (like TensorFlow, PyTorch), hardware drivers (like CUDA), and custom code. Containers simplify the deployment process by packaging these together.
Pre-integrated and pre-validated software stacks eliminate guesswork, shorten time to value, and reduce support burdens.

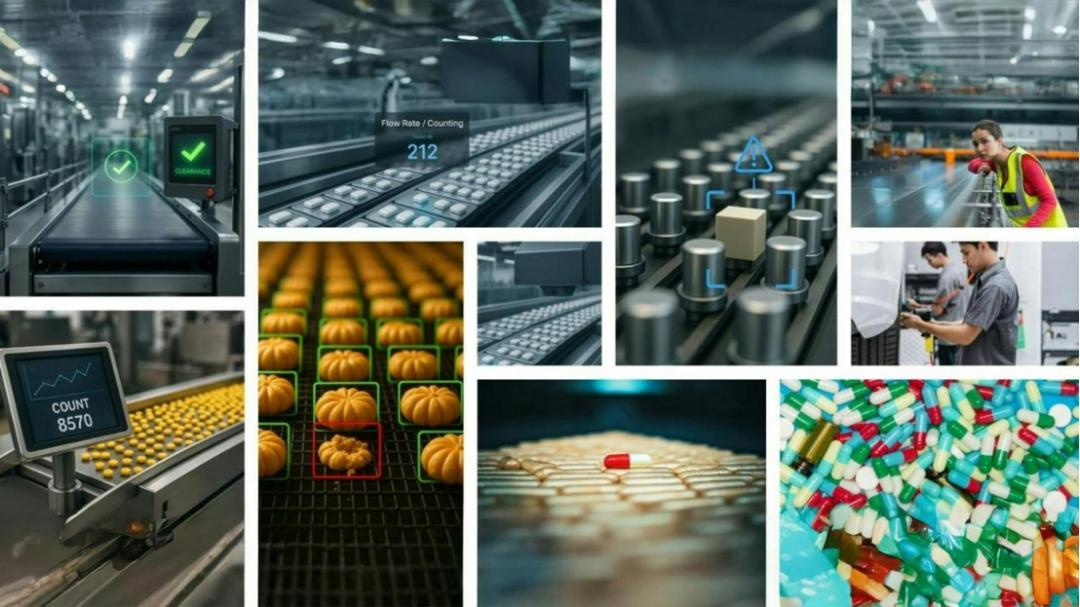

Figure 2: AI machine vision systems that execute training and decision-making locally can enhance overall efficiency and achieve future adaptability through continuous learning and optimization. The range of model training for specific use cases is broad, including defect detection, contaminant identification, anomaly detection, production line cleaning inspection, traffic counting, and process compliance verification. (Image source: Arcturus Networks)
3. Optimization Overload: Tuning Models for Edge Hardware
Even after selecting a model, it often requires optimization to run efficiently on resource-constrained edge hardware. This includes:
-
Model quantization (e.g., from FP32 to INT8): Quantization is a technique that reduces the model size and speed by converting the values in the model from FP32 (32-bit floating point) to INT8 (8-bit integer) (sometimes also using 16-bit formats). One can imagine the model as a high-definition photo containing millions of colors (FP32), but such detail is unnecessary at the edge—only a simplified version (INT8) is needed to perform the task. This results in faster inference speeds, lower power consumption, and smaller memory footprint.
-
Pruning and compression: Pruning involves removing less important parts of a machine learning model, similar to trimming small branches from a tree that do not significantly affect its shape and function. Model compression is the process of making machine learning models smaller and more efficient without significantly reducing accuracy, akin to compressing large files to reduce space and speed up execution.
-
Customizing inference pipelines to leverage hardware acceleration (NPU, DSP, ISP).
Manually performing these operations requires extensive experimentation to achieve the optimal balance between performance and accuracy. This not only requires deep knowledge of machine learning and hardware internals but also time-consuming tool debugging and analysis.
Companies leading the way in promoting edge AI provide automated and semi-automated model optimization workflows, including human-in-the-loop (HITL) model tuning (where humans assist AI by correcting errors, labeling data, or making decisions when the model is uncertain). These workflows maximize inference performance and provide methods to enhance inference accuracy, simplifying the creation of production-grade custom models for edge optimization.
Additionally, native AI embedded processors support hardware-accelerated preprocessing functions through NPU and ISP, alleviating workloads that typically become bottlenecks in vision pipelines and improving end-to-end speed.
Figure 3: After deployment, AI vision systems must be continuously monitored. Field devices require updates, performance tuning, and troubleshooting of encountered issues.
4. System Fragility: Maintaining and Monitoring AI Systems in Production
After deployment, AI vision systems must be continuously monitored. Field devices require updates, performance tuning, and troubleshooting of encountered issues. Many organizations need methods for integrating, managing, and orchestrating devices at scale.
Robust platforms include device management tools built on mature container ecosystems. These tools provide:
-
Real-time analytics and event monitoring through dashboards and APIs.
-
Visualization of device status, system health, firmware versions, and configurations.
-
Compatibility with orchestration tools for over-the-air (OTA) updates.
-
Diagnostic capabilities for tracking inference accuracy, system health, and throughput.
5. Deployment Risks: Achieving Future Adaptability in a Rapidly Evolving Ecosystem
The machine learning ecosystem is rapidly evolving. New model architectures, toolchains, and hardware emerge every year. Solutions tightly coupled with specific technology stacks can quickly become obsolete, posing risks and increasing long-term maintenance costs.
A method to address this challenge is to adopt architectures that abstract the key machine learning subsystems from the underlying operating system. This means separating the core components of the machine learning system (such as model runners, inference engines, or data processing pipelines) from the underlying operating system, hardware, or software stack. By doing so, the machine learning system does not overly depend on specific platforms, making it easier to run on different devices, operating system versions, or hardware types.
This decoupling reduces validation requirements and extends system lifespan.
6. Data Privacy and Traceability: Compliance with Industry Regulations
Many industrial customers operate under strict regulatory frameworks. They must ensure:
-
Detection data is traceable to meet audit and compliance requirements.
-
Data remains local, complying with data sovereignty laws.
-
Edge devices are resistant to tampering and unauthorized access.
As the demand for real-time, intelligent vision capabilities grows across industries, implementing efficient edge AI systems has become crucial. These systems must balance performance, accuracy, and resource constraints while operating independently of the cloud. To achieve this, modern architectures are designed to simplify development, streamline deployment, and ensure long-term adaptability. By abstracting key AI components from the underlying hardware and software stack, organizations can build more flexible, scalable solutions that are easier to maintain and optimize, resulting in smarter, faster, and more resilient edge applications.
