In the field of industrial automation, a PLC that combines high performance, high flexibility, and cost-effectiveness can provide strong support for equipment operation and project implementation. The Panasonic FP-X0 series programmable controllers, with ultra-fast computation, flexible expansion capabilities, and a wealth of practical features, have become the preferred solution in many industrial scenarios. Today, we will comprehensively unlock its core advantages!

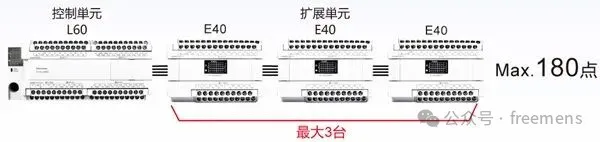

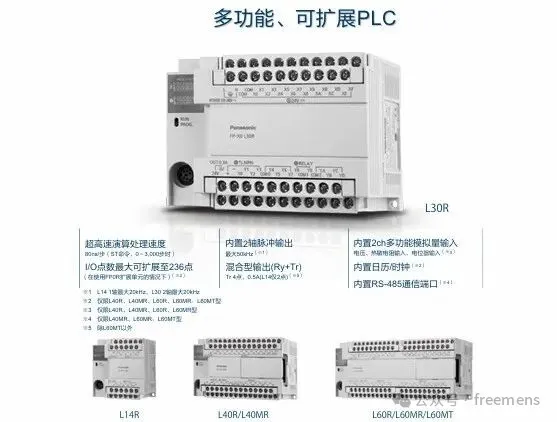

Core Highlights: Speed and Capacity OnlineThe computation speed of the FP-X0 series is considered an industry benchmark, with a maximum of 80ns/step (0~3000 steps) for ST instructions, and even maintaining an efficient performance of 580ns/step for more than 3001 steps (limited to L40 and L60 models). The program capacity is adaptable as needed, with L14 and L30 models equipped with 2.5k steps, L40 and L60 models upgraded to 8k steps, and the L60MT model reaching 16k steps, meeting different complexity control needs.With built-in high-speed counters and pulse output functions, control accuracy is further enhanced. The high-speed counter supports single-phase 4ch (maximum 50kHz) or two-phase 2ch (maximum 20kHz) input, and the pulse output can reach a maximum frequency of 50kHz (L40 and L60 models), easily handling high-speed motion control scenarios.Flexible Expansion: I/O Points Upgradable as NeededNo need to worry about future I/O requirements for device expansion; the FP-X0 series offers strong expansion capabilities. The control unit can be mixed with FP-X0/FP-X expansion units, connecting up to 3 units, with a maximum I/O point count of 180; when paired with the FP0R expansion unit, it can be expanded to a maximum of 236 points (limited to L40 and L60 models).
There are a variety of expansion solutions available, covering 17 types of expansion units, including dedicated input, dedicated output, and mixed I/O types, supporting relay and transistor (NPN/PNP) outputs to adapt to different load requirements. There are also three lengths of extension cables available: 8cm, 30cm, and 80cm, with a total extension limit of 160cm, allowing for flexible close installation.Comprehensive Adaptability: Full Coverage of Communication and FunctionsCommunication capabilities have been fully upgraded, with the main unit equipped with an RS-232C programming port. The L40MR, L60MR, and L60MT models also have built-in RS-485 communication ports, supporting up to 2-channel communication. They are compatible with mainstream protocols such as Modbus-RTU and MEWTOCOL, allowing for seamless communication with devices like temperature controllers, inverters, touch screens, and measuring instruments, easily building an industrial network.Special functions directly address industry pain points: built-in 2-axis pulse output (1 axis for L14), L40 and L60 models support 2-axis linear interpolation, suitable for motion control scenarios such as XY tables and palletizers; 2ch multifunctional analog input (except L60MT), supporting voltage, thermistor, and potentiometer inputs, meeting the needs for analog data collection such as temperature and pressure; built-in PID command (F356 EZPID), allowing for temperature constant control with just one line of code, greatly simplifying temperature control programming.Stable and Reliable: Industrial-Grade Quality AssuranceThe FP-X0 series strictly adheres to industrial-grade standards, with an operating temperature range of 0℃~+55℃, storage temperature up to -40℃~+70℃, and humidity tolerance of 10%RH~95%RH (non-condensing). It has a dielectric strength of 2300V AC, insulation resistance above 100MΩ, and excellent resistance to vibration, shock, and noise, ensuring stable operation in complex industrial environments.The control unit is lightweight and compact, with a height of 90mm, making it easy to install in cabinets. The weight of different models ranges from 280g to 730g, effectively saving installation space. The built-in power supply ensures a lifespan of 20,000 hours (at 55℃), and critical data is supported by Flash ROM backup and battery backup, ensuring data security.From controlling small to medium-sized devices to complex automation systems, the Panasonic FP-X0 series PLC empowers and enhances industrial production with its core advantages of “high speed, flexibility, versatility, and reliability.” Whether for automated production lines in manufacturing or control scenarios for various electromechanical devices, it can provide precisely tailored solutions.Corporate Culture
