In recent years, smart locks have become an important entry point for smart homes, with the market size continuously expanding. Previously, products mainly featured a single function of “fingerprint + password”; however, as users’ demands for security and interactive experience continue to rise, smart locks are rapidly evolving towards a three-in-one form of “lock + peephole + doorbell.” This multifunctional integration not only brings a more convenient application experience but also poses higher challenges for chips.
In this evolution, MCUs have become crucial, with demand primarily reflected in two directions: on one hand, there is a need for higher functional integration to support wireless communication, video processing, and security algorithms; on the other hand, it is essential to achieve lower power consumption under long standby conditions to ensure that battery life meets expectations.
In response to market trends, GigaDevice has launched three MCU products tailored for different scenarios of smart locks—GD32W515, GD32L233, and GD32FFPR, covering high-integration multi-functional solutions, ultra-low power designs, and core applications for fingerprint module control, laying a solid foundation for the continuous upgrade of smart locks.

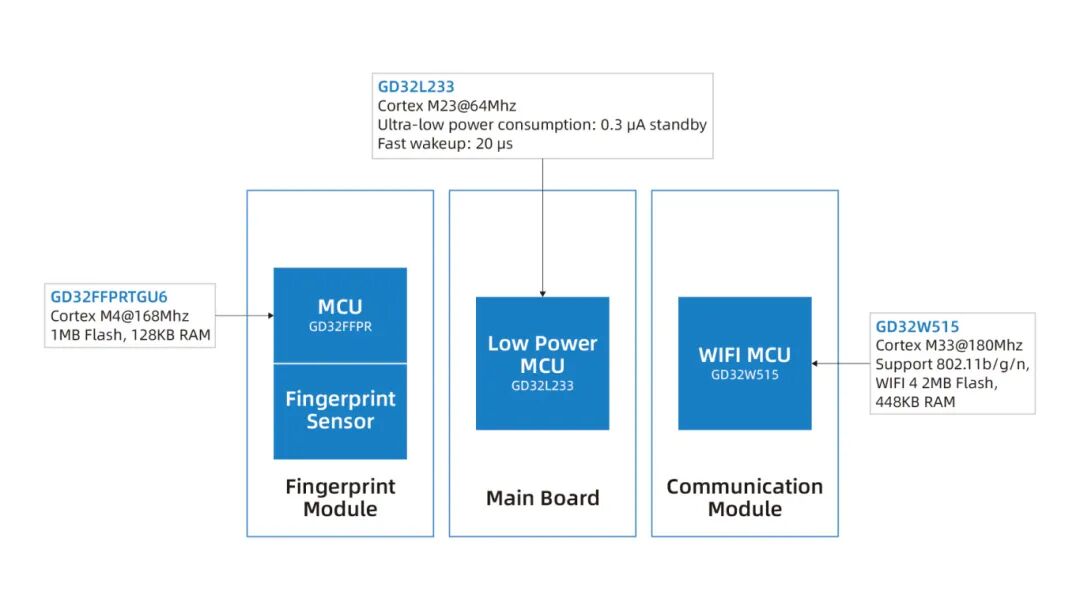

01All-Scenario Application Solutions
-
For Multi-Functional Design: GD32W515
In multi-functional smart lock applications, GD32W515 provides a highly integrated solution. The chip integrates fingerprint algorithms, touch buttons, and WiFi functionality, enabling multi-modal interaction and internet transmission on a single chip, simplifying system architecture, reducing overall solution costs, while ensuring security and computational performance.
-
For Ultra-Low Power Design: GD32L233
For applications emphasizing battery life and energy efficiency, GD32L233 demonstrates exceptional low power performance. The power management unit supports 10 power-saving modes, combined with fast wake-up and quick start mechanisms, ensuring a good user experience while reducing power consumption. With up to 59 GPIO interfaces and over 93% IO utilization, it also provides flexibility for complex peripheral expansions.
-
For Fingerprint Recognition Design: GD32FFPR
In the core function of fingerprint recognition, GD32FFPR plays a key role. Its high-performance core and large-capacity storage interface support up to 3M Flash, capable of storing over 200 fingerprint records. With stable mass production capabilities and high reliability, this chip provides strong support for smart locks in identity verification and security assurance.
02Core Performance Highlights
-

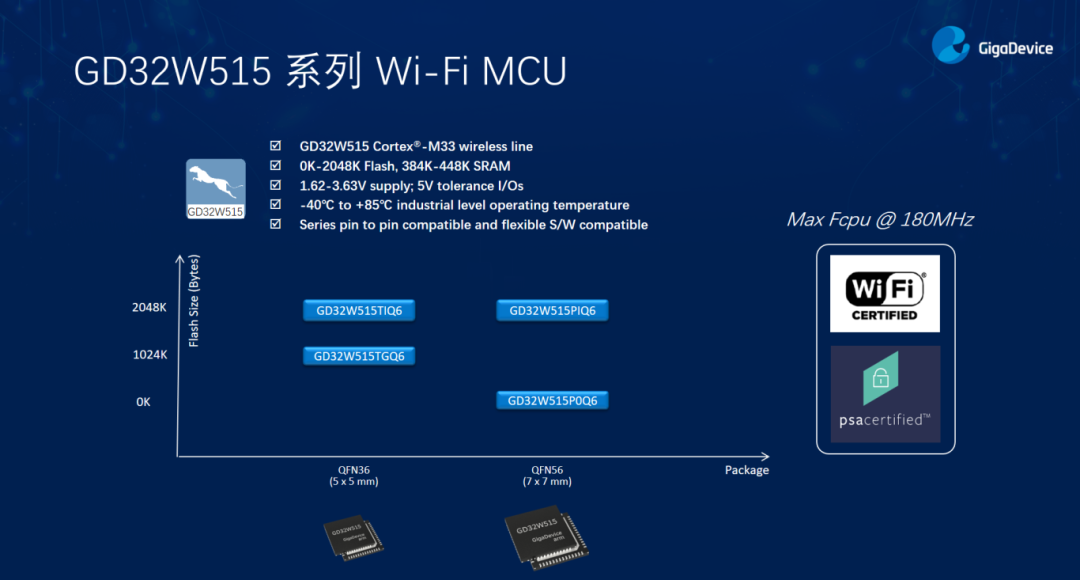

GD32W515
Utilizing the Cortex®-M33 core, with a maximum frequency of 180MHz, equipped with 2MB Sip Flash and 448KB SRAM, integrating a Wi-Fi 4 module, supporting TrustZone security mechanism, operating temperature range of -40~85℃, providing two packaging options: QFN36 and QFN56.
-

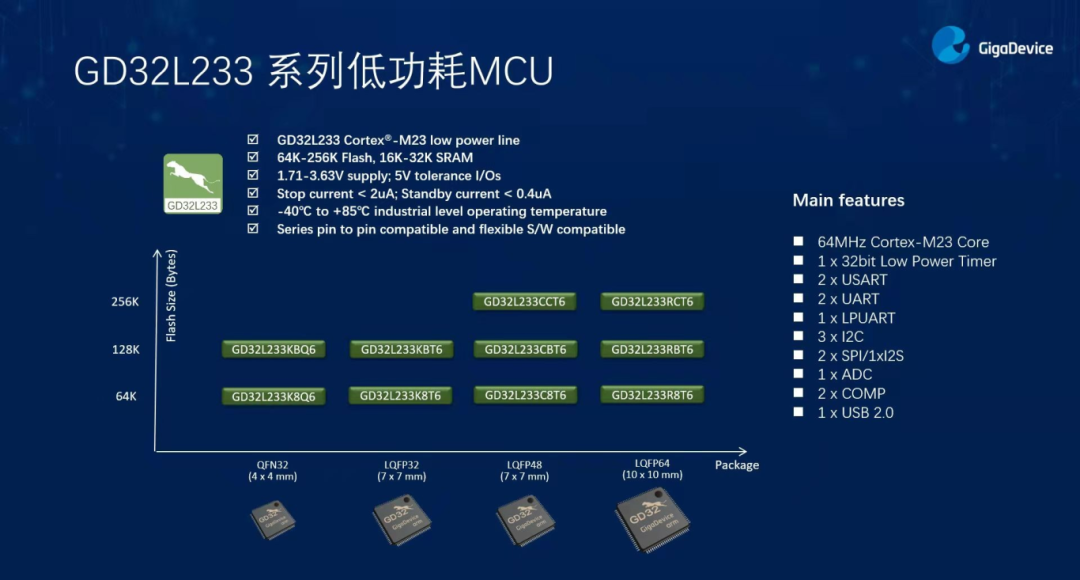

GD32L233
Based on the Cortex®-M23 core, using 40nm ultra-low power manufacturing technology, reducing leakage at the hardware level; integrating optimized low-power analog IP, maintaining excellent power efficiency and optimized processing performance across various operating and sleep modes, suitable for long-lasting battery-powered applications.
-
GD32FFPR
A dedicated MCU series designed for fingerprint recognition systems, based on the Cortex®-M4 core, supporting high-speed algorithm execution and large-capacity fingerprint image processing; by optimizing resource allocation and enhancing power efficiency, it provides a secure, reliable, and cost-effective hardware platform to meet the application needs in identity verification and information protection.
As smart locks evolve towards multifunctional integration and long battery life, higher standards are set for the performance, power consumption, and security of MCUs. GigaDevice, with the GD32W515, GD32L233, and GD32FFPR products, comprehensively covers the core demands of smart locks in high integration, multi-scenario, and high security, providing industry clients with a full-stack solution from design to implementation, accelerating the smart home into a safer and more efficient new phase.
