In the complex landscape of chip manufacturing, tape-out occupies a core position. As the final step in integrated circuit design, it is a crucial process that transforms abstract circuit blueprints into actual chips.
1. The Connotation and Essence of Tape-Out
Tape-out, expressed in English as “tape-out”, is a process that relies on a series of intricate and complex steps to complete chip manufacturing on a specialized production line. As the concluding act of the integrated circuit design process, tape-out is akin to the endpoint of a long exploratory journey.Its essence is similar to “pilot production”, which involves the initial small-scale production of dozens of chips after the circuit design is successfully completed. These chips are not directly marketed but are specifically used for testing. If the test results are satisfactory, it can serve as a foundation to fully commence large-scale production.
Specifically, when fabless manufacturers meticulously complete circuit designs and undergo multiple rigorous checks and validations to confirm there are no errors, they will deliver the final GDSII file to the foundry. The foundry will produce a certain number of sample chips based on this critical file, typically ranging from dozens to hundreds. These sample chips carry significant responsibilities, used to comprehensively verify whether each process step in the design flow is feasible and to validate whether the circuit meets the expected performance and functionality.Although the current data submission method has shifted from traditional tapes to convenient electronic documents, the term “tape-out” is still widely used, as it not only carries the profound historical heritage of the industry but also accurately summarizes this irreplaceable key step in the manufacturing process.
2. In-Depth Analysis of Tape-Out Costs
(1) Components of High Costs
Mask Costs: Masks are the core components of the photolithography process, serving to accurately transfer the meticulously designed chip patterns onto the wafer. In the cost structure of tape-out, mask costs occupy a significant proportion. The cost of a set of masks can reach several million dollars, especially in advanced process technologies, where this cost is even more pronounced. Manufacturing a chip often requires hundreds to thousands of processes, and the corresponding masks are not limited to just one layer. For example, in common process technologies, a 28nm process requires about 40 layers of masks, a 14nm process requires about 60 layers, and a more advanced 7nm process may require 80 layers or more. Moreover, the price of masks primarily depends on the “process node” used by the chip; the more advanced the process node, the more mask layers are required, and consequently, the higher the price. For instance, the cost of a 40nm mask is about 5 million, a 28nm mask is about 10 million, and a 14nm mask can reach around 25 million (prices may vary among manufacturers, but it clearly indicates the high cost of masks). Additionally, the overall cost of masks includes the costs of raw materials such as quartz and photoresist, the usage costs of equipment like Mask Writers and Inspection tools, as well as the costs associated with generating mask-related data, including software licenses for OPC, MDP, server usage, and labor development costs. A chip with dozens of mask layers involves so many aspects, and the absence of any equipment, software, or personnel makes it easy to understand why mask costs are so high.
Wafer Foundry Fees: The wafer foundry stage includes a series of complex and precise processes such as photolithography, etching, and doping. Each step requires extremely high precision control, which significantly increases operational costs. In the entire chip manufacturing process, wafer foundry is a key step to ensure that the physical structure of the chip is correctly constructed, and its complexity and stringent precision requirements directly lead to high costs.
Equipment Depreciation: The equipment used in semiconductor manufacturing is extremely expensive and requires regular depreciation calculations. For example, a 28nm mask machine costs over 50 million dollars. These advanced machines gradually lose value over time and with increased usage, and this depreciation cost is also included in the tape-out costs.
Non-Scale Production: Tape-out belongs to a small-batch production model, which lacks the cost advantages brought by economies of scale compared to large-scale production. In small-batch production, the high costs of masks and equipment cannot be distributed across a large number of products as in large-scale production, leading to higher average costs per chip. In simple terms, the smaller the production scale, the higher the cost borne by each chip; conversely, the larger the scale, the lower the average cost per chip.
(2) Cost Examples
- Under a 40nm process, the total cost of small-scale tape-out may range from 300,000 to 500,000 dollars, with most of the cost coming from masks. This clearly demonstrates the composition of tape-out costs and the dominant role of mask costs within it.
3. Multi-Factor Considerations for Tape-Out Time
The tape-out process typically takes 3 to 6 months; however, this time span is not fixed and is influenced by various factors. The complexity of the chip design is paramount; if the chip design is extremely complex, involving numerous functional modules and intricate circuit layouts, the time required for each process step will be correspondingly extended. The advancement of the process technology also plays a key role; the more advanced the process technology, such as 7nm or 5nm, the higher the precision requirements, and the time spent on each step may be longer, naturally extending the tape-out cycle. Additionally, the capacity status of the foundry cannot be ignored. If the foundry is fully booked and capacity is tight, the time required for tape-out may increase due to waiting in line and other reasons. The entire tape-out process encompasses multiple key steps, including raw material preparation, photolithography, doping, deposition, and packaging testing. These steps are interrelated and involve hundreds of processes, each requiring strict control of time and quality to ensure that the final produced chips meet the requirements.
4. Detailed Process Analysis of Tape-Out
Chip Design: This is the starting point of the tape-out process. Designers carefully plan the layout of the entire chip circuit using computer-aided design software based on specific requirements and specifications. At this stage, various factors such as the chip’s functionality, performance, and power consumption must be comprehensively considered to design a circuit scheme that meets practical application needs while ensuring good manufacturability.
Mask Production: Mask production plays a crucial role in tape-out. Through photolithography technology, the designed chip structure is accurately projected onto the surface of the silicon wafer. This process is akin to creating a precise mold, with subsequent manufacturing processes relying on it to ensure that each structure of the chip can be accurately formed. The precision of the mask directly affects the performance and quality of the chip, so high-precision equipment and processes must be used during production.

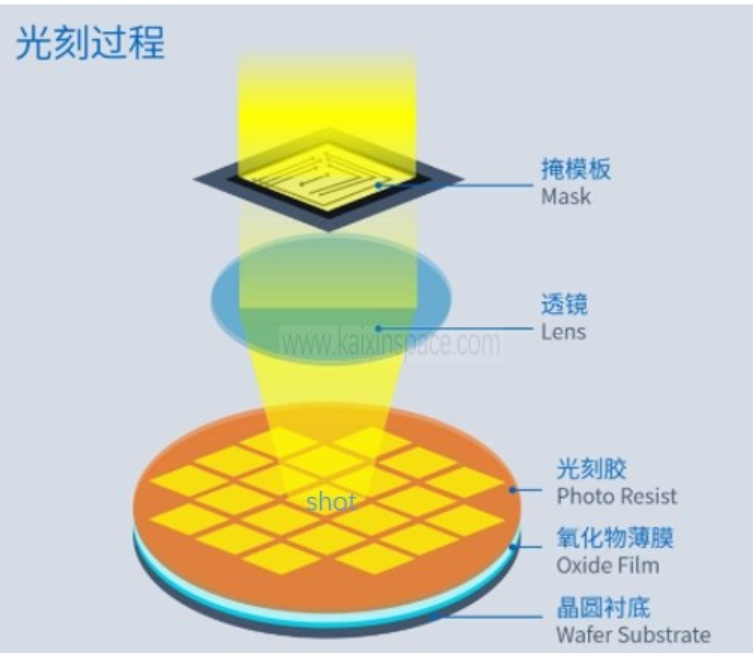

Photolithography: Photolithography technology is the key means of transferring patterns onto the silicon wafer layer by layer. After mask production, photolithography technology is used to give different regions of the silicon wafer different characteristics, thereby constructing the complex structures required for the chip. The photolithography process must be conducted in a highly clean environment, and the precision and stability of the equipment are of utmost importance to ensure the accuracy of pattern transfer.
Etching: After photolithography is completed, the etching process follows. The main purpose of etching is to remove the parts of the silicon wafer that are not protected by photoresist during the photolithography process, precisely shaping the microstructures required for the chip. For example, to form the source and drain structures of a transistor, the etching process is needed to remove excess silicon material. The precision of the etching process greatly impacts chip performance; excessive etching may damage the originally designed circuit structure, while insufficient etching may fail to form ideal circuit components, so parameters such as etching depth and uniformity must be strictly controlled.
Thin Film Deposition: In the tape-out process, thin film deposition is an indispensable step. A layer of film is uniformly deposited on the surface of the silicon wafer through physical or chemical methods. This layer of film can alter the properties and characteristics of the silicon wafer, such as forming insulating layers, conductive layers, etc., laying the foundation for the subsequent formation of transistors and other components.
Ionic Implantation: Ionic implantation technology is used to inject specific materials into the surface of the silicon wafer, thereby altering the conductivity of the silicon wafer and forming key components such as transistors. The dosage and energy parameters of ionic implantation need to be precisely controlled to ensure that the performance of the components meets design requirements.
Metalization: The purpose of the metalization process is to cover the surface of the silicon wafer with metal, connecting the circuits of various parts to form complete electronic components. This process must ensure good contact between the metal and the silicon wafer, as well as the precision and reliability of the metal wiring, to ensure effective signal transmission within the chip.
Chemical Mechanical Polishing: After metalization is completed, the deposition of the metal layer may cause the surface of the silicon wafer to be uneven, which can affect subsequent process steps and the performance of the chip. The chemical mechanical polishing process comes into play, which flattens the surface of the silicon wafer through a combination of chemical etching and mechanical polishing, ensuring that the surface meets the flatness standards required for subsequent processes, paving the way for chip testing and packaging.
Testing and Packaging: After completing the above series of process steps, the chip must undergo rigorous functional testing to verify whether it meets the initial design requirements. Only chips that pass the tests will enter the packaging stage. The purpose of packaging is not only to protect the chip from external environmental influences, such as moisture and dust, but also to facilitate the connection of the chip with other circuit boards, allowing it to function in various electronic devices.
5. Insights into the Economic Effects Behind Tape-Out
The fundamental reason for the high costs of tape-out lies in the small-batch production model, where the high costs of masks and equipment need to be distributed across a limited number of chips. This leads to high unit costs during the tape-out phase. However, once entering the mass production phase, the situation changes significantly. At this point, wafer costs become the main source of costs, and as production scales up significantly, the costs of masks and equipment are distributed across a large number of products, leading to a substantial reduction in unit costs per chip. This clearly demonstrates the importance of economies of scale in controlling chip manufacturing costs.
However, the tape-out process is not always smooth; failures in tape-out can lead to severe economic consequences. If multiple consecutive tape-outs fail, a company may face significant financial losses due to massive investments, resulting in losses in manpower, material resources, and funds, potentially leading to company bankruptcy. Therefore, tape-out is both a test of technical strength and a severe economic challenge for chip manufacturing companies.
6. Innovative Paths to Reduce Tape-Out Costs
To effectively reduce tape-out costs, Multi-Project Wafer (MPW) technology has emerged. The core of MPW technology is to integrate multiple integrated circuit designs that use the same process onto the same wafer for tape-out. After manufacturing, each design can obtain dozens of chip samples, which is sufficient for experiments and testing during the prototype design phase. Through the MPW tape-out method, all participating projects only need to share costs based on chip area, and this portion of the cost is only 5% – 10% of the full mask tape-out cost. The emergence of this technology has greatly reduced the cost risks in the product development process, providing an economical and efficient solution for small-batch production, allowing many companies to attempt and validate chip research and development at a lower cost during the initial stages.
In summary, tape-out, as a key step in the chip manufacturing process, has profound impacts on the cost, time, process, and economic effects, all of which significantly influence the development of the chip industry. A deep understanding of all aspects of tape-out is crucial for promoting advancements in chip technology and the healthy development of the industry.
