Embedded systems are ubiquitous in fields such as smart homes, industrial control, and autonomous driving. However, developers often encounter a key question:Should we use a Real-Time Operating System (RTOS) or go for bare-metal programming directly?

The former is like a team equipped with a “smart scheduler,” while the latter is a minimalist mode of “solo combat.” Today, we will explore the pros and cons of these two approaches from five core dimensions, including real-time performance, development efficiency, and resource usage, using practical cases like FreeRTOS to help you understand which project solution to choose!

1. Real-Time Performance: Deterministic Response vs. Ultimate Efficiency

The “Priority Magic” of RTOS

The core advantage of RTOS is itsdeterministic real-time response. It allows high-priority tasks to “jump the queue” through preemptive scheduling. For example, in an industrial temperature control system, when a sensor detects an over-temperature condition, the RTOS will immediately pause low-priority display tasks to prioritize cooling control, with response times controllable within milliseconds (FreeRTOS context switching takes only 84 CPU cycles). This mechanism is crucial in safety-critical areas such as automotive electronics and medical devices—imagine the consequences if an emergency braking task in autonomous driving is delayed.

Task scheduling diagram

Figure: RTOS task scheduling flow diagram, where high-priority tasks can preempt low-priority tasks (Source: CSDN Blog)

The “Interrupt Dependency Syndrome” of Bare-Metal

A bare-metal system relies on developers to manually write Interrupt Service Routines (ISRs) and state machines, with real-time performance entirely dependent on code quality. In simple scenarios (like LED blinking or single sensor acquisition), bare-metal can achieve microsecond-level responses through interrupts; however, it can “drop the ball” in complex tasks. For instance, in a system handling button inputs, sensor data collection, and data uploading simultaneously, bare-metal may experience delays in responding to other events due to task blocking, potentially missing critical signals.

Case Comparison:

• RTOS Solution: An industrial PLC using FreeRTOS separates motor control (priority 3), data uploading (priority 1), and human-machine interaction (priority 0), ensuring that the motor control task’s response time remains stable within 2ms (Source: CSDN Blog).

• Bare-Metal Solution: A simple temperature controller samples temperature every 100ms using timer interrupts, which meets the requirements, but when adding an LCD display function later, the entire state machine needs to be restructured, extending the development cycle by 30% (Source: Embedded Development Practice).

2. Development Efficiency: Modular Division vs. Low-Level Control

The “Building Block Development” of RTOS

RTOS breaks the system into independent tasks, each task acting like a “module,” allowing developers to focus less on low-level scheduling. For example, in a smart home control center, tasks like “light control,” “temperature and humidity collection,” and “WiFi communication” can be split into three tasks, enabling three team members to develop in parallel, ultimately stitching them together through queues and semaphores. FreeRTOS also provides ready-made middleware (like TCP/IP stacks and file systems), saving time on reinventing the wheel—one project reduced network functionality development time from two weeks to three days after introducing FreeRTOS (Source: 51CTO Blog).

FreeRTOS code example

Figure: FreeRTOS task creation code example, creating tasks and starting the scheduler using xTaskCreate (Source: JetBrains CLion Documentation)

The “From Scratch Wheel-Making” of Bare-Metal

Bare-metal development requires manual management of all hardware details: initializing registers, writing interrupt service routines, and designing state machines. Simple projects (like infrared remote controls) may be completed in half a day, but complex systems (like multi-sensor data fusion) can become “a chain reaction.” One engineer shared that in a bare-metal environmental monitoring system, adding a new sensor led to a week of debugging due to state machine logic conflicts (Source: Embedded Technology Revolution).

Key Data:

Dimension	RTOS (FreeRTOS)	Bare-Metal System
Multi-Task Development Efficiency	Modular parallel development, efficiency increased by 40%	Serial development, complex system cycles extended by 2-3 times
Function Reusability	Tasks can be directly ported to other projects	Need to rewrite over 70% of the low-level code

3. Resource Usage: Kernel Overhead vs. Extreme Minimalism

The “Resource Threshold” of RTOS

RTOS itself consumes hardware resources: the FreeRTOS kernel requires 5-10KB of ROM and 236 bytes of RAM, with each task additionally consuming 64 bytes (task control block) + stack space (usually 128-512 bytes). This means thatthe MCU needs at least 8KB of RAM and 32KB of ROM to run smoothly (Source: FreeRTOS official website). For low-end chips like the STM32F0 series (8KB RAM), it may not even be able to run basic tasks.

The “Zero Overhead Advantage” of Bare-Metal

Bare-metal systems have no kernel, and all resources are directly controlled by the developer. In a certain electronic scale project using STM32L051 (4KB RAM), the bare-metal code only occupied 1.2KB of RAM, extending battery life by 20% compared to the RTOS solution (Source: CSDN Blog). For simple devices like remote controls and smoke detectors, bare-metal is the “king of cost-effectiveness.”

Practical Suggestions:

• If MCU RAM < 8KB, ROM < 32KB, prioritize bare-metal (like 8-bit MCUs, STM32F0);

• If multi-tasking or future function expansion is needed, consider lightweight RTOS even if resources are tight (like FreeRTOS with a minimum configuration requiring only 1KB of RAM).

4. Multi-Task Processing: True Parallelism vs. Pseudo-Parallelism

The “Multi-Task Magic” of RTOS

RTOS allows multiple tasks to “appear to run simultaneously” through time-slicing or priority scheduling. For example, in a drone flight control system, FreeRTOS can simultaneously manage “attitude calculation” (executed every 10ms), “remote control signal reception” (executed every 1ms), and “motor driving” (executed every 5ms), with tasks passing data through queues without interference. This “true parallelism” is irreplaceable in complex systems—one agricultural drone project reduced task response delays by 60% after using RTOS (Source: Embedded Development Practice).

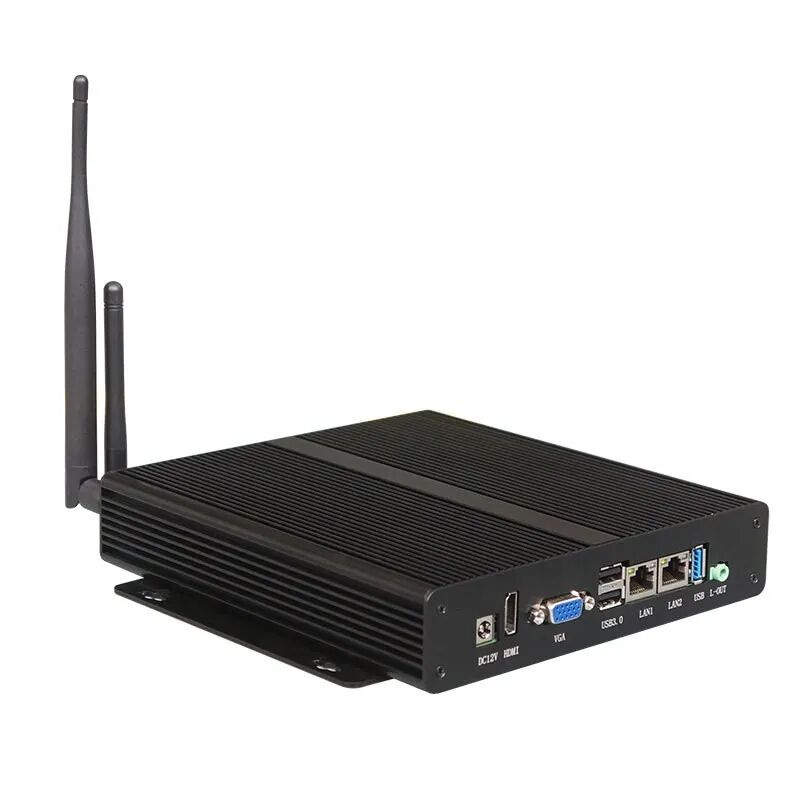

Industrial controller application

Figure: Industrial controller using RTOS, supporting multi-task parallel processing (Source: 1688 Industrial Equipment Library)

The “State Machine Dilemma” of Bare-Metal

Bare-metal simulates multi-tasking through a “super loop” (while(1)), which is essentially “pseudo-parallelism.” For example, in a system handling buttons, LEDs, and sensors simultaneously, the code may look like this:

// plaintext
while(1) {
if(button pressed) handleButton();
if(LED timer reached) toggleLED();
if(sensor ready) readData();
}

The more tasks there are, the more complex the nested loops become, leading to issues like “LED stuttering after button press.” One engineer complained that maintaining a bare-metal system with over 10 tasks made the state machine logic look like “spaghetti,” requiring global testing for any code change (Source: 51CTO Blog).

5. System Complexity: Standardization vs. Customization

The “Rule Constraints” of RTOS

RTOS provides standardized task management and synchronization mechanisms (semaphores, mutexes), but it also brings a learning curve: developers need to understand concepts like “priority inversion” and “deadlock.” One team faced a three-day debugging session due to incorrect mutex usage, which led to two tasks competing for the I2C bus (Source: CSDN Blog).

The “Freedom and Risk” of Bare-Metal

Bare-metal has no rule constraints, allowing developers to customize code freely, but it also means “relying entirely on self-discipline.” Simple systems (like LED chasers) have clear code, but complex projects can lead to issues like “global variables everywhere” and “confused interrupt nesting.” One medical device project faced maintenance costs exceeding twice the development costs due to high coupling in bare-metal code (Source: Embedded Technology Revolution).

Decision Guide: 3 Steps to Choose the Right Solution

1. Assess System Complexity:

◦ Single-task/simple state machine (like remote controls, electronic scales) → Bare-metal;

◦ Multi-tasking/needs priority management (like smart homes, industrial control) → RTOS.

2. Assess Hardware Resources:

◦ RAM < 8KB, ROM < 32KB → Bare-metal;

◦ Ample resources or future expansion needed → RTOS.

3. Assess Team Experience:

◦ Beginners/small teams → Start with bare-metal, transition to RTOS after gaining familiarity;

◦ Complex projects/multi-person collaboration → Go directly to RTOS (like FreeRTOS, which has a mature ecosystem and abundant resources).

There is no silver bullet, only the most suitable option

RTOS is not a “panacea,” and bare-metal is not a “backward representation.” In resource-constrained simple devices, the “streamlined efficiency” of bare-metal is irreplaceable; while in multi-tasking, high-reliability complex systems, the “standardized scheduling” of RTOS can significantly reduce development risks. As MCU costs decrease (32-bit MCUs are now as low as $1) and AIoT develops, RTOS is becoming the mainstream choice—but remember:The core of technology selection is always “matching project requirements,” not blindly chasing trends..
