In our daily lives, safety is always a top priority. In industrial environments and home safety monitoring, there exists an invisible technology that quietly protects our safety—catalytic combustion sensors. Today, we will discuss this unassuming yet crucial “safety guardian”.
Gas Sensors—
Catalytic Combustion Sensors
1

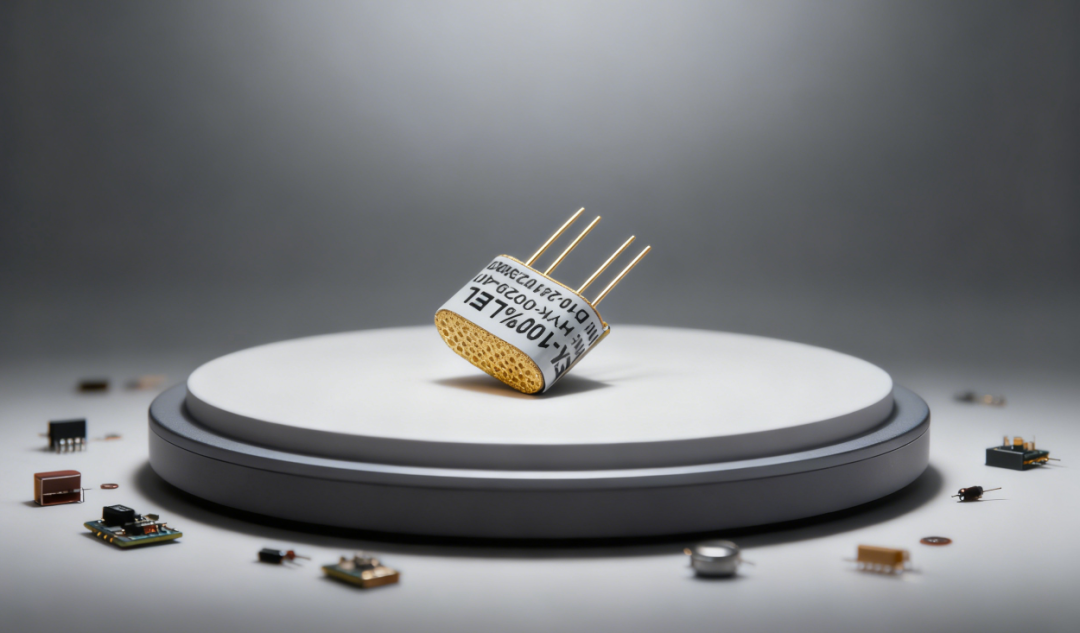

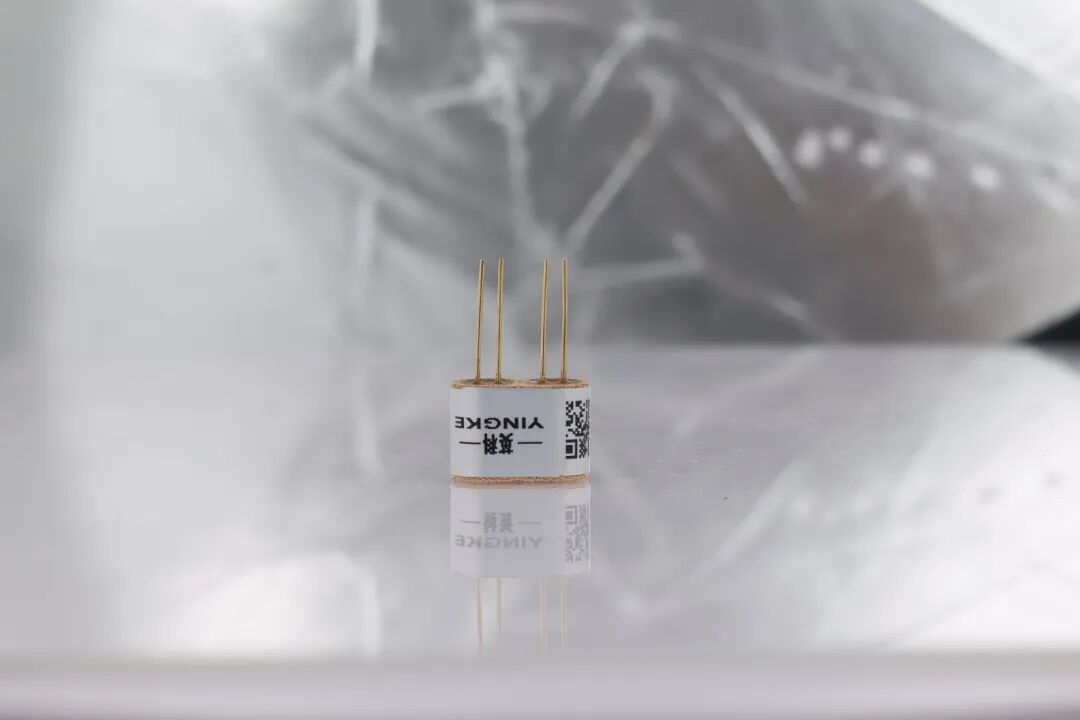

What is a Catalytic Combustion Sensor?
A catalytic combustion sensor is a device used to detect combustible gases (such as methane, propane, and hydrogen). It converts gas concentration into electrical signals, enabling the measurement and alarm of gas concentrations. The core principle is based on the catalytic combustion effect: when combustible gas enters the sensor, it undergoes flameless combustion under the action of a catalyst, resulting in a temperature change that alters the resistance value, which is then detected by the circuit to determine gas concentration.
Catalytic combustion sensors are currently the most widely used sensors in the world. They have a fast response time, and up to the lower explosive limit (LEL) concentration, the sensor’s output is almost directly proportional to the gas concentration, ensuring high accuracy and repeatability, making them suitable for detecting combustible gas concentrations in industrial and commercial applications, liquefied gas, coal gas, and alkanes.
2
Applications of Catalytic Combustion Sensors
Thanks to their high precision, rapid response, and stable performance, catalytic combustion sensors play a vital role in various fields:
Petrochemical: Monitoring combustible gas leaks during production processes
Environmental Monitoring: Detection of harmful combustible gases in the atmosphere
Coal Mining Operations: Detecting gas concentrations to ensure miner safety
Urban Gas: Preventing safety accidents caused by natural gas and coal gas leaks
Home Safety: The core component of gas alarms
3
Technical Advantages of Catalytic Combustion Sensors
Compared to traditional sensors, catalytic combustion sensors have significant advantages:
High sensitivity, capable of detecting extremely low concentrations of combustible gases
Fast response time, allowing for timely detection of potential hazards
Good stability and long service life
Strong anti-interference capability, reducing false alarms
Inco Sensors
Catalytic Combustion Sensors

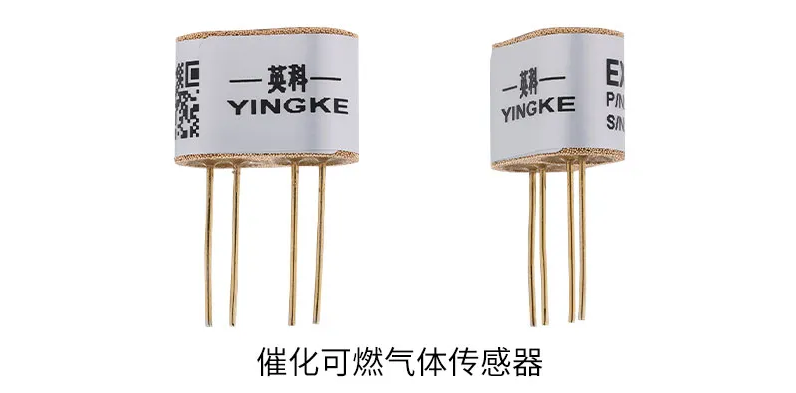

Catalytic combustible gas sensors
The catalytic element operates based on the principle of catalytic combustion, consisting of a detection element and a compensation element paired to form two arms of a bridge. When combustible gas is present, the resistance of the detection element increases, causing a change in the output voltage of the bridge circuit, which increases proportionally with the gas concentration. The compensation element serves as a reference and compensates for temperature and humidity.
Main Features and Performance Advantages
Wide application range, accurate measurement, fast response time
High stability
Strong adaptability to environmental conditions
High resolution
Anti-interference
High sensitivity
Strong applicability
Linear output voltage of the bridge circuit
Fast response time
Good repeatability and selectivity
Stable and reliable component operation
Although small, catalytic combustion sensors are an indispensable part of the safety protection system. They act like tireless guardians, working silently in every corner to ensure our safety and the security of our property. Let us pay tribute to these invisible technologies!
