🔥 Content Introduction

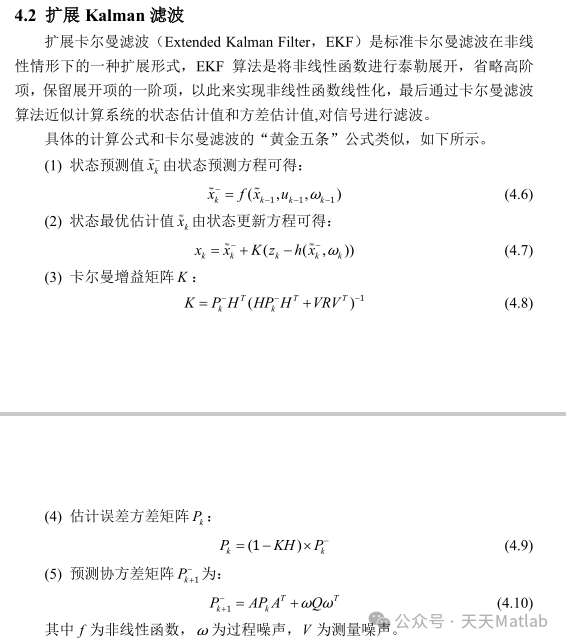

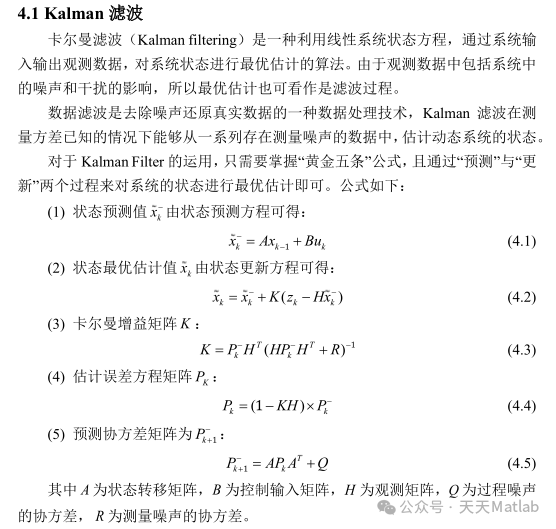

The Kalman filtering method is currently one of the most commonly used methods for SOC estimation, with a large amount of literature focused on improving the Kalman filtering method. In estimating the state of charge (SOC) of a battery, the SOC is treated as an internal state variable of the battery system, and the recursive algorithm achieves the minimum variance estimation of SOC. During the implementation of the algorithm, it maintains good accuracy and has a strong correction effect on the error of the initial value, as well as a strong suppression effect on noise. However, since the battery model is nonlinear, the Kalman filtering method cannot be directly used to estimate SOC. Therefore, a common approach is to use the Extended Kalman Filtering (EKF) algorithm to estimate SOC. The EKF algorithm adds a linearization step during the derivation of the filtering equations of the Kalman filtering algorithm: during state estimation, a real-time linear Taylor approximation is made at the estimated value of the previous state for the system equations; during prediction, the measurement equations are also linearly approximated at the corresponding predicted position.

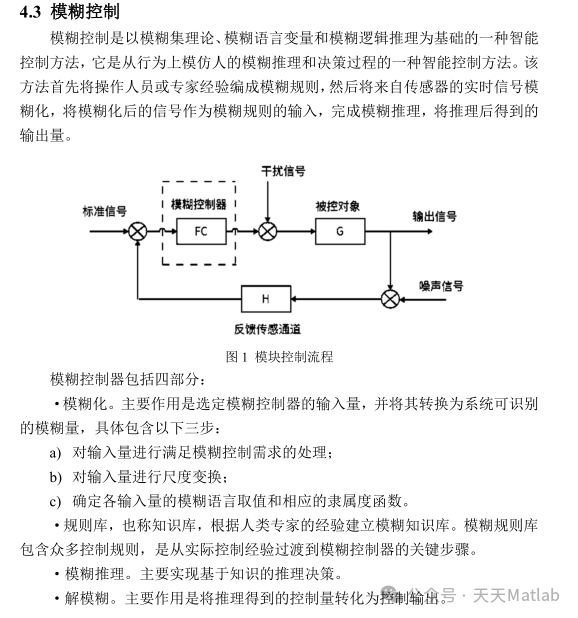

In addition, this group fully considers the impact of temperature and charge/discharge rates on the algorithm, setting a composite Kalman gain correction coefficient, and based on fuzzy control theory, updates the observation matrix in the extended filtering with time updates and measurement correction values, ensuring the accuracy of the SOC estimation algorithm.

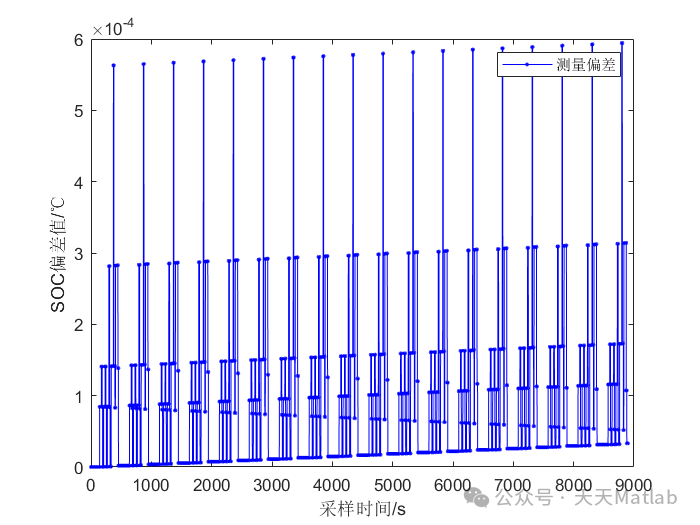

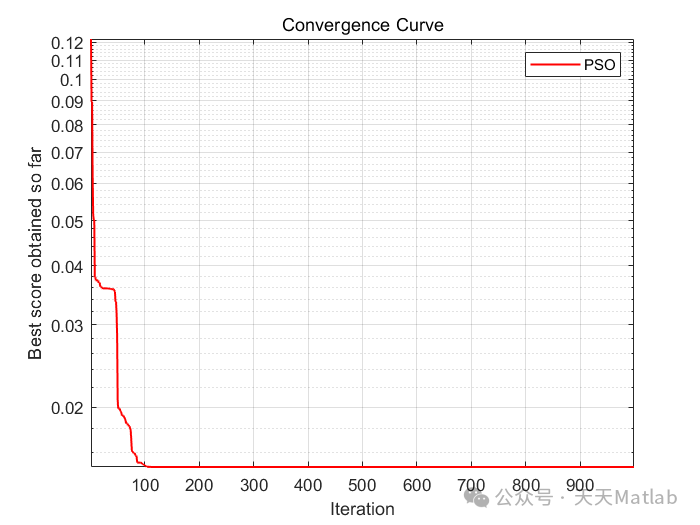

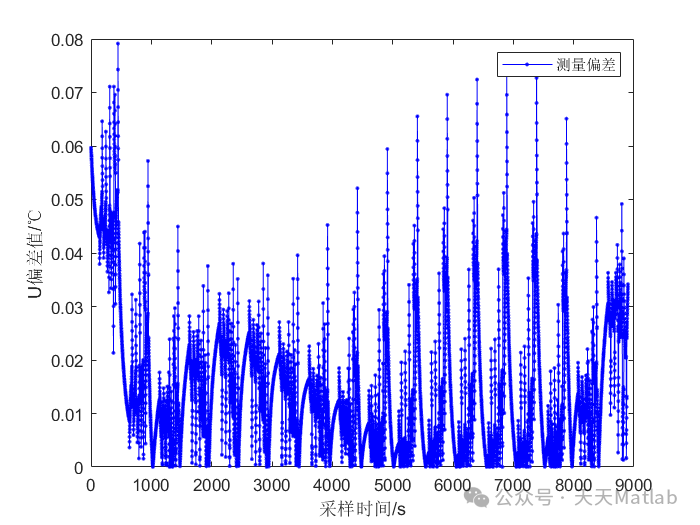

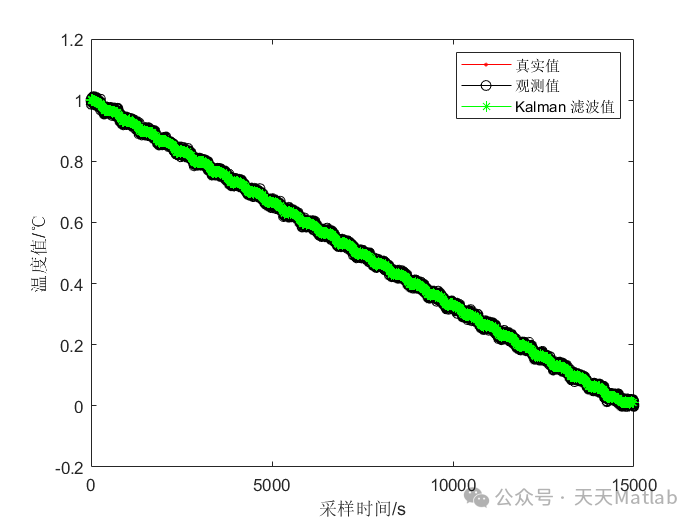

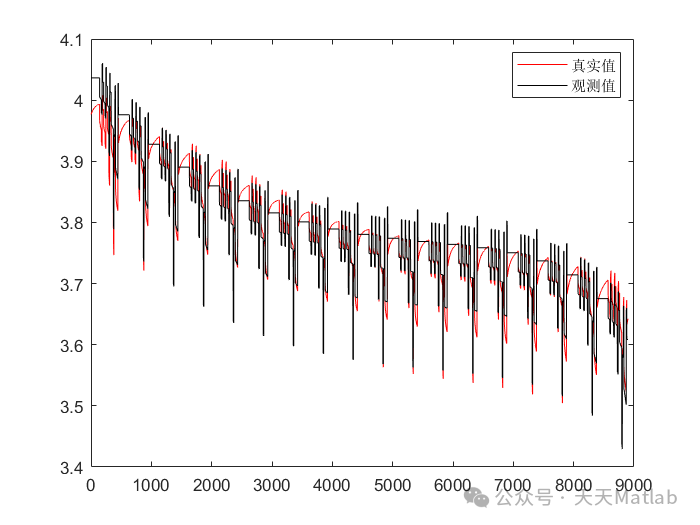

⛳️ Results
📣 Sample Code
for k=1:N
%if I(k)<=0
% in=I(k);
% ip=0;
%else
% in=0;
% ip=I(k);
% end
y(k)=X(1)+X(2)/SOC(k)+X(3)*SOC(k)+X(4)*log(SOC(k))+X(5)*log(1-SOC(k))+X(6)*I(k);
Err_Messure(k)=abs(y(k)-U(k));
🔗 References
[1] Lin Cheng, Zhang Xiaohua, Xiong Rui. SOC estimation of power batteries based on fuzzy Kalman filtering algorithm [J]. Power Technology, 2016, 40(9):5. DOI:10.3969/j.issn.1002-087X.2016.09.030.

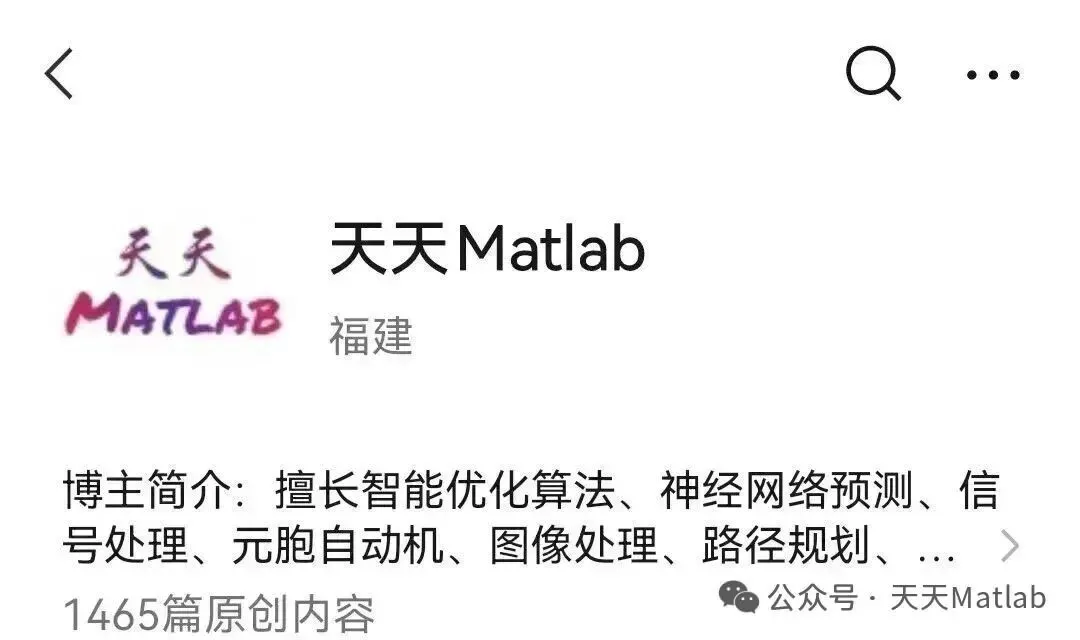

Search for code tips on WeChat public account: Must be done on a mobile device. Here are the specific steps:
