Fast Channel Estimation in Transform Domain for Millimeter Wave Systems Based on MATLAB [Includes MATLAB Source Code]

Click the blue text above to follow us

Message from the author

🔊Author Introduction: Graduate from a 985 university, researcher and developer in the field of MATLAB;

🚅 Motto: A journey of a thousand miles begins with a single step.

✅ Research Areas: Complete code, paper reproduction, program customization, journal writing, research collaboration

🏆 Code Acquisition Method: Method to obtain MATLAB code for the “Sea God Light”

For more MATLAB signal processing simulation content, click below👇

MATLAB Signal Processing (Advanced Version)

MATLAB Signal Processing Radar Communication (Milk Tea Price Version)

Introduction

📋📋📋 The table of contents is as follows: 🎁🎁🎁

Table of Contents

💥1 Overview

📚2 Code and Running Steps

🎉3 Running Results

🌈4 MATLAB Version and References

🔎5 Code Acquisition Method

🍅6 Simulation Consultation

1 Overview

See CSDN Sea God Light with the same title

**1 Principle of Channel Estimation in Transform Domain for Millimeter Wave Systems** Millimeter wave communication relies on large-scale antenna arrays for beamforming, but the sparsity of high-frequency signal paths leads to inefficiencies in traditional channel estimation methods. The Transform-Domain method utilizes the sparsity of signals in specific transform domains (such as Fourier domain, angle domain) to reduce estimation complexity through techniques like compressed sensing. The core principles include three aspects: 1. **Sparsity Assumption**: The millimeter wave channel can be represented as a superposition of a few dominant paths in the angle-delay domain, satisfying the sparsity condition. 2. **Transform Basis Design**: Projecting the time-domain channel into the sparse domain using discrete Fourier transform (DFT) matrices or overcomplete dictionaries (such as DCT, Kronecker product basis). 3. **Compressed Sensing Reconstruction**: Using algorithms like Orthogonal Matching Pursuit (OMP) and Approximate Message Passing (AMP) to recover the sparse channel from a small number of observations. The mathematical expression is:
\[ \mathbf{y} = \mathbf{\Phi}\mathbf{F}\mathbf{h} + \mathbf{n} \] where \(\mathbf{F}\) is the transform basis matrix, \(\mathbf{\Phi}\) is the observation matrix, and \(\mathbf{h}\) is the sparse channel vector. **2 Fast Channel Estimation Process** **Preprocessing Stage** – Construct the overcomplete dictionary matrix \(\mathbf{D} = \mathbf{U}_{\mathrm{Tx}}\otimes\mathbf{U}_{\mathrm{Rx}}\), where \(\mathbf{U}_{\mathrm{Tx/Rx}}\) is the antenna array response matrix at the transmitter/receiver. – Design the pilot sequence \(\mathbf{X}\) to satisfy the Restricted Isometry Property (RIP), typically using random phase pilots or Zadoff-Chu sequences. **Compressed Observation Stage** – Send pilot signals over \(T\) time slots, with the received signal represented as:
\[ \mathbf{Y} = \sqrt{\rho}\mathbf{W}^H\mathbf{H}\mathbf{F}\mathbf{X} + \mathbf{N} \] – Obtain compressed measurements \(\mathbf{y} = \mathrm{vec}(\mathbf{\Phi}\mathbf{Y})\) using a dimensionality-reducing observation matrix \(\mathbf{\Phi}\) (e.g., partial unit matrix). **Sparse Reconstruction Stage** – Use an improved OMP algorithm for path parameter estimation: 1. Initialize the residual \(\mathbf{r}_0 = \mathbf{y}\), support set \(\mathcal{S} = \emptyset\) 2. Iteratively select dictionary atoms: \[ i_k = \arg\max_i |\mathbf{D}_i^H\mathbf{r}_{k-1}| \] 3. Update the support set \(\mathcal{S} = \mathcal{S}\cup i_k\) and reconstruct the channel: \[ \mathbf{h}_k = (\mathbf{D}_{\mathcal{S}}^H\mathbf{D}_{\mathcal{S}})^{-1}\mathbf{D}_{\mathcal{S}}^H\mathbf{y} \] 4. Termination condition: residual energy falls below a threshold or reaches a preset number of paths. **Postprocessing Stage** – Perform inverse transformation on the estimated angle-delay domain channel \(\hat{\mathbf{h}}\):
\[ \hat{\mathbf{H}} = \mathbf{U}_{\mathrm{Rx}}\hat{\mathbf{h}}\mathbf{U}_{\mathrm{Tx}}^H \] – Improve time-varying channel tracking performance through interpolation or Kalman filtering. **3 Performance Optimization Techniques** **Low Complexity Algorithm Improvements** – Hierarchical Matching Pursuit (HMP): Divide large-scale antenna arrays into sub-arrays for hierarchical sparse reconstruction. – Structured OMP: Utilize the block sparse characteristics of millimeter wave channels to reduce search dimensions. **Hardware Adaptation Design** – Jointly optimize analog/digital observation matrices under hybrid beamforming architecture. – Design improved AMP algorithms for 1-bit ADC quantization. Under typical system parameters, this method can reduce pilot overhead to 10%-20% of traditional LS algorithms while maintaining NMSE below -15dB. Practical implementation requires balancing dictionary resolution, algorithm complexity, and estimation accuracy.

2 Code and Running Steps

2.1 Partial Code2.2 Running Steps

(1) Directly run main.m to generate the plot with one click

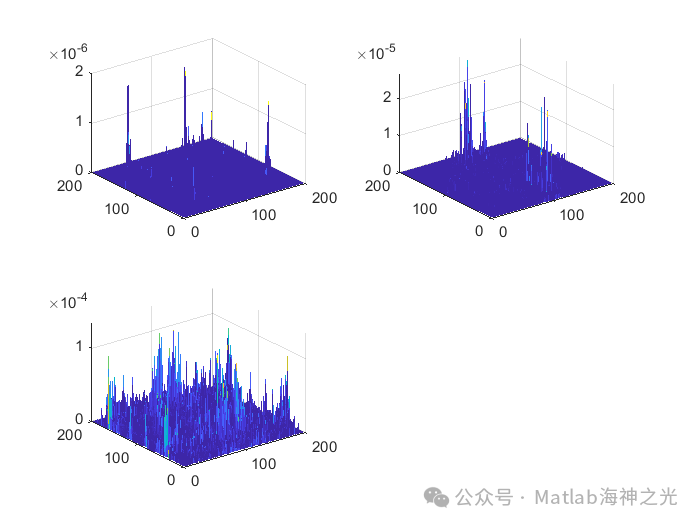

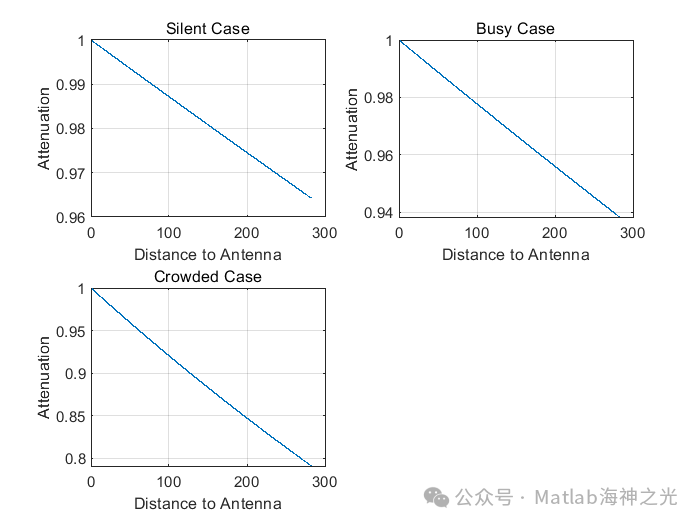

3Running Results

4MATLAB Version and References

1 MATLAB Version

2019b

2 References

[1] Ni Yiyang, Zhu Hongbo, Wang Yuxi. Overview of Millimeter Wave D2D Communication Technology for 5G [J]. Modern Electronic Technology. 2019

[2] Wan Yuan, Li Xingguo, Wang Hong. Application of Channel Coding Technology in Millimeter Wave Communication [J]. Journal of Ordnance and Guidance. 2006

3 Note

This section is excerpted from the internet for reference only. If there is any infringement, please contact for removal.
