🔥 Content Introduction

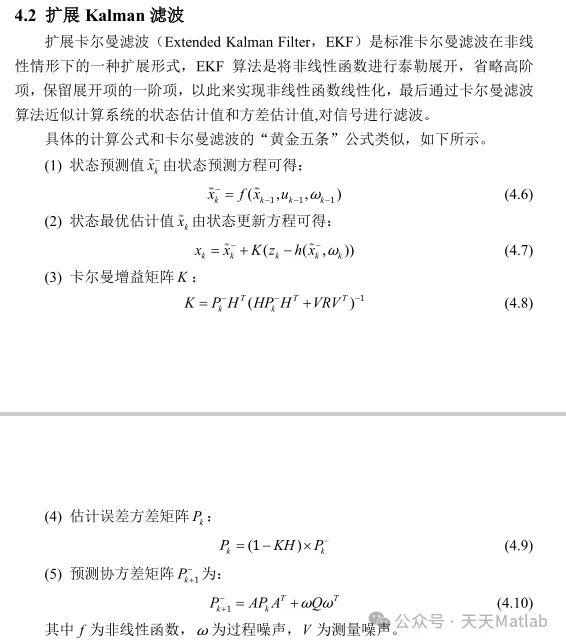

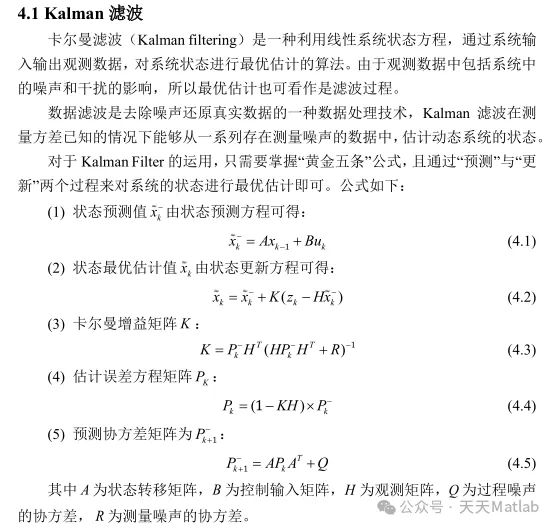

The Kalman filtering method is currently one of the most commonly used methods for SOC estimation, with a large amount of literature focused on improving the Kalman filtering method. The Kalman filtering algorithm estimates the state of charge (SOC) of a battery by treating SOC as an internal state variable of the battery system, achieving minimum variance estimation of SOC through a recursive algorithm. During the implementation of the algorithm, it maintains good accuracy and has a strong corrective effect on initial value errors, as well as a strong suppression effect on noise. However, since the battery model is nonlinear, the Kalman filtering algorithm cannot be directly used to estimate SOC. Therefore, a common approach is to use the extended Kalman filtering algorithm to estimate SOC. The extended Kalman filtering algorithm adds a linearization step during the derivation of the filtering equations of the Kalman filtering algorithm: during state estimation, a real-time linear Taylor approximation is made at the estimated value of the previous state for the system equations; during prediction, a linear Taylor approximation is also made for the measurement equations at the corresponding predicted position.

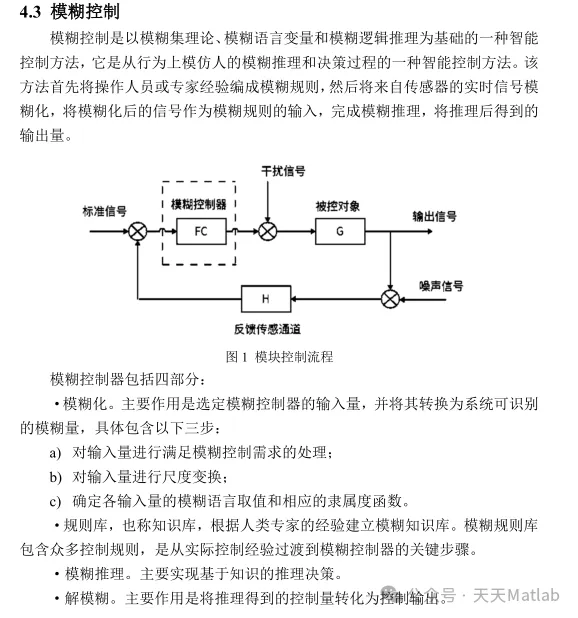

In addition, this group fully considers the impact of temperature and charge/discharge rates on the algorithm, setting a composite Kalman gain correction coefficient, and based on fuzzy control theory, updates the observation matrix in the extended filtering with time updates and measurement corrections, ensuring the accuracy of the SOC estimation algorithm.

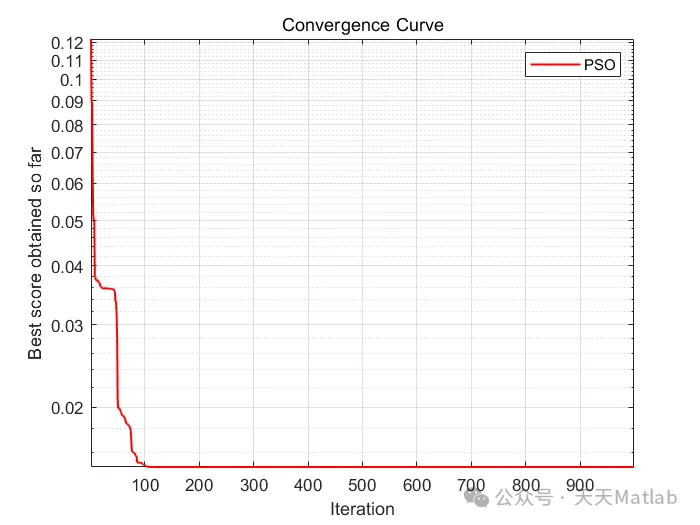

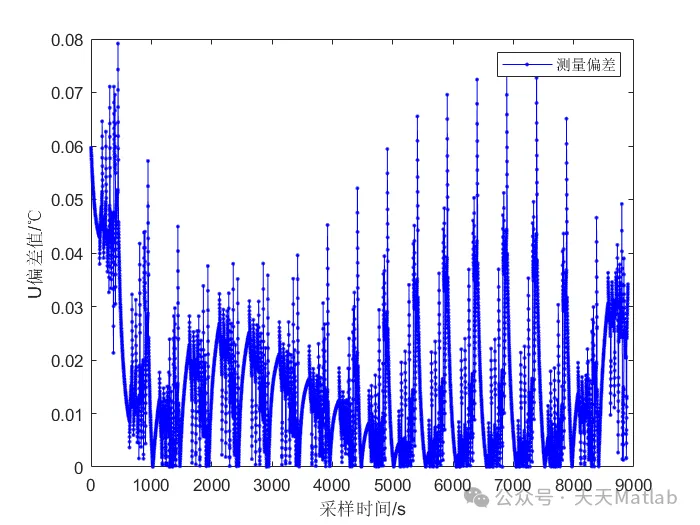

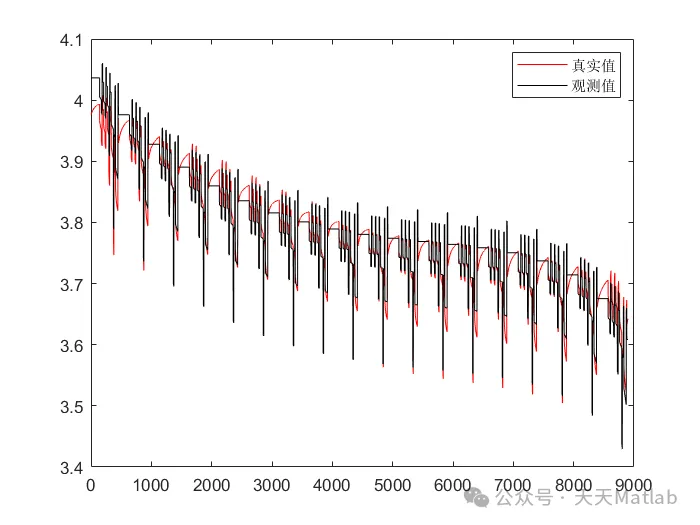

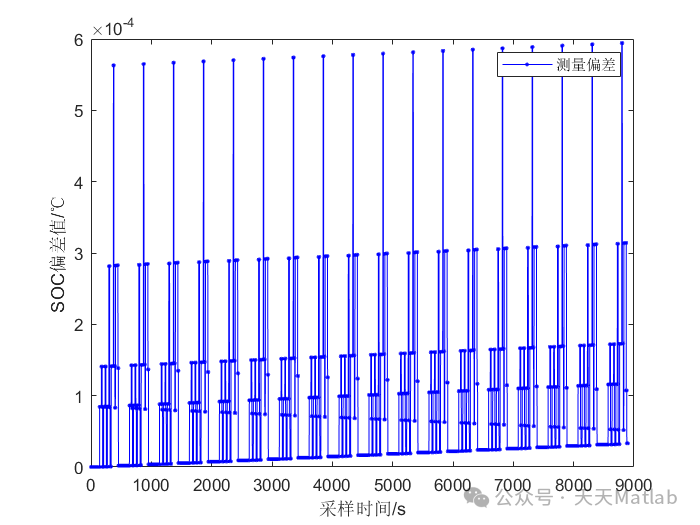

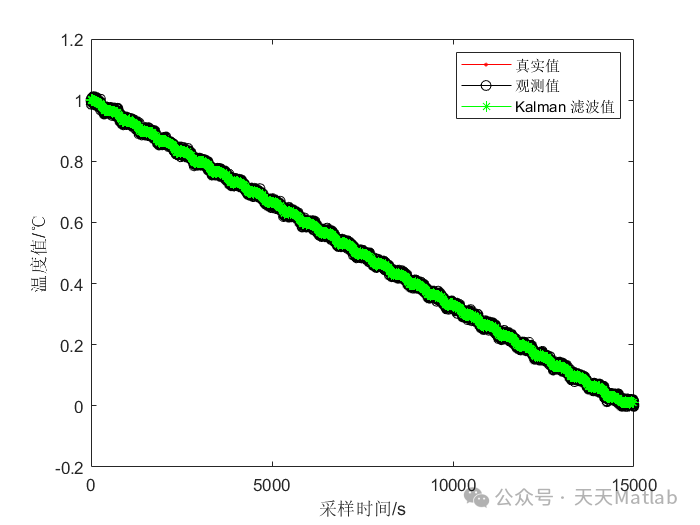

⛳️ Results
📣 Sample Code
for k=1:N
%if I(k)<=0
% in=I(k);
% ip=0;
%else
% in=0;
% ip=I(k);
% end
y(k)=X(1)+X(2)/SOC(k)+X(3)*SOC(k)+X(4)*log(SOC(k))+X(5)*log(1-SOC(k))+X(6)*I(k);
Err_Messure(k)=abs(y(k)-U(k));
🔗 References
[1] Lin Cheng, Zhang Xiaohua, Xiong Rui. SOC estimation of power batteries based on fuzzy Kalman filtering algorithm [J]. Power Supply Technology, 2016, 40(9):5. DOI:10.3969/j.issn.1002-087X.2016.09.030.
