This article presents a MATLAB code framework for distributed fusion tracking of four targets using a dual radar system based on the Kalman filter, incorporating TDOA/FDOA observation models and distributed fusion logic. The code references methods for multi-target tracking, distributed MIMO radar optimization, and Kalman filter implementation.
Code Description
Below is an introduction to the main functions and structure of the code:
Code Background
– Function:
Simulate a multi-target tracking system with dual radars, using the Kalman filter for independent tracking of targets and improving tracking accuracy through distributed fusion.
– Number of Targets: Default is set to 5 targets.
– Number of Radars: Default is set to 2 radars, located at different positions in the coordinate system.
The number can be modified as needed.
Features:
– Random Initialization of Target States: The initial position and velocity of each target are randomly generated.
– Noise Modeling: Range noise (Gaussian distribution) and angle noise are modeled separately to simulate the errors in actual radar observation data.
– Distributed Fusion: Combines the observation results from multiple radars, enhancing tracking accuracy through weighted average fusion of target states.
Code Structure:
Sampling Period and Count: Defines the sampling frequency (`T`) and total duration (`N`).
Target and Radar Setup:
-
Randomly generate the initial states of targets (including position and velocity).
-
Radar positions are fixed at `[0, 0]` and `[500, 0]`, located on either side of the coordinate system.
Model Parameters:
-
State transition matrix (`F`) and process noise (`Q`).
-
Observation noise covariance (`R_radar`).
Filtering Main Loop:
-
Iterate according to time steps to complete target trajectory generation, radar observation simulation, Kalman filter updates, and distributed fusion.
– **True Trajectory Generation**: Use the state transition equations to generate the true trajectory of the targets, adding process noise.
– **Radar Observation Simulation**: Based on the true positions of the targets, calculate distance and azimuth, adding measurement noise.
Kalman Filtering:
-
Prediction Step: Use the state transition matrix to predict the next state and covariance of the target.
-
Update Step: Use radar observations and the observation model (Jacobian matrix) to correct the target state.
-
Distributed Fusion: Use a weighted average method to combine the independent estimates from the two radars into the final target state.

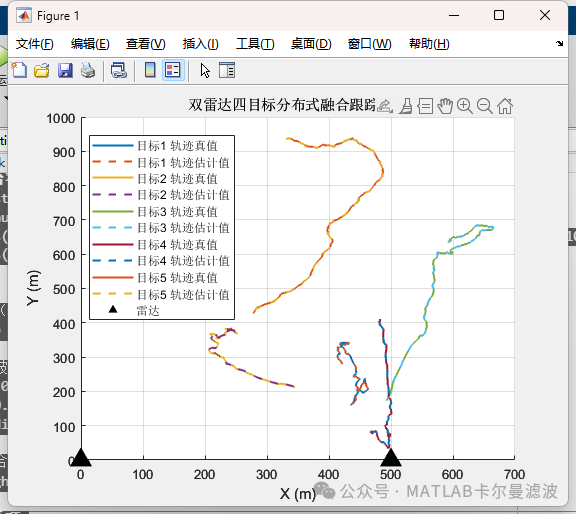

Results
MATLAB Code
Part of the code is as follows:
% MATLAB Kalman Filter-Based Radar Multi-Target Tracking (Dual Radars, Multi-Target Distributed Fusion)% Author: matlabfilter% 2025-04-07/Ver1clear; clc; close all;rng(0); % Fix random seed%% Simulation Parameter InitializationT = 1; % Sampling period (s)N = 200; % Total number of samplesnum_targets = 5;% Number of targetsnum_radars = 2; % Number of radarsigma_R = 10; % Range noise standard deviation (m)sigma_A = 0.5; % Angle noise standard deviation (deg)%% Initial States of Targets (Position and Velocity)targets = struct();for q = 1:num_targets targets(q).x = [randi([100,500]); randi([-10,10]); randi([100,500]); randi([-10,10])]; % [x, vx, y, vy] targets(q).P = diag([50, 5, 50, 5]); % Initial covarianceend% Radar Positions (Assuming dual radars are distributed on either side of the coordinate system)radar_pos = [0, 0; 500, 0]; % Positions of Radar 1 and Radar 2% Kalman Filter ParametersComplete code download link:https://mbd.pub/o/bread/aJeUkplp
Or click on the “Read Original” at the end of the article to navigate.
