Arduino Lecture 19: Electronic Thermometer

Arduino Lecture 19: Electronic ThermometerArduino Lecture 19: Electronic Thermometer01Temperature SensorThe temperature sensor (temperature transducer): refers to a sensor that can sense temperature and convert it into a usable output signal. The temperature sensor is the core component of temperature measuring instruments, with a wide variety. Based on the measurement method, they can be divided into contact and non-contact types, and according to the sensor materials and electronic component characteristics, they can be classified into thermistors and thermocouples..02Device Preparation

Temperature sensor (TMP36) *1,LED lights *3, resistors *3, breadboard *1, mainboard *1, Dupont wires *10

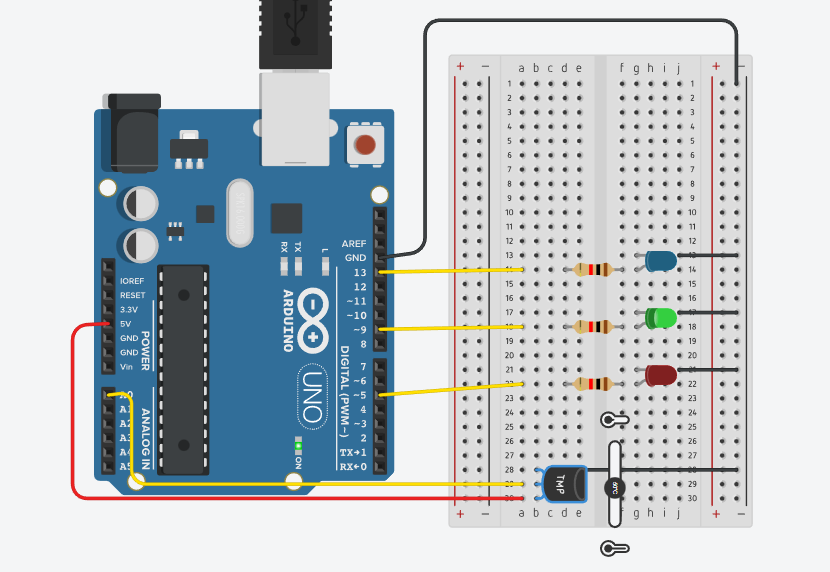

03Connection DiagramArduino Lecture 19: Electronic Thermometer04Program DisplayArduino Lecture 19: Electronic ThermometerArduino Lecture 19: Electronic ThermometerArduino Lecture 19: Electronic ThermometerShareArduino Lecture 19: Electronic ThermometerCollectArduino Lecture 19: Electronic ThermometerViewArduino Lecture 19: Electronic ThermometerLike
