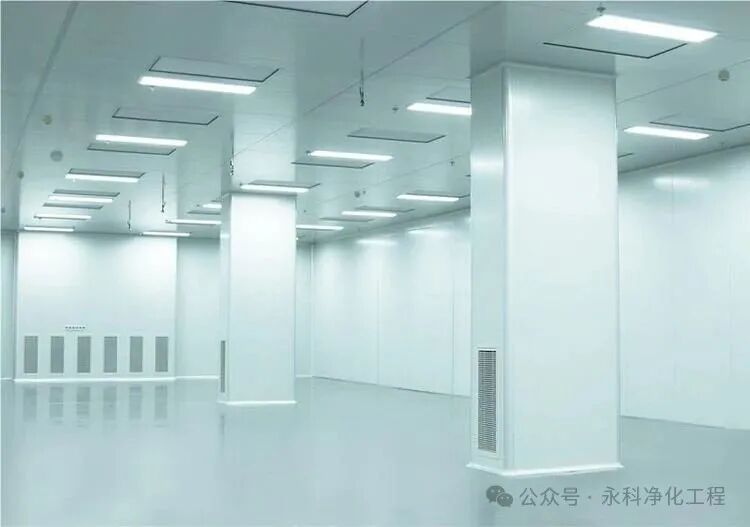

Enhancing cleanliness in PCB clean rooms through optimized airflow organization can be approached from the following key aspects:
1. Reasonable Planning of Airflow Direction and Area Division
Unidirectional or Mixed Flow Mode: Implementing vertical unidirectional flow or horizontal unidirectional flow modes allows clean air to flow from clean areas to contaminated areas, carrying pollutants out of the clean room. For areas with high cleanliness requirements (such as ISO Class 5), the unidirectional flow mode ensures uniform distribution of air cleanliness.
Area Division: Based on production processes and cleanliness requirements, the clean room should be divided into high cleanliness areas, medium cleanliness areas, and low cleanliness areas. Ensure reasonable airflow between each area to reduce the risk of cross-contamination.
2. Optimizing Supply and Return Air Outlet Design
Efficient Supply and Return Air Layout: Set up efficient supply and return air outlets in appropriate locations to control airflow speed and temperature distribution. Supply outlets should be arranged in high cleanliness areas, while return outlets should be set in relatively lower cleanliness areas to achieve unidirectional airflow from clean to non-clean areas.
Avoiding Airflow Dead Zones: By adjusting the position and number of supply and return outlets, ensure airflow covers the entire clean room, avoiding the formation of eddies and dead zones.
3. Controlling Airflow Speed and Temperature Distribution
Key Area Airflow Speed Control: Maintain lower airflow speeds near process equipment and workstations to reduce the spread of particles and contaminants. Additionally, through reasonable supply layout, ensure uniform airflow speed and temperature distribution at all points within the clean room.
Temperature and Humidity Control: Install a constant temperature and humidity system, controlling the temperature between 22°C-28°C and relative humidity at 55%±5%. High-precision and stable temperature and humidity adjustment equipment should be regularly calibrated and maintained to ensure environmental stability.
4. Utilizing Efficient Filtration and Air Purification Systems
Multi-stage Filtration System: Install pre-filters, medium-efficiency filters, and high-efficiency filters (such as HEPA or ULPA) to form a multi-stage filtration system that effectively removes particles and contaminants from the air.
Regular Maintenance of Filters: Regularly clean or replace filters and monitor the pressure differential inside and outside the clean room to determine when filters need to be replaced.
5. Local Exhaust and Overall Airflow Coordination
Local Exhaust Equipment: For areas handling chemicals or points of harmful gas release, set up local exhaust equipment to directly absorb pollutants from the source, reducing their spread within the clean room.
Exhaust System Design: Ensure that the local exhaust system is coordinated with the overall airflow organization to effectively expel pollutants from the clean room.
6. Intelligent Monitoring and Real-time Adjustment
Integrated Intelligent Control System: Real-time monitoring and adjustment of airflow speed, temperature, and humidity parameters, automatically adjusting airflow speed and filtration efficiency based on actual needs to improve work efficiency and stability.
Remote Monitoring and Management: Remote monitoring of the operation status of FFUs (Fan Filter Units) through an operating interface enables automated management and reduces energy consumption.
7. Sealing and Isolation Measures
Enhancing Cleanroom Sealing: Ensure good sealing of the clean room to prevent external dust from entering. Use air-sealed doors and other equipment to maintain a positive pressure state.
Area Isolation: Reasonably divide clean areas based on production needs and set effective isolation measures to prevent cross-contamination.
8. Regular Cleaning and Maintenance
Cleaning and Replacing Filters: Regularly clean and replace high-efficiency filters to ensure filtration efficiency and stability.
Inspecting Duct Status: Regularly check for dust accumulation and blockages in ducts to maintain smooth airflow.
Fujian Yongke Conclusion
Optimizing airflow organization in PCB clean rooms is a core aspect of ensuring cleanliness in the production environment. By scientifically planning airflow direction, precisely designing supply and return air systems, integrating efficient filtration and intelligent monitoring technologies, and implementing strict sealing maintenance and area isolation measures, the stability of cleanliness can be significantly enhanced, reducing product defect rates and helping enterprises achieve efficient and sustainable clean production goals. In the future, with the deep integration of intelligent and energy-saving technologies, airflow optimization solutions will further promote clean rooms towards higher standards and lower energy consumption.
