A reader asked earlier: I can choose to generate a Bin file in IAR, why is there no option in MDK-ARM to configure the generation of Bin files?
Friends who have used IAR should know: In IAR, project configuration options can configure the generation of Hex and also Bin.
Project -> Options -> Output Converter to select the output format, as shown in the figure below:
In MDK-ARM, the IDE comes with a tool that can convert axf to a Bin file, and this tool is fromelf.exe.
In different versions of MDK-ARM, its path varies, and you can search directly.
For example, in version V4: C:\Keil/ARM/BIN40 below;
While in version V5, it is located at: C:\Keil_v5\ARM\ARMCLANG\bin below. (Red marked as installation directory).

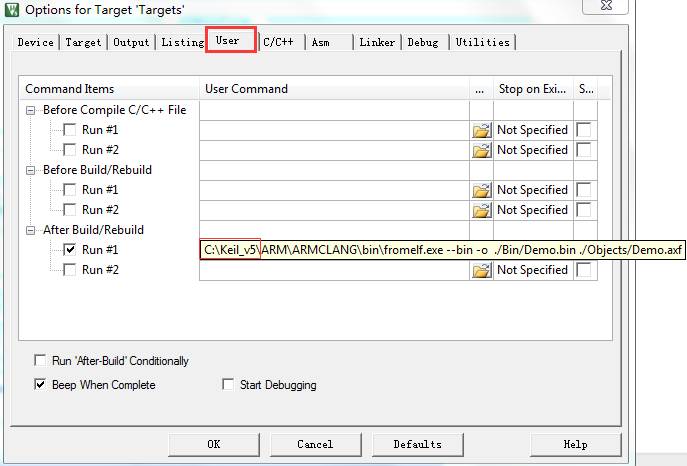

We just need to add the command in project configuration Project -> Options for Target -> User -> After Build/Rebuild.
C:\Keil_v5\ARM\ARMCLANG\bin\fromelf.exe –bin -o ./Bin/Demo.bin ./Objects/Demo.axf as shown in the figure below:
Format: fromelf [options] input_file output_file
To facilitate everyone’s learning, here is a software engineering demo [STM32F103ZE (Keil) Generate Bin File], the WeChat public account does not support external links, please copy the download address:
http://pan.baidu.com/s/1hskScba
