A group member raised a question about the accuracy of analog signal conversion, which is universal, and shared it in 15 “Boto Friends” groups for discussion, sharing it with everyone.
1. Discussion in the Boto Group

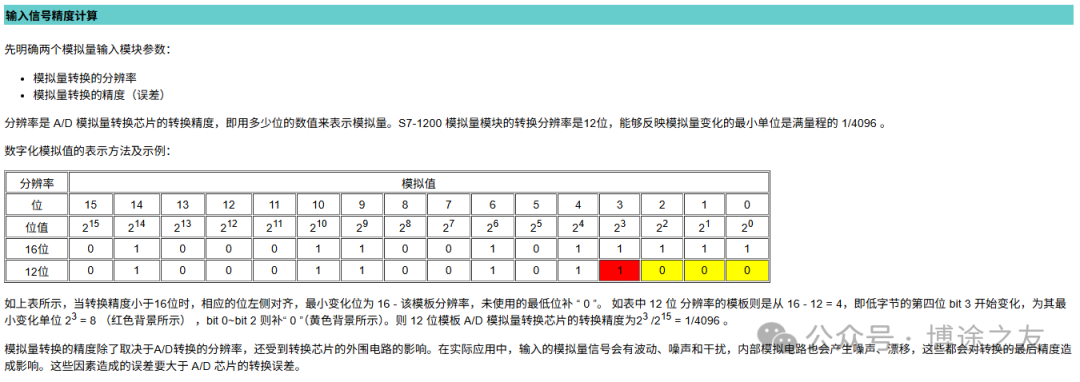

Question from a group member: Hello everyone, I have a question: The voltage A/D conversion module of the S7-1200 PLC is 12 bits + sign bit, so the theoretical accuracy should be 1/4096; converting 0-10V voltage to 0-27648, the theoretical accuracy is 1/27648, which accuracy should be considered as the standard?
Rui Qingzhong: Very good question!
Group member: 4096, but Boto itself interpolates to 27648.
Group member: Boto’s 16-bit unipolar also uses 27648 as the standard, halving the accuracy.
Rui Qingzhong: Very accurate answer.
Question from a group member: Okay, I understand, thank you, Engineer Zeng.
Group member: I have been using Deque recently, and their module’s bit count is equal to the return value. For example, a 4-20mA 12-bit module returns a value of 0-4095. A 4-20mA 16-bit module returns a value of 0-65535.
Group member: Count bits from the high end.
Group member: If it is bipolar, it includes a sign bit, effectively halving the precision.
Group member: Siemens should have done this from a general usability perspective. A 12-bit accuracy of 98% is sufficient in most cases.
Group member: The conversion accuracy of 12 bits is 1/4096.

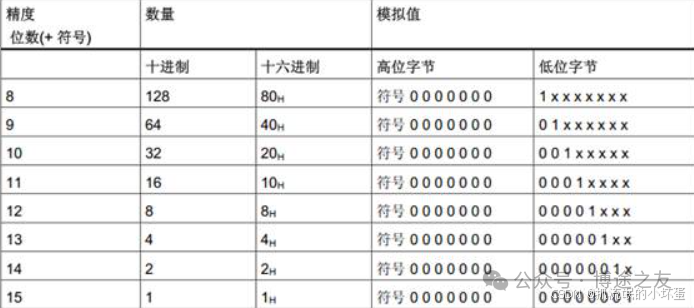

Group member: If you look at the ET200SP, the 16-bit precision module also gives you 0-27648, treating it as a 15-bit module.
Group member: If the precision is insufficient, it is interpolated to ensure general usability. Regardless of whether you use a sign bit or not, it ultimately results in 0-27648 or -27648 to +27648.
2. The 12 and 16 bits of the Boto PLC analog signals represent precision, while 0-27648 is the standardization of data processing.
