What is an FPGA?
A Field-Programmable Gate Array (FPGA) is a semiconductor device that can be programmed and reprogrammed after manufacturing to implement digital logic functions. FPGAs provide a unique approach to implementing digital circuits by offering programmable hardware blocks and interconnections that can be configured to perform various tasks.
Components of an FPGA
An FPGA consists of several key components that work together to implement and configure custom digital circuits. The main components of an FPGA include:

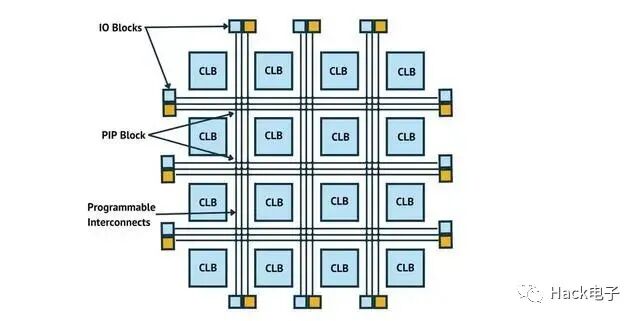

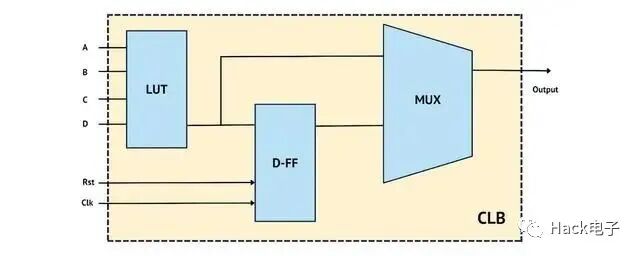

Configurable Logic Blocks (CLB): These are the basic building blocks of an FPGA, containing lookup tables (LUTs), flip-flops, and sometimes dedicated arithmetic units. CLBs can be configured to perform various combinational and sequential logic functions.
1.Programmable Interconnect Points (PIP): These are programmable switches and wiring resources that connect CLBs and other components within the FPGA. PIPs allow for flexible routing and interconnection of signals between different elements on the chip. Essentially, transistors are the fundamental building blocks of the FPGA, forming CLBs and PIPs.
2.Input/Output Blocks (IOB): These are interface points between the FPGA and external devices or other components on the board. IOBs can be configured to support various signal standards and protocols, enabling communication with a wide range of peripherals.
3.Block RAM (BRAM): This is the on-chip memory available on the FPGA for storing data and implementing memory functions. BRAM is faster than off-chip memory and can be accessed with lower latency.
4.Digital Signal Processing (DSP) Blocks: These are dedicated hardware blocks specifically designed for high-speed arithmetic operations (e.g., multiplication and accumulation). DSP modules are commonly used in signal processing and filtering applications.
5.Clock Management Resources: These include Phase-Locked Loops (PLLs) and Digital Clock Managers (DCMs) used to generate, distribute, and manage clock signals within the FPGA. These resources help maintain precise timing and synchronization across the device.
6.Configuration Memory: This is flash memory that stores the configuration bitstream, which programs the FPGA to implement the desired digital circuit. The bitstream is loaded into the FPGA at startup or when reprogramming is required.
Traditionally, code is written and compiled into instructions that run on a processor. However, for FPGAs, code can be written in a hardware description language (HDL) in a different manner. This code is then synthesized into physical hardware modules that can be configured to directly execute the desired logic functions on the FPGA. The hardware modules in an FPGA consist of registers and various types of logic gates, such as AND, OR, NOR, NOT, XOR, and XNOR gates. These gates can be combined to create complex digital circuits.
The key to FPGA flexibility lies in the use of lookup tables (LUTs) to implement logic gates. The interconnections between these logic blocks are also programmable, allowing for flexible signal routing and wiring. By making these LUTs programmable and using reconfigurable switching structures to connect them, FPGAs can be customized to perform a variety of tasks. By providing a single device that can run any code required by the user, FPGAs have become popular in a range of applications from prototyping to high-performance computing.
HDL Languages: VHDL and Verilog
Hardware Description Languages (HDLs) are used to describe digital circuits at a high level of abstraction. The two main HDLs used in FPGA design are VHDL and Verilog.
VHDL: VHDL (VHSIC Hardware Description Language) is a strongly typed, verbose language that provides high-level abstractions, making it easier to write complex designs. It is widely used in Europe and in industries such as aerospace and defense.
Verilog: Verilog is a more concise, C-like language that is popular in the United States and commercial sectors. Compared to VHDL, it has a lower level of abstraction, making complex designs more challenging but also allowing for better control over the design.
Both languages have their advantages and disadvantages, and the choice between VHDL and Verilog often depends on personal preference or industry standards.
To better understand the differences, let’s look at Python code that adds two numbers:
In Python, the code is written in a high-level language that abstracts the details of the underlying hardware. The function add_numbers takes two input parameters a and b and returns their sum. This code is executed by a processor that handles the addition operation.
Now, let’s look at simple Verilog code that adds two numbers:
In this Verilog code, we define a module called Adder that has two 4-bit input lines A and B, and a 4-bit output line Sum. The code describes the behavior of a digital circuit that adds two numbers using an assignment statement that utilizes the programmable logic resources of the FPGA to execute directly in hardware. The result is a custom circuit designed to add two 4-bit numbers.
The main difference between the two methods is that the Python code is executed sequentially by a processor, while the Verilog code describes a digital circuit implemented directly in hardware using the FPGA. This means that an FPGA-based adder can perform addition operations in parallel and is typically faster than a processor executing Python code. However, Python offers more flexibility and ease of use, while Verilog requires a deeper understanding of digital circuit design and FPGA resources.
Advantages of FPGAs
FPGAs have several advantages compared to other technologies, including:
Flexibility: FPGAs can be reprogrammed to perform different functions, making them suitable for a wide range of applications.
Rapid Prototyping: FPGAs allow designers to quickly test and iterate their designs, reducing time to market.
Parallelism: FPGAs can execute multiple tasks simultaneously, which can enhance performance for certain applications.
Customization: FPGAs can create dedicated hardware that meets specific requirements, often optimizing performance and reducing power consumption.
Reconfigurability: FPGAs can be reconfigured in the field, allowing for updates, bug fixes, or feature additions without replacing the entire hardware.
Lower NRE Costs: FPGA development does not require the high non-recurring engineering (NRE) costs associated with custom ASIC designs, making them more suitable for small-scale production or proof-of-concept projects.
Scalability: FPGA designs can be easily scaled up or down as needed, allowing for efficient resource utilization and cost-effective solutions.
Security: FPGAs can provide higher security through hardware-based encryption and secure boot features, which are more difficult to tamper with compared to software-based implementations.
Analog and Digital Interfaces: FPGAs can connect with various analog and digital peripherals, simplifying system integration and allowing seamless communication between different components.
Longevity: FPGA-based designs typically have a longer lifespan than ASICs, as they can be updated and reprogrammed to adapt to evolving standards and technologies.
Design Reuse: IP cores and previously developed FPGA designs can be easily reused and integrated into new projects, reducing development time and effort.
Disadvantages of FPGAs
Compared to other technologies like ASICs and microcontrollers, FPGAs have some disadvantages. Some of these include:
Cost: FPGAs can be more expensive than microcontrollers or ASICs, especially for large-scale production. For high volumes, the unit cost of FPGAs is typically higher than that of ASICs or microcontrollers.
Power Consumption: FPGAs generally consume more power than ASICs and microcontrollers, which can be an issue in power-sensitive applications.
Design Complexity: The design process for FPGAs can be more complex than for microcontrollers, requiring expertise in hardware design, HDL, synthesis, and layout tools.
Performance Limitations: While FPGAs offer parallelism and can provide high performance for certain tasks, they may not be as fast as ASICs for some applications, as ASICs are custom-designed for specific purposes and can be highly optimized for performance.
Size: FPGAs may be larger than equivalent ASICs or microcontrollers because they contain additional resources for programmability and reconfiguration.
Configuration Time: FPGAs require configuration at startup, which can lead to longer boot times compared to ASICs and microcontrollers.
FPGAs, ASICs, PLDs, and Microcontrollers
FPGAs, Application-Specific Integrated Circuits (ASICs), Programmable Logic Devices (PLDs), and microcontrollers are all technologies used to implement digital logic functions, but they differ in various aspects. Let’s compare and contrast these technologies:
FPGA: As mentioned earlier, FPGAs are reprogrammable, making them suitable for a wide range of applications. They offer high performance and parallelism but are more expensive and power-hungry compared to ASICs, PLDs, and microcontrollers.
ASIC: ASICs are custom-designed for specific applications, optimizing performance and power consumption. However, they have high upfront costs, long development times, and lack the flexibility of FPGAs and PLDs, making them suitable for high-volume production.
PLD: PLDs include Complex Programmable Logic Devices (CPLDs) and Simple Programmable Logic Devices (SPLDs), which are reconfigurable hardware similar to FPGAs but with lower complexity and fewer resources. They are well-suited for simpler digital designs and can offer lower costs and power consumption than FPGAs, but may lack the performance and flexibility of FPGAs for more complex applications.
Microcontrollers: Microcontrollers are general-purpose computing devices with integrated memory, processing, and input/output capabilities. They are typically slower and less parallel than FPGAs and PLDs but are cheaper, consume less power, and are easier to develop.
In summary, FPGAs provide flexibility and parallelism, ASICs offer optimized performance and power consumption, PLDs provide simplicity and cost-effectiveness, while microcontrollers are economical and easy to develop. The choice of technology depends on the specific requirements of the application and the trade-offs needed between performance, power consumption, development time, and cost.
FPGA Design Process and Methodologies
In this section, we will explore the FPGA design process, including design flow, hardware description languages, Register Transfer Level (RTL) design, synthesis, implementation, and testing and debugging.
Overview of the Design Flow
The FPGA design process consists of several steps that guide designers from concept to a fully functional FPGA implementation. These steps include:
Design Input: Designers create a high-level representation of the desired digital circuit using HDLs such as VHDL or Verilog.
RTL Design and Simulation: The HDL code is converted into an RTL representation, which is then simulated to verify functionality and performance.
Synthesis: The RTL design is converted into a gate-level netlist, which is a representation of the digital circuit using gates and flip-flops.
Implementation: The gate-level netlist is mapped to the resources of the FPGA, including CLBs, DSP slices, and programmable interconnects. This step includes place and route and bitstream generation.
Testing and Debugging: The FPGA device is tested and debugged using simulation tools, test platforms, or target hardware to ensure correct functionality and performance.
Throughout the design process, various tools and software are used to facilitate the design, simulation, synthesis, and implementation of FPGA designs.
RTL Design and Simulation
RTL design is an intermediate representation of digital circuits that focuses on the flow of data between registers and the operations performed on that data. RTL simulation is used to verify the functionality and performance of the design before entering the synthesis and implementation stages.
Common RTL simulation tools include ModelSim, XSIM, and VCS. These tools allow designers to perform functional and timing simulations, helping to identify and fix design errors and performance bottlenecks early in the design process.
Synthesis and Implementation
During the synthesis phase, the RTL design is converted into a gate-level netlist, which represents the digital circuit using gates and flip-flops. This process involves optimizing the design for area, speed, and power consumption. Common synthesis tools include Xilinx Vivado, Intel Quartus, and Synopsys Design Compiler.
The implementation phase involves mapping the gate-level netlist to the resources of the FPGA, such as CLBs, DSP slices, and programmable interconnects. This step includes place and route (determining the physical locations of design elements on the FPGA) and bitstream generation (creating the binary file that configures the FPGA). Implementation tools include Xilinx Vivado and Intel Quartus. EDA (Electronic Design Automation) tools play a crucial role in the FPGA design process, assisting designers with all tasks, including synthesis, place and route, and verification.
Testing and Debugging FPGA Designs
Testing and debugging are critical steps in the FPGA design process, ensuring that the design operates correctly and meets performance requirements. Common testing methods include:
Simulation: Testing the design in a virtual environment using simulation tools for faster and more controllable testing.
In-Circuit Testing: Testing the FPGA design on a test platform or target hardware, often using logic analyzers or oscilloscopes to monitor signals and identify issues.
Debugging FPGA designs involves identifying and fixing issues related to functionality, performance, and resource utilization. Best practices for debugging include:
Using descriptive signal and variable names to improve code readability.
Adopting a modular design approach, breaking the design into smaller, more manageable components.
Utilizing simulation tools and in-circuit testing to identify and isolate issues.
By following the FPGA design process and adopting best practices for testing and debugging, designers can create high-quality FPGA designs that meet their specific application requirements.
FPGA Design Examples and Applications In this section, we will explore various examples and applications of FPGA designs.
Digital Signal Processing (DSP) Using FPGAs
DSP involves the processing and analysis of digital signals, such as audio, video, or sensor data. Due to their parallelism and flexibility, FPGAs are well-suited for DSP tasks. Some examples of FPGA-based DSP applications include:
Audio Processing: FPGAs can be used for audio effects, equalization, noise reduction, and compression.
Image Processing: FPGAs can perform real-time image processing tasks such as edge detection, filtering, and object recognition.
Software-Defined Radio (SDR): FPGAs can be used to implement various radio communication protocols, enabling highly customizable and adaptive radio systems.
FPGA-Based Artificial Intelligence (AI) and Machine Learning (ML)
FPGAs play a significant role in AI and ML applications, offering advantages such as low latency, high throughput, and energy efficiency. Some examples of FPGA-based machine learning and AI projects include:
Deep Learning Accelerators: Compared to traditional CPU and GPU-based solutions, FPGAs can accelerate the training and inference of deep neural networks, improving performance and reducing power consumption.
Edge AI: FPGAs support edge AI processing, reducing the need to transmit data to the cloud and enhancing privacy and security.
Custom AI Hardware: FPGAs allow for the implementation of custom AI algorithms tailored to specific applications, optimizing performance and efficiency.
FPGAs in Networking and Communications
FPGAs are widely used in networking and communication systems, offering high performance, flexibility, and adaptability. Some examples of FPGA-based networking and communication projects include:
Network Switches and Routers: FPGAs can be used to implement high-performance, low-latency Ethernet switches and routers, enabling faster and more efficient data transmission.
Optical Communication: FPGAs can be used in optical communication systems, such as Dense Wavelength Division Multiplexing (DWDM), for high-speed data transmission and signal processing.
Wireless Communication: FPGAs can be used to implement various wireless communication protocols, such as 5G, Wi-Fi, and Bluetooth, enabling customizable and adaptive communication systems.
In summary, FPGAs are versatile and powerful devices that can be used in a wide range of applications, from digital signal processing to machine learning and networking, where the capabilities of microprocessors may exceed what is required. By leveraging the unique capabilities of FPGAs, designers can create innovative, high-performance solutions for various industries and use cases.
Best Practices for FPGA Design
In this section, we will discuss general best practices for FPGA design, focusing on code readability, modularity, and techniques for optimizing performance, power consumption, and resource utilization in designs.
Code Readability and Modularity
Maintaining code readability and modularity is crucial for efficient FPGA design. By following these practices, you can improve the maintainability and scalability of your designs:
Descriptive Naming: Use meaningful names for signals, variables, and modules to make the code easier to understand.
Comments: Include comments to explain the purpose and functionality of the code, especially for complex or non-obvious operations.
Modularity: Break your design into smaller, more manageable modules or components. This approach makes debugging, maintenance, and code reuse easier.
Optimizing FPGA Design for Performance, Power Consumption, and Resource Utilization
Optimizing FPGA designs can help you achieve the desired balance between performance, power consumption, and resource utilization. Some optimization techniques include:
Pipelining: Break complex operations into smaller stages and process them in parallel to increase throughput and reduce latency.
Resource Sharing: Reuse hardware resources (e.g., multipliers, converters, or memory blocks) for multiple operations to save area and power.
Clock Gating: Disable clock domain signals for unused or idle parts of the design to reduce dynamic power consumption.
In addition to these techniques, be sure to take advantage of the optimization features provided by synthesis and implementation tools (such as Xilinx Vivado and Intel Quartus). These tools can help you achieve the best results based on specific design requirements and constraints.
By following best practices for FPGA design and adopting optimization techniques, you can create high-quality, efficient designs that meet specific application needs.
Frequently Asked Questions (FAQ)
1. What are the main advantages of using FPGAs?
FPGAs offer flexibility, reprogrammability, parallelism, and rapid prototyping capabilities, making them suitable for a wide range of applications.
2. How do I choose the right FPGA for my project?
When selecting an FPGA for your project, consider factors such as FPGA family, FPGA vendor, resource requirements, performance needs, and cost.
3. Can I use FPGAs for machine learning and AI applications?
Yes, FPGAs can be used for machine learning and artificial intelligence applications, providing low latency, high throughput, and energy efficiency.
4. What is the difference between VHDL and Verilog?
VHDL is a strongly typed, verbose language with a higher level of abstraction, while Verilog is a more concise, C-like language with a lower level of abstraction. The choice between VHDL and Verilog often depends on personal preference or industry standards.
5. What tools and software do I need to get started with FPGA design?
To start FPGA design, you will need an HDL editor, simulation tools (such as ModelSim, XSIM), synthesis tools (such as Xilinx Vivado, Intel Quartus), and implementation tools (such as Xilinx Vivado, Intel Quartus).
Conclusion
In this comprehensive guide, we explored the fundamentals of FPGA design, the design process, various applications, and best practices for creating efficient, high-quality designs. By understanding how FPGAs work and leveraging their unique capabilities, designers can create innovative solutions for various industries and use cases.
