In the fields of industrial automation and precision manufacturing, surface profile measurement is an essential process. Whether in metal processing, electronics manufacturing, or automated inspection lines, even minor defects, dimensional deviations, and inconsistent profiles in various products can affect the final quality. Compared to traditional contact measurement methods, the line scan laser displacement sensor from Chuangxiang Intelligent Control, based on the principle of laser triangulation, is gradually becoming the preferred solution for surface profile measurement due to its advantages of high speed, high precision, and non-contact operation.

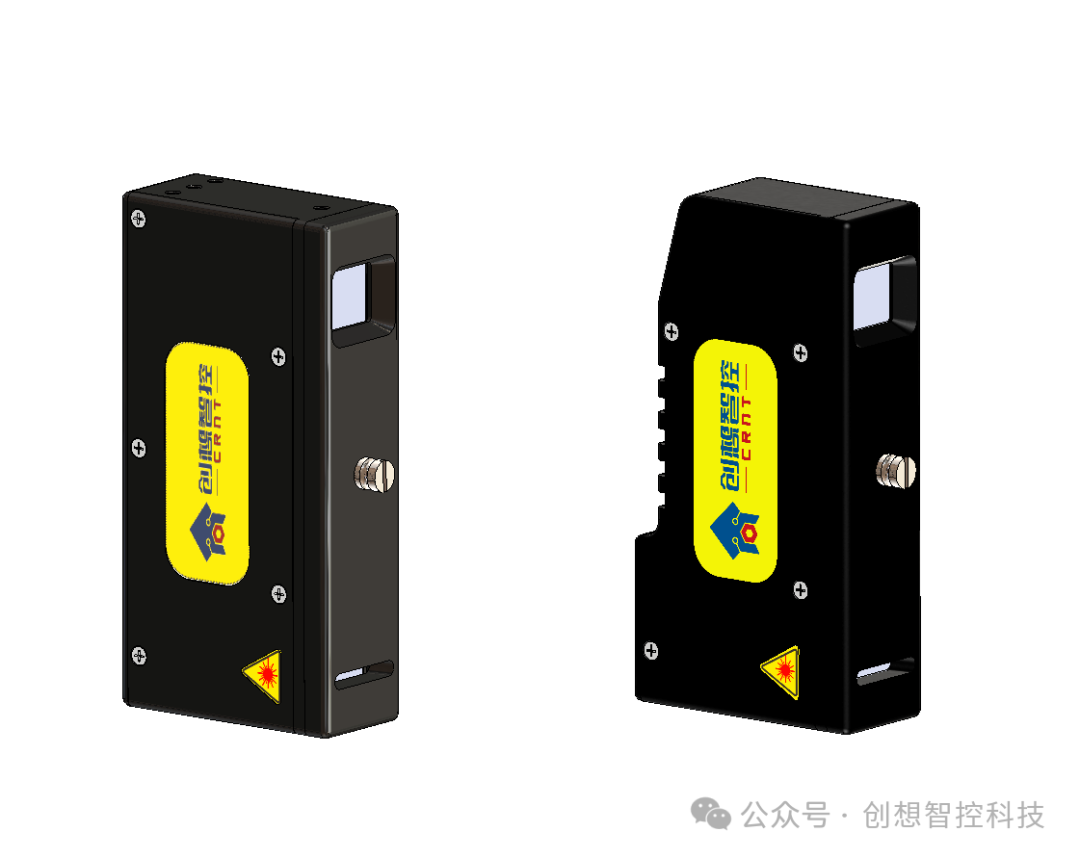

What is a Line Scan Laser Displacement Sensor?

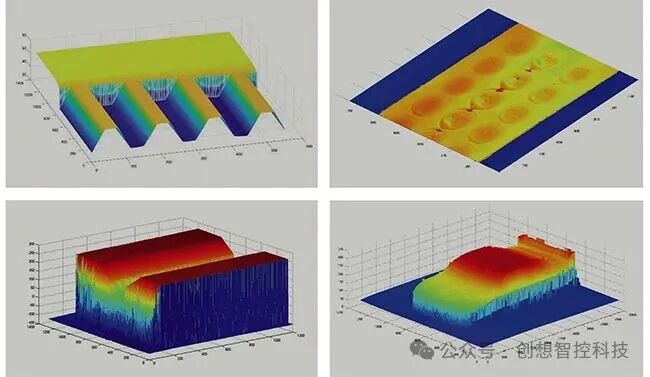

The line scan laser displacement sensor projects a laser line and captures the position changes of the reflected light through a high-resolution imaging device, thus forming a two-dimensional cross-sectional profile. During the movement of the scanning device, it can quickly obtain continuous cross-sections, achieving high-density three-dimensional data modeling.
The core features include:
1. Complete profile information can be obtained in a single scan, and through the relative motion of the object or sensor scanning, a complete three-dimensional morphology can be quickly reconstructed;
2. High resolution, suitable for detecting minute details;
3. Strong anti-interference capability, performing stably on metal, dark materials, and rough surfaces;
4. Supports high-speed moving devices, adaptable to dynamic measurement scenarios such as robots and conveyor lines.
Typical Applications of Line Scan Lasers in Surface Profile Measurement
1. Surface Defect Detection
The line scan laser can clearly identify surface defects such as pits, scratches, and burrs, obtaining defect depth and area through height changes, enabling online automatic judgment and improving production line yield.

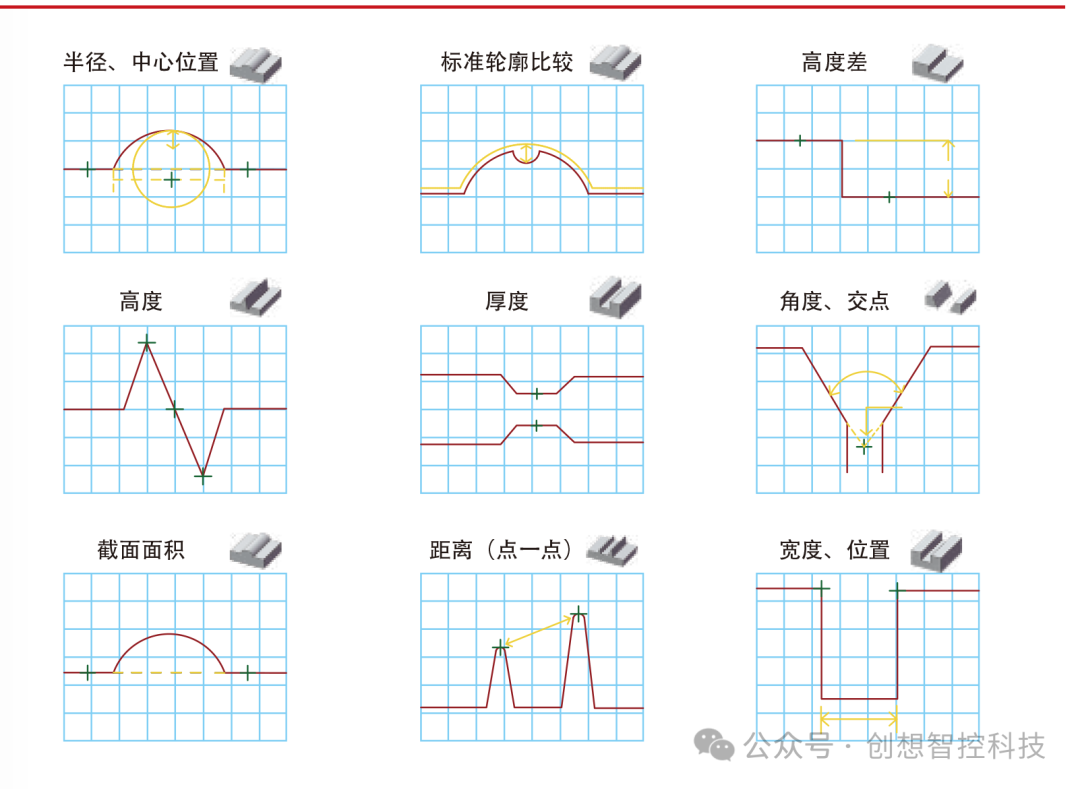

2. Dimensional Measurement and Profile Comparison
In component processing, complex profile data can be quickly obtained and compared with CAD models to automatically determine if they are within tolerance, suitable for metal structural parts, injection molded parts, stamped parts, etc.
3. Detection of Process Trajectories such as Welds and Glue Paths
The Chuangxiang Intelligent Control line laser can completely cover the weld or glue path area, capturing parameters such as height, width, and symmetry, aiding in welding automation, visual guidance, and offset compensation.
4. Multi-Station Online Detection
In high-speed assembly lines, it can work in coordination with PLCs and robots to achieve rapid triggering and real-time data output, which is particularly critical for industries requiring full inspection, such as consumer electronics, lithium batteries, and automotive manufacturing.
The Application Value of Line Scan Lasers
1. Comprehensive Improvement of Detection Efficiency
A single scan of the line laser can obtain hundreds to thousands of profile points, significantly increasing detection speed to meet the demands of high-speed production lines.
2. High Precision and Strong Stability
Laser triangulation itself has excellent repeatability, and the line scan structure is more resistant to surface gloss and background interference, making the data stable and reliable.
3. Non-Contact Measurement Protects Products
For easily damaged materials such as mirror-finished parts, flexible materials, and precision components, non-contact measurement avoids wear risks.
4. Easy Integration into Automation Systems
With a compact design and various communication methods (Ethernet, RS485, etc.), line scan sensors can be quickly applied to robots and visual inspection platforms.
As the precision requirements in manufacturing continue to rise, the Chuangxiang Intelligent Control line scan laser displacement sensor is becoming an important tool for surface profile measurement. It not only replaces traditional inspection methods but also provides higher speed, precision, and reliability for automated inspection. With the help of intelligent algorithms and 3D data processing technology, line scan lasers will play a greater application value in more complex scenarios, helping enterprises enhance product quality and competitiveness.
