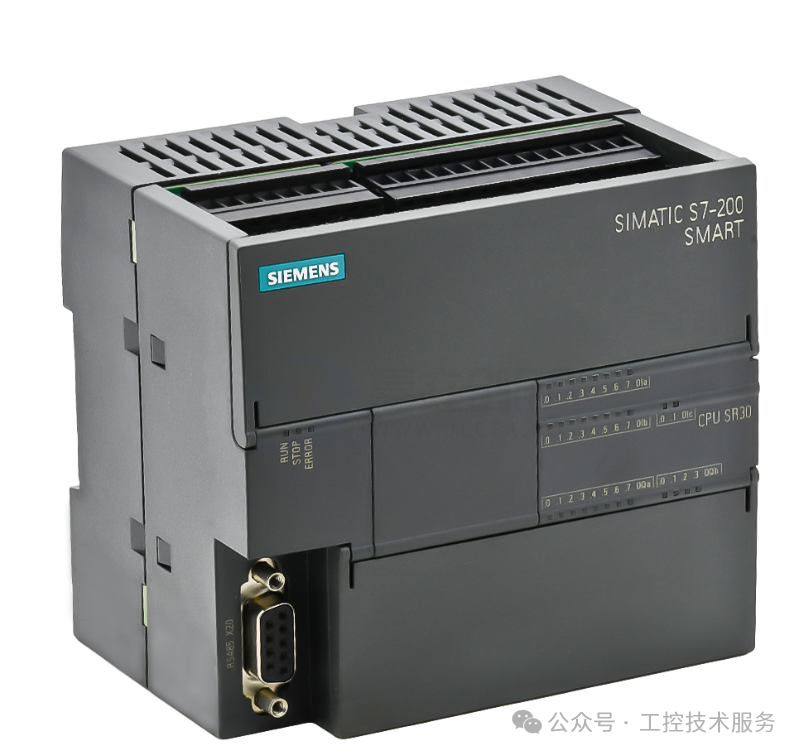

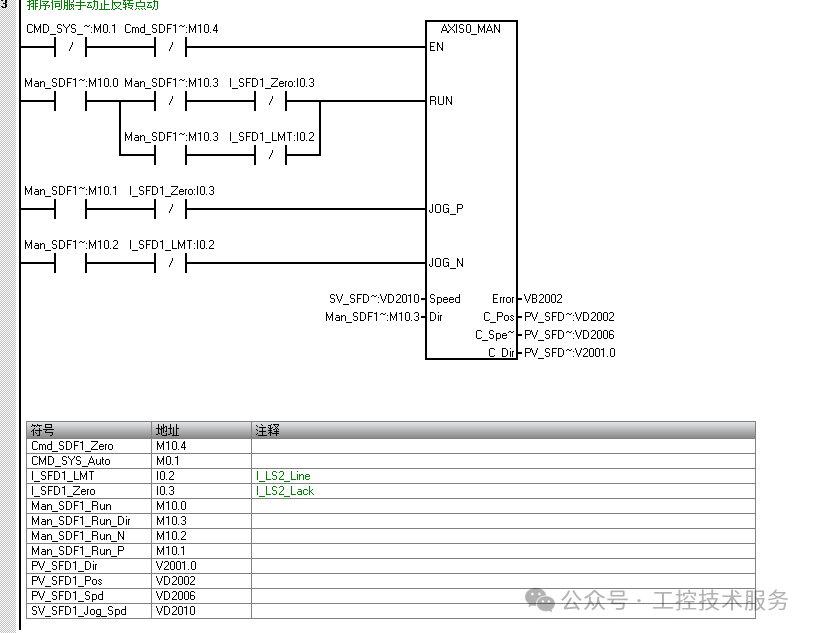

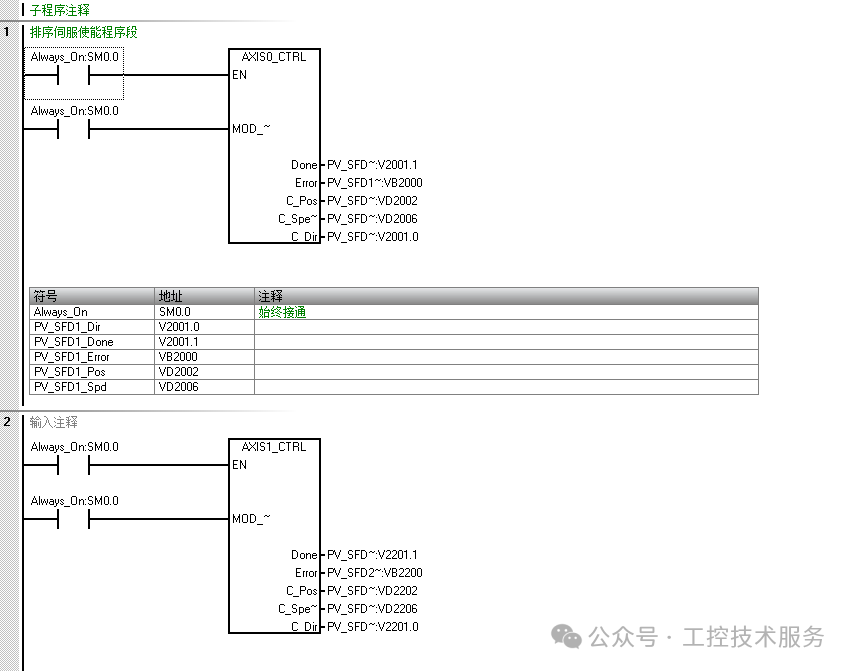

The Siemens S7-200 SMART PLC is widely used in automation, especially suitable for medium complexity positioning and motion control scenarios. 馃幆 Control Principles and Core Components The Siemens S7-200 SMART PLC achieves precise control of servo motors primarily through the following methods: 路 Pulse Control: The PLC sends out a pulse sequence through the high-speed pulse output (PTO/PWM) to directly control the servo drive. The number of pulses determines the angle of rotation of the motor, while the pulse frequency controls the speed of the motor. This method is the most basic in position control. 路 PROFINET Communication: With firmware version V2.4 and above, the S7-200 SMART PLC can communicate with PROFINET-compatible servo drives (such as Siemens V90 PN) via the PROFINET protocol. This method simplifies wiring and allows for more advanced motion control through process instructions (such as the Sina_Pos instruction block). 馃敡 Hardware Composition and Key Connections A typical control system mainly consists of the following components: Component Description S7-200 SMART PLC Core controller providing pulse output or PROFINET communication interface. Servo Drive Such as the Siemens V90 series, receives PLC commands to drive the servo motor. Servo Motor Actuator that achieves precise speed and position control. Connection Cables Including power cables, encoder cables, and 24V DC power lines. Key Wiring Considerations: 路 When powering the drive and inductive loads (such as relays), Siemens recommends using a separate 24V DC power supply or adding overvoltage protection devices on the inductive load side. 路 Follow correct power wiring (L1, L2, L3) and motor power line (U, V, W) connections. 馃捇 Software Configuration and Programming Software configuration and programming are key steps to achieving control: 1. Hardware Configuration: In the STEP 7-Micro/WIN SMART programming software, it is necessary to correctly configure the PLC’s high-speed output points or PROFINET interface. 2. Motion Control Wizard: Using the built-in motion control wizard in the software can simplify the setting of pulse output parameters and generate corresponding motion control subprograms. 3. Motion Control Instructions: 路 For PROFINET communication control of V90 PN, in addition to using basic data exchange blocks provided by the system such as “Sina_Pos”, you can also refer to or encapsulate similar motion control function blocks (such as MC_Power, MC_MoveRelative, etc.) to achieve complex motion control functions such as servo enable, relative positioning, absolute positioning, and return to reference point. 路 When programming, it is recommended to plan a clear variable symbol table for easier management and maintenance. 馃殌 Typical Applications The S7-200 SMART PLC combined with servo motors is commonly used in scenarios requiring high precision positioning and reciprocating motion, such as five-axis reciprocating spraying systems. I hope the above introduction can help you. If you encounter more detailed issues in specific project practices, such as parameter settings for specific models of servo drives or in-depth applications of communication protocols, feel free to ask at any time.Code Display:
