01
Product Name
Ultra-High Temperature Thermocouple Sensor
02
Holding Unit
Xi’an XX Technology Co., Ltd.
03
Technical/Product Overview
Based on the teams from North University of China and Xiamen University, this sensor features a unique sandwich micro-thin film structure for its sensitive core, capable of bridging millions of friction welding joints at the hot end. The product is benchmarked against the offerings from Nanmac, USA. All materials, design, manufacturing, and production are 100% domestically sourced. Key technical indicators such as temperature range, temperature accuracy, heat flow range, heat flow accuracy, and response time are at the leading level in the country.
04
Technical Specifications/Product Performance
-
Temperature Measurement Upper Limit: Above 3000 ℃;
-
Temperature Accuracy: 1 %F.S.-2 %F.S.;
-
Response Time: 20μs-50μs;
-
Lifetime: Millisecond level (304 stainless steel packaging, reusable) / Second level (tantalum alloy packaging, reusable);
-
Pressure Resistance: ≥ 20MPa;
-
Packaging Material: 304 stainless steel;
-
Dimensions: Φ6.4×200 mm (customizable);
-
Connection Method: Customizable active thread according to requirements.
05
Current Stage
Has entered the engineering prototype acceptance testing phase, currently conducting extensive application scenario testing and data collection.
06
Application Scenarios
Suitable for measuring gas, flames, inner wall temperatures of pipelines, pneumatic surface temperatures, wall temperatures of pipes, automotive engines, brake pads, cutting heat, friction heat, and other applications.
07
Conversion Form
Cooperative development, equity investment, etc.
08
Intellectual Property
6 invention patents
09

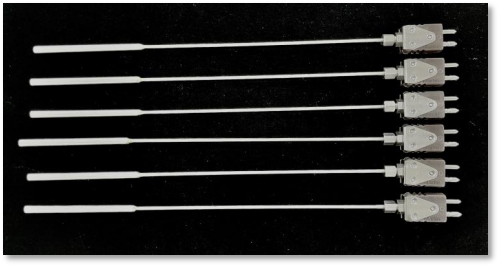

Image Information
10
Contact Person and Phone
Teacher Cai 13554301579
