According to a report by Electronic Enthusiasts (Author: Wu Zipeng), in the current electronic design field, the core value of position sensors lies in three major advantages: non-contact measurement, high precision, and fast response. Their representative application scenarios widely cover various fields including industrial, consumer electronics, automotive, and medical. However, traditional magnetoresistive sensors, while meeting some basic sensing needs, have significant shortcomings in low magnetic field detection capability, system cost control, and installation layout adaptability. To address this, Texas Instruments (TI), a global leader in semiconductor solutions, has officially launched an innovative product aimed at position sensing applications—the TMAG5134 high-sensitivity planar Hall effect switch, designed to break through traditional technical bottlenecks.The core highlight of the TMAG5134 is its extremely high magnetic field sensitivity, capable of reliably detecting magnetic field strengths as low as 1mT (millitesla). Compared to traditional Hall sensors, this breakthrough performance allows designers to choose smaller magnets, significantly reducing system-level costs and further optimizing the overall structural design of products.Unlike conventional Hall sensors that can only detect magnetic fields perpendicular to the printed circuit board (PCB), the TMAG5134 can accurately capture magnetic fields parallel to the PCB (i.e., in the horizontal direction), providing greater flexibility for product design. For example, in the installation scenario of door and window sensors, this feature offers three major benefits:
- Allows the magnet and sensor to be arranged in the same plane, greatly optimizing space utilization;
- Supports non-contact rotational or sliding position detection, adaptable to various structures such as knobs, latches, and drawers;
- Simplifies the installation process, effectively improving assembly efficiency and consistency.
To assist engineers in efficient development, Texas Instruments also provides a dedicated magnetic simulation tool—the Texas Instruments Magnetic Induction Simulator (TIMSS). Engineers can accurately simulate magnetic field distribution and sensor output results based on the actual placement of the sensor and magnet. Through TIMSS, not only can the number of design revisions for systems and complete products be reduced, but it also supports rapid experimental validation based on different system tolerances; engineers simply need to select the TMAG5134 model in TIMSS to obtain a 3D visualization of the magnetic field distribution and device output within the system, intuitively optimizing design solutions.The TMAG5134 product series offers two differentiated packaging options: one with a SOT-23 package featuring a single-channel full-polarity output; the other with an X1LGA package providing two independent unipolar outputs. Additionally, the device supports various combinations of high sensitivity thresholds and different sampling rates, providing flexible adaptation solutions for system design based on magnet selection, sensitivity requirements, and power consumption control goals.Therefore, the launch of the TMAG5134 marks an important technological transformation in the position sensing market. Now, engineers can achieve higher detection sensitivity than traditional Hall effect sensors without increasing the additional costs and complexity of magnetoresistive sensors. This breakthrough will promote the adoption of more cost-effective sensing solutions in various application scenarios, breaking the previous technical dilemma of “high precision must mean high cost.”In the future, with the rapid proliferation of smart homes, wearable devices, and Internet of Things (IoT) devices, the market demand for high-sensitivity, low-power position sensing solutions will continue to grow. The launch of the TMAG5134 not only precisely meets current market needs but also opens up new paths for the innovative development of future sensing technologies. With its outstanding performance and high cost-effectiveness, this innovative product is expected to become the preferred solution for the next generation of position sensing applications, driving terminal products in various fields towards “smaller, more precise, and lower power consumption” upgrades.
Disclaimer：This article is originally from Electronic Enthusiasts and must be cited as the source above. For group discussions, please add WeChat elecfans999, for submission of news tips or interview requests, please email [email protected].
More Hot Articles to Read
-
Commercialization Turning Point in Satellite Communication: T/R Chip Integration + GaN Empowerment, Entering Miniaturization
-
Tesla AI Chip Strategy Upgrade, “Epic” Chip Takes Over Dojo
-
Not HBM, Ultra-High Bandwidth DRAM for Edge AI! These Manufacturers Focus on Stacking Solutions!
-
Domestic Analog Chip Strong Recovery in the First Half of the Year, Manufacturer Revenue Surges Over 100%
-
Broadcom Receives “Billion Dollar Order” from OpenAI, AI Chip Business Revenue Soars
Click to Follow and Star Us

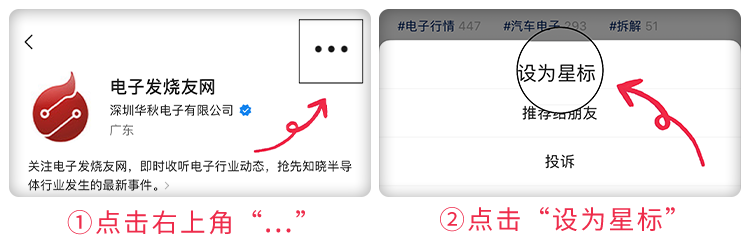

Set us as a star to not miss any updates!
