Multifunctional Breakfast Machine PCBA Solution for Pancakes, Waffles, and Sandwiches

Multifunctional Breakfast Machine PCBA Solution for Pancakes, Waffles, and Sandwiches

The customized PCBA solutions for pancake machines, cake machines, waffle machines, and sandwich machines are comprehensive electric control solutions that require precision in temperature control, uniform heating, accurate timing, and operational safety in the field of multifunctional kitchen appliances. The core is to independently or synchronously control the tubular heaters or heating tubes of the upper and lower heating plates through a highly reliable MCU with high-precision ADC and PWM, achieving precise constant temperature control using PID algorithms, and integrating mechanical timers or electronic timing functions, with safety measures such as over-temperature protection and dry burn detection, providing a convenient breakfast experience with smart cooking capabilities.

As a PCBA solution provider with extensive experience in mature solutions and safety certifications in the field of electric kitchen appliances such as toasters and electric griddles, we are very familiar with these requirements. We can provide you with a complete PCBA solution for multifunctional breakfast machines based on mature electric control technology, ensuring precise temperature control, uniform heating, accurate timing, and reliable safety.

**Core Solution: One-Stop PCBA Solution for Multifunctional Breakfast Machines (Precise Temperature Control, Uniform Heating, Accurate Timing)

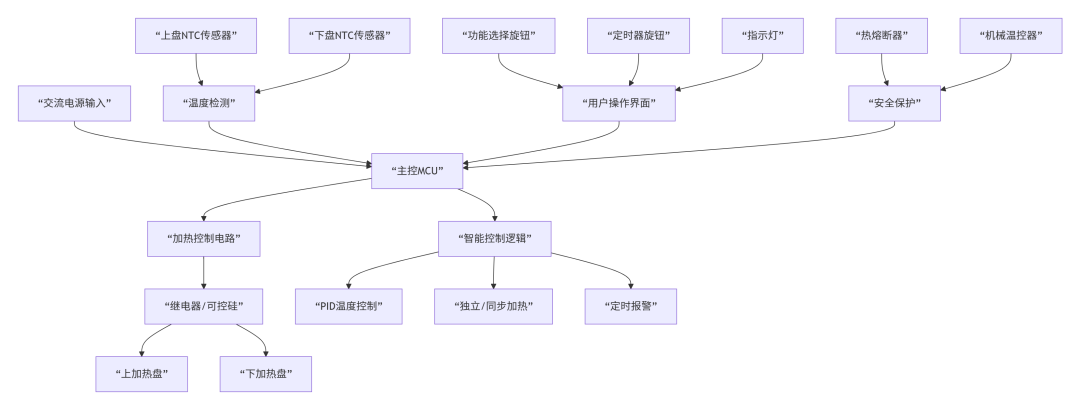

To help you quickly understand the technical implementation of this “smart breakfast center,” the following diagram clearly illustrates its system architecture:

1. Technical Solution Details (Temperature Control, Timing, Safety)

1. Precise Temperature Control and Heating System (Core)

• Temperature Sensing: The upper and lower heating plates are independently equipped with high-precision NTC temperature sensors, monitoring the surface temperature in real-time.

• Control Algorithm: Using PID control algorithms, dynamically adjusting heating power, allowing the surface temperature to quickly reach and maintain the set value.

• Heating Methods: Supports various heating modes such as independent heating of upper and lower plates, synchronous heating, etc., adapting to different cooking plates (pancakes, waffles, sandwiches).

2. Intelligent Timing and Function Control System (Convenience)

• Timing Methods: Can use mechanical timers (low cost) or electronic timers (high precision), automatically cutting off power and providing sound alerts when time is up.

• Function Selection: Different cooking modes can be selected via knobs or buttons, with the MCU automatically matching preset temperatures and times.

3. Comprehensive Safety Protection System (Reliability)

• Temperature Protection: Software sets a maximum temperature limit, hardware is equipped with mechanical thermostats and thermal fuses, providing triple protection.

• Dry Burn Protection: Intelligent detection of dry burning, automatically stopping heating.

2. Key Performance Indicators (Excellent Experience)

Performance Parameters	High-End Version Specifications	Testing Conditions
Temperature Control Range	Room Temperature – 250℃ Adjustable	Meets the cooking needs of different ingredients
Temperature Control Accuracy	±5℃	Precise power control, avoiding burning or undercooking
Timing Range	0-30 Minutes Adjustable	Meets the cooking time of different ingredients
Safety Certification	Passed 3C Certification	Safe and reliable

3. Advantages of the Solution

• Precise Temperature Control: PID algorithm, precise power control.

• Uniform Heating: Optimized heating tube layout, ensuring even heating of food.

• Accurate Timing: Electronic timing, precise cooking time.

• Safe and Reliable: Multiple safety protections, providing peace of mind during use.

4. Application Scenarios

• Home Breakfast: Quickly making pancakes, waffles, sandwiches, etc..

• Commercial Use: Food trucks, cafes, hotel breakfasts.

5. Recommended Chip Solutions (High Cost-Performance Ratio)

Function Module	Recommended Chip (High Reliability)	Features
Main Control MCU	Domestic 8-bit MCU	High cost-performance ratio, good reliability
Temperature Sensor	NTC Thermistor	Low cost, high reliability

6. Information Required from You

To provide you with the most accurate solution and quotation, please clarify the following information:

Details to Confirm	Purpose
1. Functional Requirements	What cooking modes are needed? What are the requirements for temperature control and timing?
2. Safety Requirements	Does the product need to pass 3C certification?
3. Procurement Scale	Is it a sample requirement or a bulk plan? What is the approximate quantity needed?

We look forward to your detailed requirements! We can provide you with a complete PCBA solution, from hardware design, software development to production processing, helping you create a user-friendly breakfast machine.
