From FPGA to RF Transceiver: Unveiling the Technical Highlights Behind the Silvus SL4200 Radio

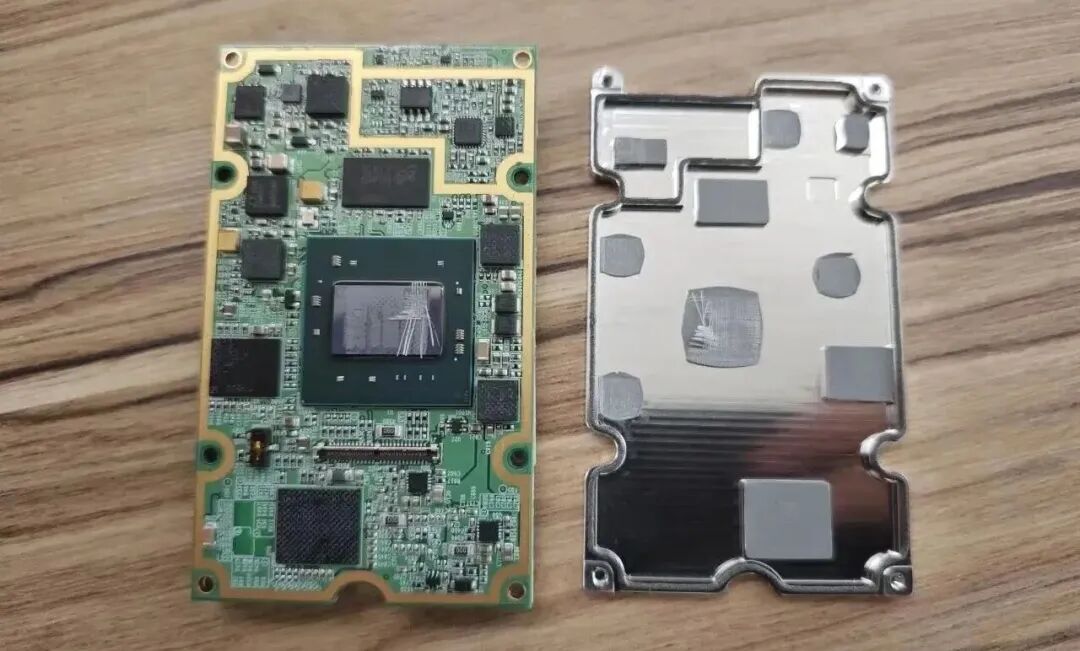

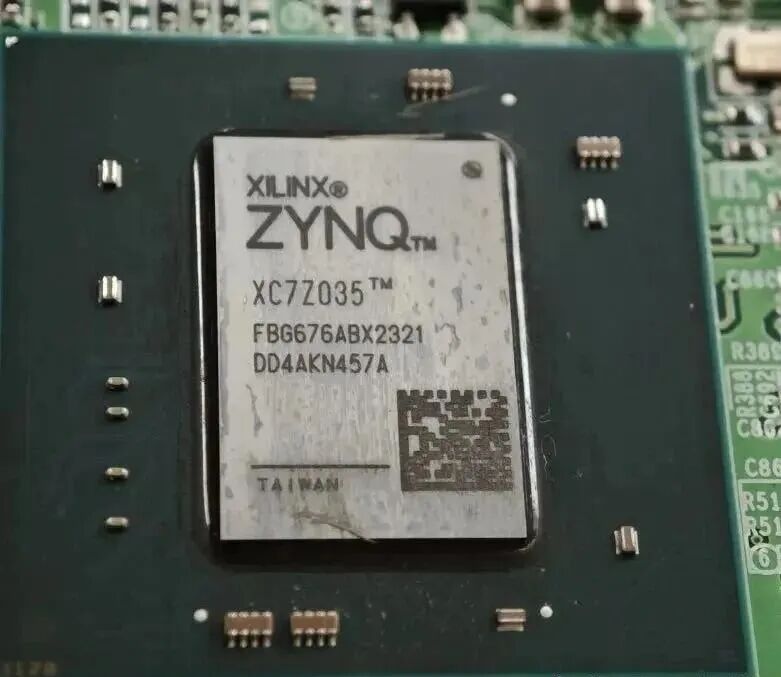

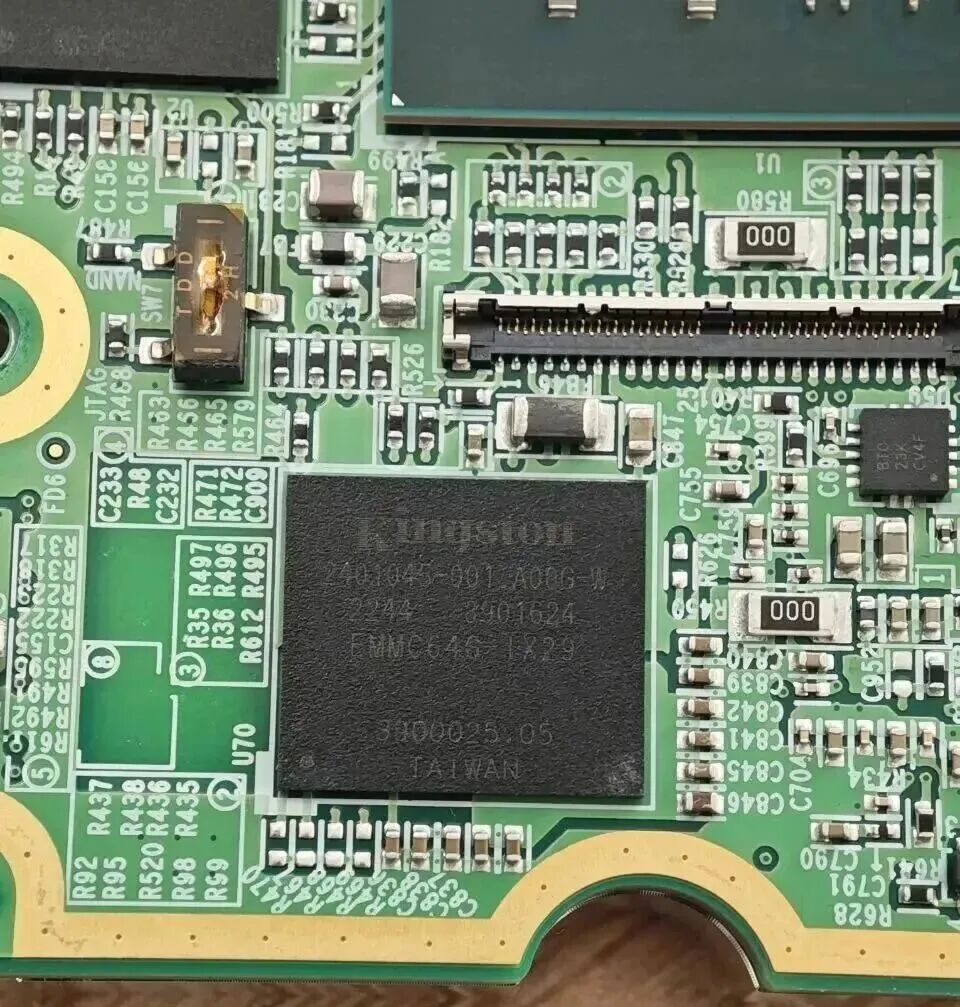

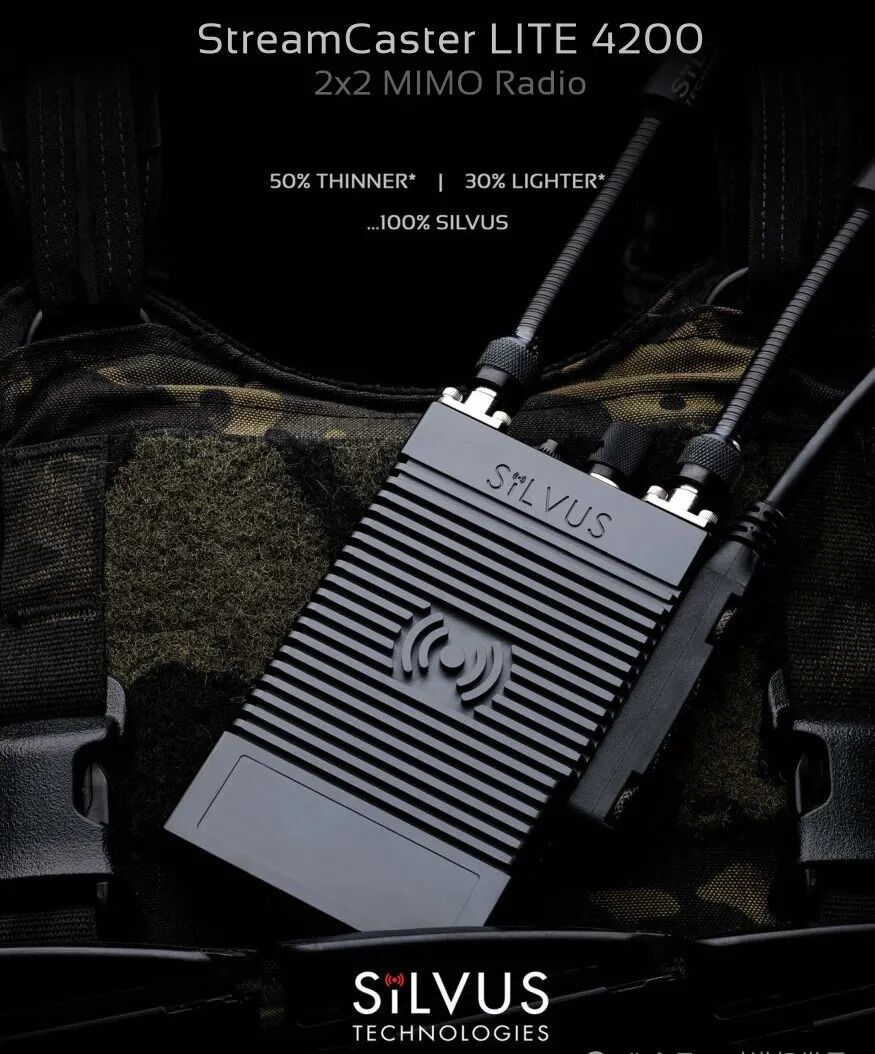

1. The StreamCaster LITE 4200 (SL4200) launched by Silvus Technologies is a MANET (Mobile Ad Hoc Network) radio, operating frequency bands include: L-band: 1350–1440MHz; S-band: 2200–2500MHz; Federal C-1 band: 4400–4940MHz. This radio combines low SWaP (Size, Weight, and Power) with cost advantages, complies with NDAA and U.S. Department of Defense cybersecurity standards, and has been approved for use with Blue UAS drone platforms. The complete system includes the transceiver itself and 128GB of onboard storage, supports 2×2 MIMO, and employs advanced MIMO technologies such as spatial multiplexing, space-time coding, and transceiver Eigen beamforming. The radio uses C-OFDM modulation, which can automatically adapt the link, continuously optimizing throughput and suppressing multipath fading in dynamic high-speed environments; it can provide a maximum data rate of 20Mbps at channel bandwidths of 1.25/2.5/5MHz, with an average latency of only 28ms.2. The SL4200 military radio is based on software-defined radio (SDR) technology, utilizing the Xilinx XC7Z035 field-programmable gate array (FPGA) and ADI AD9361BBCZ RF transceiver (manufactured in South Korea) The specific frequency band is determined by AD9361BBCZ.3. The SL4200 employs single-frequency time-division duplexing (TDD) technology, capable of self-organizing and self-healing mesh networks, accommodating up to 559 nodes in a single network, while supporting star, center-radiating, chain/repeater, fixed backbone, and hybrid topologies. The radio supports PTT high-definition voice (G.722 encoding) and features CoT (Cursor on Target) messaging functionality to ensure interoperability. It has built-in AES-256 encryption to ensure communication security; provides a network management GUI, and enables advanced control and diagnostics via USB and RS-232 interfaces. The transmit power is adjustable between 1mW and 1W (up to 2W during beamforming), with a receive sensitivity of –105dBm. Power supply options support USB-PD or 8–32V DC, with total power consumption < 17W.Key components:1. XC7Z035 Xilinx (now AMD) high-performance SoC product in the Zynq-7000 series, integrating a dual-core ARM Cortex-A9 processor with FPGA programmable logic, featuring a rich set of high-speed I/O interfaces, making it ideal for visual processing, embedded heterogeneous computing, communication, and control system design.2. LTM4623: A μModule step-down DC-DC converter launched by Analog Devices (formerly Linear Technology), integrating a controller, inductor, power MOSFET, and supporting components within the package, supporting input voltage of 4–20V, output voltage of 0.6–5.5V, and maximum output current of 3A, suitable for stable power supply to FPGA, ASIC, and SoC.

3. “D9PTH” is the package identifier for Micron DDR3L SDRAM, with the specific model being MT41K128M16JT‑125 AAT：K, with a capacity of 2Gb (128M × 16), operating frequency of 800MHz, voltage of 1.35V (compatible with 1.5V), packaged in a 96-ball FBGA, supporting advanced DDR3L features such as write leveling and dynamic ODT.

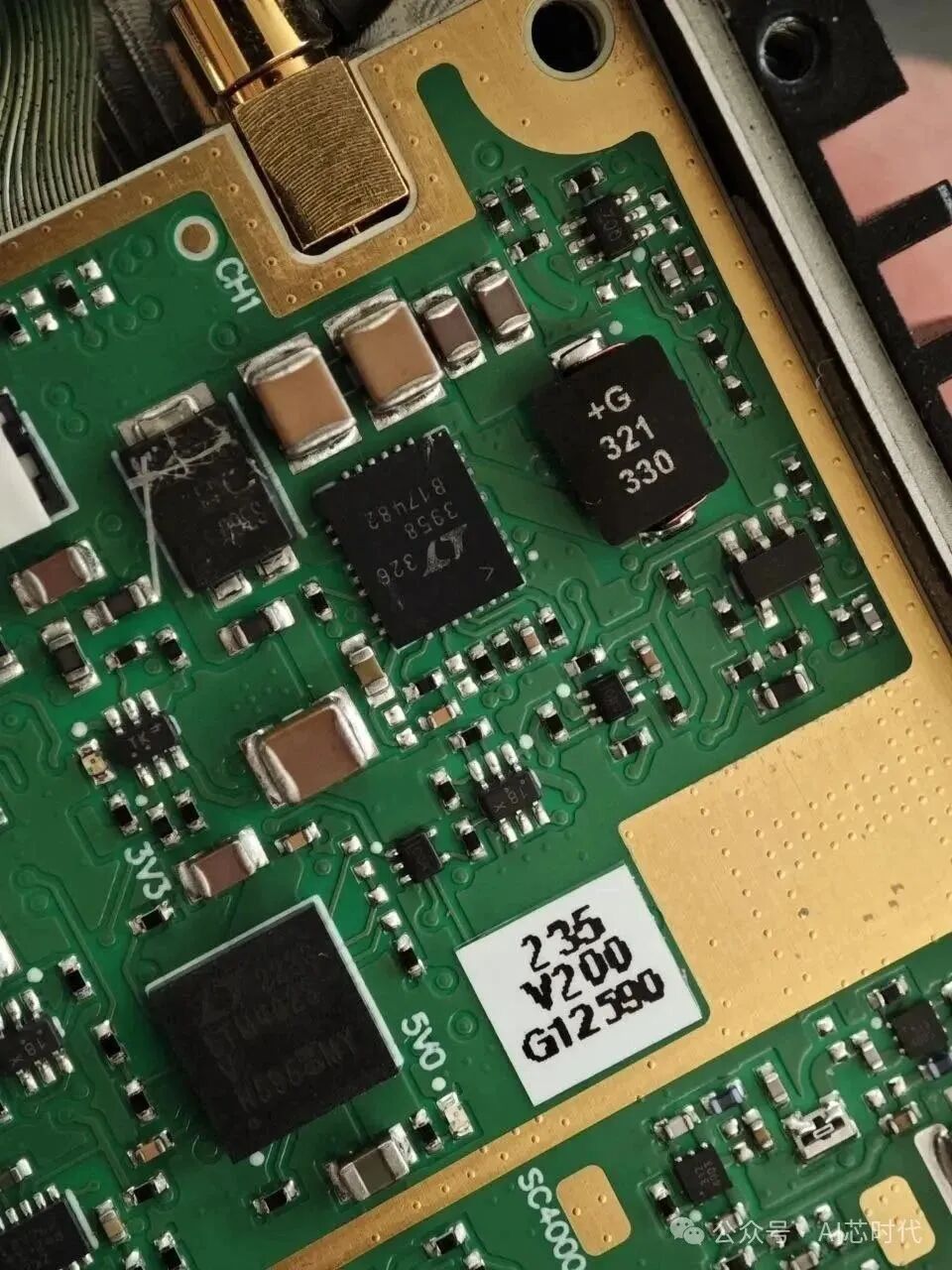

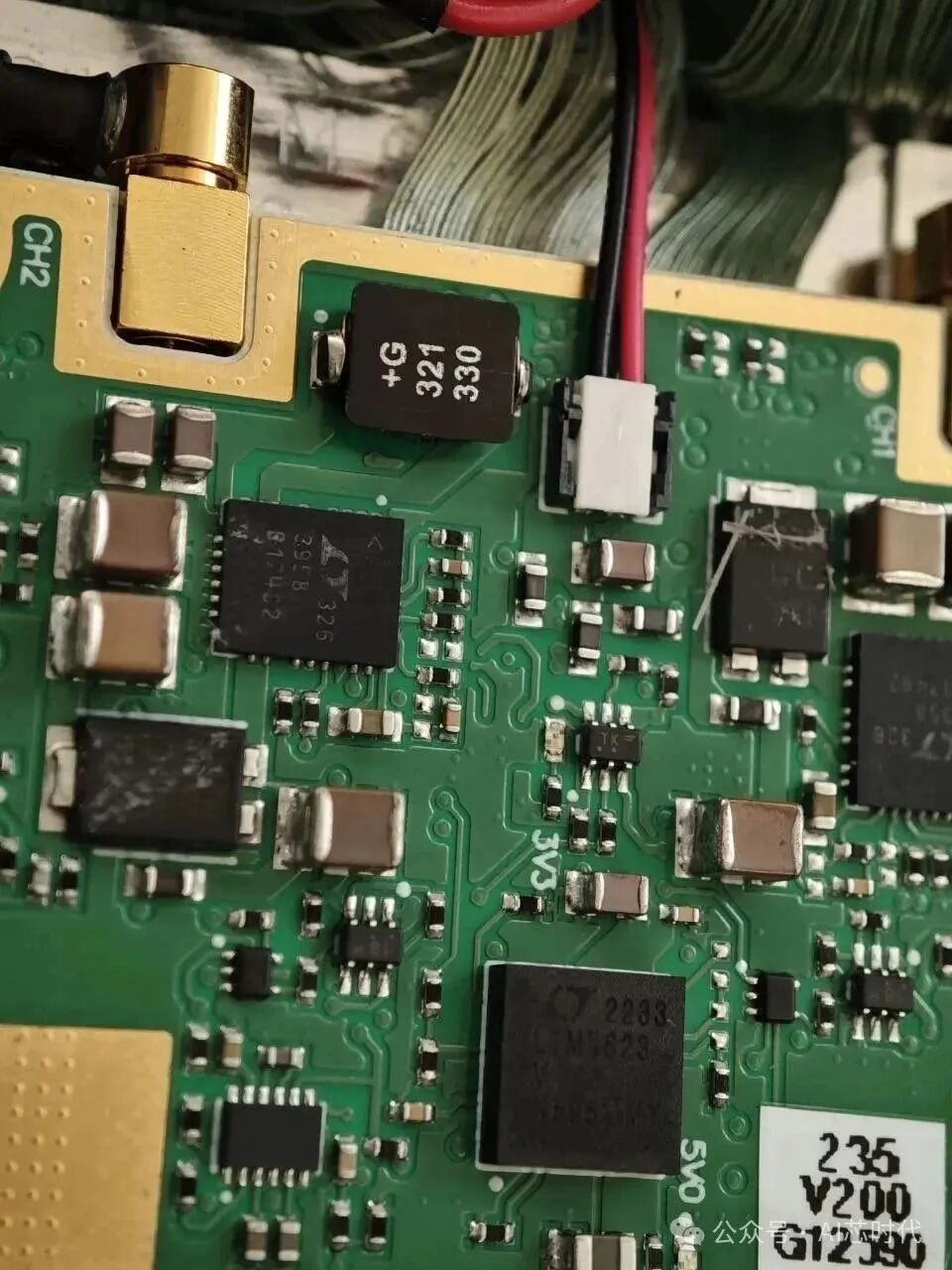

4. LT3958 is a wide input voltage, highly integrated general-purpose DC-DC boost/flyback/SEPIC controller, commonly used in automotive, industrial, and communication power supplies.

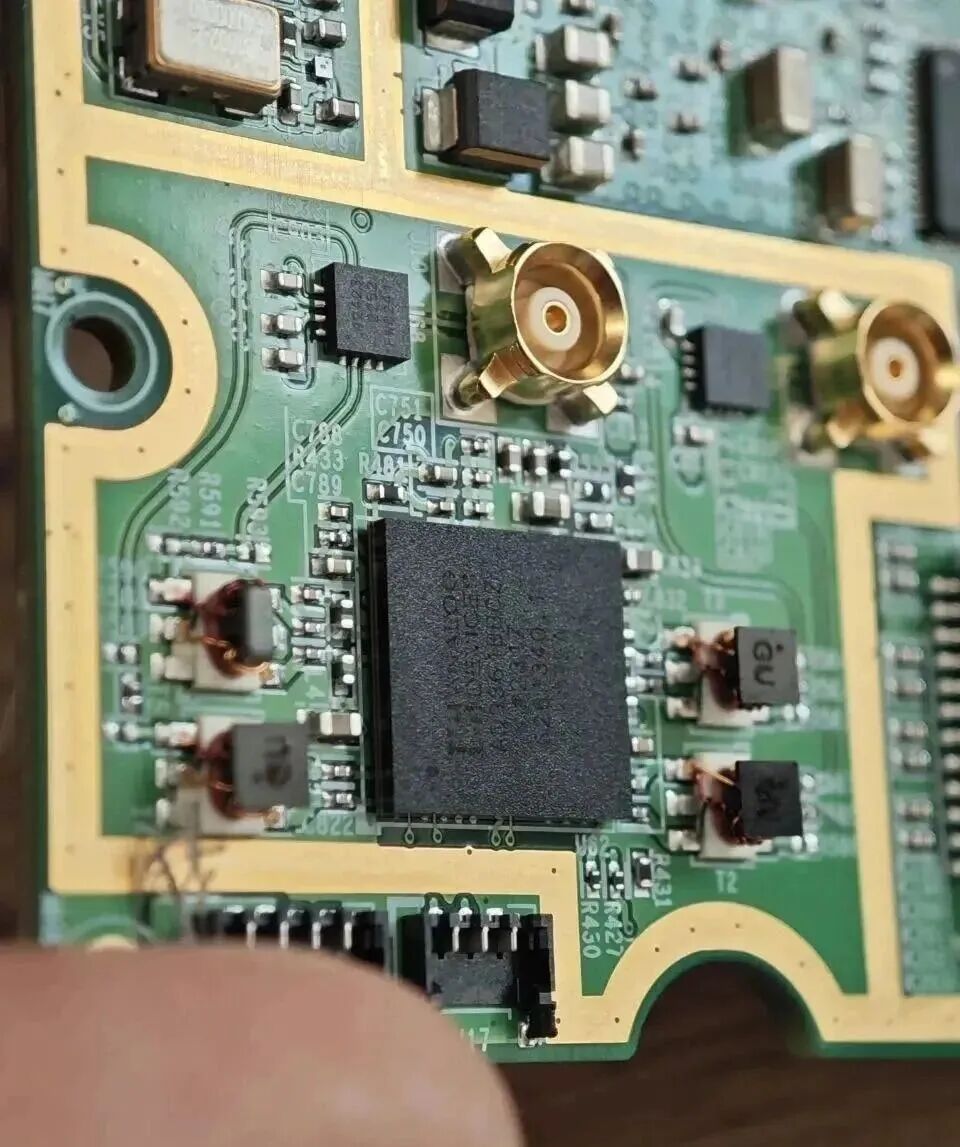

5. AD9361 is a highly integrated, high-performance RF transceiver chip launched by Analog Devices, designed for software-defined radio (SDR) and modern wireless communication systems. This chip covers a wide frequency range from 70MHz to 6GHz, supporting a flexibly configurable 2×2 MIMO architecture, capable of simultaneously processing two transmit and receive channels, suitable for various high-bandwidth, high-sensitivity communication scenarios. The AD9361 integrates a wideband RF front end, programmable mixer, filters, analog-to-digital/digital-to-analog converters (ADC/DAC), and digital baseband interfaces, providing a high level of system integration. Its receive and transmit bandwidth can be flexibly adjusted between 200kHz and 56MHz, making it suitable for both narrowband communication and high-speed broadband applications. Thanks to its powerful digital interface, the AD9361 can seamlessly connect with FPGA, DSP, or embedded processors for high-speed data exchange and flexible signal processing.

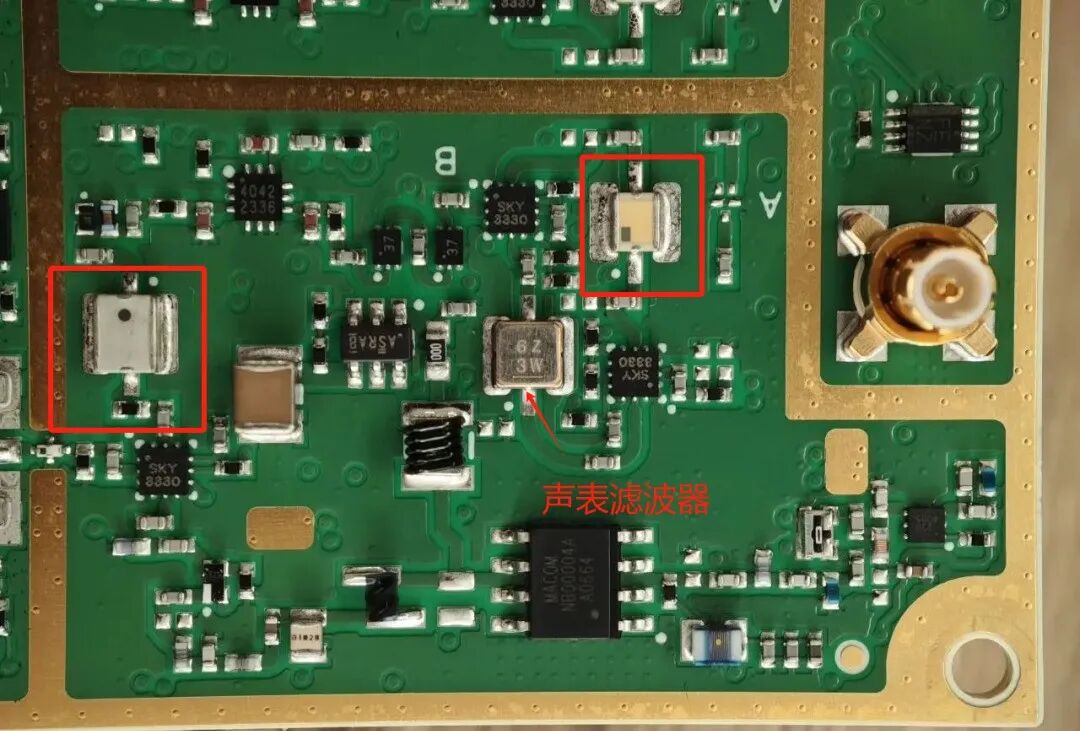

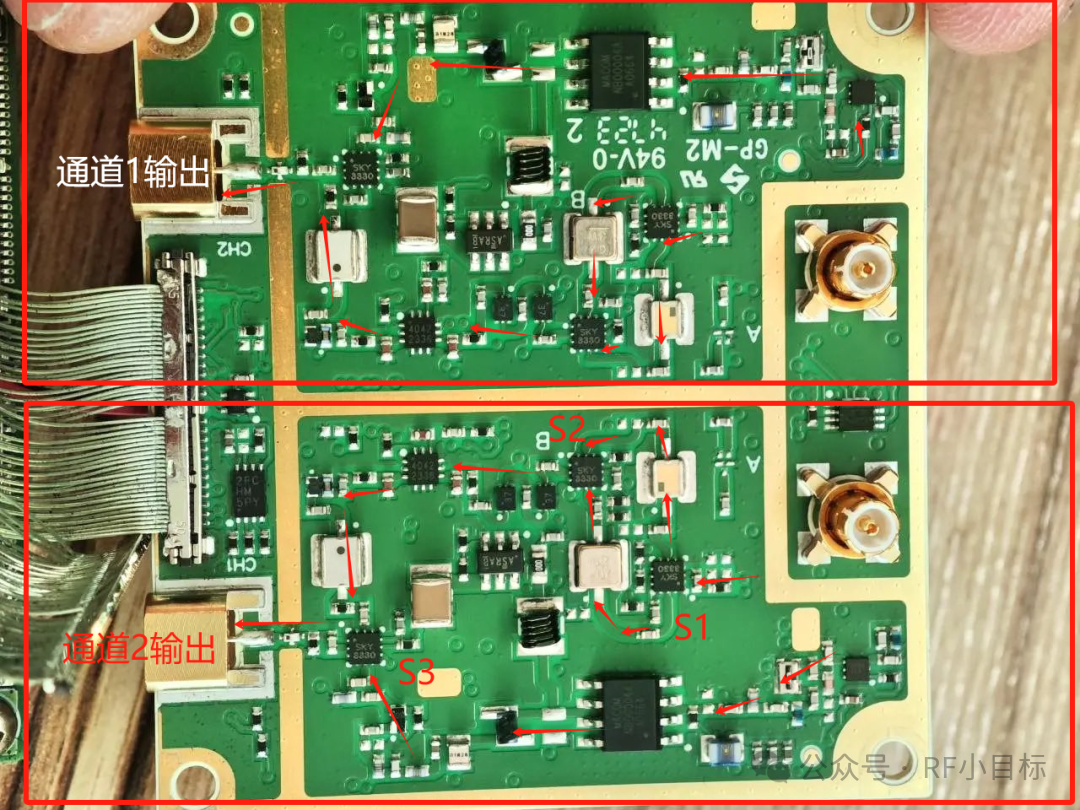

6.SKY13330-397LF is a single-pole double-throw (SPDT) switch based on complementary metal-oxide-semiconductor (CMOS) and silicon-on-insulator (SOI) technology (0.1 to 6.0GHz); it features high linearity and low insertion loss, making it an ideal choice for wideband code division multiple access (WCDMA) mobile phones and data card applications.

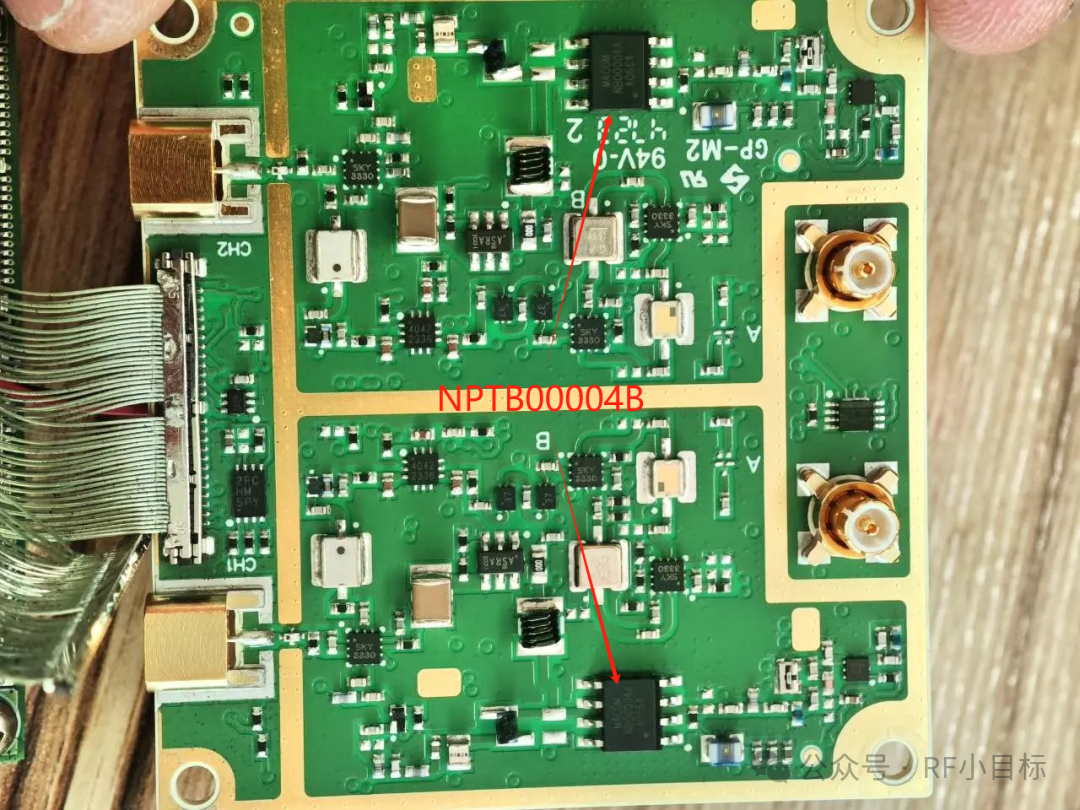

7.NPTB00004B GaN HEMT is a power transistor optimized for operation from DC to 6GHz. This device supports continuous wave (CW), pulsed, and linear operating modes, providing up to 5W (37 dBm) of output power in an industry-standard surface-mount plastic package.

8. GSC‑2401T‑R: A 100/1000BASE‑T Ethernet transmitter transformer module produced by Taiwan’s U-TRON (U-TRON ELECTRONICS), packaged in SOP-24, meeting IEEE 802.3 standards, used for signal isolation and matching on the transmitting side of gigabit Ethernet physical layer (PHY), with a typical open-circuit inductance of about 350µH, leakage inductance not exceeding 0.5µH @ 100kHz, 200mV, and interface characteristics meeting gigabit Ethernet requirements.

SL4200 Technical Specifications:
