Introduction: MQTT ≠ “Lightweight Toy”, It is the “Invisible Framework” of Industry 4.0
Many people still have the impression of MQTT as:
“Small devices → Cloud, send temperature and humidity, QoS=0, if lost, it’s lost…”
—— That is the consumer IoT usage.In industrial settings, MQTT has evolved into: a high-reliability, low-latency, event-driven, semantically rich “Industrial-grade Message Hub”.
With features like publish/subscribe model, low bandwidth, reconnection on disconnection, QoS levels, Last Will, Retained Message, MQTT is deeply integrated between the control layer and IT systems —
💡 Eighti’s Real Test: In the Eighti Cube Platform, MQTT is not only a “data upload channel”, but also a trigger source for rule engines, device interconnection bus, and edge-cloud collaboration bridge.
Next, we reveal the 5 major innovative applications of industrial MQTT —
✅ Innovative Application 1:Zero-latency Edge Alerts — 10 Times Faster than PLC Polling!
Pain Point: Traditional Modbus polling alerts have a cycle of ≥1s; during equipment failure, waiting for the “next round” may already cause downtime.
MQTT Solution:
- Pre-set alert logic in edge devices (like Eighti edge modules);
- Once detecting temperature > threshold | vibration anomaly | current distortion, immediately publish MQTT alert message (Topic:
<span>/alarm/device001/overheat</span>); - The platform subscribes to that Topic, triggering WeChat/SMS/visual and audible alerts in milliseconds, even linking to PLC to send stop signals.
🌰 Eighti Customer Case: A plastic injection molding factory used MQTT to achieve “abnormal injection pressure → alert pushed within 0.3s + pause molding”, reducing mold damage incidents by 23 annually, with maintenance costs down by ¥470,000.
✅ Innovative Application 2:Cross-protocol Device “Semantic Interconnection” — Let Modbus and S7 “Shake Hands”
Pain Point: Want to interconnect Modbus instrument data with S7 PLC control? Traditional methods: write intermediate scripts or add OPC servers, complex and error-prone.
MQTT Solution:
- Modbus device → Eighti edge module → Publish
<span>sensor.temp=85</span>to<span>/data/line01/temp</span> - S7-1200 reads platform variables via S7 communication or subscribes to MQTT Topic (requires PLC support, such as S7-1500 + MQTT library)
- The platform’s rule engine listens to that Topic, when
<span>temp > 80</span>→ automatically write to S7’s DB100.DBX0.7 (emergency stop position)
✅ Advantages:
- Decouples device layer: Modbus devices do not need to know S7 exists;
- Flexible expansion: Adding 10 new instruments? Just change the subscription list, no need to modify PLC programs.
🔧 Eighti Cube Support: Device management → Rule engine → Device control fully connects the entire chain, a single MQTT message triggers cross-protocol closed-loop control.
✅ Innovative Application 3:Disconnection Resumption + Edge Caching — Specifically for “Weak Network Factories”
Pain Point: Poor Wi-Fi signal in workshops, weak 4G base station coverage, data loss during disconnection, reports lack data, analysis distorted.
MQTT Solution:
- Enable QoS=1 (at least once) + Retained Message;
- Edge devices have built-in local SQLite cache, temporarily storing data during disconnection;
- After network recovery, re-send unacknowledged messages in order,ensuring data is neither lost nor out of order;
- The platform automatically deduplicates + aligns timestamps, ensuring historical curves are seamless.
📊 Eighti Measured Data (from a wind farm in a mountainous area):
- Average network interruption duration: 8.2min/day
- Traditional HTTP reporting packet loss rate: 37%
- MQTT + edge caching packet loss rate:0.2%
- Data integrity improvement → Wind turbine fault prediction accuracy ↑ 18%
✅ Innovative Application 4:Device “Digital Twin” Heartbeat Synchronization — The Magic of Last Will
Pain Point: Device offline? Relying on ping delays or periodic heartbeat reports, there is significant lag, unable to distinguish between “shutdown” and “network disconnection”.
MQTT Solution: Clever use of Last Will and Testament (LWT)
- When the device comes online, set the LWT:
Topic: /status/device001Payload: {"online": false, "reason": "network_lost"}QoS: 1, Retain: true - While the device is operating normally, publish every 5 seconds
<span>{"online": true}</span>to override the LWT; - Once an abnormal disconnection occurs (power loss/network loss), the Brokerimmediately publishes the LWT → the platform perceives offline status within seconds and distinguishes the reason!

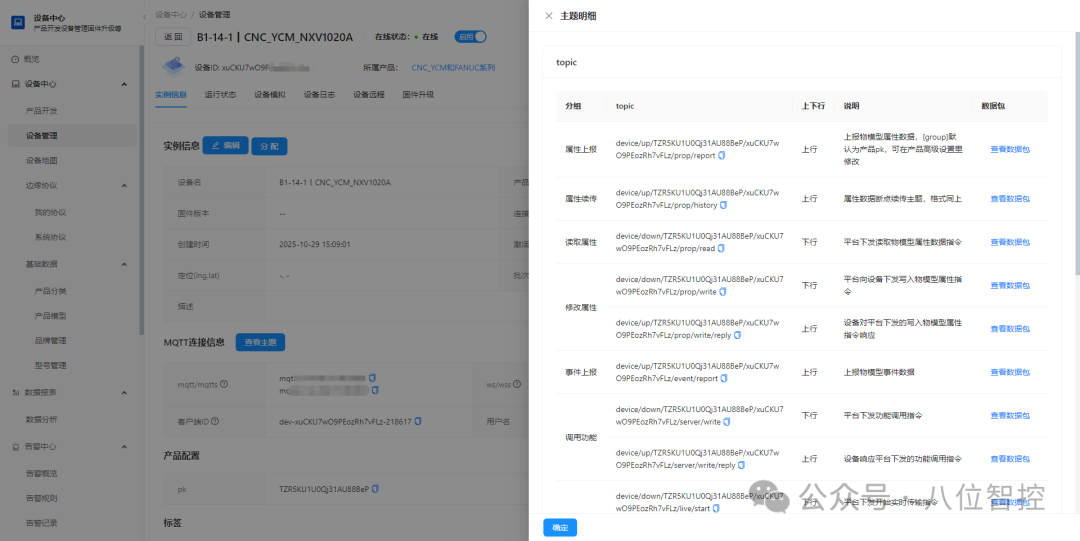

💡 In Eighti Cube: The device list displays real-time “online/offline/sleep” status, and the alert strategy can be configured:
<span>"Continuous 3 LWT triggers" → deemed a fault, maintenance order issued</span>.—— Siemens engineers feedback: “This is faster than S7 diagnostic buffer!”
✅ Innovative Application 5:AI Model Distribution + Edge Inference Result Feedback — MQTT Drives Closed-loop Intelligence
Pain Point: AI models trained in the cloud, how to distribute to the edge? How to feedback inference results for optimization?
MQTT Solution: Build a Bidirectional Intelligent Channel
|
Cloud → Edge |
|
Model weight file (Base64 or URL) |
Dynamic update of edge AI model |
|
Edge → Cloud |
|
|
Real-time feedback of inference results |
|
Edge → Edge |
|
|
Group control command broadcast (e.g., pause entire line) |
🌰 Eighti Customer Practice (from a smart factory):
- Cloud trains bearing fault model → distributed to edge box via MQTT;
- Edge analyzes vibration data in real-time → issues alerts + suggested actions during anomalies;
- The platform aggregates results → automatically triggers maintenance work orders + feedback for model retraining.—— Achieving a closed loop of “perception → decision → execution → evolution”.

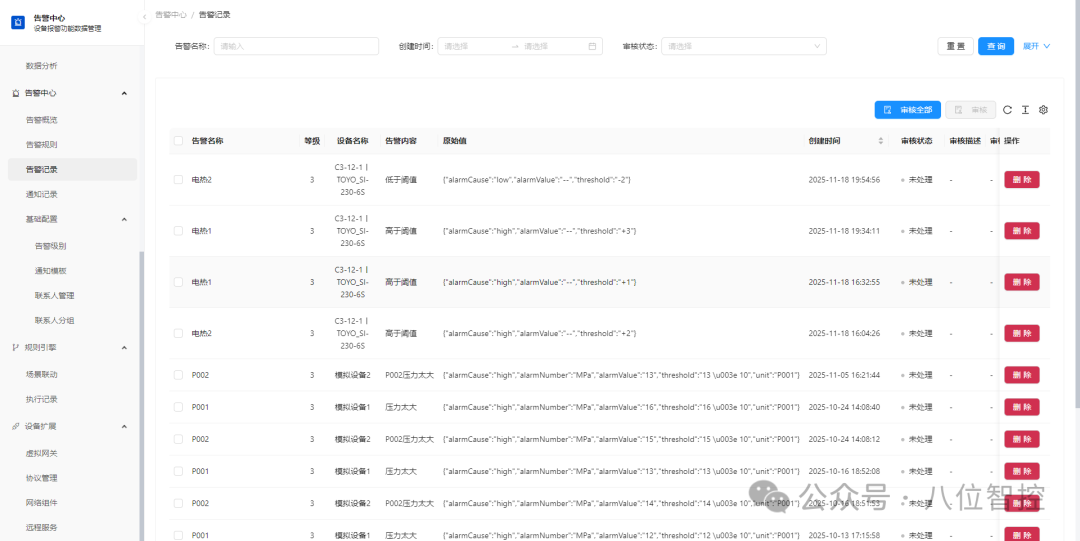

(Smart Manufacturing Digital Platform | Message Flow and Alert Linkage)
🔚 Conclusion: The Industrial Future of MQTT is Not About “Replacement”, But “Integration”
MQTT will not replace S7 or OPC UA —
- S7 remains the king of control loops in workshops;
- OPC UA remains the gold standard for semantic modeling;
- While MQTT is the “highway” for them to reach the cloud and intelligence.
At Eighti, we make MQTT:✅ more reliable: QoS + reconnection + edge caching;✅ smarter: deeply integrated with rule engines/AI;✅ easier to use: natively supported by the platform, no need to write Broker/Client code.
