Today, I will provide a comprehensive introduction to theHK32 MCU dedicated chip selection.

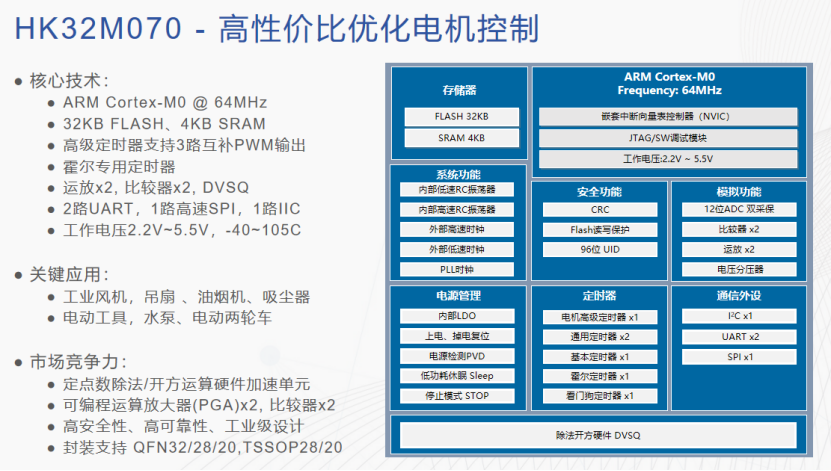

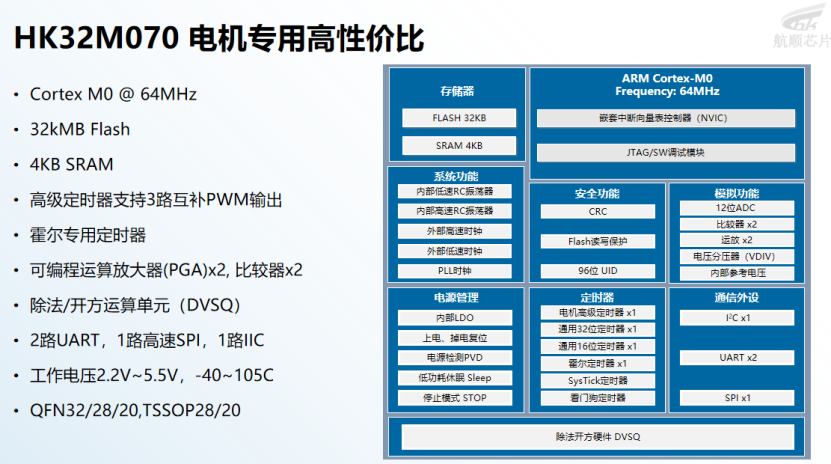

HK32M070 Dedicated
Core and Main Frequency: Based on the ARM® Cortex®-M0 core, the maximum operating frequency can reach 64MHz, providing strong power for motor control calculations, ensuring fast execution of instructions, and easily handling complex motor control algorithms.
Storage Resources: Built-in 32Kbyte Flash and 4Kbyte SRAM. The 32Kbyte Flash can meet the storage needs of complex motor control programs while supporting reliable data writing and reading, and the 4Kbyte SRAM ensures high-speed reading and processing of data, making motor operation control more precise and smooth, effectively enhancing the overall performance of the system.
Operating Voltage and Temperature Range: The operating voltage range is 2.2V~5.5V, and the wide voltage range design allows it to adapt to different power supply environments without the need for additional complex power conversion circuits, reducing system design costs and complexity. The operating temperature range is between – 40°C ~ +105°C , providing excellent temperature resistance, ensuring the chip can operate stably in cold industrial sites or high-temperature environments, extending the lifespan of the equipment, and providing strong assurance for the reliable operation of the equipment.
Timer Resources: Integrated with 1 16-bit advanced timer, 1 32-bit general-purpose timer, 1 16-bit general-purpose timer, and 1 24-bit Hall sensor dedicated timer. The rich timer resources can meet various complex timing requirements in motor control, such as PWM signal generation, motor speed control, Hall signal processing, etc., providing strong hardware support for precise motor control.
Communication Interfaces: Equipped with 2 UART serial ports, 1 I2C and 1 high-speed SPI and other communication interfaces, allowing easy data exchange with various sensors, displays, host computers, etc., meeting the system’s requirements for different communication protocols and transmission rates, greatly expanding the chip’s application range and flexibility, facilitating the construction of complex motor control systems and IoT applications.
Analog Circuit Resources: Equipped with 1 12-bit ADC (supporting 14 external analog input channels and 6 internal input channels), as well as 2 programmable operational amplifiers (PGA),2 analog comparators (CMP),1 power-on/off reset circuit (POR/PDR),1 programmable voltage monitoring / under-voltage reset circuit (PVD/BOR),1 internal temperature sensor and 1 internal reference voltage (sampled through the internal ADC ) and other analog circuit resources, capable of meeting the high-precision detection and real-time feedback control requirements for multiple parameters such as current, voltage, and temperature in motor control, achieving more precise motor drive and protection, enhancing the reliability and performance of the motor control system.
Package Types: Available in QFN32,QFN28,TSSOP28,TSSOP20,QFN20 and other package types, meeting the requirements for chip size and pin layout in different application scenarios, allowing engineers to choose and design according to specific project needs, enhancing the flexibility and versatility of the chip’s applications.
Vanguard of Domestic Substitution
In the current trend of domestic chip substitution, the HK32M070 series, with its excellent performance and high cost-effectiveness, has become the first choice for many engineers in motor control projects. It breaks the long-standing monopoly of foreign brands in this field, providing reliable and high-quality domestic chip solutions for the domestic motor control market, helping to improve the autonomy of related domestic industries, reduce dependence on imported chips, and ensure the stability and security of the supply chain.
Technical Strength Support: Hangsun chips have long been deeply involved in the MCU field, accumulating strong technical strength. The HK32M070 reflects Hangsun’s precise grasp of market demand and pursuit of technological innovation from core selection to peripheral function design, with performance comparable to similar products from international manufacturers, providing strong technical support for domestic substitution.
Adaptation to Domestic Ecosystem: With the rapid development of the domestic electronic information industry, the application ecosystem of domestic MCU is gradually improving. The HK32M070 can better adapt to domestic development tools, operating systems, and application software ecosystems, reducing technical barriers and compatibility issues during system integration, accelerating the process of domestic substitution.
Customization Service Advantages: Compared to international manufacturers, Hangsun can be closer to domestic customers, providing customized solutions and services. Whether it is function customization, package customization, or software support and technical training, it can meet the personalized needs of different customers, enhancing the competitiveness of domestic MCU in the market and promoting the in-depth development of domestic substitution.
HK32M070 Feature Introduction
High-performance core and rich storage resources: Using ARM® Cortex®-M0 core, 64MHz main frequency provides strong power for motor control calculations, ensuring fast execution of instructions. 32Kbyte Flash and 4Kbyte SRAM combination can meet the storage needs of complex motor control algorithms while ensuring high-speed reading and processing of data, making motor operation control more precise and smooth.
Diverse Peripheral Interfaces
Timers: The diverse timer configurations enable it to meet different timing requirements. The advanced timer can implement complex motor control algorithms, such asPWM output for motor speed control, while the asymmetric dead-time complementary output can improve the reliability and efficiency of motor driving. General-purpose timers and basic timers can be used for other timing-related functions, such as time measurement, task scheduling, etc., providing flexible timing solutions for various application scenarios.
ADC:: The high precision and fast conversion frequency of the 12-bit SAR ADC can accurately capture external analog signals, providing strong assurance for the precise control and monitoring of the system. The rich channel configuration and flexible queue settings allow the chip to sample and process multiple analog signals simultaneously, meeting the needs for multi-parameter detection such as motor current and voltage sampling, improving the intelligence level of the system.
Operational Amplifiers and Comparators: The built-in operational amplifiers and comparators reduce the use of external components, lowering system costs and size. The PGA mode of the operational amplifier can achieve flexible signal amplification, meeting the processing requirements of different signal amplitudes; the comparators can be used for signal threshold detection, such as motor overcurrent and overvoltage protection, improving the reliability and safety of the system.
Wide Operating Voltage and Temperature Range: The wide operating voltage range of 2.2V~5.5V allows the chip to adapt to different power supply environments without the need for additional complex power conversion circuits. At the same time, – 40°C ~ +105°C wide temperature range adaptability ensures stable operation in cold industrial sites or high-temperature environments, extending the lifespan of the equipment.
Low Power Design: The HK32M070 supports two low-power modes: Sleep and Stop. In sleep mode, the CPU stops working, but peripherals can still operate, allowing for quick wake-up; in stop mode, the core domain clock is turned off, resulting in very low power consumption, and can be awakened by external interrupts. This low-power feature is very suitable for battery-powered devices sensitive to power consumption or applications that require long standby times, such as power tools, smart home devices, etc., effectively extending battery life and reducing device energy consumption.
Outstanding Advantages Compared to Competitors

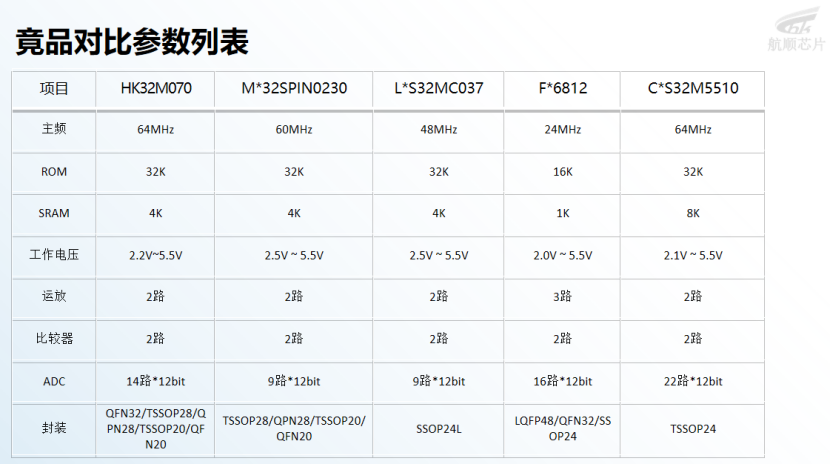

Compared to similar competing products, the HK32M070 demonstrates significant advantages in multiple aspects. Its internal integration of a hardware division square root operation unit (DVSQ) can greatly enhance software processing capabilities, quickly responding to external events, and performing better in handling complex motor control algorithms. The rich analog circuit resources, such as the 12 bit ADC supporting multiple external analog input channels, as well as 2 programmable operational amplifiers (PGA),2 analog comparators (CMP), etc., can meet the high-precision detection and real-time feedback control requirements for multiple parameters such as current, voltage, and temperature in motor control, achieving more precise motor drive and protection. In low-power mode, its power consumption performance is superior, maximizing energy savings while ensuring normal system operation, providing strong support for the efficient and energy-saving operation of devices.
Main Promotion Markets
Hangsun HK32M070 has become a rising star in the MCU market with its high performance, rich features, low power consumption, and strong domestic substitution advantages. It has shown great potential in the field of motor control, especially in brushless DC motor (BLDC) field-oriented control (FOC) drive control, and can be widely used in various household appliances and industrial equipment such as power tools, industrial fans, compressors, electric vehicles, range hoods, vacuum cleaners, water pumps, ceiling fans, air conditioners, etc.
Home Appliance Market: As consumers’ demands for smart and energy-efficient home appliance products continue to rise, the HK32M070 can provide efficient and precise solutions for motor control in various home appliances, enhancing the performance and user experience of home appliance products, such as fan control in smart air conditioners and motor drive in smart washing machines, helping home appliance companies achieve product upgrades and differentiated competition.
Industrial Automation Market: In the field of industrial automation, its high performance and reliability enable it to meet the strict requirements of industrial equipment for motor control, and can be used to control motors of various types of industrial fans, water pumps, compressors, etc., improving industrial production efficiency and the stability of equipment operation, reducing energy consumption and maintenance costs, and promoting the development of industrial automation.
Power Tool Market: Power tools need to achieve efficient and powerful output and long-term use under limited battery capacity, the low power design and high-performance motor control capability of the HK32M070 perfectly meet this demand, enhancing the power performance and endurance of power tools, increasing their competitiveness in the market, and meeting the high-performance requirements of professional users and ordinary consumers for power tools.
