Are you looking for a high-performance, low-power wireless transceiver SoC? The Zhenhao Micro VG254M is your ideal choice!
Why choose the Zhenhao Micro VG254M?
The VG254M integrates an 8-bit OTP microprocessor, utilizing CMOS technology, providing customers with significant advantages of low cost and high performance.
Product Description
The VG254M is a low-cost, highly integrated 2.4GHz wireless transceiver SoC, integrating a transmitter, receiver, frequency synthesizer, GFSK/FSK modem, and microprocessor on-chip.
1. The VG254M transmits GFSK/FSK signals, with a maximum transmission power of 8dBm. The receiver adopts a low intermediate frequency structure, achieving a sensitivity of-92dBm@1Mbps / -86dBm@2Mbps. The on-chip integrated transmitter-receiver FIFO register caches data. The digital baseband communicates via a 4 line SPI interface and built-in MCU. To extend battery life, the chip reduces power consumption at all stages, with a minimum current of 5uA while maintaining register values.
2. The VG254M integrates an 8 bit OTP microprocessor, utilizing CMOS technology, providing customers with significant advantages of low cost and high performance.

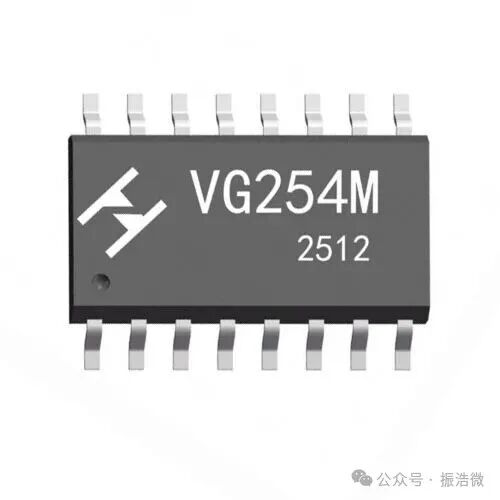

The VG254M uses SOT-16 packaging.
Product Features
Integrated RF front-end, digital baseband, and microprocessor
Programmable transmission power, up to 8dBm
Receiver sensitivity-92dBm@1Mbps
GFSK/FSK modulation
1/2Mbps air data rate
1-32 bytes dynamic FIFO
Operating voltage 1.9V-3.6V
2Kx14 bits OTP program space
128 bytes SRAM
16 high-precision LVD
14 independently controllable bidirectional IO
5 channels 10bit PWM
Integrated 1~20MHz high-precision oscillator
Dual clock mechanism for switching at any time
Application Areas
Remote control access systems
Tire pressure monitoring devices
Remote control fans, lighting switches
Wireless sensor data transmission
Infrared receiver replacement
Toy remote control
Whether you are a developer or a product manager, the Zhenhao Micro VG254M will provide an efficient and reliable solution for your wireless communication projects!
About Zhenhao Micro
Shenzhen Zhenhao Microelectronics Co., Ltd. was established in 2015 and is a national high-tech enterprise dedicated to chip research and development and achievement transformation. The company’s products mainly focus on the physical layer applications of the Internet of Things and supporting circuits, including power chips, wireless communication chips, near-field communication chips, radar chips, and microprocessor chips. The products generally possess excellent qualities such as high performance, low power consumption, high reliability, and low cost, widely used in smart homes, smart cities, smart agriculture, smart industry, smart logistics, and smart service industries, and have been recognized by many well-known customers in various fields. Zhenhao Micro has always adhered to technology and service as the foundation of its business. By achieving breakthroughs through technology and collaborating with customers through service, Zhenhao Micro has been able to develop rapidly. We always provide customers with good products and technical support, as well as sound after-sales service. We firmly believe that: achieving customers is the only way to achieve Zhenhao Micro.
