Today is still a technical article: Siemens PLC Communication – Modbus RTU Communication – New Features of S7-1200 Modbus (RTU) Instructions V4.
Modbus RTU Communication:
S7-200 smart Modbus RTU master station communication (√)
S7-200 smart Modbus RTU slave station communication (√)
RS485/232 communication ports and DP connector connection methods (√)
S7-1200 Modbus (RTU) instructions V3 basic functionality (√)
S7-1200 Modbus (RTU) instructions V4 new features,
Starting from TIAV15 version, the Modbus (RTU) instruction set has been updated to version V4.0 and above;
Note: The S7-1200 firmware needs to be at least version V4.2;
Taking V16 as an example, as shown in Figure 1-1, the Modbus (RTU) instruction set is version V4.4.

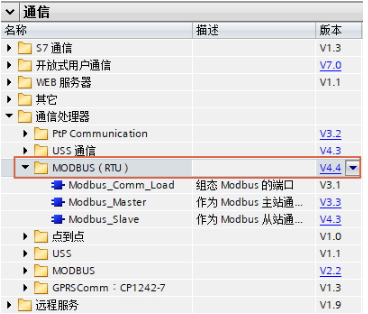

Figure 1-1 Modbus RTU V4 Instruction Set
The V4 version of the Modbus RTU instructions has the following important functional updates.
Modbus_Master Instruction Changes:
1. The DB of the DATA_PTR interface can support “optimized block access”
Modbus_Slave Instruction Changes:
1. The DB of the MB_HOLD_REG interface can support “optimized block access”;
2. You can choose to restrict read access to the input-output process image area;
3. You can customize the data area accessed in the DB, instead of the default IQ area and MB_HOLD_REG.
The DATA_PTR parameter points to the DB or M address to be written to or read from. If using a data block, a global data block must be created to provide a data storage location for reading and writing the Modbus slave.
Since instruction version V4.0:
This parameter can point to an optimized DB data block, in which single elements or arrays of the following data types are allowed: Bool, Byte, Char, Word, Int, DWord, DInt, Real, USInt, UInt, UDInt, SInt, or WChar.
MB_HOLD_REG points to the Modbus RTU holding register, which can be in the M storage area or DB data block.
Example: Using V16 TIA Portal software, configure the 1215 CPU with the CM1241 RS422/485 module as the Modbus RTU master station, and the 1214 CPU with the CM1241 RS422/485 module as the Modbus RTU slave station;
The 1215 CPU writes the Modbus master station program in OB1, creating the optimized DB data block DB3-Master, and fills DATA_PTR with the optimized DB block area:

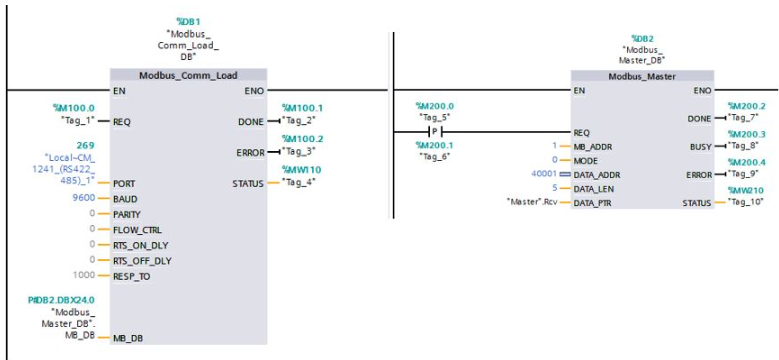

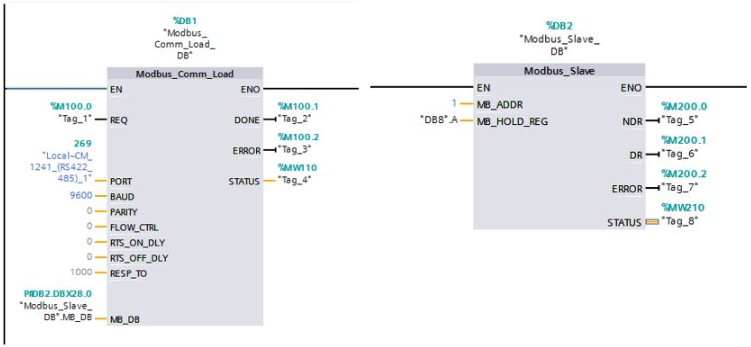

Figure 1-2 1215 CPU Master Station Modbus Programming

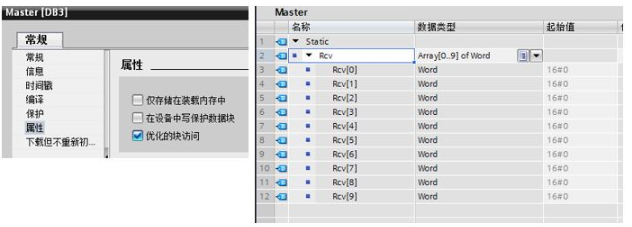

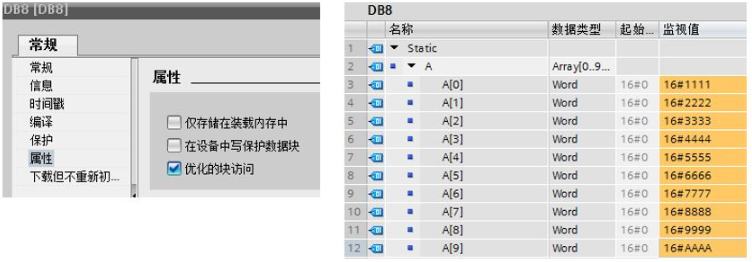

Figure 1-3 Optimized Data Block DB3-Master
The 1214 CPU writes the Modbus slave station program in OB1, creating the optimized DB data block DB8, and fills MB_HOLD_REG with the optimized DB block area:
Figure 1-4 1214 CPU Slave Station Modbus Programming
Figure 1-5 Optimized Data Block DB8
The REQ pin of the master station triggers, and the master station reads the holding register 40001 of the slave station, with a length of 5 words, the reading result is shown in Figure 1-6:

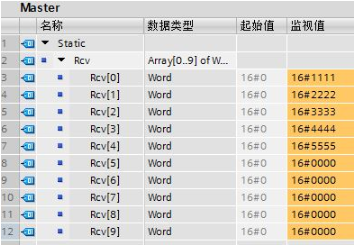

Figure 1-6 Data Read by Master Station
Modbus_Slave V4 Background DB Data Content
As shown in Figure 7:

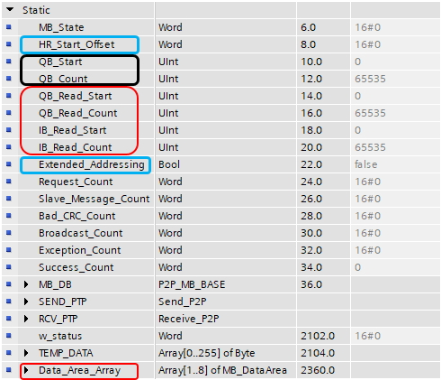

Figure1-7 Modbus_Slave V4 Background Data Block
The user program can modify the variables circled in red in Figure 7:
Red indicates the variables added to the Modbus RTU V4 instruction set by Modbus_Slave, requiring the version to be TIA PORTAL V15 or above, CPU version V4.2 or above:
QB_Read_Start
QB_Read_Count
IB_Read_Start
IB_Read_Count
Data_Area_Array
Black indicates the variables added to the Modbus_Slave V3 instruction set by Modbus_Slave V3, requiring the version to be TIA PORTAL V14 SP1 or above, CPU version V4.1.1 or above:
QB_Start
QB_Count
Blue indicates the variables of Modbus_Slave V2 in the Modbus_Slave V3 instruction set (i.e., the initial version), requiring the version to be TIA PORTAL V13 SP1 or above, CPU version V4.1.1 or above:
HR_Start_Offset
Extended_Addressing
