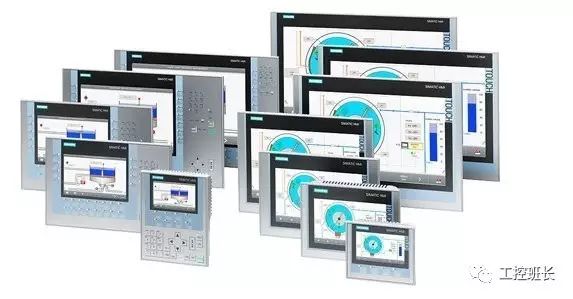

Siemens operating panels, also known as Siemens touch screens, abbreviated as Siemens HMI, have significant features that meet all user needs, and all display sizes have full functionality, supporting unique high efficiency. They are mainly divided into the following categories:

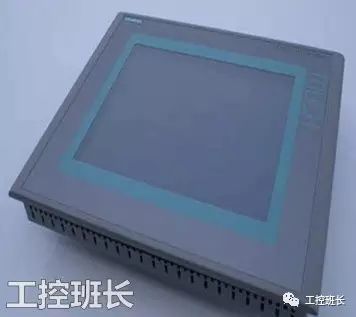

1. Siemens HMI Keypad Panel

Differences Between Various Siemens Touch Screen Models

This type of Siemens touch screen is easy to install and pre-assemble, allowing for simple and direct operation, and the wiring is straightforward, saving most of the time compared to conventional touch screens. The protection level is IP65.

Its outstanding features are as follows:

• Customizable large buttons with touch feedback, reliable operation even when wearing gloves;

• LED backlighting available in five selectable colors for displaying various machine statuses;

• Integrated Ethernet switch supporting linear ring topology networks;

• Very suitable for installation in fully protected human-machine interface device expansion units;

• Fail-safe design allows connection of one or two emergency stop buttons or other fail-safe signals.

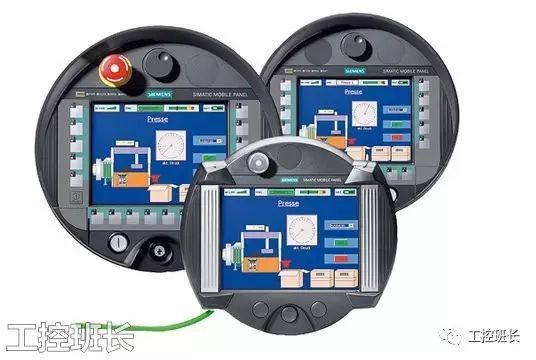

2. Siemens HMI Mobile Panel

Differences Between Various Siemens Touch Screen Models

The notable feature of this type of panel is that it can be operated both wired and wirelessly via industrial Ethernet, making it more convenient for debugging or maintenance, and it can be moved to observe the entire industrial site process, displaying relevant process information globally on the screen. It is generally applied in very important situations and serves as a powerful tool for mobile operation and monitoring of the overall process. The panel has a protection level of IP65 and can withstand falls from over one meter high, making it very suitable for use in harsh industrial environments. The large-capacity battery can be replaced without interrupting operation, ensuring smooth system operation.

Its outstanding features are as follows:

• Rugged design suitable for industrial applications;

• Comfortable operation, compact structure, and lightweight;

• Supports hot-swapping for flexible use;

• Emergency stop circuit can be activated and deactivated without interrupting operation (using enhanced wiring box);

• High-level safety design ensures reliable operation;

• Connection point detection function;

• Integrated interfaces: serial, MPI, PROFIBUS, or PROFINET/Ethernet ports;

• Short debugging time.

3. Siemens HMI Basic Panel

Differences Between Various Siemens Touch Screen Models

This type is simplified but not basic, featuring essential touch screen functions, high cost-performance ratio, available in sizes from 3 inches to over 15 inches, and divided into touch or keypad types, commonly used by a wide range of users. The 4-inch and 6-inch panels can also be installed vertically, further enhancing flexibility, and they come with additional customizable control keys.

Its outstanding features are as follows:

• Suitable for less complex visualization applications;

• All display sizes have unified functionality;

• The display has touch functionality for intuitive operator control;

• Keys can be customized and have tactile feedback;

• Supports PROFINET or PROFIBUS connections;

• Projects can be migrated to SIMATIC advanced panels.

4. Siemens HMI Advanced Panel

Differences Between Various Siemens Touch Screen Models

The features of this type of screen include energy efficiency management with integrated diagnostic functions, offering a level above the basic panel, available in sizes from 4 inches to 12 inches, mostly widescreen, increasing the visualization area by 40%, suitable for complex operational screens.Its outstanding features are as follows:

• All panels have the same integrated high-end functions;

• Widescreen display sizes range from 4 inches to 12 inches, supporting touch or keypad operation;

• Effective energy management;

– Screen brightness adjustable from 0 to 100%;

– Screen can be turned off during production breaks;

• Ensures 100% data safety in case of power failure;

• Supports multiple communication protocols;

• Uses system cards to simplify project transfer;

• Can be used in hazardous areas.

Introduction to the specific models and main parameter differences contained in each commonly used type of Siemens touch screen.

1. The size of Siemens HMI keypad panel screens is: 155 x 98mm, can connect to Siemens S7-1200 series, Siemens S7-300 series, Siemens S7-400 series, not commonly used, can display five colors: green, red, yellow, blue, white. Order numbers: 6AV3688-3AY36-0AX0, 6AV3688-3AF37-0AX0.

2. Siemens micro panels mainly include five types: SMART 700, SMART 1000, TD400C, OP73micro, TP177micro;

3. Siemens standard panels mainly include the following 11 types:

OP 73 3 inches, monochrome, 8 system keys, 4 function keys; order number 6AV6641-0AA11-0AX0

OP 77A 4.5 inches, monochrome, 23 system keys, 8 function keys (4 LEDs), 256 KB memory; order number 6AV6641-0BA11-0AX1

OP 77B 4.5 inches, monochrome, 23 system keys, 8 function keys (4 LEDs), 1024 KB memory; order number 6AV6641-0CA01-0AX1

TP 177A 5.7 inches, monochrome, 512 KB user memory; order number 6AV6642-0AA11-0AX1

TP 177B PN/DP 4.3 inches, widescreen 16:9, 256 colors, 2 MB user memory; order number 6AV6642-0BD01-3AX0

TP 177B DP 5.7 inches, monochrome, 2 MB user memory; order number 6AV6642-0BC01-1AX1

TP 177B PN/DP 5.7 inches, 256 colors, 2 MB user memory; order number 6AV6642-0BA01-1AX1

OP 177B DP 5.7 inches, monochrome, 2 MB user memory; order number 6AV6642-0DC01-1AX1

OP 177B PN/DP 5.7 inches, 256 colors, 2 MB user memory; order number 6AV6642-0DA01-1AX1

TP 277 5.7 inches, 256 colors, 4 MB user memory; order number 6AV6643-0AA01-1AX0

OP 277 5.7 inches, 256 colors, 4 MB user memory; order number 6AV6643-0BA01-1AX0

4. Siemens multifunctional panels mainly include the following 9 types:

MP177 5.7 inches, 64K colors, 2 MB user memory; order number 6AV6642-0EA01-3AX0

MP 277 7.5 inches, 64K colors, touch screen, 6 MB user memory; order number 6AV6643-0CB01-1AX1

MP 277 7.5 inches, 64K colors, 36 system keys, 26 function keys (18 LEDs), 6 MB user memory; order number 6AV6643-0DB01-1AX1

MP 277 10.4 inches, 64K colors, touch screen, 6 MB user memory; order number 6AV6643-0CD01-1AX1

MP 277 10.4 inches, 64K colors, 38 system keys, 36 function keys (28 LEDs), 6 MB user memory; order number 6AV6643-0DD01-1AX1

MP377 12.1 inches, 64K colors, touch screen, 12 MB user memory; order number 6AV6644-0AA01-2AX0

MP377 12.1 inches, 64K colors, 38 system keys, 36 function keys (36 LEDs), 12 MB user memory; order number 6AV6644-0BA01-2AX1

MP377 15.1 inches, 64K colors, 12 MB user memory; order number 6AV6644-0AB01-2AX0

MP377 19 inches, 64K colors, 12 MB user memory; order number 6AV6644-0AC01-2AX1

5. Siemens basic panels mainly include the following 8 types:

KP300 PN 3.6 inches, monochrome, 10 function keys/10 system keys, Ethernet interface, WINCC BASIC V11 configuration; order number 6AV6647-0AH11-3AX0

KTP400 PN 3.8 inches, monochrome, 4 function keys, Ethernet interface; order number 6AV6647-0AA11-3AX0

KTP600 PN 5.7 inches, monochrome, 6 function keys, Ethernet interface; order number 6AV6647-0AB11-3AX0

KTP600 DP 5.7 inches, 256 colors, 6 function keys, MPI/Profi bus DP interface; order number 6AV6647-0AC11-3AX0

KTP600 PN 5.7 inches, 256 colors, 6 function keys, Ethernet interface; order number 6AV6647-0AD11-3AX0

KTP1000 DP 10.4 inches, 256 colors, 8 function keys, MPI/Profi bus DP interface; order number 6AV6647-0AE11-3AX0

KTP1000 PN 10.4 inches, 256 colors, 8 function keys, Ethernet interface; order number 6AV6647-0AF11-3AX0

TP1500 PN 15 inches, 256 colors, no function keys, Ethernet interface; order number 6AV6647-0AG11-3AX0

Additionally, it should be noted the accessories required for the screens: RS 232 cable (5 meters long); order number 6ES7 901-1BF00-0XA0

RS 232/PPI multi-master cable (same as S7-200 programming cable); order number 6ES7 901-3CB30-0XA0

MPI cable (for PLC and HMI communication); order number 6ES7 901-0BF00-0AA0

USB/PPI multi-master cable; order number 6ES7 901-3DB30-0XA0

PC adapter, USB interface; order number 6ES7 972-0CB20-0XA0

MMC card, 128 MB; order number 6AV6671-1CB00-0AX2

SD card, 512 MB; order number 6AV6671-8XB10-0AX1

USB memory stick, 8 GB; order number 6ES7648-0DC50-0AA0
