Lithium-ion batteries serve as the core energy carrier for new energy vehicles, energy storage systems, and portable electronic devices. Their State of Charge (SOC) directly reflects the remaining battery capacity and is a key basis for battery management systems (BMS) to achieve safe control, range prediction, and lifespan optimization. However, SOC cannot be directly measured by sensors and must be estimated indirectly through measurable parameters such as voltage, current, and temperature. The estimation process is easily affected by factors such as battery aging, temperature drift, charge/discharge rate changes, and complex operating conditions, leading to insufficient accuracy of traditional methods (e.g., open-circuit voltage method, ampere-hour integration method) in dynamic scenarios.
With breakthroughs in deep learning technology in the field of time series prediction, improved models based on the Transformer architecture provide new directions for SOC estimation. Among them, the Basisformer model introduces a “basis function decomposition” mechanism, effectively reducing computational complexity while retaining the long-sequence modeling capability of Transformers, addressing overfitting and efficiency issues under high noise and multi-coupling characteristics of battery data. This article will systematically construct a lithium-ion battery SOC prediction model based on Basisformer using PyTorch as the development framework, presenting the technical implementation path from data preprocessing, model design, training optimization to performance validation, providing an engineering reference for high-precision SOC estimation research.
II. Core Fundamentals of Lithium-Ion Battery SOC Estimation

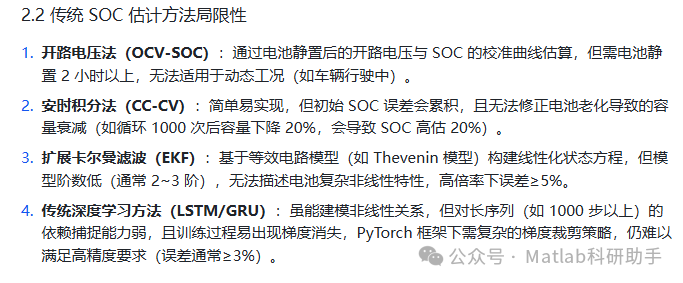

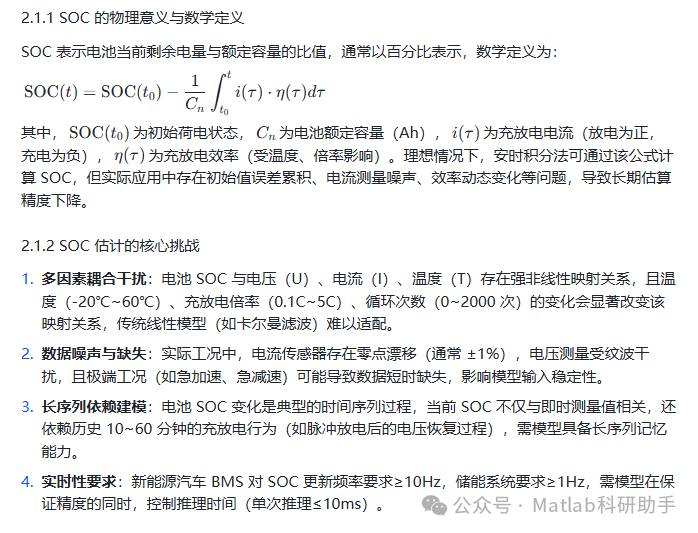

2.1 Definition of SOC and Estimation Challenges
IV. Implementation of Basisformer-SOC Model Based on PyTorch
Using the publicly available lithium-ion battery dataset ā NASA PCoE Battery Dataset (which includes cycling data of 18650 lithium-ion batteries at different temperatures and rates), or a self-made laboratory dataset (collected through battery testing systems such as Arbin BT2000, which includes:
- Dynamic conditions: UDDS (United States Urban Driving Cycle), FTP75 (Federal Test Procedure);
- Static conditions: Constant current charge/discharge (0.5C charging, 1C discharging), pulse charge/discharge (5C pulse for 10s, rest for 30s);
- Data dimensions: Timestamp (s), Voltage (V), Current (A), Temperature (Ā°C), SOC labels (obtained through ampere-hour integration + OCV calibration, serving as ground truth).

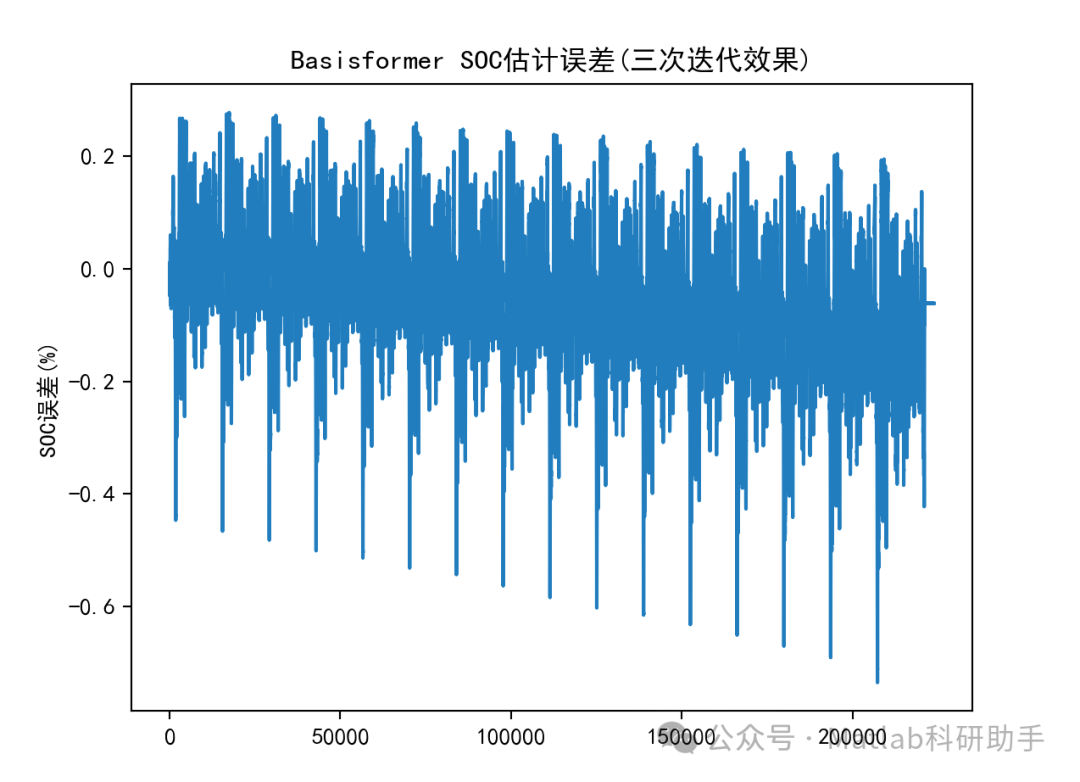

ā³ļø Operating Results
š References
