Gemini3 Takes the Internet by Storm: Is PLC Programming Really So Easy?

Recently, the entire internet has been buzzing about how powerful the Gemini3 Pro model is. As a public account focused on industrial control and AI, we naturally won’t miss this wave of experience.

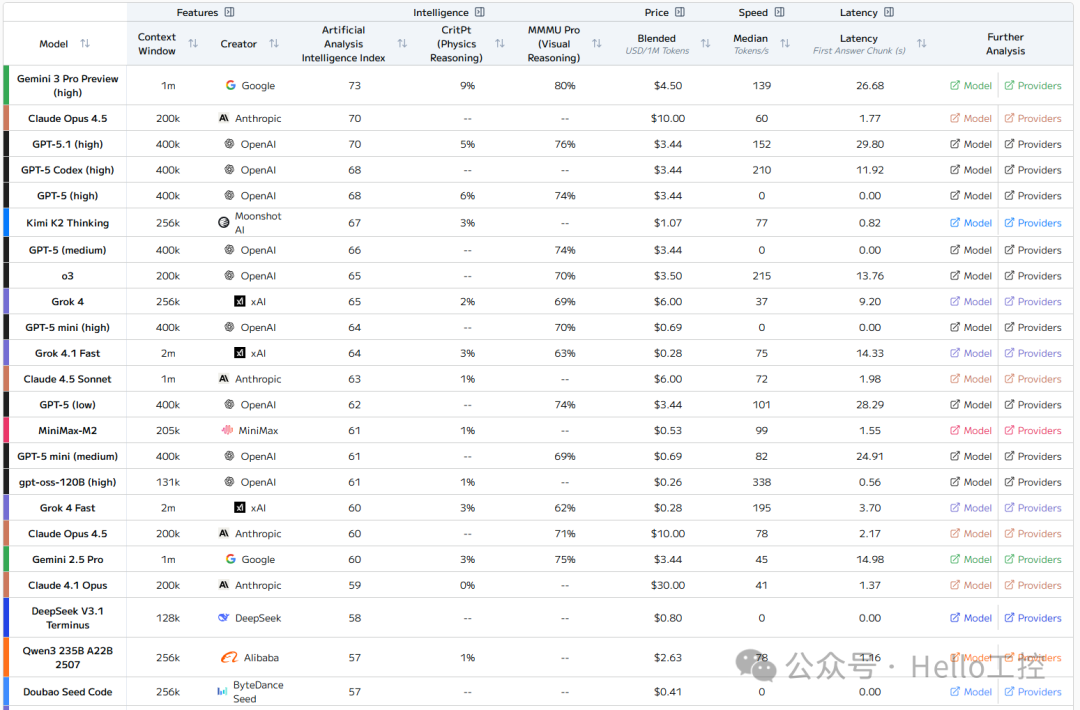

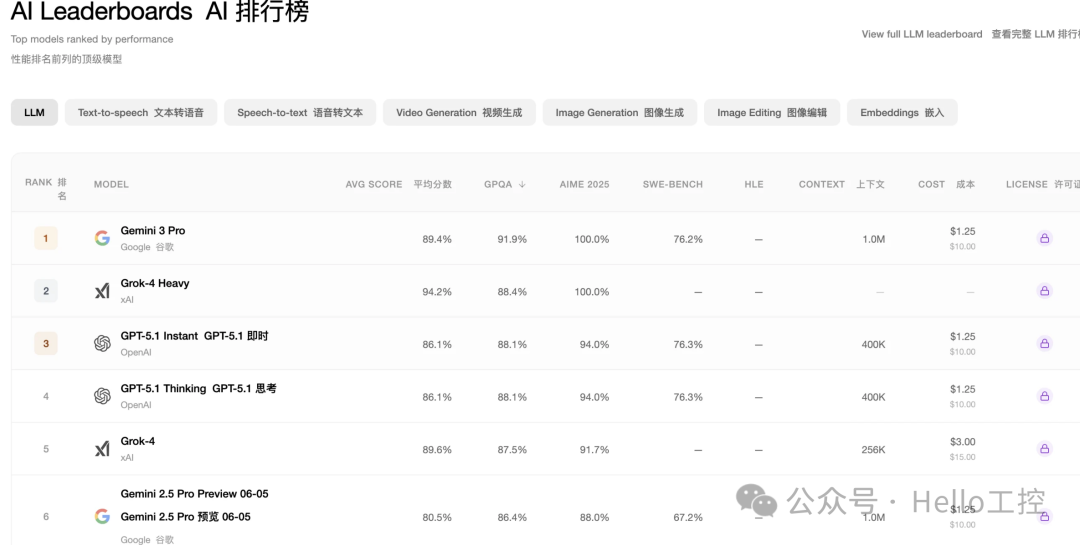

From the AI ranking perspective, it has already climbed to the top:

The various scoring data is also impressive:

What we are more concerned about is: how is the PLC programming capability of Gemini 3 Pro? Is it better than before?

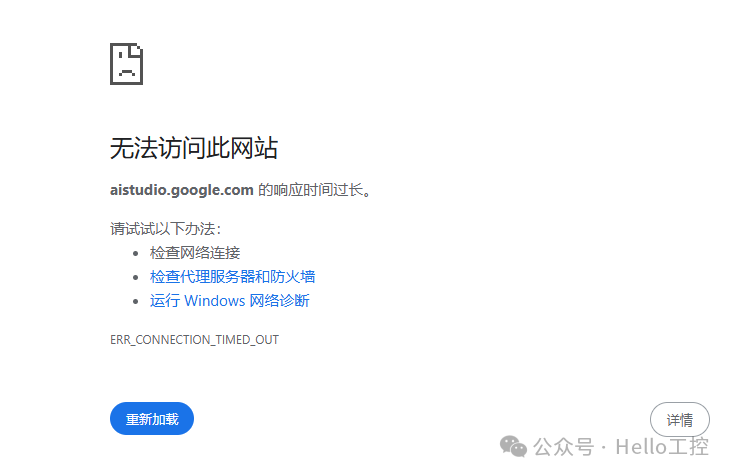

However, in China, even Google is inaccessible, so many friends might find this challenging, and I am no exception. If anyone has good free and stable resources, please feel free to share in the comments.

With a VPN, although I can log in, there are still regional restrictions.

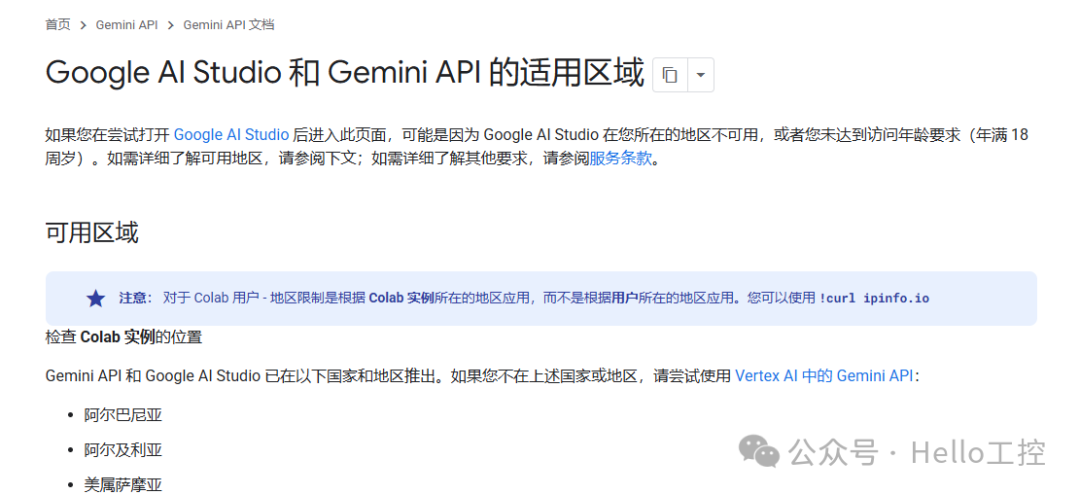

I checked the area below, and it cannot be used directly.

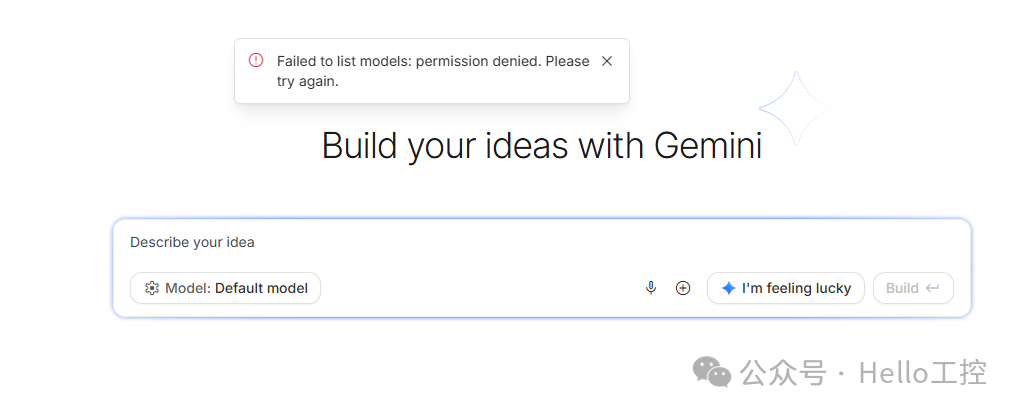

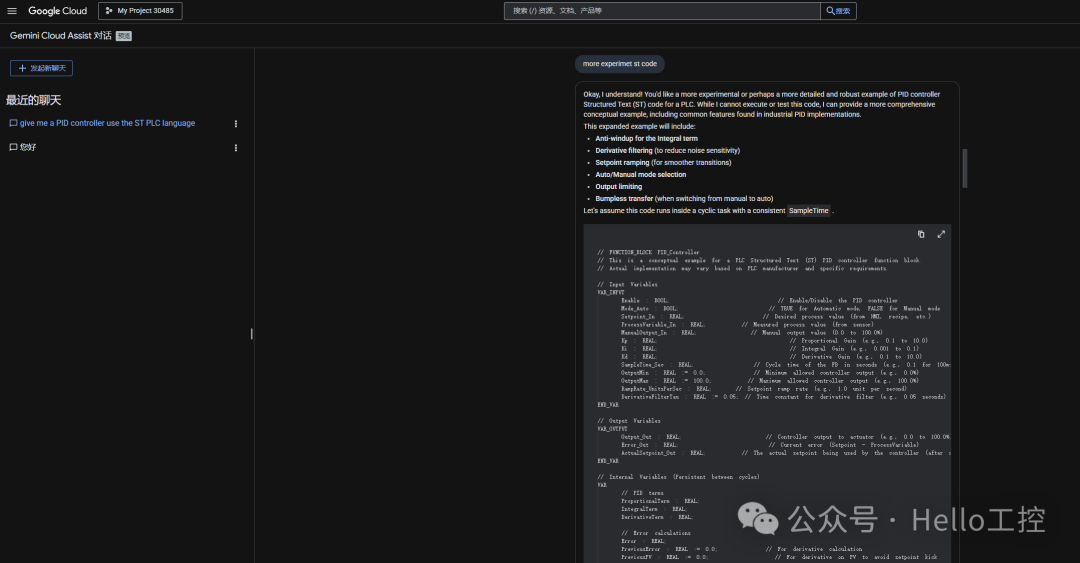

Of course, I saw the prompt that Vertex AI can be used for testing:

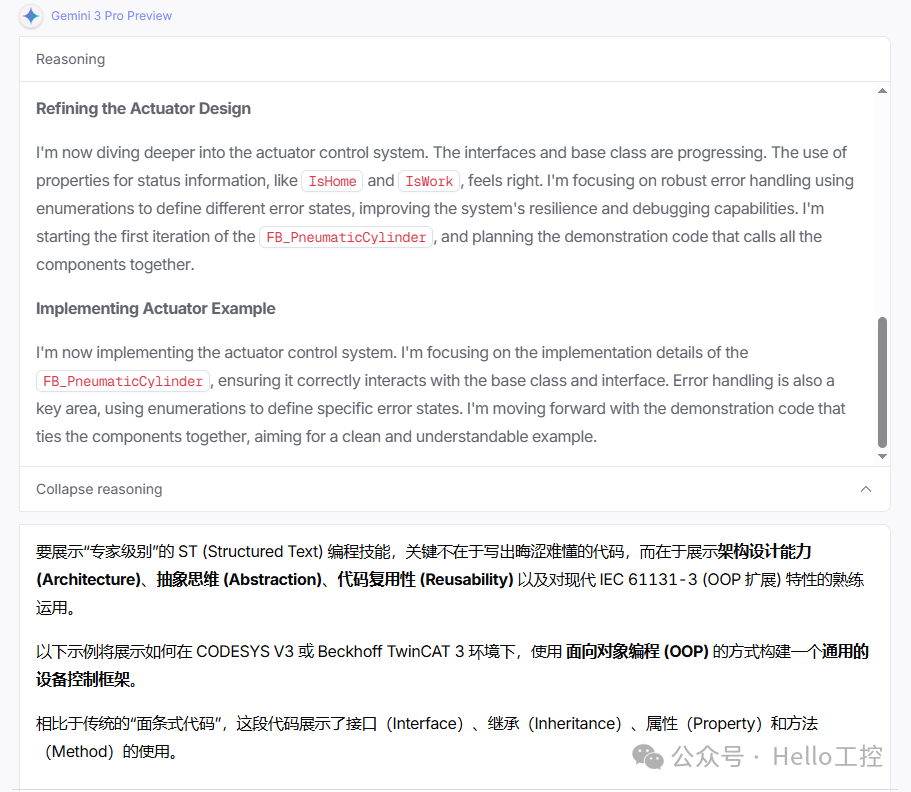

The prompt says that Chinese input is not supported, okay! I later switched to the following method, testing the AI’s programming capability through openrouter:

To demonstrate “expert-level” ST (Structured Text) programming skills, the key is not to write obscure code, but to showcase architecture design ability (Architecture), abstraction (Abstraction), code reusability (Reusability), and proficiency in modern IEC 61131-3 (OOP extensions) features.

The following example will demonstrate how to build a generic device control framework using object-oriented programming (OOP) in CODESYS V3 or Beckhoff TwinCAT 3 environment.

Compared to traditional “spaghetti code”, this code demonstrates the use of interfaces (Interface), inheritance (Inheritance), properties (Property), and methods (Method).

Scenario Objective

Build a generic cylinder/actuator control system.

Define Standards: All actuators must adhere to a unified interface (whether pneumatic, hydraulic, or electric).
Base Class Encapsulation: Encapsulate common timeout detection, state machine logic, and error handling.
Specific Implementation: This is a specific dual electric control cylinder, requiring only a small amount of hardware mapping code.

1. Define Interface (I_Actuator)

Expert Perspective: Use interfaces to achieve “polymorphism”. The main program does not need to know what type of cylinder it is, just that it can MoveWork and MoveHome.

INTERFACE I_Actuator(* Public methods and properties exposed for external calls *)METHOD   MoveWork : BOOLEND_METHODMETHOD  MoveHome : BOOLEND_METHODMETHOD   ResetError : BOOLEND_METHODPROPERTY ErrorID : UDINT END_PROPERTYPROPERTY IsBusy : BOOL END_PROPERTYPROPERTY IsAtWork : BOOL END_PROPERTYPROPERTY IsAtHome : BOOL END_PROPERTY

2. Define Abstract Base Class (FB_ActuatorBase)

Expert Perspective: Utilize ABSTRACT and EXTENDS. This is the core part, handling timers, state transitions, and error logic. Subclasses do not need to rewrite these common logics.

FUNCTION_BLOCK ABSTRACT FB_ActuatorBase IMPLEMENTS I_ActuatorVAR    (* State machine enumeration *)    _eState : (IDLE, MOVING_WORK, MOVING_HOME, ERROR) := IDLE;    (* Internal variables, prefixed with an underscore *)    _fbTimeoutTimer : TON;    _tTimeoutLimit  : TIME := T#5S;    _nErrorID       : UDINT := 0;END_VAR(* === Interface property implementation (read-only) === *)PROPERTY ErrorID : UDINT    GET        ErrorID := _nErrorID;    END_GETEND_PROPERTYPROPERTY IsBusy : BOOL    GET        IsBusy := (_eState = MOVING_WORK) OR (_eState = MOVING_HOME);    END_GETEND_PROPERTY(* === Abstract methods (subclasses must implement specific hardware read/write) === *)(* Subclass used to set physical outputs *)METHOD PROTECTED ABSTRACT SetOutputs    VAR_INPUT        bWorkCmd : BOOL;        bHomeCmd : BOOL;    END_VAREND_METHOD(* Subclass used to read physical feedback *)METHOD PROTECTED ABSTRACT ReadInputsEND_METHOD(* === Core logic periodic call method === *)METHOD PUBLIC Execute    (* Read the sensor states mapped by the subclass *)    ReadInputs();    (* State machine logic *)    CASE _eState OF        IDLE:            _fbTimeoutTimer(IN := FALSE);        MOVING_WORK:            SetOutputs(TRUE, FALSE);            _fbTimeoutTimer(IN := TRUE, PT := _tTimeoutLimit);            (* Use THIS^ to access states obtained through interface/virtual methods *)            IF THIS^.IsAtWork THEN                _eState := IDLE;            ELSIF _fbTimeoutTimer.Q THEN                _nErrorID := 101;             (* For example: action timeout *)                _eState := ERROR;            END_IF        MOVING_HOME:            SetOutputs(FALSE, TRUE);            _fbTimeoutTimer(IN := TRUE, PT := _tTimeoutLimit);            IF THIS^.IsAtHome THEN                _eState := IDLE;            ELSIF _fbTimeoutTimer.Q THEN                _nErrorID := 102;                _eState := ERROR;            END_IF        ERROR:            SetOutputs(FALSE, FALSE); (* Safety protection *)    END_CASEEND_METHOD(* === Interface method implementation === *)METHOD MoveWork : BOOL    IF _eState &lt;&gt; ERROR THEN        _eState := MOVING_WORK;        MoveWork := TRUE;    END_IFEND_METHODMETHOD MoveHome : BOOL    IF _eState &lt;&gt; ERROR THEN        _eState := MOVING_HOME;        MoveHome := TRUE;    END_IFEND_METHODMETHOD ResetError : BOOL    _nErrorID := 0;    _eState := IDLE;    ResetError := TRUE;END_METHOD

3. Specific Implementation Class (FB_PneumaticCylinder)

Expert Perspective: The specific business logic is very clean. Developers only need to focus on IO mapping without worrying about how the timeout timer is written, as the base class has already handled it.

FUNCTION_BLOCK FB_PneumaticCylinder EXTENDS FB_ActuatorBaseVAR_INPUT    bSensorWork : BOOL; (* Physical input *)    bSensorHome : BOOL;END_VARVAR_OUTPUT    bValveWork  : BOOL; (* Physical output *)    bValveHome  : BOOL;END_VAR(* === Implement abstract properties of the base class === *)PROPERTY IsAtWork : BOOL    GET        IsAtWork := bSensorWork;    END_GETEND_PROPERTYPROPERTY IsAtHome : BOOL    GET        IsAtHome := bSensorHome;    END_GETEND_PROPERTY(* === Implement abstract methods of the base class === *)METHOD PROTECTED SetOutputs    VAR_INPUT        bWorkCmd : BOOL;        bHomeCmd : BOOL;    END_VAR    (* Specific hardware logic, for example, here is dual electric control *)    bValveWork := bWorkCmd;    bValveHome := bHomeCmd;END_METHODMETHOD PROTECTED ReadInputs    (* If complex filtering or debouncing is needed, write it here *)    ;END_METHOD

4. Main Program Call (Main)

Expert Perspective: The main program is extremely concise. Using arrays or interface lists can easily manage 100 cylinders in bulk.

PROGRAM MAINVAR    (* Instantiate specific cylinder *)    fbCylinderA : FB_PneumaticCylinder;    (* Define test variables *)    bUserBtnExtend : BOOL;    bUserBtnRetract : BOOL;    bUserBtnReset   : BOOL;    (* Interface pointer for demonstrating polymorphism *)    iMyActuator : I_Actuator; END_VAR(* 1. Hardware IO mapping (simulation) *)fbCylinderA.bSensorWork:= HwInputs.I0_0;fbCylinderA.bSensorHome:= HwInputs.I0_1;(* 2. Logic control - operate through interface, achieving decoupling *)iMyActuator := fbCylinderA; (* Assign specific instance to interface *)(* At this point, we only operate through iMyActuator, without caring whether it is dual electric control or single electric control *)IF bUserBtnExtend THEN    iMyActuator.MoveWork();END_IFIF bUserBtnRetract THEN    iMyActuator.MoveHome();END_IFIF bUserBtnReset THEN    iMyActuator.ResetError();END_IF(* 3. Periodically execute core logic *)(* Note: Must call the instance's Execute method to drive the internal state machine *)fbCylinderA.Execute();(* 4. Output mapping *)HwOutputs.Q0_0:= fbCylinderA.bValveWork;HwOutputs.Q0_1:= fbCylinderA.bValveHome;

Of course, in the end, I also elaborated on myself, proving my expert-level programming skills!

Why does this code demonstrate expert-level skills?

Decoupling: The main logic controls the device through the I_Actuator interface. If in the future you need to replace the cylinder with a servo motor push rod, you only need to create a new FB_ServoPusher implementing that interface, and the control logic of the main program (buttons, state transitions) will not need to change a single line of code.
Encapsulation: _eState, _fbTimeoutTimer and other variables are hidden inside the base class, preventing external modification, ensuring system robustness. Interaction can only occur through methods like MoveWork().
Maintainability: If you want to modify the timeout logic for all cylinders, you only need to change one place in FB_ActuatorBase, and the logic for all cylinders in the factory will automatically update.
Clean Code: There are no large amounts of IF..THEN..ELSE nesting, the state machine is clear, and the logic layers are distinct (hardware layer -> driver layer -> business layer).

Well, as for how the code actually performs, I leave it to my PLC colleagues to judge! Any thoughts are welcome for discussion in the comments!
