Introduction to the Padim Model

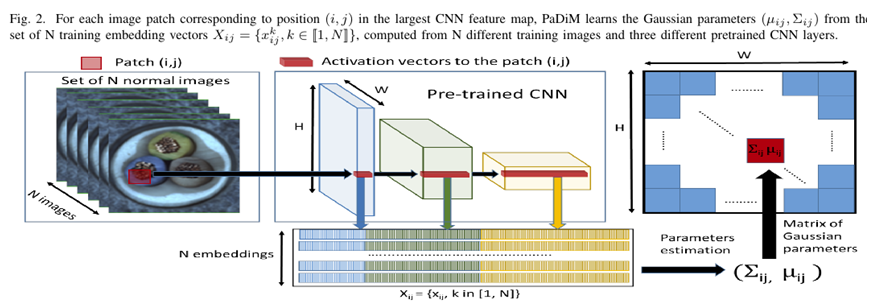

The Padim model primarily generates feature vectors from a series of normal samples using a CNN network, calculates multiple variance Gaussian matrices of the feature vectors, and obtains the feature data distribution of normal samples. It then computes the Mahalanobis distance between the feature vector of the input sample image and the training-generated feature data distribution, thus achieving anomaly detection and localization.
PadimModel Training and ExportSupports ONNXformat orOpenVINOformat, please refer to the article below.
[Engineering Practice] Anomalib Anomaly Detection from Training to Deployment
TensorRT Inference Steps
TensorRT is more concise and user-friendly compared to previous versions of the C++ SDK, and it supports dynamic modification of input dimension parameters.
Loading the Model and Creating the Execution Engine
this->runtime = createInferRuntime(gLogger);assert(this->runtime != nullptr);this->engine = this->runtime->deserializeCudaEngine(trtModelStream, size);assert(this->engine != nullptr);this->context = engine->createExecutionContext();assert(this->context != nullptr);delete[] trtModelStream;Image Preprocessing and Inference
cv::Mat blob = cv::dnn::blobFromImage(image, 1 / 255.0, cv::Size(this->input_w, this->input_h), cv::Scalar(0, 0, 0), true, false);cudaMemcpyAsync(buffers[0], blob.ptr<float>(), 3 * this->input_h * this->input_w * sizeof(float), cudaMemcpyHostToDevice, stream);// Inferencecontext->executeV2(buffers);Getting Input and Output Data Dimensions for Inference
// Get input dimension informationthis->input_h = inputDims.d[2];this->input_w = inputDims.d[3];printf("inputH : %d, inputW: %d \n", this->input_h, this->input_w);// Get output dimension informationthis->output_h = outDims3.d[2];this->output_w = outDims3.d[3];std::cout << "out data format: " << this->output_h << "x" << this->output_w << std::endl;Code Demonstration
For anomaly detection models such as PatchCore, Padim, and EfficientAD, I have implemented a class wrapper that allows for the deployment of anomaly detection models with just a few lines of code. The calling code is as follows:

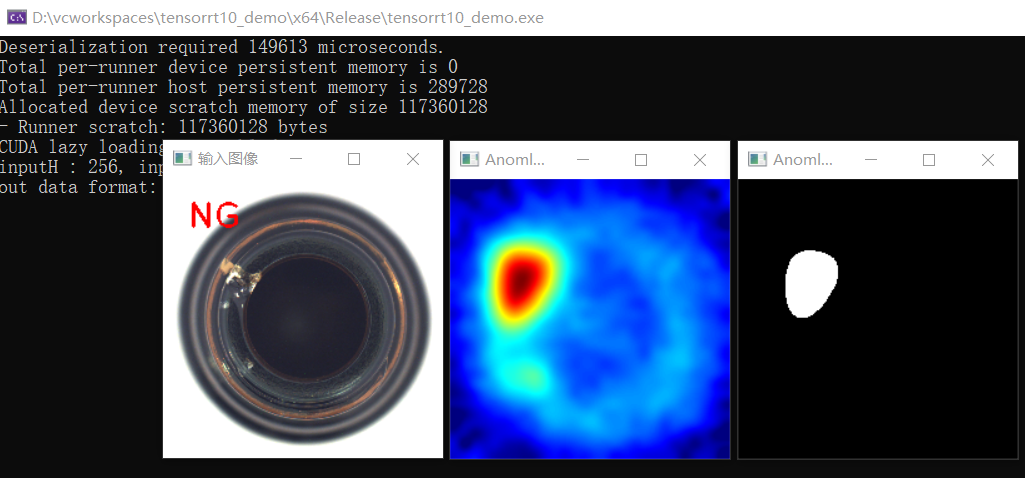

std::shared_ptr<AnomalyDetector> detector(new AnomalyDetector());detector->initConfig("D:/TensorRT-10.8/bin//model.engine", 256, 256, 0.5);cv::Mat image = cv::imread("D:/python/yolov5-7.0/breaksmall.png");detector->detect(image);//cv::imshow("Input Image", image);cv::waitKey(0);cv::destroyAllWindows();The results are as follows:
