Custom Toaster PCBA Circuit Board for Sandwich Breakfast Machine Assembly and SMT Processing

The Custom Toaster/Toaster PCBA solution is a thermal control solution with strict requirements for heating time accuracy, temperature uniformity, safety protection, and user experience in the field of kitchen small appliances.

Its core is to control a high-power relay or thyristor using a highly reliable MCU with a timer function, accurately managing the power-on time of the quartz tube heater, and combined with a bimetallic temperature controller and electronic over-temperature protection, allowing for multiple levels of toasting from lightly toasted to crispy, featuring automatic lift, power-off memory, and other functions to ensure even heating and safe, convenient use.

As a supplier with extensive design and safety certification experience in the PCBA solutions for kitchen electric products, we are very familiar with these requirements. We can provide you with a complete toaster PCBA solution that is temperature-controlled, safe and reliable, practical in function, and cost-optimized based on a dedicated timing MCU and power drive solution.

**Core Solution: One-Stop Toaster PCBA Solution (Precise Temperature Control, Safe and Reliable, Practical Functionality)

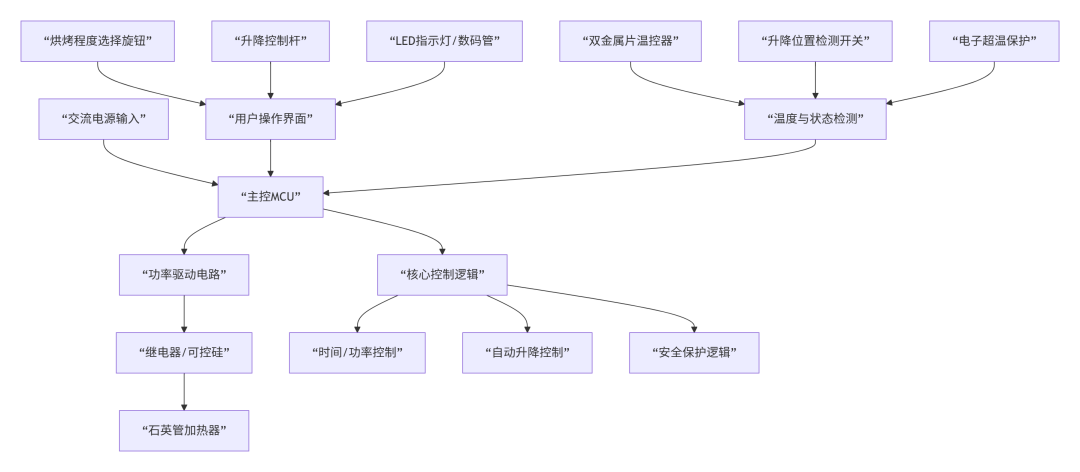

To help you quickly understand its technical implementation as a “breakfast time manager,” the following diagram clearly illustrates its system architecture:

1. Technical Solution Details (Control, Heating, Safety)

1. Precise Baking Control System (Core)

Control Method: The MCU starts by detecting the lift lever press signal, and controls the power-on time of the relay/thyristor based on the gear setting, accurately controlling the baking degree.
Heating Uniformity: Optimized heating tube layout and reflector design ensure even heating of the bread slices.

2. Mechanical and Safety System (Reliability)

Lift Mechanism: Controlled by an electromagnet or motor, featuring automatic lift and mid-process cancellation functions.
Temperature Control Protection: Using a mechanical bimetallic temperature controller as the main control, with electronic over-temperature protection as a backup, ensuring no overheating under any circumstances.
Power-off Protection: Automatically cuts off power when the lift lever is raised, preventing accidental contact with the heating tube.

3. User Experience Design (Convenience)

Defrost and Reheat Function: Special “defrost” setting, first defrosting at low temperature and then normal toasting.
Cancel Function: Allows interruption of the toasting process at any time.
Crum Tray: Facilitates cleaning.

2. Key Performance Indicators (Excellent Experience)

Performance Parameters	High-End Version Specifications	Testing Conditions
Gear Adjustment	1-7 adjustable (light to dark)	Meets different taste requirements
Heating Time	< 3 minutes to reach operating temperature	Rapid heating
Safety Certification	Passed 3C, CE, UL certifications	Global market safety access

3. Solution Advantages

Precise Temperature Control: Multiple gear options to meet different toasting needs.
Safe and Reliable: Multiple safety protections for peace of mind during use.
Easy Operation: One-button operation for automatic completion.
Efficient Heating: Fast heating saves time.

4. Application Scenarios

Home Breakfast: Quickly make toasted bread slices.
Hotel Catering: Providing breakfast service for guests.
Office: Employee breakfast preparation.

5. Recommended Chip Solutions (High Cost-Performance Ratio)

Function Module	Recommended Chip (High Reliability)	Features
Main Control MCU	Domestic 8-bit/32-bit MCU	High cost-performance ratio, good reliability
Power Drive	Relay/Thyristor	Strong driving capability, safe and reliable

6. Information Required from You

To provide you with the most accurate solution and quotation, please clarify the following information:

Details to Confirm	Purpose
1. Functional Requirements	What functions are needed? What are the requirements for gear adjustment?
2. Safety Certification	What safety certifications does the product need to pass?
3. Procurement Scale	Is it a sample requirement or a bulk plan? What is the approximate quantity needed?

We look forward to your detailed requirements! We can provide you with a complete PCBA solution, from hardware design, software programming to production processing, helping you create a well-functioning toaster.
