Chao Yuan Technology Brand‘s BRKFIU-X4 Brake System Fault Injection Device can be integrated into the actual vehicle brake signal system, performing fault injection harness execution to meet ISO26262 fault injection testing requirements for functional safety confirmation of the actual vehicle brake system. The fault types include short circuit, open circuit, offset, scaling, stalling, disturbance, and lag. This product is designed to be portable, facilitating testing on actual vehicles, with strong real-time data capabilities, a time deviation of ≤0.06us, and the ability to accurately record functional safety response time measurement test results of the actual vehicle..
Typical Applications
-
New Energy Vehicles Electric Control Brake System Fault Diagnosis and Functional Safety Testing
-
Anti-lock Braking System Testing Functional Safety Testing
-
Throttle Pedal System Fault Injection Testing
-
Low Voltage Signal Electrical System Fault Diagnosis Function Development Verification
Brake System Fault Injection Device Implementation Principle

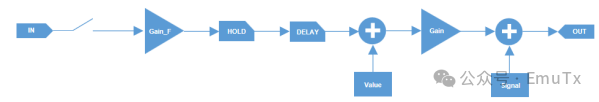

In the figure, IN represents the module input signal, generally sourced from the vehicle brake sensor’s original signal, OUT represents the module output signal, which is the signal after fault injection. The simulator adopts a high-speed FPGA + DSP design scheme, capable of real-time acquisition of the IN signal, implementing fault operations such as short circuit, open circuit, offset, scaling, stalling, disturbance, and lag on the input signal. All fault conditions are triggered by the bus, facilitating precise time control and real-time feedback of fault states, accurately grasping the moments of fault injection and execution. Additionally, the module is designed with external signal interfaces to inject noise, high-frequency disturbances, and other special waveform signals.
Main Functions
l Non-fault Mode-> Input = Output
l Fault Mode-> Input ≠ Output (Offset, Scaling, Stalling, Disturbance, Lag)
l Fault Mode-> Input ≠ Output (Short Circuit, Open Circuit)
l Real-time Control Fault Injection Conditions
l CAN Real-time Read Fault Injection Status
l Multiple Modules Can Be Connected in Parallel

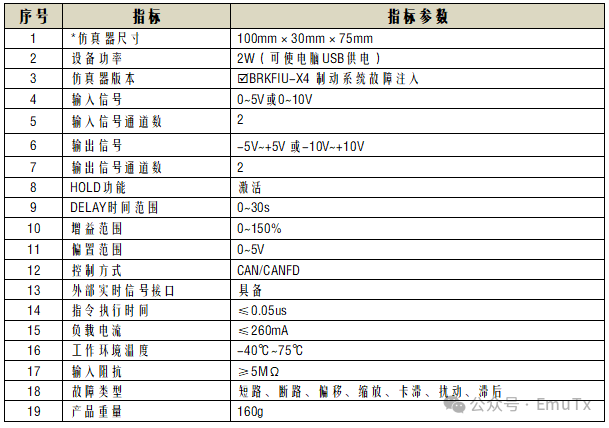

Product Parameters
