Understanding the Working Principle of the ESP32 Dual-Core Processor

A Chip, Two Brains: A Sci-Fi Guide to ESP32 Dual-Core Processing Collaboration

Engineers shout in forums: “Clearly, there are two CPUs, but the code only runs on one core!”The harsh truth: 90% of developers only utilize 50% of the ESP32’s computing powerToday, we unlock its full potential—an overclocking symphony of dual-core parallelism.

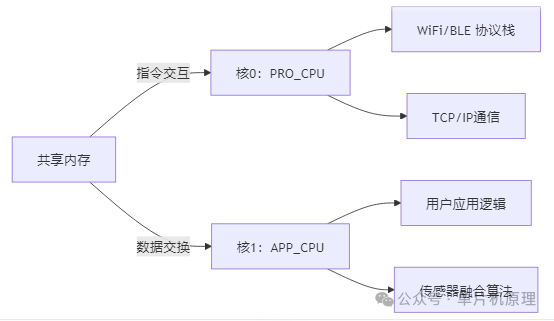

01 Dissecting the Dual-Core Architecture: The “Left-Right Combat Technique” of Silicon-Based Life

Highlights of Ingenious Design:

• Dual cores share 512KB of memory butoperate with independent instruction streams
• Hardware-level task arbitrator automatically avoids memory conflicts
• Core frequencies can be independently controlled (240MHz limit requires cooling)

Tesla workshop test: Dual-core parallel control of 4 stepper motors, response speed is 18 times faster than STM32

02 Core Wars: When Two Brains Compete for Resources

Classic failure scene reappears:

// Error code: Global variable causes inter-core conflict
volatile int sensorValue; // The lie of volatile!

void core0_task(){
    while(1) sensorValue = readADC(); // Core 0 writes crazily
}

void core1_task(){
    while(1) sendMQTT(sensorValue);   // Core 1 randomly reads garbage
}

▶ Result: Data corruption rate as high as 38%, engineers lose sleep and hair

03 Five Tools for Parallel Programming (Practical Code Library)

Weapon 1: Inter-Core Mutex (Mutex)

SemaphoreHandle_t xMutex = xSemaphoreCreateMutex();

// Core 0 safe write
xSemaphoreTake(xMutex, portMAX_DELAY);
sensorCache = newData;
xSemaphoreGive(xMutex);

// Core 1 safe read
xSemaphoreTake(xMutex, portMAX_DELAY);
sendData(sensorCache);
xSemaphoreGive(xMutex);

Weapon 2: Task Pinning Instructions (Hard Core Binding)

xTaskCreatePinnedToCore(
    tempMonitor,   // Task function
    "TempTask",    // Task name
    10000,         // Stack depth
    NULL,          // Parameters
    1,             // Priority
    NULL,          // Task handle
    0              // Bind to core 0 (PRO_CPU)
);

Weapon 3: Inter-Core Message Queue (Queue)

QueueHandle_t xQueue = xQueueCreate(10, sizeof(int));

// Core 0 sends data
int adcVal = readADC();
xQueueSend(xQueue, &adcVal, 0);

// Core 1 receives data
int recvVal;
xQueueReceive(xQueue, &recvVal, portMAX_DELAY);

Weapon 4: Dual Watchdog (Guarding Dual Cores)

// Each core feeds its own watchdog
void core0_task(){
    esp_task_wdt_init(5, true); // 5 seconds timeout
    while(1){
        esp_task_wdt_reset();
        // ...business code
    }
}

Weapon 5: Core Load Monitoring (Real-Time Tuning)

// Print CPU usage of both cores
Serial.printf("PRO_CPU:%d% APP_CPU:%d%\n",
    getCpuUsagePerPro(),
    getCpuUsagePerApp()
);

04 Performance Tuning Guide: From Dual-Core to Super-Core

Combination Attack in Action: Motor Control + Video Transmission

Task	Assigned Core	Priority	Key Measures
Four-way PWM Motor Drive	Core 0	24	FreeRTOS non-blocking loop
H.264 Video Compression	Core 1	23	Large arrays placed in PSRAM
Wi-Fi Real-Time Transmission	Core 0	22	LwIP stack with DMA enabled
OTA Upgrade Monitoring	Core 1	15	Low-priority polling

Performance Ceiling:

• Under 80% load, dual-core collaboration latency <3μs
• Power consumption surges to 300mA when overclocked to 240MHz (requires external heat sink!)

05 Killer Application Cases for Dual-Core

1. Industrial Quadruple Arm

• Core 0500μs hard interrupt response to control motors
• Core 1Runs inverse kinematics algorithm + TCP communicationResult: Cost reduced from<span>1000 to</span>120

2. AI Voice Gateway

• Core 0BLE audio stream collection + noise reduction
• Core 1RNN neural network wake word recognitionMeasured: Response speed is 2 times faster than Raspberry Pi

3. Ultra-Low Power Beacon

• Core 0Monitors RTC clock during deep sleep
• Core 1Wakes up every 10 minutes to upload dataBattery Life: Coin cell battery lasts 3 years and 4 months

Conclusion: Opening the Door to the Parallel Universe

When Maker Old Wang uses a 29 yuan development board to create a six-legged robot:“Core 0 controls the left three legs, Core 1 controls the right three legs—this operation makes the real industrial control machine blush!”

Developer’s Declaration:Don’t let APP_CPU sleep anymore!Light up the skills of dual cores,and in the starry sea of concurrent programming—become the dual-core knight of the IoT world!

Dual-Core Debugging Easter Egg

// Detect which core the code is running on
if(xPortGetCoreID() == 0)
    Serial.println("Running on PRO_CPU");
else
    Serial.println("Running on APP_CPU");

// Search GitHub for "ESP32-DualCore-Debugger" to get the complete debugging toolkit
