Last time we discussed the exception vector table in ARM v8 (click here for the previous episode). We used the data abort exception as an example. Suppose a data abort occurs at exception level EL1. It will jump from the exception vector table to the el1_sync assembly function.

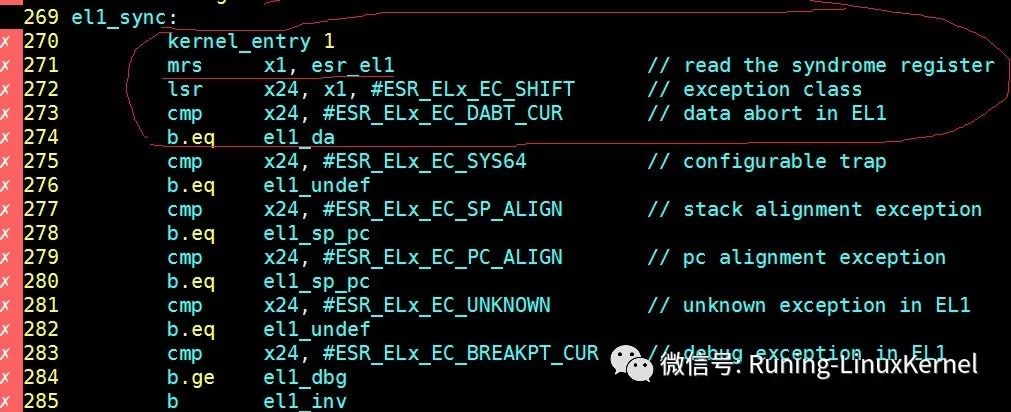

Line 270’s kernel_entry is an assembly macro used to save the exception context, storing relevant CPU registers onto the EL1 stack. This is similar to ARM32 code, where there will be a stack frame, and the size of this stack frame is S_FRAME_SIZE, which is software-defined rather than hardware-defined. This means you can implement a stack frame different from that of Linux.
Next, we read the value of the esr_el1 register. The full name of the ESR_EL1 register is the exception syndrome register, which can be referenced in Chapter D10.2.36 of the ARM v8 manual. This register is somewhat similar to the DFSR register in ARM v7. The specific definition of this register is in Chapter D10.2.39.

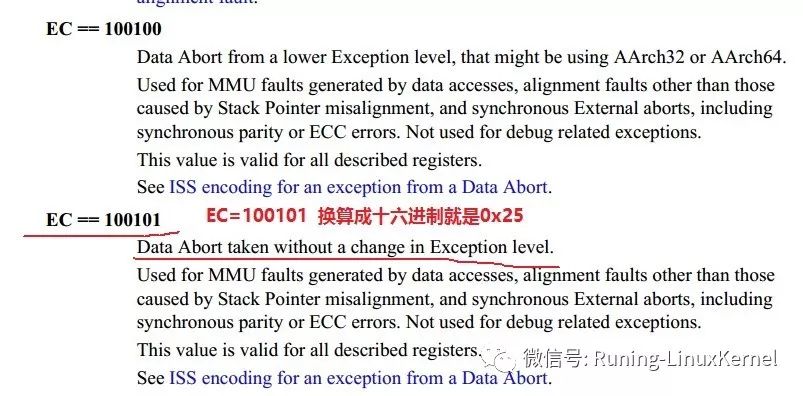

In this register, the EC field stores the type of exception (exception class). For a current EL data abort, you can refer to the manual’s definition; when EC == 100101, it indicates that a data abort exception has occurred at the current EL.

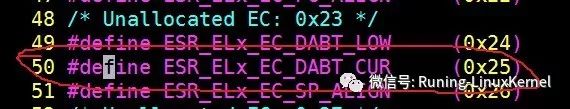

This value matches the definition of ESR_ELx_EC_DABT_CUR in line 273 of the code, which is defined in the arch/arm64/include/asm/esr.h file.

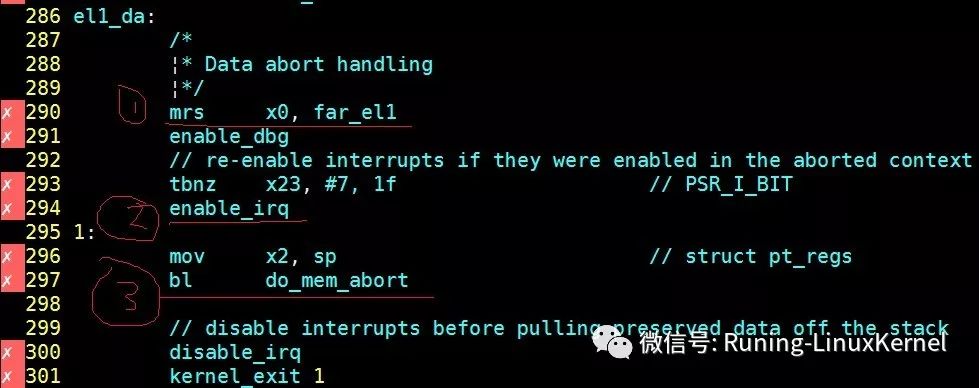

Thus, according to line 274 of the code, it will jump to the el1_da assembly function. This function is also in the entry.S file.

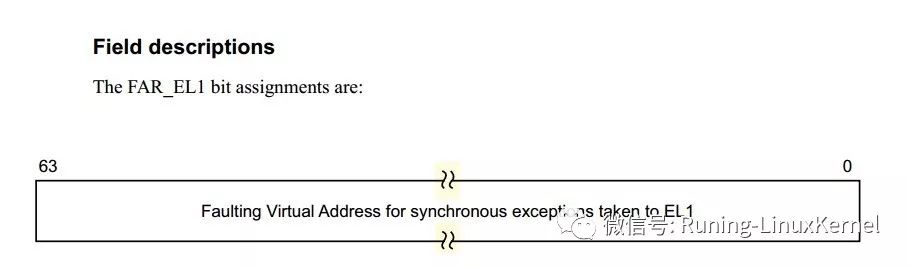

First, read the far_el1 register. This register is described in Chapter D10.2.40. It stores the virtual address that caused the exception, allowing the operating system to read this register to continue subsequent exception handling. It is quite similar to the DFAR register in ARM V7.
The second step is to enable interrupts.

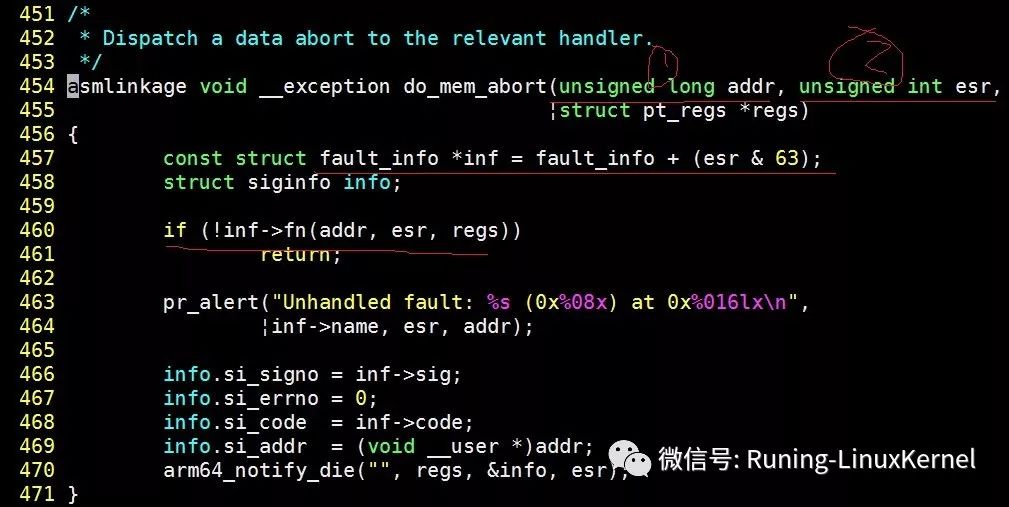

The third step is to jump to the do_mem_abort function.
This function has three parameters, with the first and second parameters needing attention. The first parameter is the erroneous virtual address at the time of the exception, i.e., the value read from the FAR_EL1 register, while the second parameter is the ESR_EL1 register. However, the second parameter has many complexities.

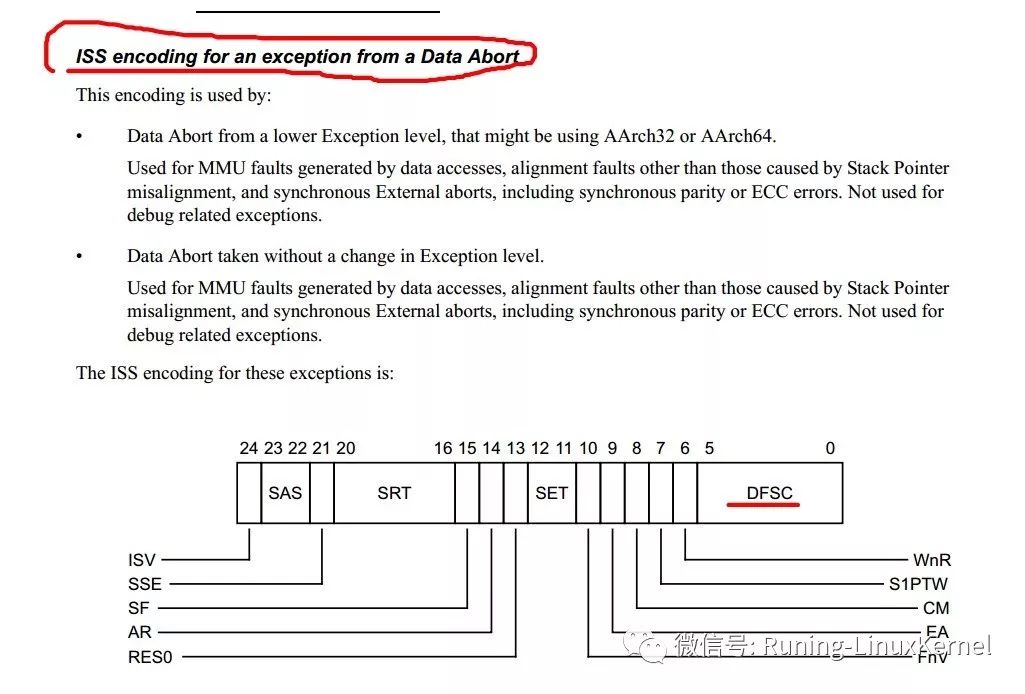

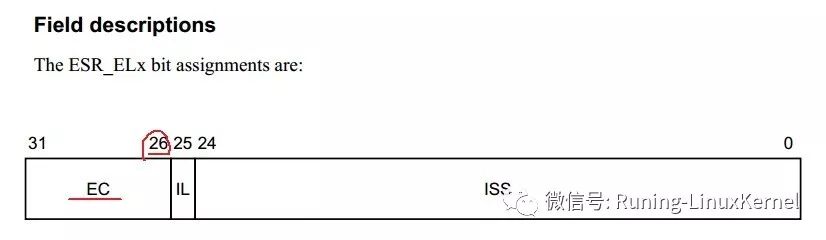

The bits 26-31 of the ESR_EL1 register are the Exception class, and bits 0-24 are the ISS field. The interpretation of the ISS field varies depending on the exception class. In the case of a data abort, the ISS encoding can be found on page 2460 of the ARM v8 manual. See the image below.

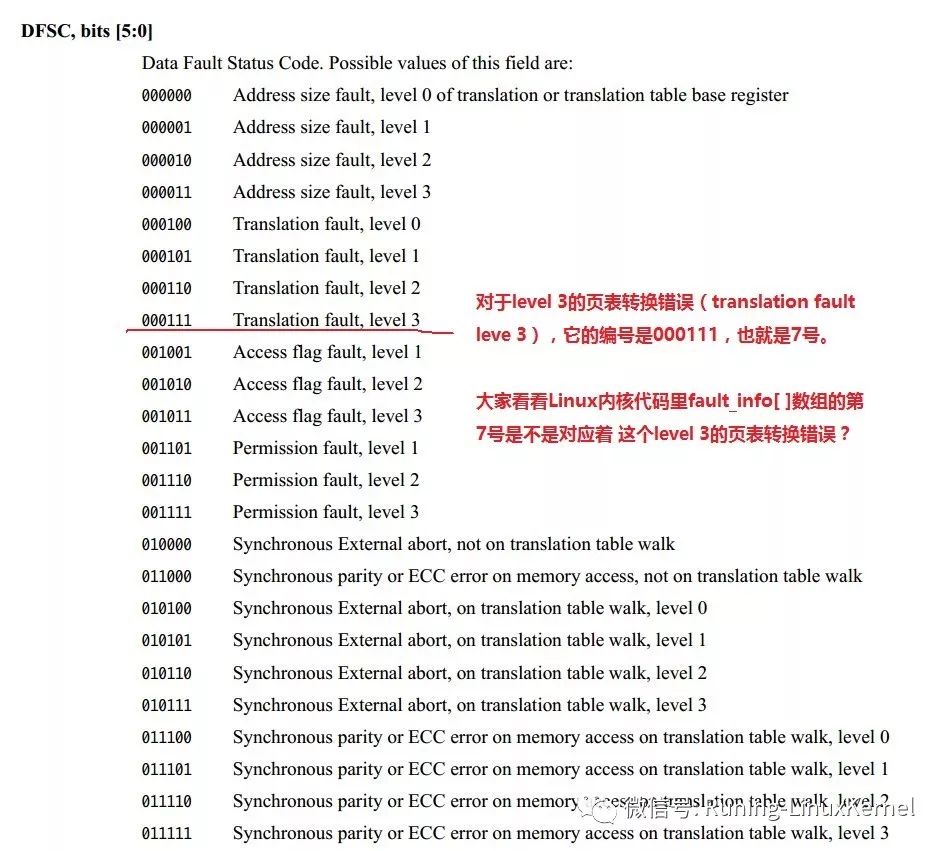

Bits 0-5 indicate the specific type of data abort that occurred. Taking the level 3 page table translation error as an example (translation fault level 3), we see that in the DFSC field, it is 000111, which is 7.

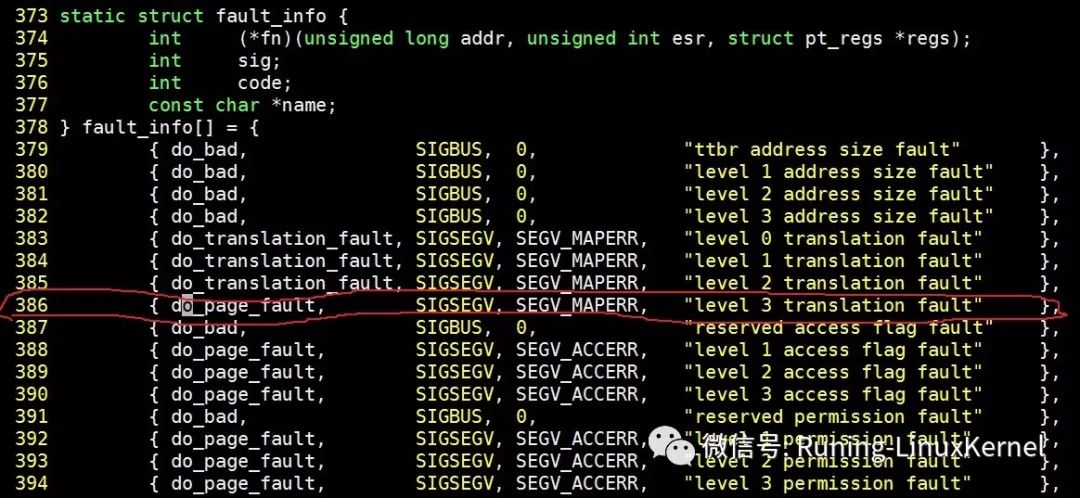

Let’s look at the Linux kernel code; in the arch/arm64/mm/fault.c file, there is an array fault_info[]. Let’s see what corresponds to 7.
We are surprised to find that the fault_info[] array at index 7 corresponds to level 3 translation fault, with the handling function being do_page_fault, as seen in line 386 of the code. You can count this array starting from 0.
Through these two episodes of the series, we have gone through the behind-the-scenes of exception handling in ARM V8. We hope this helps everyone. For more exciting content, please pay attention to the second season of Uncle Ben’s “Running Linux Kernel” video series.
