The relevant control bits affecting interrupt routing are mainly HCR_EL2.IMO/FMO/AMO (this article only discusses irq/virq, so we will only look at the IMO bit), in addition, the HCR_EL2.TGE bit affects whether the Application acts as Host or Guest.

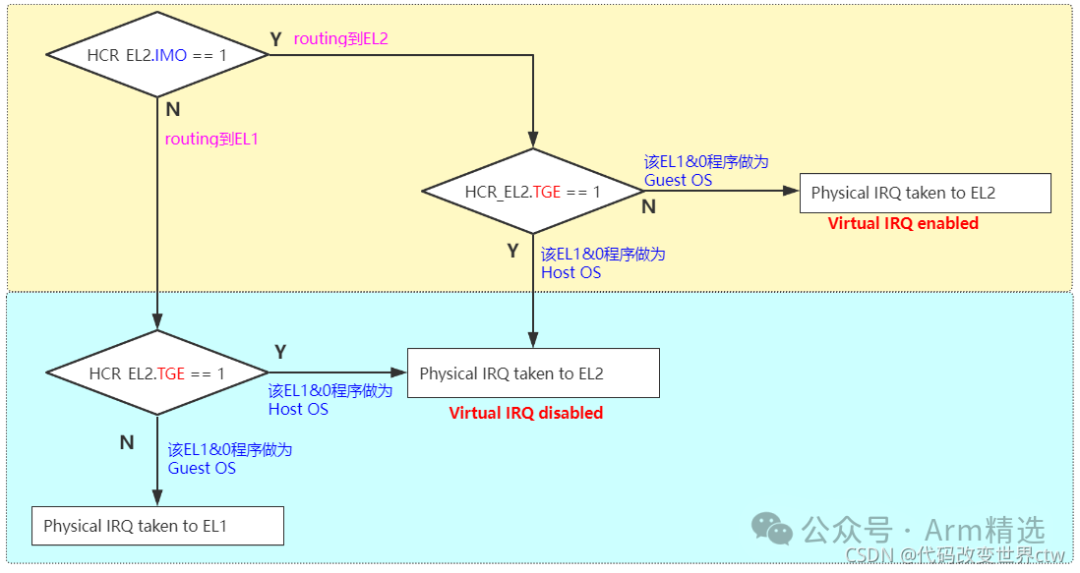

Below is a summary of the routing rules for these bits:

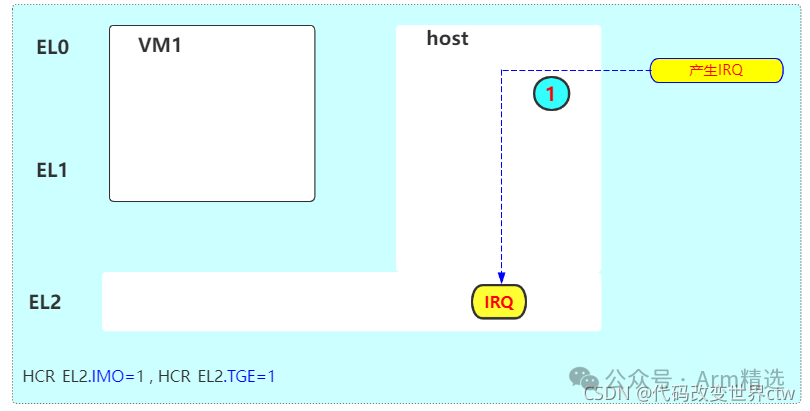

After learning the principles, let’s look at four examples: (1) HCR_EL2.IMO=1, HCR_EL2.TGE=1 – routing to EL2, Application as Guest

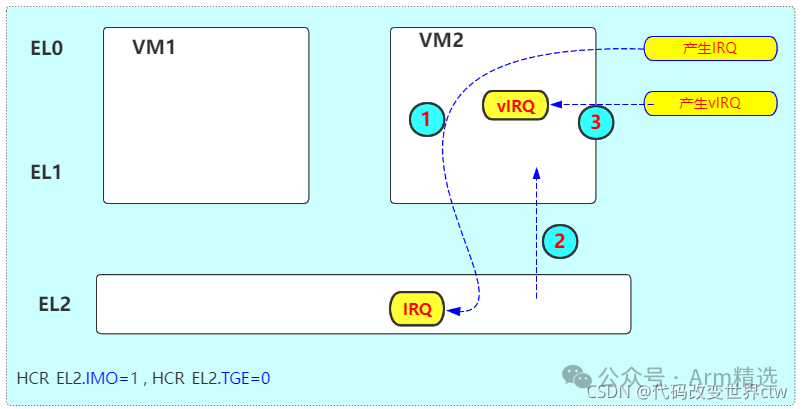

(2) HCR_EL2.IMO=1, HCR_EL2.TGE=0 – routing to EL2, Application as Host

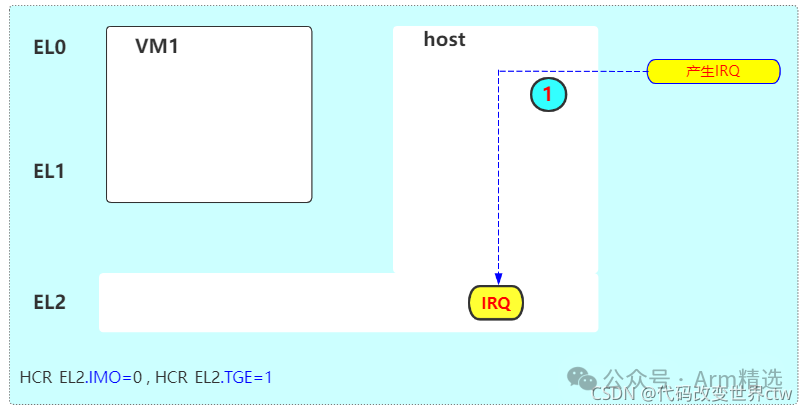

(3) HCR_EL2.IMO=0, HCR_EL2.TGE=1 – routing to EL1, Application as Guest

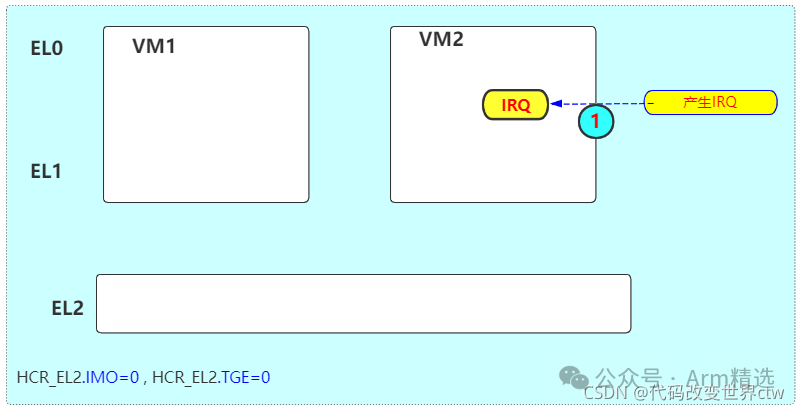

(4) HCR_EL2.IMO=0, HCR_EL2.TGE=0 – routing to EL1, Application as Host
