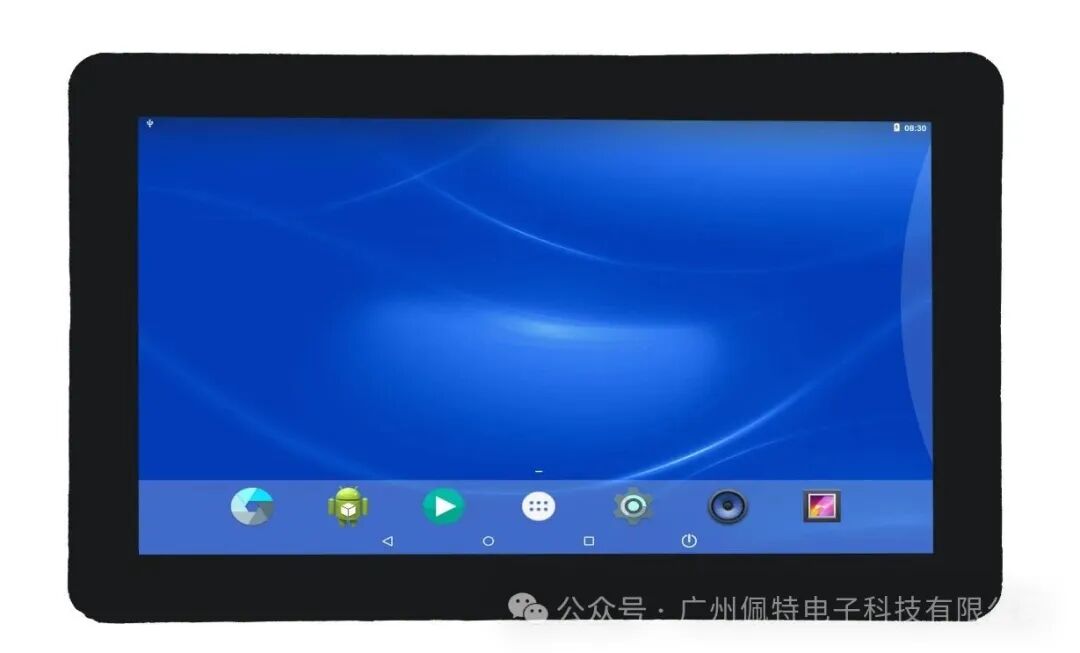

RK3568
Android All-in-One
In the fields of industrial automation, smart displays, and edge computing, the RK3568 all-in-one machine, with itsquad-core Cortex-A55 architecture, high-performance NPU, and rich interface expandability, has become a core choice in the mid-to-high-end market.
NO.1Core Performance

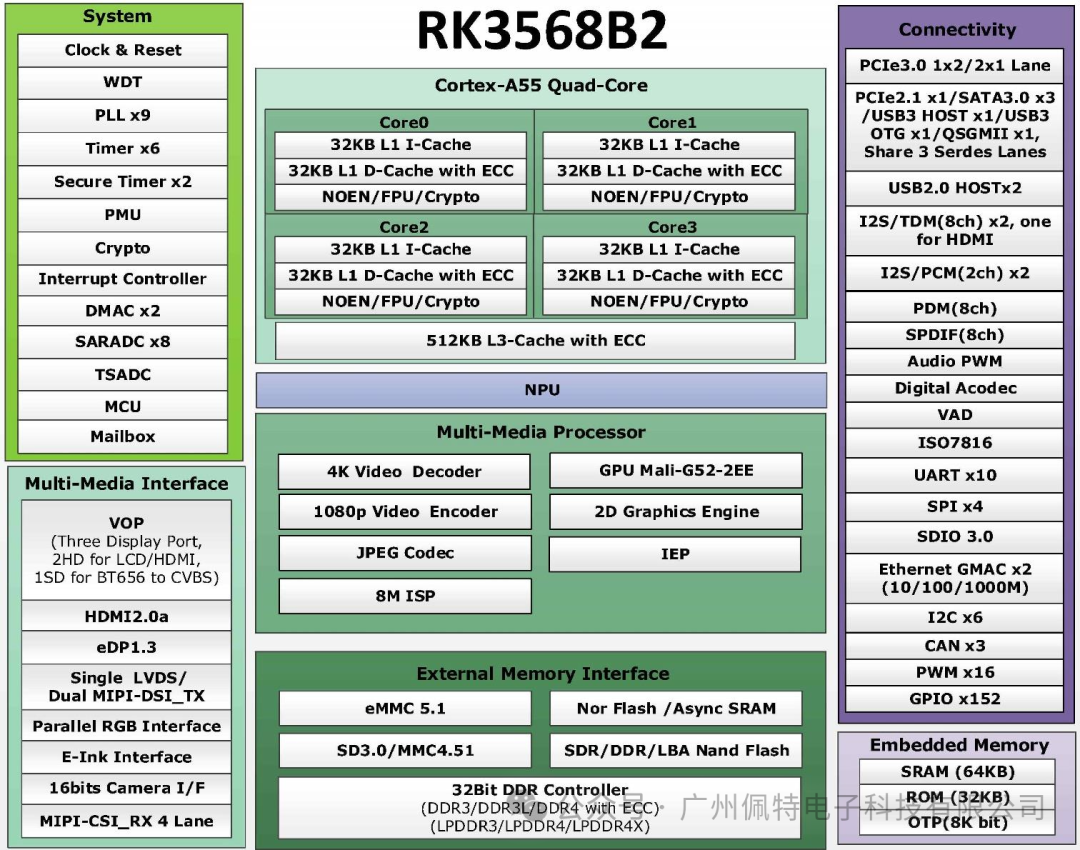

The RK3568 all-in-one machine is equipped with the Rockchip RK3568 chip, which integrates a quad-core 64-bit Cortex-A55 processor (with a maximum frequency of 2.0GHz), paired with a Mali-G52 GPU and a 1T computing power NPU, achieving a balance in performance, power consumption, and AI capabilities:
-
CPU Performance: The quad-core A55 architecture offers a 40% performance improvement over the previous A53, supporting multi-task parallel processing to meet the demands of complex scenarios such as industrial control and video analysis.
-
GPU Capability: The Mali-G52 GPU supports 4K H.265/H.264 video decoding, capable of driving high-definition displays, suitable for digital signage, smart retail, and other visual interaction scenarios.
-
AI Acceleration: The 1T computing power NPU supports lightweight AI applications (such as facial recognition and behavior analysis), reducing CPU load and enhancing real-time performance.
NO.2Highly Integrated, Wide Temperature Design
Network Expandability
-
Gigabit Ethernet: Supports high-speed network communication, suitable for NVR storage, cloud terminals, and other devices requiring high bandwidth transmission.
-
Wireless Connectivity: Integrated Wi-Fi 4G/Bluetooth 4.2, optional 4G LTE module, enabling flexible networking and remote management.

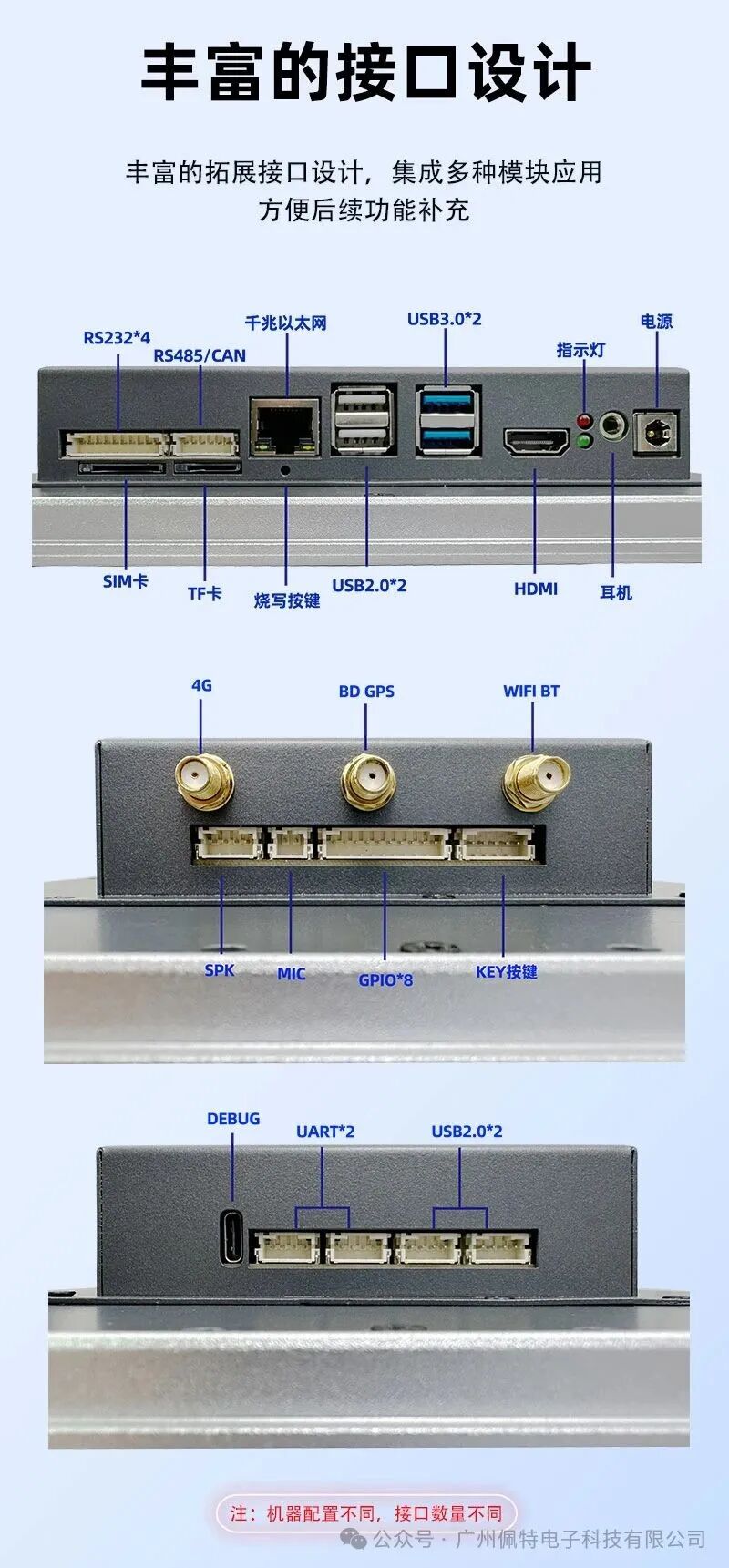

Display and Peripheral Interfaces
-
Multi-Screen Output: Supports HDMI 2.0 (4K@60Hz), MIPI DSI (2560×1440@60fps), LVDS (1920×1080@60fps), capable of driving dual-screen displays, suitable for industrial HMI, smart gates, and other scenarios.
-
Industrial Control Interfaces: Provides RS485, RS232, CAN bus, GPIO, and other interfaces, supporting direct connections to sensors, actuators, PLCs, etc., simplifying system architecture.
Industrial-Grade Reliability
-
Wide Temperature Design: Supports operating temperatures from -20℃ to 70℃, suitable for harsh environments.
Software Ecosystem Support
-
Operating System Compatibility: Supports Android 12, Ubuntu 20.04, Debian 11, etc., accommodating the software needs of different industries.
-
Open Development Resources: Provides a complete SDK, development documentation, sample code, and technical tutorials, supporting deep customization for clients.
