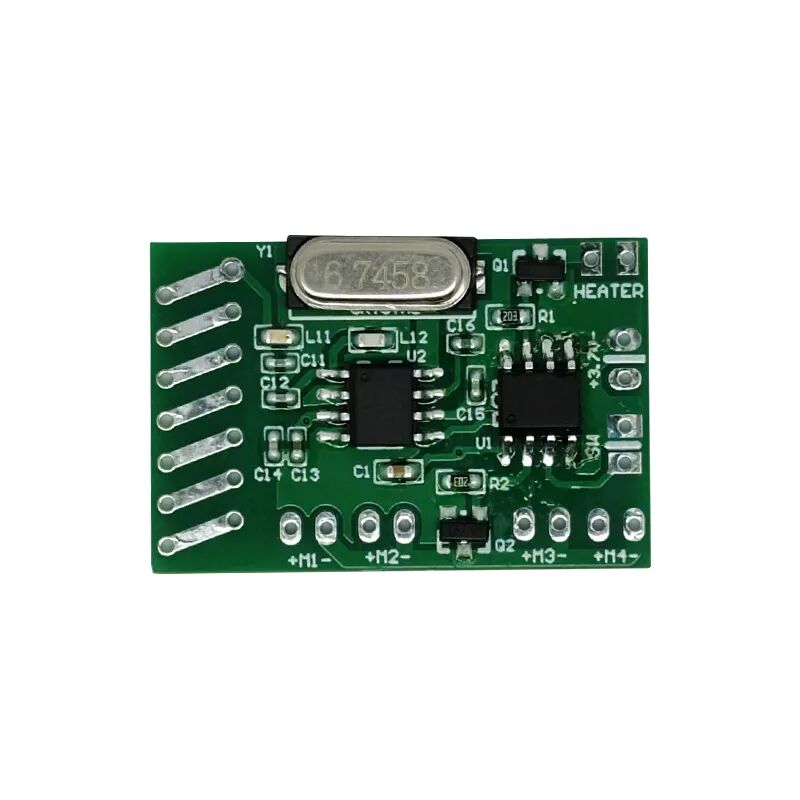

The PCBA control board for foot massagers is an electromechanical product that has extremely stringent requirements for motor control accuracy, diversity of massage programs, user safety, reliability, and comfort in the realm of household health appliances.
The core of this product is to drive multiple brushed/brushed motors and vibrators through a high-performance MCU, achieving multi-mode massage such as kneading, tapping, heating, and air pressure, while precisely controlling force, speed, and temperature through a PID algorithm. It combines pressure sensors and current detection for safety protection, providing users with a comfortable, safe, and intelligent massage experience.
As a PCBA solution provider with strict safety design and rich project experience in the field of smart home appliances and motor control, we fully understand your ultimate pursuit of massage comfort, program richness, operational noise, safety reliability, and service life. We offer you a complete solution for a comfortable, quiet, safe, and intelligent foot massager PCBA, supporting solution development, board copying, prototyping, and mass production.
**Core Solution: One-Stop Solution for Foot Massager PCBA (Comfortable, Quiet, Safe, Intelligent)
The core of this solution is based on an advanced architecture of multi-motor coordinated control + intelligent massage algorithm + multiple safety protections.

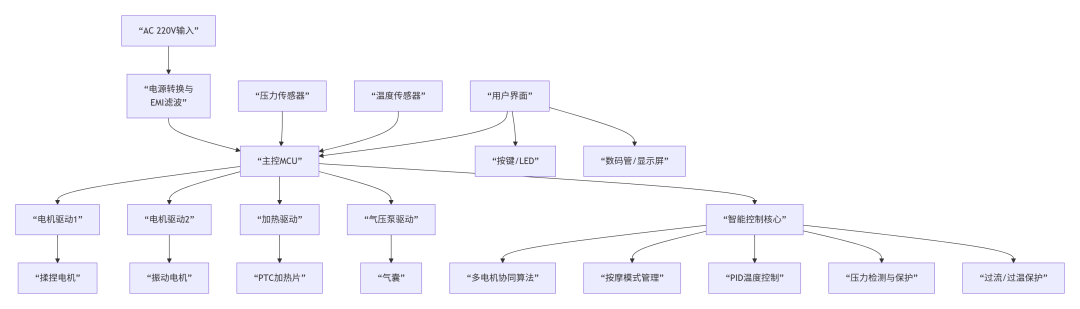

System Architecture Block Diagram
1. Technical Solution Details (Drive, Control, Safety)
1. Multi-Motor Drive System (Core Technology)
-
Motor Selection: Choose brushed motors, brushless motors, or vibration motors based on massage intensity.
-
Drive Circuit: Uses H-bridge driver chips, supporting forward and reverse rotation and speed regulation.
2. Intelligent Control System
-
Massage Modes: Supports various modes such as kneading, tapping, vibration, heating, and air pressure.
-
Intensity Adjustment: Supports multiple levels of intensity adjustment to meet different needs.
3. Comprehensive Safety System (Key!)
-
Overcurrent Protection: Real-time monitoring of motor current, with immediate protection against overcurrent.
-
Overtemperature Protection: Monitors the temperature of the motor and heating element to prevent overheating.
-
Pressure Protection: Detects foot pressure through pressure sensors to prevent excessive squeezing.
2. Key Performance Indicators (Comfort and Safety)
|
Performance Parameters |
Typical Specifications |
Testing Conditions |
|---|---|---|
|
Massage Intensity |
3-5 adjustable levels |
Based on motor power |
|
Heating Temperature |
40-50℃ adjustable |
Temperature error ±2℃ |
|
Massage Programs |
≥5 preset programs |
User switchable |
|
Noise Level |
< 50dB |
Measured at 1 meter distance |
|
Insulation Resistance |
> 100MΩ |
Under normal conditions |
3. Advantages of the Solution
-
Comfortable Massage: Multi-mode and multi-intensity for a great experience.
-
Quiet Operation: Smooth motor control with low noise.
-
Safe and Reliable: Multiple protections for peace of mind during use.
-
Intelligent Control: Various programs for easy operation.
4. Design Points
-
EMC Design: Noise suppression is required for the motor drive section.
-
Thermal Design: Consider heat dissipation for the motor and heating element.
5. Recommended Chip Solutions (Industrial Grade)
|
Chip Platform |
Features |
Applicable Products |
|---|---|---|
|
Microchip SC8P Series |
High cost-performance, low power consumption. |
Economical massagers |
|
Holtek HT66F Series |
Strong anti-interference, good stability. |
Mainstream massagers |
6. Specific Requirements for Your Confirmation
To provide you with the most accurate solution and quotation, please clarify the following details:
|
Customization Items |
Details for Your Confirmation |
|---|---|
|
1. Performance Parameters |
What are the requirements for massage modes, heating temperature, and safety? |
|
2. Functional Requirements |
What functions are needed (e.g., multiple programs, timed massage)? |
|
3. Target Cost |
Do you have a rough expectation for the target cost per PCBA board? |
We look forward to your detailed requirements! We will create a comfortable foot massager for you.
