Background

This MATLAB program simulates the determination of the spacecraft’s position with noise when receiving the positions of two near objects and three stars. Reference textbook: “Principles and Methods of Autonomous Astronomical Navigation for Spacecraft”, National Defense Industry Press, 2nd Edition, by Fang Jiancheng et al..

• Near Objects: Earth and Moon, or Sun and Earth. The characteristic of near objects is that their distance is not infinite, and they are measured as a circle rather than a point in the star sensor, so when measuring angles, the center of the circle should be the target.
• Stars: The distance to the object being measured is considered infinite, so only angles can be measured, and their size in the field of view is meaningless.

Results

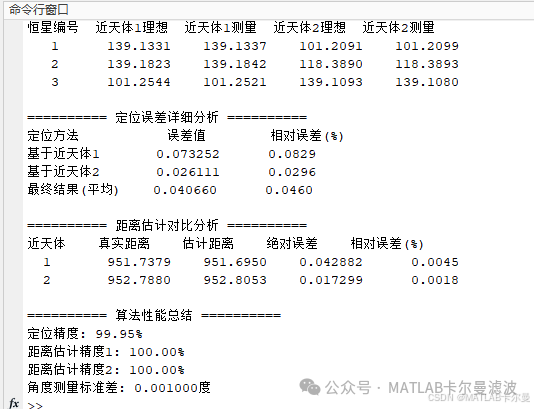

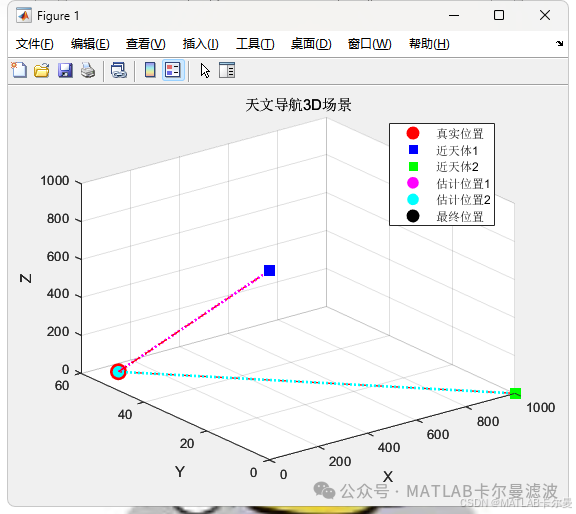

Using 3 stars and 2 near objects, the results are illustrated:Result Analysis:

Modeling

Initialization Parameters

hhtmqi =[50,52,51]';% Actual position of the spacecraft (to be solved and verified)
xkxk1 =[0,0,1000]';% Coordinates of near object 1
xkxk2 =[1000,0,0]';% Coordinates of near object 2

Star Reference Frame

s1 =[1,2,3]'/(1^2+2^2+3^2)^0.5;% Unit vector of star 1
s2 =[2,1,3]'/(2^2+1^2+3^2)^0.5;% Unit vector of star 2
s3 =[3,2,1]'/(3^2+2^2+1^2)^0.5;% Unit vector of star 3

Angle Measurement Simulation

For each near object, calculate the angle between the direction of the spacecraft to that object and the directions of each star:

A11_ideal =acosd((hhtmqi-xkxk1)'/norm(hhtmqi-xkxk1)*s1);% Ideal angle
A1 =[A11_ideal,A12_ideal,A13_ideal]'+0.001*randn(3,1);% Add measurement noise

Calculation

Direction Vector Calculation

Backtrack the unit direction vector from the spacecraft to the near object through angle observations:

L1 =[cosd(A1(1)),cosd(A1(2)),cosd(A1(3))]*[s1,s2,s3]^-1;

This uses a linear equation: Direction Vector × Star Matrix = Cosine Angle Vector

Position Triangulation

Finally, using the two direction vectors and the known positions of the near objects, solve for the spacecraft’s position using the least squares method:

Ac =[L1',-L2'];% Coefficient matrix
rho =(Ac'*Ac)^-1*Ac'*(xkxk2-xkxk1);% Distance parameters
P1 = xkxk1+rho(1)*L1';% Position calculated based on near object 1
P2 = xkxk2+rho(2)*L2';% Position calculated based on near object 2

MATLAB Code

Partial Code:

% CNS(MANS) encode & decode, situation with 3 stars and 2 near objects
% Author: matlabfilter (WeChat same number, custom MATLAB code for positioning and navigation)
% 2025-09-23/Ver1
clear;clc;close all;

%% Astronomical Navigation Positioning Algorithm - Complete Version
fprintf('========== Astronomical Navigation Positioning Algorithm ==========

');

%% Initialization Parameters
hhtmqi =[50,52,51]';% Actual position of the spacecraft (to be solved and verified)
xkxk1 =[0,0,1000]';% Coordinates of near object 1
xkxk2 =[1000,0,0]';% Coordinates of near object 2

% Star vectors (normalized)
s1 =[1,2,3]'/(1^2+2^2+3^2)^0.5;% Star 1 vector
s2 =[2,1,3]'/(2^2+1^2+3^2)^0.5;% Star 2 vector
s3 =[3,2,1]'/(3^2+2^2+1^2)^0.5;% Star 3 vector

fprintf('Initial parameter settings:
');
fprintf('Actual position of the spacecraft: [%.1f, %.1f, %.1f]
',hhtmqi(1),hhtmqi(2),hhtmqi(3));
fprintf('Position of near object 1: [%.1f, %.1f, %.1f]
',xkxk1(1),xkxk1(2),xkxk1(3));
fprintf('Position of near object 2: [%.1f, %.1f, %.1f]
',xkxk2(1),xkxk2(2),xkxk2(3));
fprintf('Unit vector of star 1: [%.3f, %.3f, %.3f]
',s1(1),s1(2),s1(3));
fprintf('Unit vector of star 2: [%.3f, %.3f, %.3f]
',s2(1),s2(2),s2(3));
fprintf('Unit vector of star 3: [%.3f, %.3f, %.3f]

',s3(1),s3(2),s3(3));

%% Angle observation of near object 1


% Add measurement noise


% Backtrack direction vector through angle observation

%% Angle observation of near object 2

Full code:

https://mbd.pub/o/bread/YZWXmp9saA==
