Working Mechanism: How to Convert Humidity into Electrical Signals

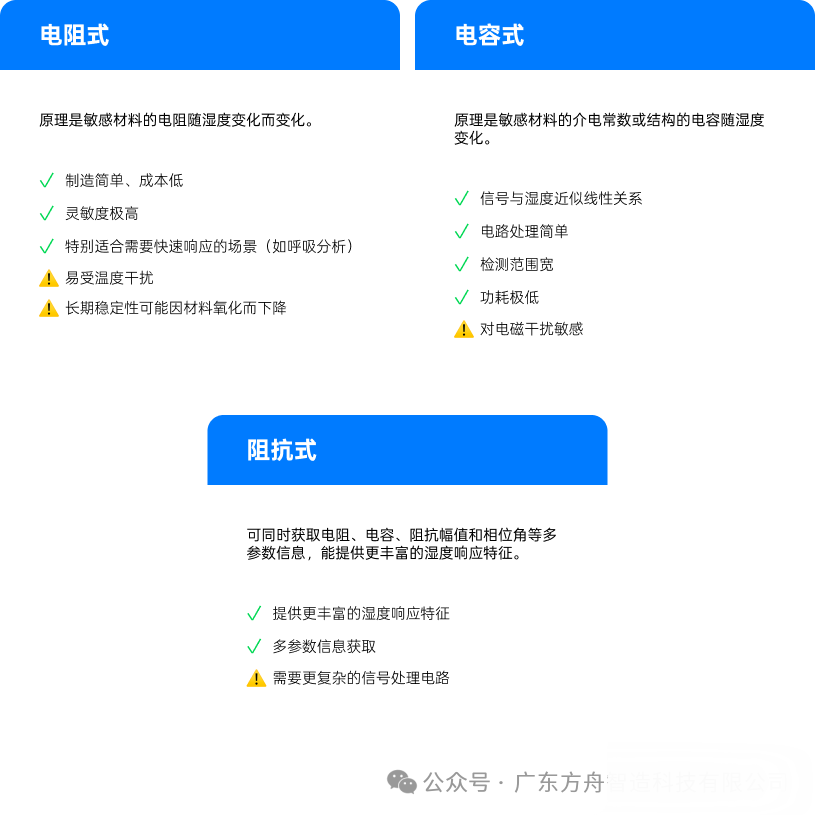

The core of the sensor is to convert environmental humidity (a physical quantity) into a measurable electrical signal. The paper details three mainstream mechanisms:
Additionally, the paper briefly mentions other technologies such as quartz crystal microbalances and surface acoustic wave sensors, showcasing the diversity of technological pathways in this field.
2
Background of Emergence and Core Advantages
The paper begins by pointing out that the rise of flexible humidity sensors is driven by two major forces:
Advancements in Material Science: The emergence of flexible substrates such as PDMS and PI, as well as high surface area nanomaterials like carbon nanotubes and MXenes. The former allows sensors to conform to irregular surfaces like skin and plant leaves, while the latter significantly enhances sensing performance.
Demand for Applications: The explosive growth of flexible electronic skin, wearable devices, and the Internet of Things requires sensors to be capable of bending, stretching, and twisting, which traditional rigid sensors cannot meet.
Compared to hard and brittle traditional sensors, the core advantages of flexible humidity sensors lie in their mechanical flexibility, lightweight nature, good biocompatibility, and the ability to integrate efficiently with flexible systems.
3
Sensitive Materials: The Engine of Performance Breakthroughs
This is the key chapter of the paper, emphasizing that innovations in performance mainly come from the selection of sensitive materials and structural design. The paper categorizes materials into four major types:
Polymers: The earliest materials used, with good chemical stability and ease of processing. By designing molecular structures (e.g., introducing specific hydrophilic groups), their sensitivity, response speed, and stability can be precisely tuned.
Metal Oxides (e.g., TiO₂, SnO₂, MoOₓ): Rich in polar hydrophilic groups on the surface, they have a strong ability to adsorb water molecules. However, their response speed is usually slow, and current research aims to enhance performance by modulating nanostructures (e.g., nanoparticles, nanowires).
Carbon Materials:
Carbon Quantum Dots: With abundant surface functional groups, they can form porous structures by compounding with other materials, significantly enhancing sensitivity and response speed.
Carbon Nanotubes: With a large surface area, excellent conductivity, and flexibility, they are ideal materials. By compounding with hydrophilic polymers (e.g., PVA, PVP), they can achieve high sensitivity, rapid response, and mechanical durability.
Two-Dimensional Materials (e.g., Graphene, MXenes, Transition Metal Dichalcogenides):
This is currently a research hotspot. Their atomic-level thickness exposes almost all atoms on the surface, resulting in an extremely high surface area-to-volume ratio, making them highly efficient at adsorbing water molecules.
The adsorption of water molecules directly alters the electronic structure of the material, causing significant changes in electrical signals.
The van der Waals gaps between layers allow for precise performance tuning by controlling the number of layers.
They typically exhibit excellent flexibility and adhesion to flexible substrates.
The current trend in material development is “hybridization/composite,” which combines the advantages of different categories of materials (e.g., polymer-2D material composites, metal oxide-carbon hybrids) to overcome the limitations of single materials.
4
Challenges and Prospects
In the conclusion, the paper clearly points out five major challenges facing the large-scale commercialization of this technology:
Long-term Stability: In high-humidity environments, the desorption of water molecules is difficult, and organic materials are prone to degradation, affecting long-term reliability.
Energy Issues: Developing efficient and stable self-powered systems (e.g., triboelectric nanogenerators) is key to achieving large-scale IoT deployment.
Multi-functional Integration and Intelligence: The future trend is to integrate multiple sensors for temperature, pressure, humidity, etc., and combine them with embedded AI for real-time data analysis and decision-making.
Manufacturing Standardization: There is a need to establish unified testing standards and quality control systems to ensure consistency and reliability of performance across different production batches.
Miniaturization: To adapt to space-constrained applications such as implantable medical devices, further optimization of sensor size is required.
Conclusion
The working mechanisms of flexible humidity sensors each have their advantages and disadvantages, and the choice of the appropriate mechanism needs to be determined based on specific application scenarios and performance requirements.
Resistive types are suitable for scenarios requiring high sensitivity and rapid response; capacitive types are suitable for applications requiring linear response and low power consumption; while impedance types are suitable for complex environmental monitoring that requires multi-parameter information acquisition.
