Custom Coffee Scale PCBA Development for Stainless Steel Mini Kitchen Scales

Custom Coffee Scale PCBA Development for Stainless Steel Mini Kitchen Scales

The custom PCBA solution for coffee scales is a precision measurement solution that demands extreme requirements for measurement accuracy, response speed, temperature stability, and structural compatibility in the high-end coffee equipment and professional kitchen scale fields.

Its core is to collect weak signals from high-precision weighing sensors (strain gauges) using a high-precision, low-drift 24-bit Σ-Δ ADC chip, amplify and digitally filter the signals, and display the weight in real-time on an OLED/LCD screen, while integrating timing and temperature compensation functions to meet the precise control needs for weight and time in professional pour-over coffee and baking.

As a PCBA solution provider with strict hardware design and algorithm tuning experience in precision measurement instruments and consumer electronics, we fully understand your comprehensive needs for accuracy, stability, appearance compatibility, and cost. We can provide you with a complete solution for coffee scale PCBA based on high-precision ADC and dedicated MCU, featuring precise measurement, fast response, low power consumption, and compact structure.

**Core Solution: One-Stop Coffee Scale PCBA Solution (Precise Measurement, Fast Response, Compact Structure)

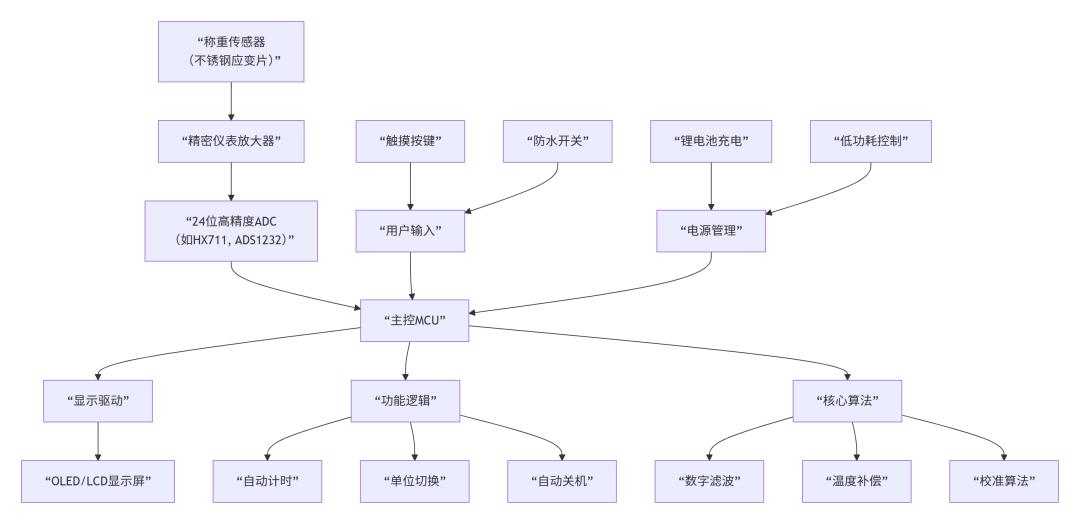

To help you quickly understand the technical implementation as the “core of precision measurement”, the following diagram clearly shows its system architecture:

1. Technical Solution Details (Measurement, Display, Structure)

1. High-Precision Measurement System (Core)

• Sensor: Uses high-precision stainless steel weighing sensors, with a range typically from 2kg to 3kg, and a division value of 0.1g.

• ADC Chip: Selects a 24-bit high-precision Σ-Δ ADC (such as HX711 or TI’s ADS1232), with an integrated low-noise programmable gain amplifier (PGA).

• Algorithm Processing: Software implementation of digital filtering (moving average, Kalman filtering), automatic tare, temperature compensation, etc., ensures reading stability and accuracy.

2. Intelligent Functions and Display System (User Experience)

• Display Screen: Optional OLED screen (ultra-thin, high contrast) or segment LCD screen (low cost, always on).

• Smart Functions: Integrates an automatic timer (pour-over timing), unit switching (g/oz/ml), battery display, and automatic sleep.

3. Structure, Power Supply, and Protection Design (Reliability)

• Structural Adaptation: Customizes PCBA shape and interface position based on your structural diagram (CAD), achieving minimal installation.

• Power Management: Built-in lithium battery charging management circuit, supports Type-C charging, low power consumption design, and long battery life.

• Protection Design: Can be treated with waterproof coating (to prevent coffee splashes), and overload protection.

2. Key Performance Indicators (Professional Level)

Performance Parameters	Professional Version Specifications	Testing Conditions
Measurement Range	3 kg	Meets the weight of pour-over kettles and coffee beans
Measurement Accuracy	±0.1g	High-precision measurement
Sensitivity	±0.1g	Small weight changes
Sampling Rate	80 Hz	Fast response
Stability Time	< 2 seconds	Fast and stable readings

3. Advantages of the Solution

• Precise Measurement: High-precision ADC and algorithms ensure accurate weight.

• Fast Response: High sampling rate allows real-time display of weight changes.

• Compact Structure: Customizable based on your design for perfect product structure adaptation.

• Low Power Consumption: Low power design ensures long battery life.

4. Application Scenarios

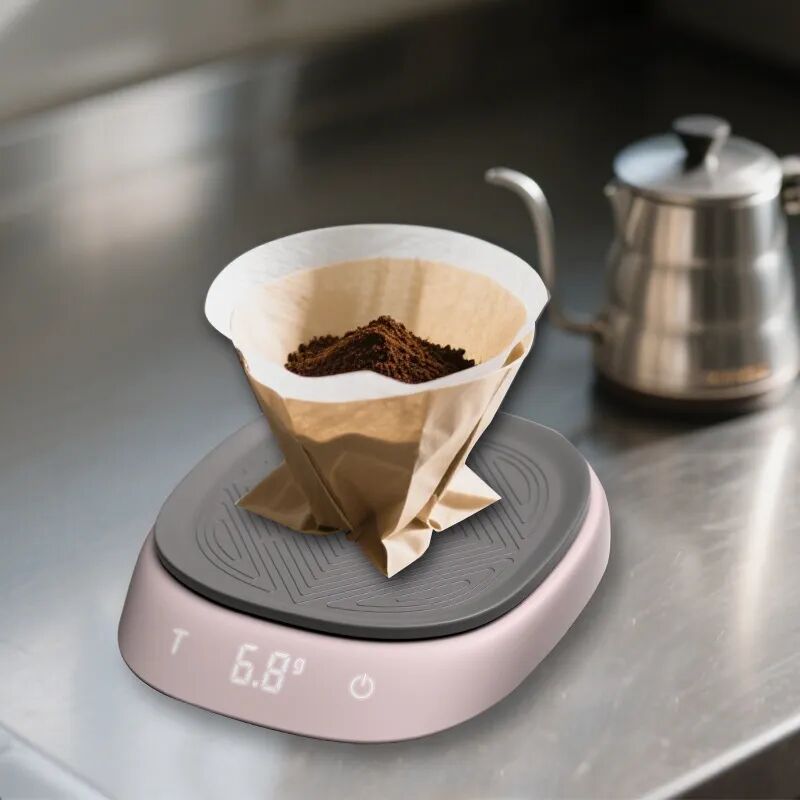

• Pour-Over Coffee: Precise control of the ratio of coffee grounds to water.

• Kitchen Baking: Accurate weighing of ingredients.

• Laboratories: Precision weighing of small items.

5. Recommended Chip Solutions (High Cost-Performance Ratio)

Function Module	Recommended Chip (High Reliability)	Features
ADC Chip	HX711	High cost-performance ratio, high integration
Main Control MCU	Domestic MCU	Low power consumption, stable performance

6. Information Required from You

To provide you with the most accurate solution and quotation, please clarify the following information:

Details to Confirm	Purpose
1. Performance Requirements	What are your requirements for measurement accuracy, range, and response speed?
2. Structure and Display	Provide structural diagrams (CAD), and requirements for screen type and size?
3. Procurement Scale	Is it for sample needs or bulk plans? What is the approximate quantity required?

We look forward to your detailed requirements! We can provide you with a complete PCBA solution, from hardware design, algorithm development to structural adaptation, helping you create a professional coffee scale.
