Common Chips Used in Microcontroller Power Circuit Design

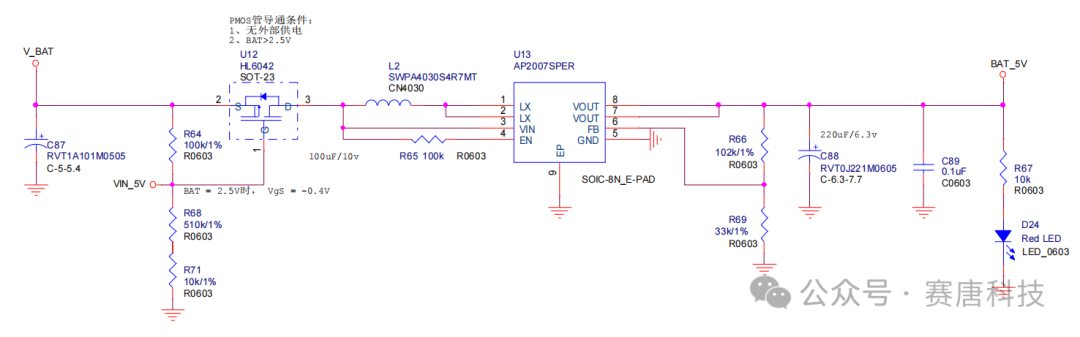

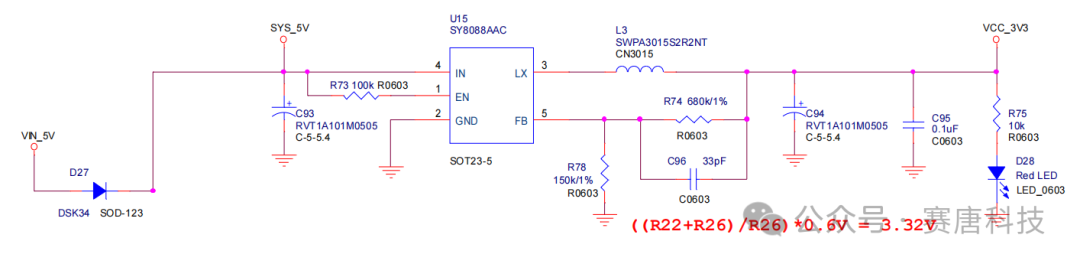

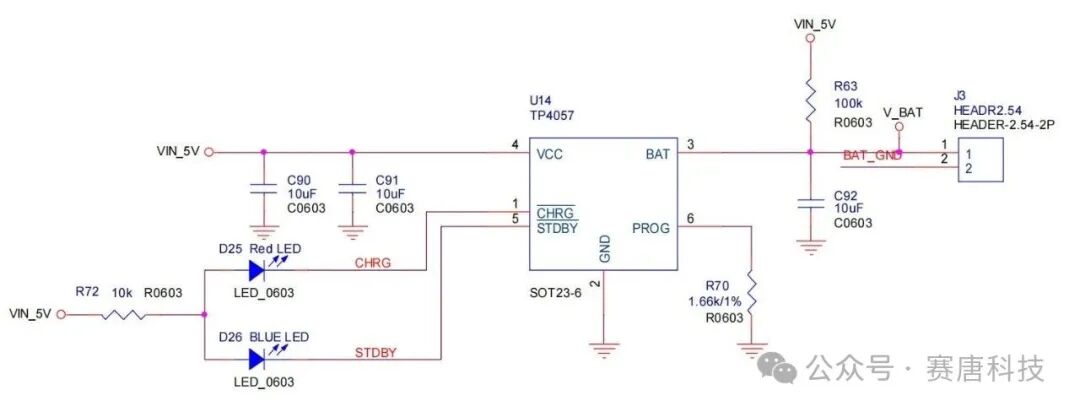

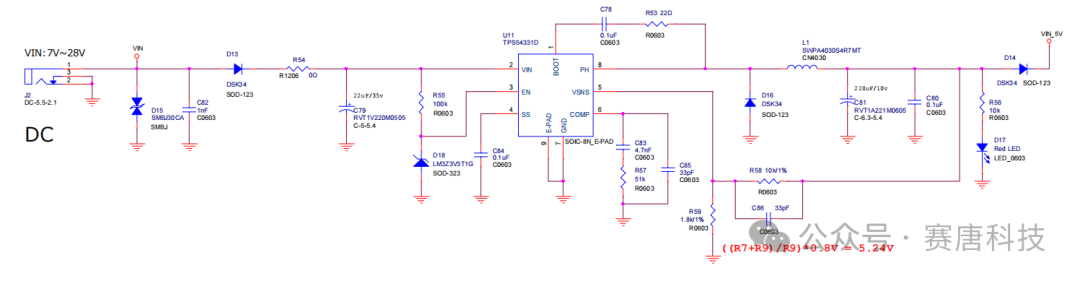

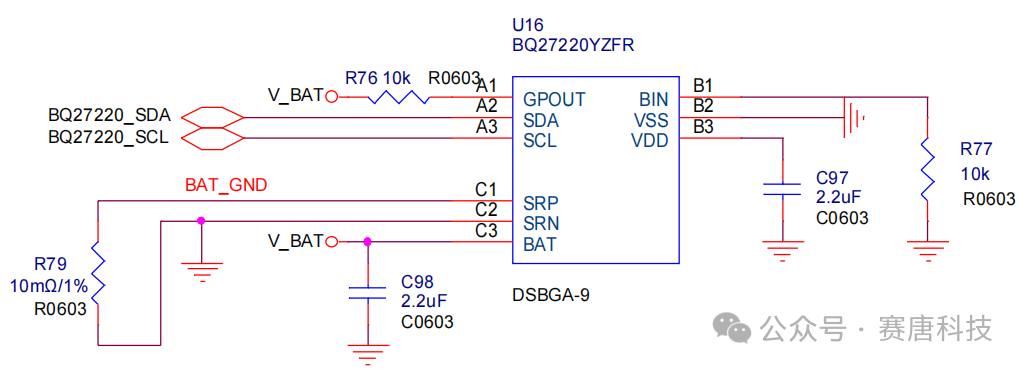

Chips used in microcontroller power circuit design:1. TPS54331 (Buck Converter)2. TP4057 (Charge and Discharge Management)3.BQ27220YZFR (Battery Monitoring)4. AP2007 (Boost Converter)5. SY8088 (Buck Converter)Microcontroller system architecture diagram:Common Chips Used in Microcontroller Power Circuit DesignCircuit diagram:Common Chips Used in Microcontroller Power Circuit Design————————————————————————Common Chips Used in Microcontroller Power Circuit Design————————————————————————Common Chips Used in Microcontroller Power Circuit Design————————————————————————Common Chips Used in Microcontroller Power Circuit Design————————————————————————Common Chips Used in Microcontroller Power Circuit Design————————————————————————
