Introduction

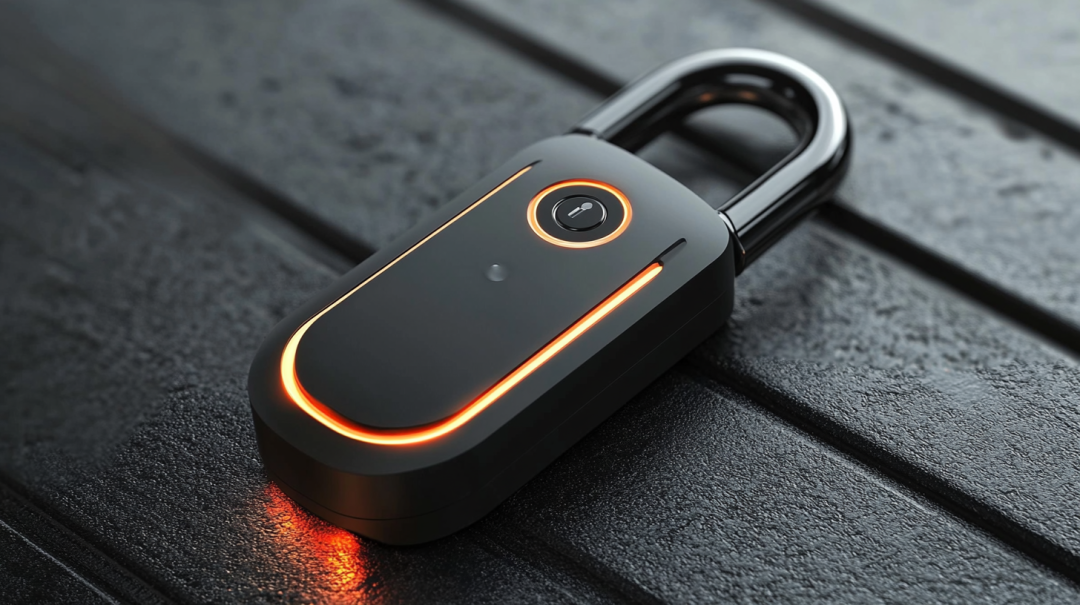

The Bluetooth fingerprint padlock is widely used in fields such as warehousing, personal item protection, and the sharing economy due to its convenience and security. This article provides a detailed analysis of the entire process from architectural design to mass production, focusing on the technical implementation of fingerprint module integration and Bluetooth communication module integration.

1. Product Requirements and Technical Challenges

• Core Functions: Fingerprint unlocking, Bluetooth mobile unlocking, emergency mechanical key unlocking.
• Security Requirements: Encrypted fingerprint storage, anti-counterfeiting attacks, BLE secure communication.
• User Experience: Fast recognition (<200ms), low power consumption with long battery life, APP intelligent management.
• Development Challenges: Module integration stability, power consumption optimization, mass production consistency.

2. System Architecture Design

– Hardware Components:

• Fingerprint Module: Supports multi-user registration, fast matching, and self-learning updates, with AES encrypted template storage.
• Main Control MCU: Recommended ESP32 / NRF52, supports BLE 4.2/5.0, responsible for fingerprint data processing and communication.
• Bluetooth Communication Module: Low-power BLE module, GATT protocol supports mobile APP remote unlocking and data synchronization.
• Power Design: Lithium battery + low-power power management, deep sleep <100 μA.
• Mechanical Structure: Motor-driven lock body, anti-pry and anti-impact design.

– Software Architecture:

• Modular design for fingerprint management, Bluetooth communication, security encryption, and OTA upgrades.
• Power management: deep sleep + quick wake-up, Bluetooth broadcast optimization.

3. Fingerprint Module Integration

• Interface and Communication: UART/SPI integration with MCU, pay attention to power isolation and ESD protection.
• Core Command Flow:
• Registration: Send 0x01 0x11, press multiple times until PROC > 100 indicates success.
• Matching: Send 0x01 0x21, completion code 0x00000000 and matching result 0x0001 indicates success.
• Self-learning update: 0x01 0x16 to improve recognition rate.
• Template management: supports block deletion (0x01 0x31) and range clearing.
• Security Design: Template data is locally AES encrypted, supporting liveness detection to prevent fake fingerprint attacks.
• Development Support: Accompanying development documentation, demo projects, and SDK to accelerate integration progress.

4. Bluetooth Communication Module Integration

– Protocol Design:

• GATT Services: Includes lock control service, fingerprint management service, and OTA upgrade service.
• Encrypted Communication: Enable BLE secure connection, supporting dynamic keys and data encryption.

– Main Control Integration:

• BLE module communicates with MCU via UART/SPI, data packets include fingerprint verification results and unlocking commands.
• APP side supports user management, unlocking records, permission configuration, and remote OTA.

– Power Consumption Optimization:

• Broadcast interval adjustment and low-power mode switching.
• Main control and BLE cooperate for deep sleep, wake-up time <200ms.

5. Development and Debugging Process

(1) Complete individual debugging of the fingerprint module and MCU.

(2) Debug the protocol communication between the BLE module and MCU, and APP connection.

(3) Power consumption testing and optimization to ensure battery life meets design goals.

(4) Joint debugging and stability testing: multiple unlocking, anti-interference, and anti-misoperation.

(5) Design mass production testing procedures, automate verification of fingerprint and Bluetooth functions.

6. Mass Production and Post-Maintenance

• Production Testing Procedures: Automatically complete fingerprint registration and BLE connection testing.
• OTA Upgrades: Remote firmware updates to reduce maintenance costs.
• Data Support: Unlocking records and user data assist in after-sales analysis.

Conclusion

The development of Bluetooth fingerprint padlocks involves deep collaboration between hardware, software, and security. Choosing mature fingerprint modules and BLE solutions, along with stable integration and development support, can accelerate product launch and enhance user experience.
