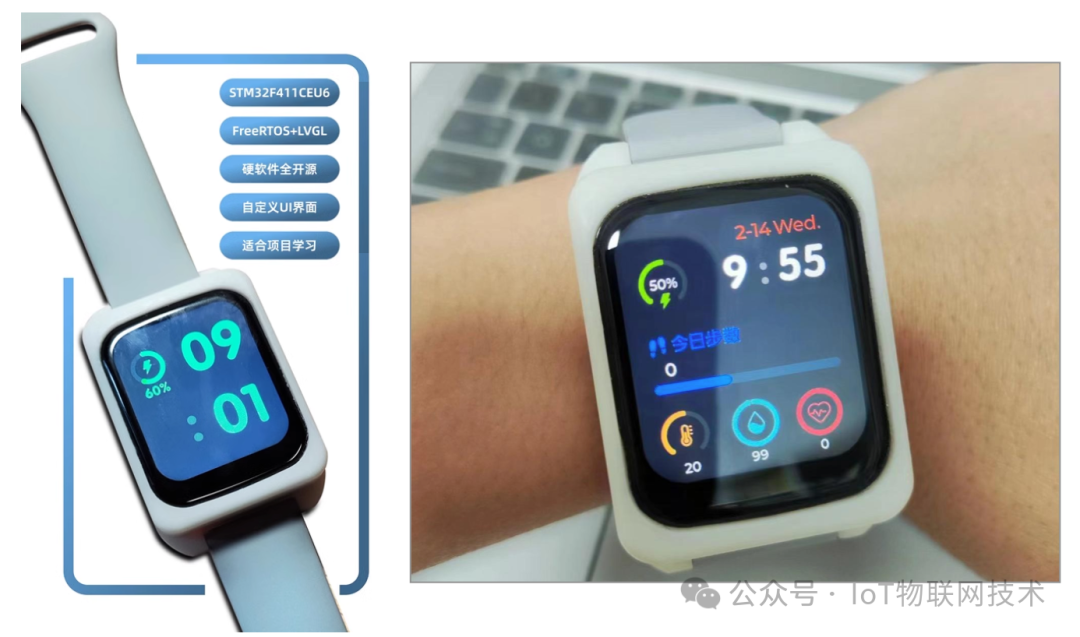

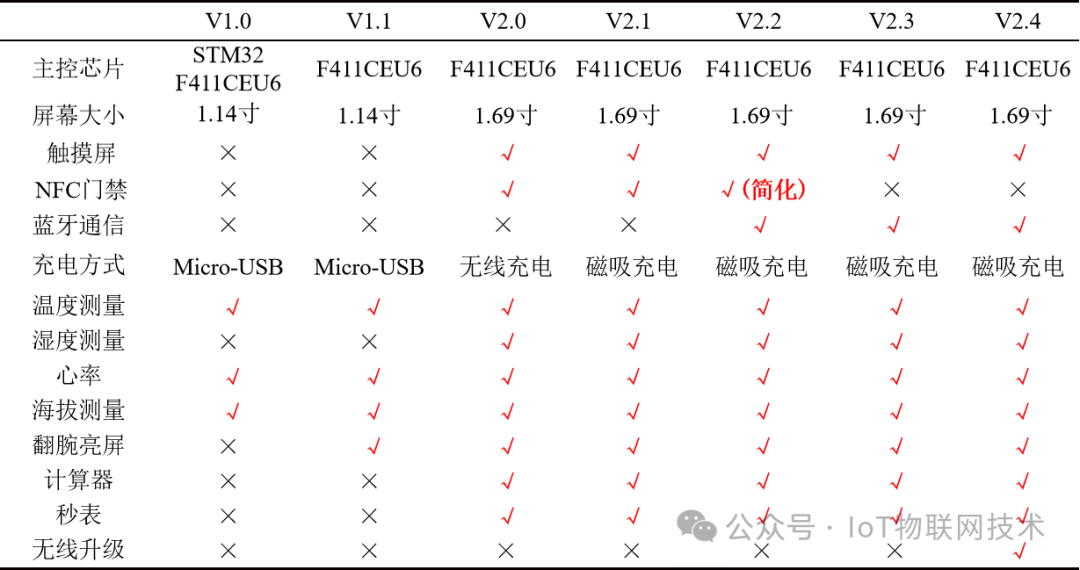

OV-Watch Smart Watch is based on the STMicroelectronics STM32F411CUE6 development board and the FreeRTOS operating system, using the LVGL graphics library; gesture recognition utilizes a 6-axis MPU6050; heart rate and blood oxygen monitoring is done using the EM7028; altitude measurement is performed with the SPL06-001 barometer; the electronic compass uses the LSM303DLHC; the Bluetooth chip is the KT6368A, which supports SPP functionality and allows for wireless upgrades.
The smart watch has three operating modes:
-
Normal operating mode, where the watch functions normally;
-
Sleep mode, where the MCU enters STOP mode, but the MPU6050 continues to count steps;
-
Shutdown mode, where the TPS63020 directly disables the enable signal, resulting in no 3.3V power supply, only Vbat is powered.

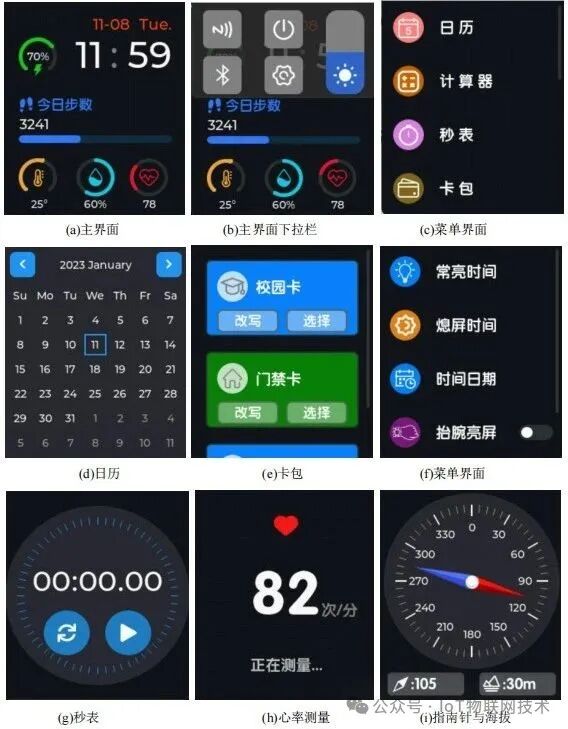

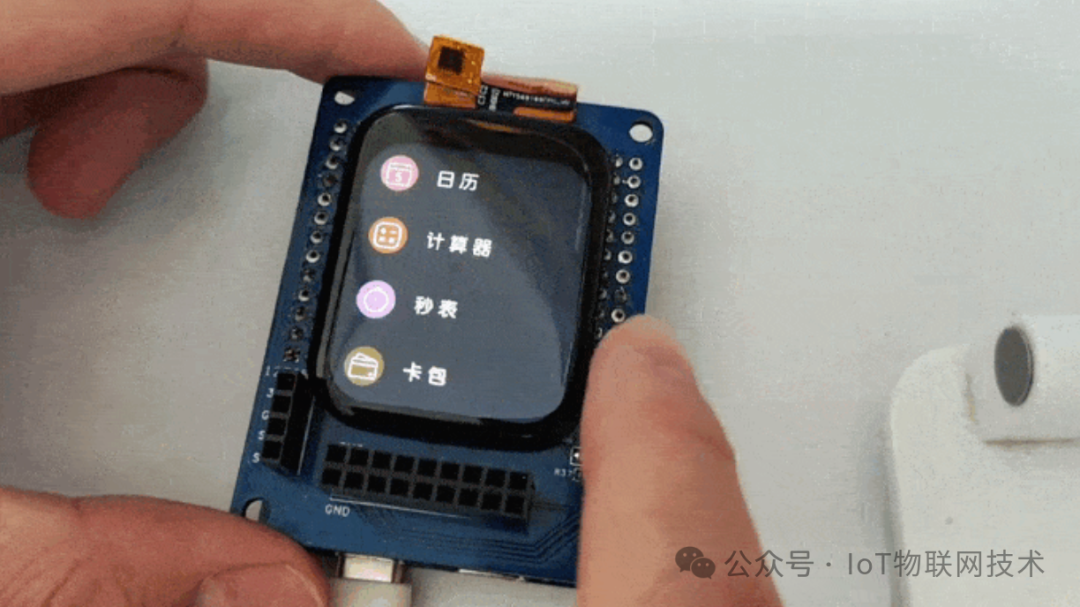

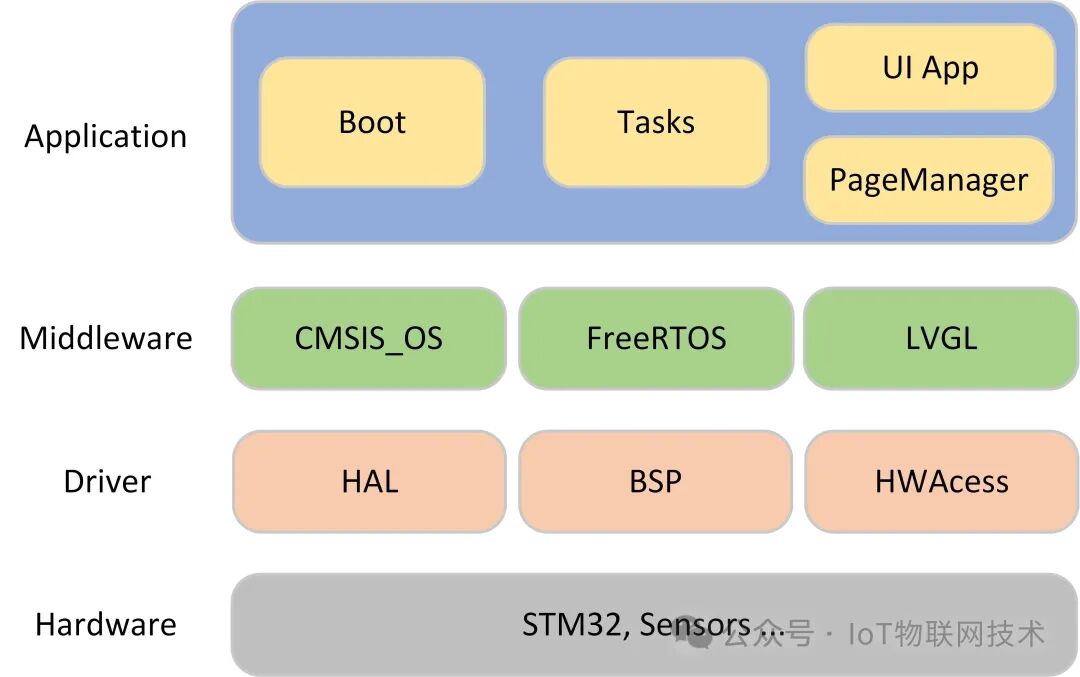

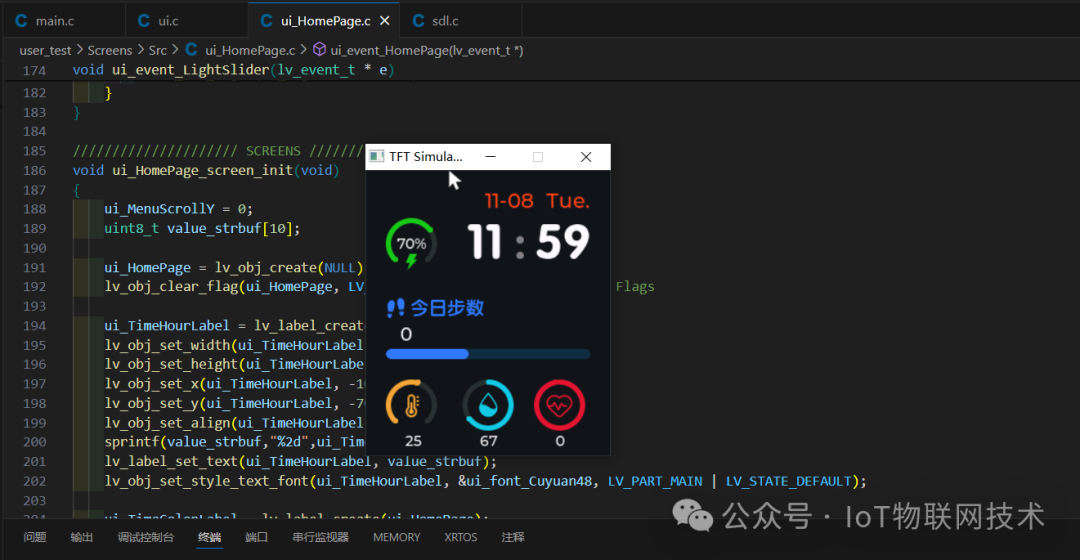

The software architecture of the smart watch is shown below,

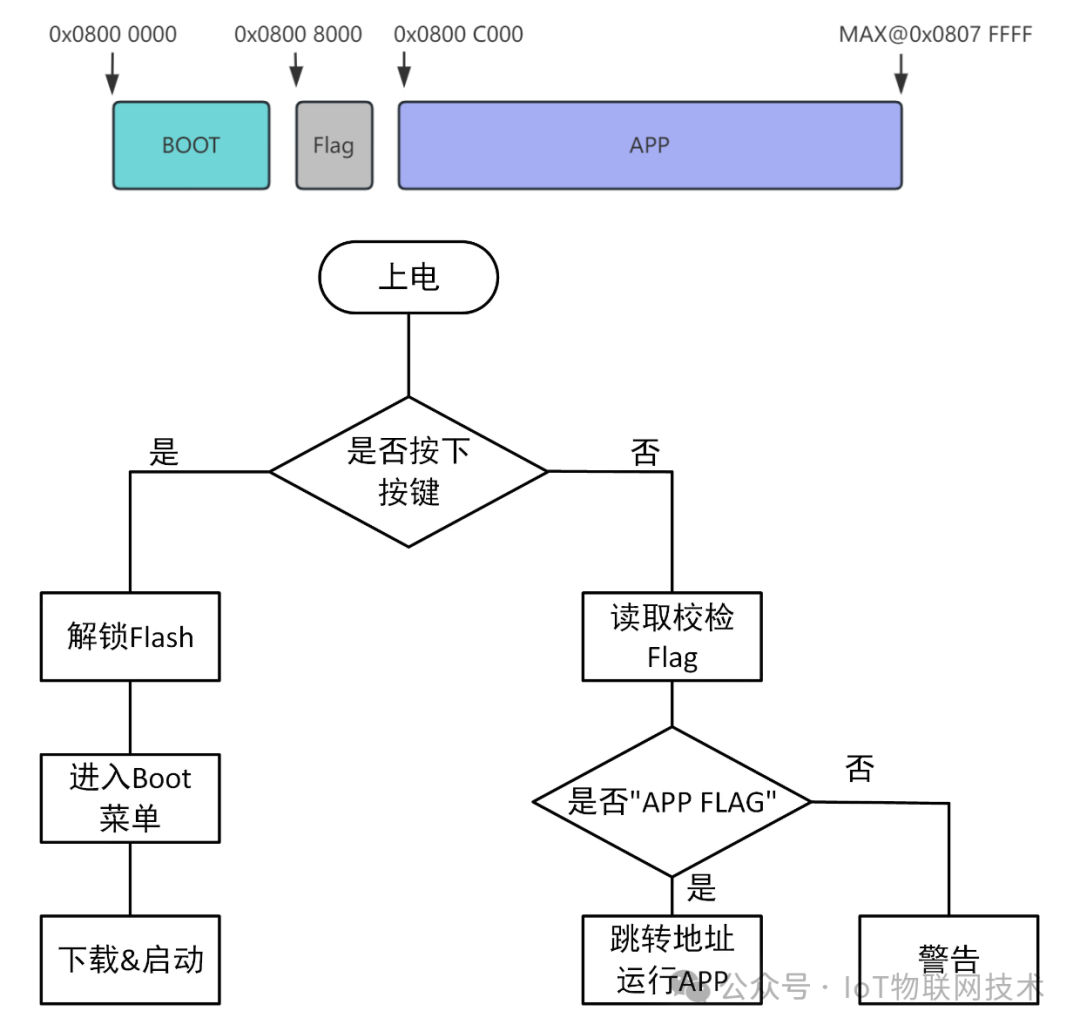

The code for the smart watch is divided into Bootloader and APP to facilitate user upgrades without disassembly. A Flag area is defined after the BOOT area to record whether the APP is complete. This position is only recorded after the APP transfer is complete to ensure program integrity.

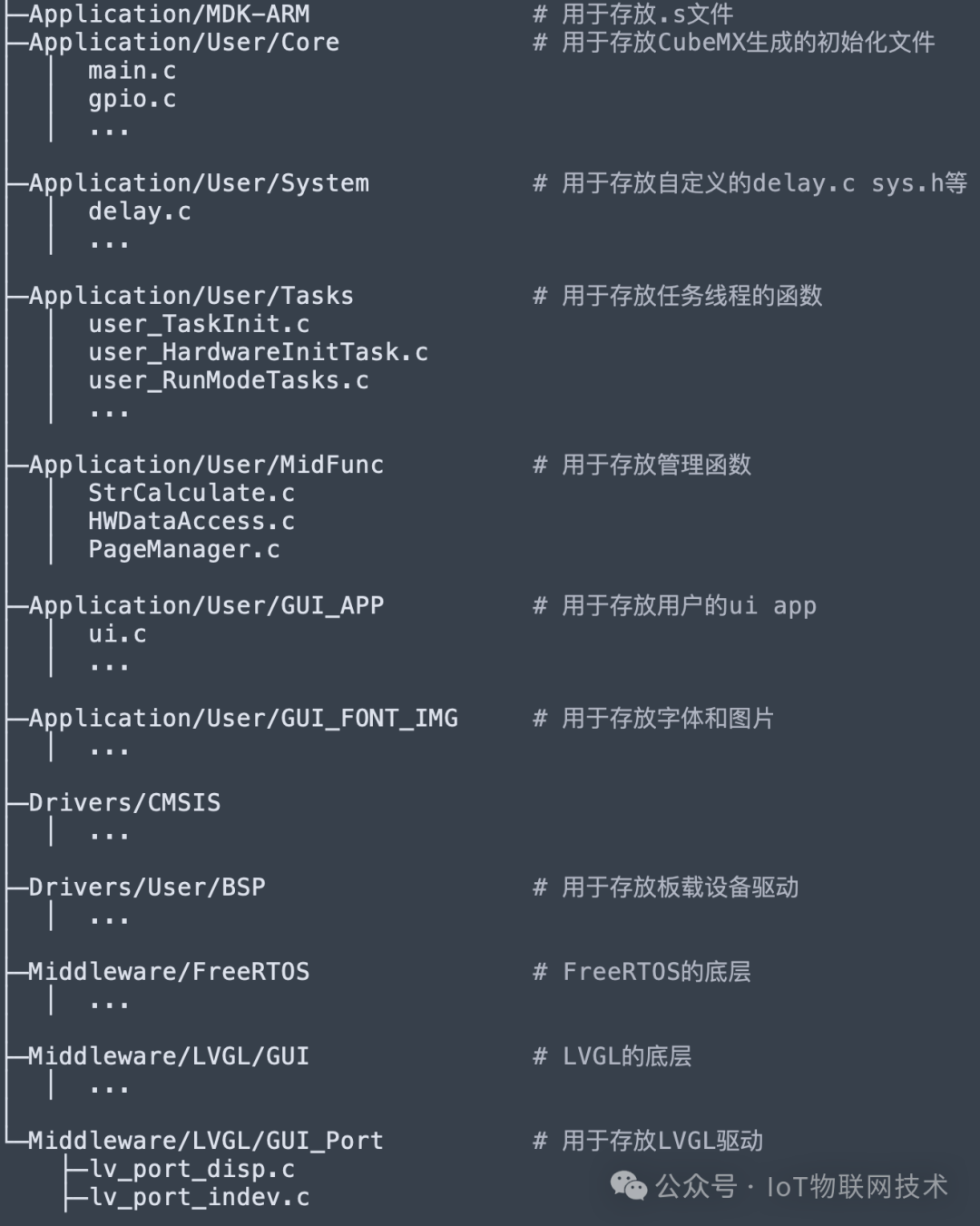

MDK project structure

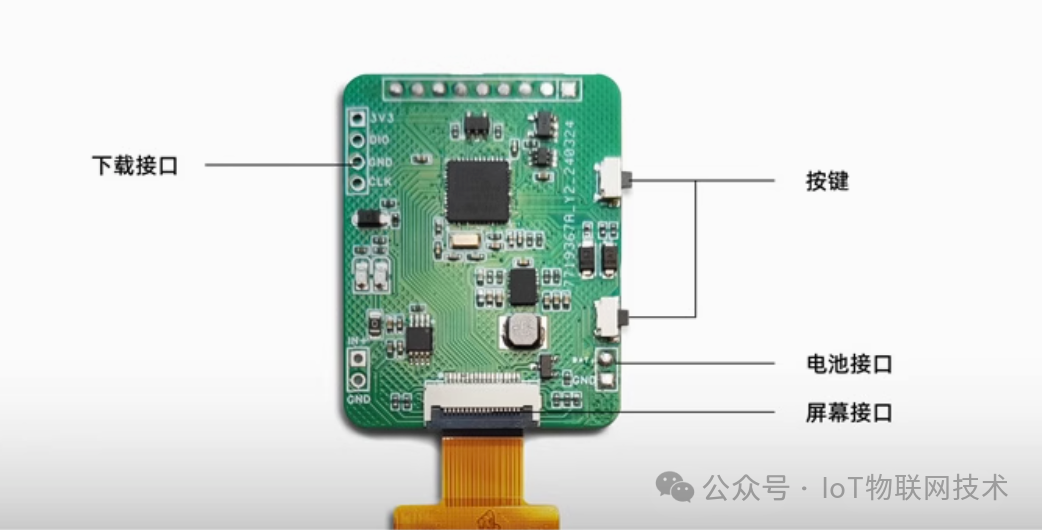

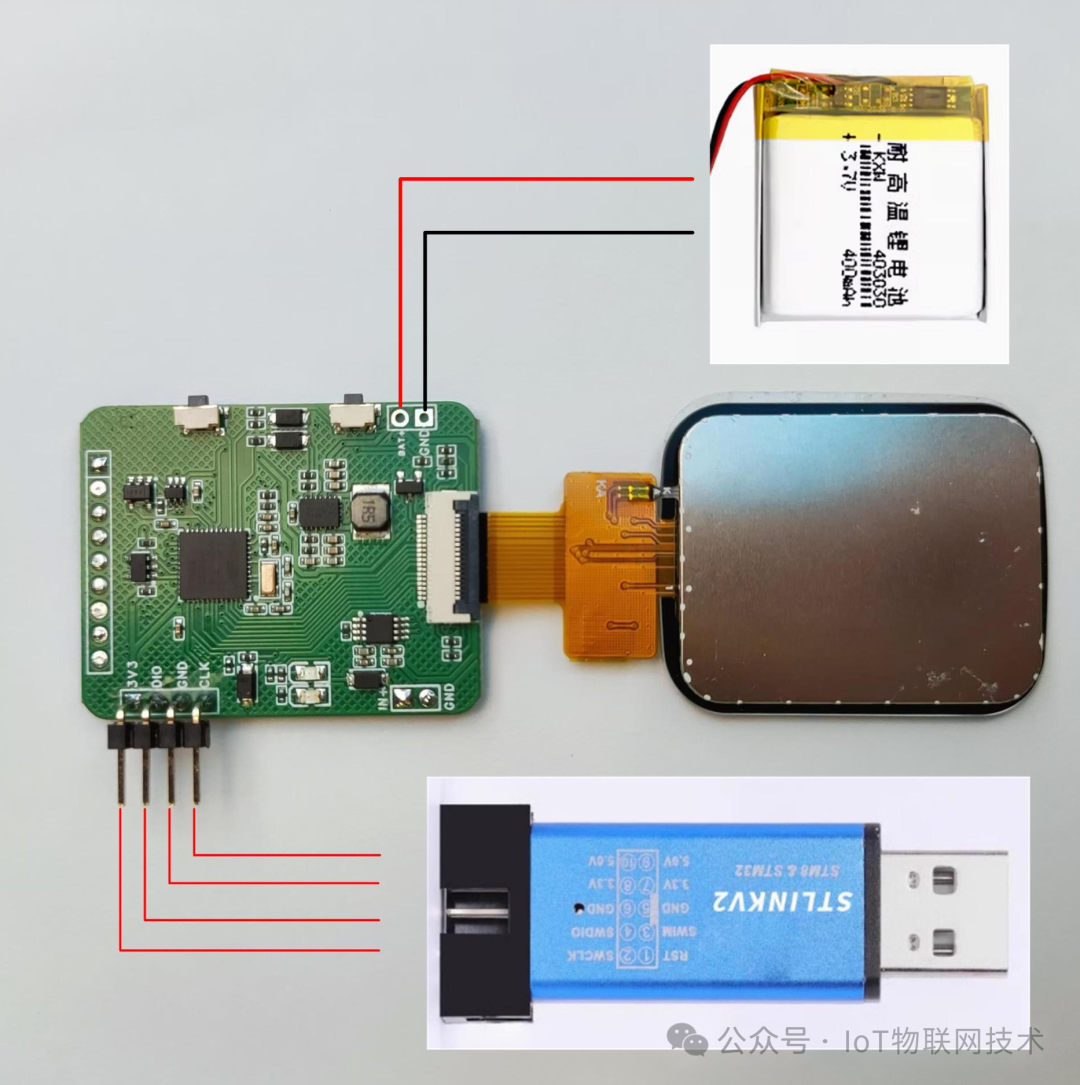

The PCB is divided into two boards, a Core board and a Back board, with the Back board including the sensor part and the Bluetooth module.
Schematic diagram

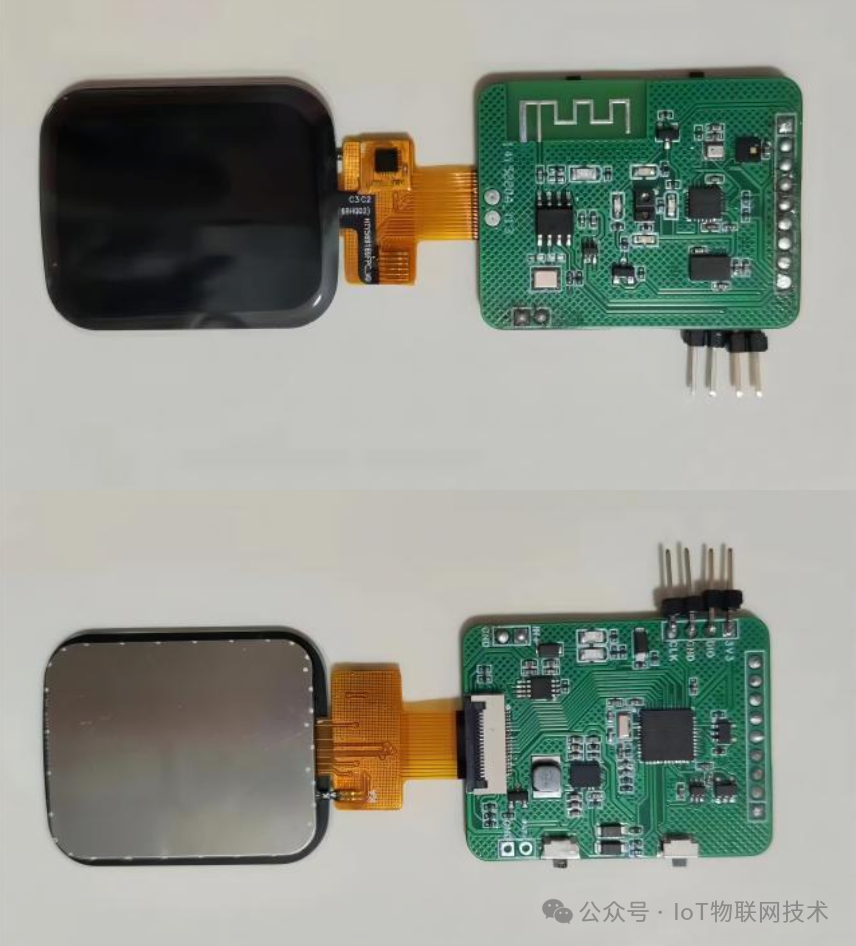

PCB board
