Yirui Automotive Grade Linear Hall Sensors Support the Development of Electric Vehicles
-CHA631-
CHA631 is Yirui’s second-generation programmable linear Hall product
Currently mainly used in the main drive system of new energy vehicles
Used with magnetic rings for current detection

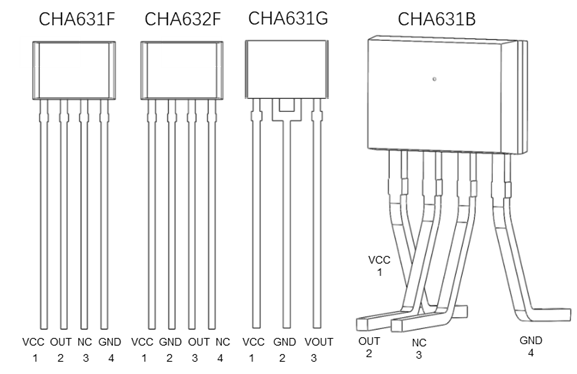

CHA631 supports four packaging forms to meet different customer needs, as shown in the packaging diagram below:
CHA631 can be configured according to customer requirements
Supports multiple modes
Users can freely choose according to their needs
CHA63X Application Scenarios
New energy vehicle main drive inverter current detection
New energy vehicle BMS
BLDC motor current monitoring
AC/DC converters
Magnetic field detection

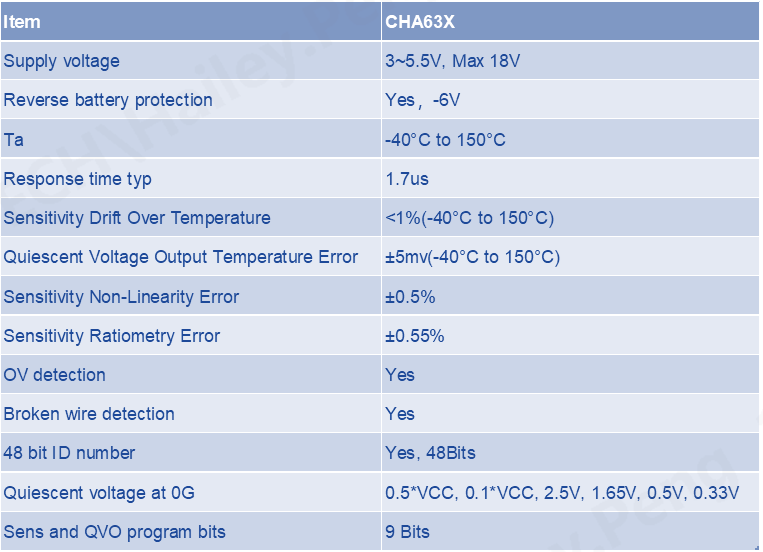

CHA63X Features

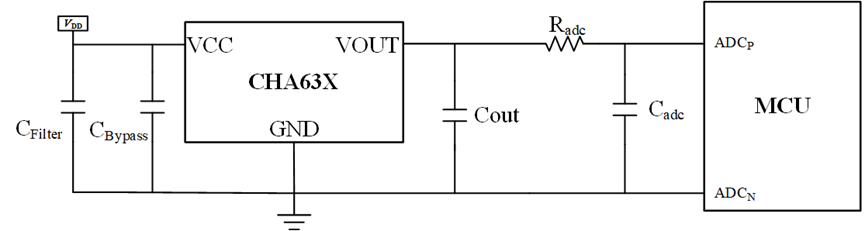

Recommended Application Circuit for CHA63X
CFilter and CBypass should be placed close to Vcc.
CFilter = 1uF to 2.2uF, CBypass = 100nF (recommended). RL = 10kΩ, CL = 1nF to 10nF.
Since 2023, CHA63X has received high market recognition, contributing to the vigorous development of new energy vehicles.
About Yirui
Cosemitech
Yirui Semiconductor was established in 2014 and is a nationally recognized high-tech enterprise focused on the research and development and production of ICs for sensing and control. Since its establishment, the company has shipped over 700 million units of various products, serving nearly 2,000 customers both domestically and internationally, covering markets such as automotive, energy, industrial control, and home appliances.
