Introduction
With the continuous improvement of industrial automation levels, stable communication between Siemens PLCs has become a key aspect of system integration. Traditional wired methods are limited by wiring costs, environmental complexity, and maintenance difficulties, making wireless communication technology an increasingly preferred solution. This article will detail the wireless communication solution between Siemens PLCs based on the JuControl GRM110 series modules and LORA wireless technology, covering principles, implementation methods, and advantages.
Wireless Communication Principles
1. Basics of LORA Technology
LORA (Long Range) is a low-power wide-area network communication technology characterized by long-distance transmission, high anti-interference capability, and low power consumption. It uses spread spectrum modulation technology, allowing for longer transmission distances under the same power consumption compared to traditional wireless modules, making it suitable for complex electromagnetic environments in industrial settings.
2. Functions of JuControl GRM110 Series Modules

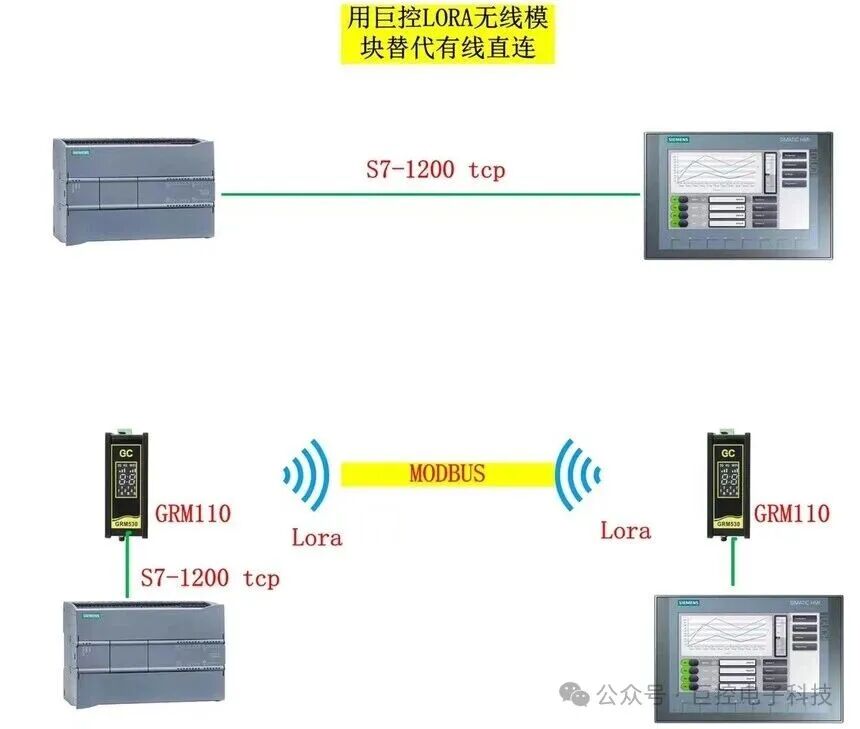

The GRM110 series is an industrial-grade wireless communication module developed by JuControl, which incorporates the LORA transmission protocol and supports various PLC protocols (including Siemens S7 series). The module connects to the PLC via serial or Ethernet, converting wired data into wireless signals for data exchange between PLCs.
3. Communication Architecture
This solution adopts a master-slave architecture:
-
Master PLC: Connects to the GRM110 master module, sends control commands, and receives data from slave devices.
-
Slave PLC: Equipped with the GRM110 slave module, receives commands and returns status information.
-

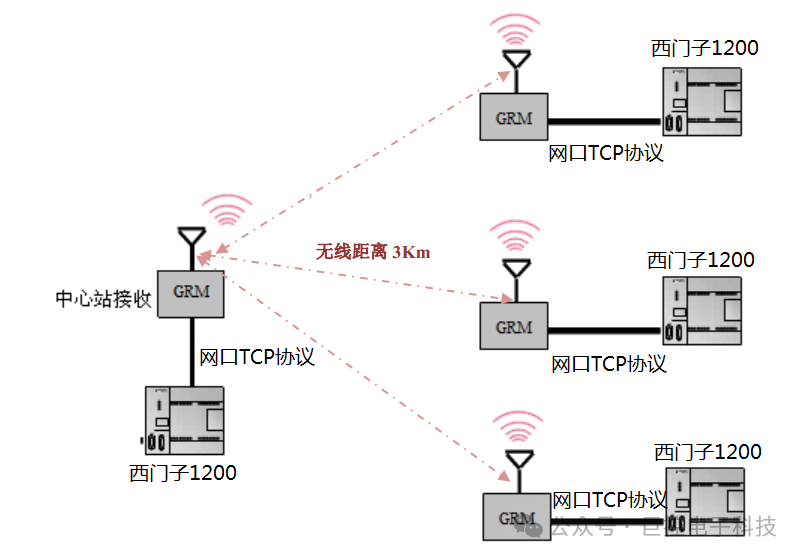

Wireless Link: Establishes a half-duplex communication channel through the LORA modem, with a transmission distance of up to 5 kilometers (depending on the environment).
Implementation Methods
1. Hardware Configuration
-
Siemens PLC Selection: Supports S7-200/1200/1500 series, must be equipped with RS485 or Ethernet interfaces.
-
GRM110 Module Settings: The master and slave modules must be configured with the same network ID and frequency band to ensure link encryption security.
-
Antenna Installation: Use high-gain LORA antennas, keeping them away from metal obstacles to optimize signal strength.
2. Software Configuration
-
PLC Program Development:
-
Write data sending programs in the master PLC (e.g., using PUT/GET instructions in the S7 protocol).
-
Configure data receiving blocks and response logic in the slave PLC.
-
GRM110 Parameter Settings:
-

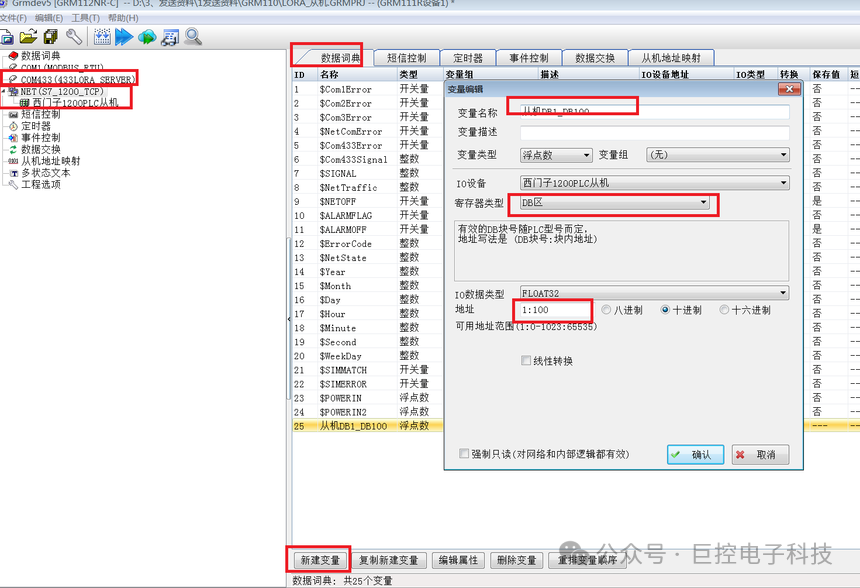

Set PLC type, IP address, register address, and wireless transmission cycle using JuControl configuration software.
-
Define the data point table, mapping the PLC’s I/O points or memory areas (e.g., DB blocks).
3. Debugging and Testing
-
Signal Strength Testing: Use a field strength meter to detect link quality, adjust antenna positions, or add relay modules.
-
Data Verification: Enable CRC checks and retransmission mechanisms to ensure data transmission integrity.
-
Real-time Performance Evaluation: Typical communication cycles can reach 100ms to 500ms, meeting the needs of most industrial scenarios.
Advantages of the Solution
-
Wiring-Free Construction: Reduces wiring costs by 90%, especially suitable for cross-regional or mobile device communications.
-
High Reliability: LORA’s resistance to multipath fading adapts to complex factory environments.
Application Scenarios
-
PLC data synchronization between production lines and storage areas
-
Communication between mobile devices (e.g., AGV carts) and fixed PLC stations
-
Centralized monitoring of distributed pump stations/valve clusters
Conclusion
The wireless communication solution based on JuControl GRM110 and LORA provides an economical and efficient path for interconnecting Siemens PLCs. This technology not only simplifies system architecture but also enhances the flexibility and scalability of industrial automation networks. In the future, with the development of 5G and LORA integration technologies, wireless PLC communication will reach a higher performance stage.
